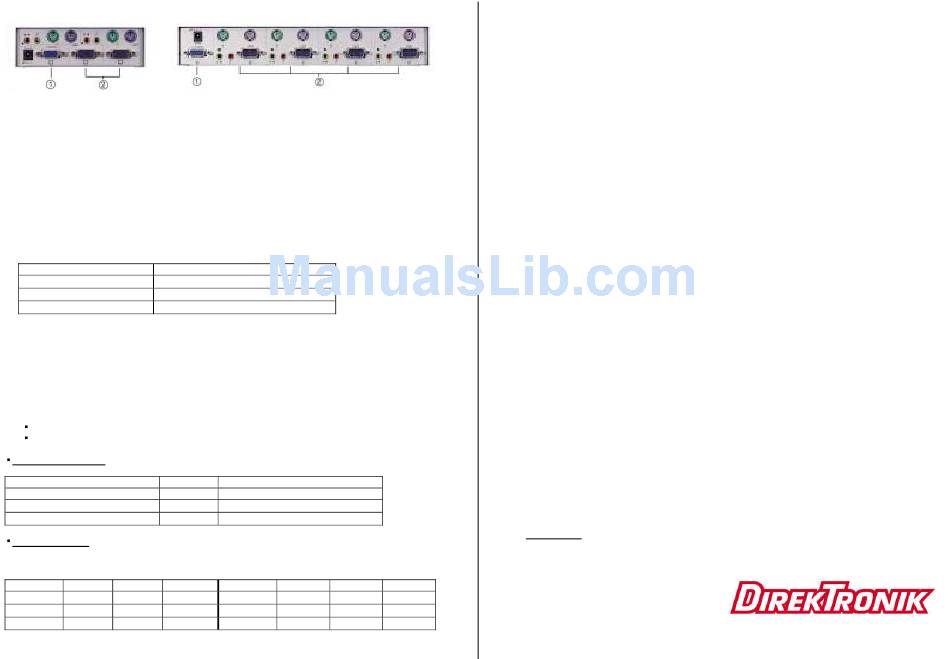

Rear View

Console Monitor connector
1.
CPU Port Connectors
2.
Installation
Before the installation, making sure the peripherals are grounded properly and turning off all PCs.
1.
Connect the monitor, keyboard and mouse with the Console Port Connectors.
2.
Use the recommended extension cables to connect the PCs with the CPU Ports of KVM Switch.
3.
Turn on the PCs.
Operation
1. LEDs Display
Activity
Off PC power off.
Green On PC power on and connected.
Green On, Red Flashing PC power on and connected and selected.
Note: If LEDs red light still going on flashing after turning off the PCs, clearing state by turning on any one
of the PCs.
2.2 ways PC selection
2.1 Port Selection Switch (Manual Type)
Directly press the switch on front panel for accessing the chose PC. LEDs light up for verifying the chose
PC.
2.2 Hot Key option
Hot Key Navigation allows you to select PC directly from keyboard.
Two features to Hot Key Navigation:
Select the chose PC
Auto scan mode
Select the chose PC:
Press [Ctrl] key twice either on the left or the right side.
Hot Key Model #
[L Ctrl] + [L Ctrl] or [R Ctrl] + [R Ctrl] IC-712-IA
[L Ctrl] + [L Ctrl] IC-714-IA
[R Ctrl] + [R Ctrl] IC-714-IA
Auto Scan Mode:
Press [Scroll Lock] key twice to activate the Auto Scan Mode. Lights reveal the scan interval from 5 to 30
seconds in order serially auto scan. Pres [Esc] key to quit the mode
Note: Light(s) corresponding timetable
Seconds Num Lock Caps Lock Scroll Lock
5 seconds Off Off On
10 seconds On Off Off
15 seconds On Off On
*Use the right side number key [+][-] to increase or decrease time.
Meaning
Action
Access between two PCs.
Switch to previous PC.
Switch to next PC.
Seconds Num Lock Caps Lock Scroll Lock
20 seconds Off On
25 seconds
Off On
30 seconds
On On
-3-
3. The boot-up default of Smart View KVM Switch will link to your first activated PC.
4. Under function of "Auto skip over the power off PC" and yet the LEDs green light turn off, it is incapable of
turning on the PCs by keyboard.
5. Beep sound on/off option: Press the right [Shift] key twice to turn on of off the beep sound by preference.
6. Auto navigator assists to detect the system while re-installing the mouse. Press [Esc] key to quit the auto
navigator.

Troubleshooting

Making sure the cables are qualified and positioned.
Q1 : The keyboard has no response.
A1a: Re-install the keyboard. Unplug the keyboard from the Console Port and plug it back again.
A1b: Re-install the Smart View. Shut down the PCs, unplug the cables from the Smart View, waiting for
five seconds, plug the cables back and activate the PCs.
A1c: If under Auto Scan Mode please press [Esc] key to escape.
A1d: PCs can't extend the power to Smart View. Please attach a power adapter of DC9V 300mA, which
the center polarity is positive.
A1e: Try another keyboard.
Q2 : The mouse has no response.
A2a: Re-install the mouse. Unplug the mouse from the Console Port and plug it back again.
A2b: Re-install the Smart View. Shut down the PCs, unplug the cables from the Smart View, waiting for
five seconds, plug the cables back and activate the PCs.
A2c: Making sure the mouse is set on PS/2 mode.
A2d: PCs can't extend the power to Smart View. Please attach a power adapter of DC9V 300mA, which
the center polarity is positive.
A2e: Try another mouse.
Note: If you using a special mouse, suggesting to install the mouse driver from original manufacturer in
order to manifest the functionality of Smart View.
Q3 : The mouse is out of control.
A3 : The mouse characteristic is inefficient. Try another superior mouse and plug it back again. Starting
the operation when hearing the beep sound.
Q4 : There has the video problem.
A4a: The resolution or bandwidth is set too high. Smart View supports the VGA, SVGA, Multisync and
XGA (interlaced) with the resolutions up to 1920 x 1440 Hz. The maximum bandwidth is 200 MHz.
A4b: The cable is unqualified. Please use the superior cables from Smart View cables series.
Q5 : Why the LEDs reveal the green is on/ red is flashing under the PCs are turned off?
A5 : It's normal state. The causes come from PC internal setting. It shows the keyboard and/or the
mouse possesses the power.
Q6: There has the power problem.
A6a: PCs can't extend the power to Smart View. Please attach a power adapter of DV9V 300mA.
A6b: If PCs power off as well as the KVM "selected" LEDs light off, the mouse and keyboard will lose the
data while re-booting. Suggesting attaching a power adapter.
Trademarks:
All the companies, brand names, product names are referred to this manual, are the trademarks or
registered trademarks belonging to their respective companies.
