Smart view IC-712-IAUR User Manual

KVM
SWITCH
(IC-712-IAUR)
(IC-714-IAUR)

USER MANUAL

IC-712-IAUR
IC-714-IAUR
Package Contents –
1 Smart View IC-712-IAUR or IC-714-IAUR KVM
Switch
1 User Manual
Please contact your vendor if anything is missed.
Features
Controls PCs with one USB keyboard, USB mouse and
monitor respectively
Supports USB 1.0, 1.1, 2.0 specification compliant and
supports UHCI, OHCI & EHCI host controller
Supports USB Boot protocol & Wakeup Devices
Supports speaker & microphone
Supports the Windows, Linux and Macintosh
Supports Microsoft IntelliPoint 5.0 drivers & Logitech
SetPoint Driver (Except MX5500, Logic)
Superior video quality - Up to 1920 x 1440, DDC, DDC2,
DDC2B, DDC2AB, 200MHz
3 ways for PC selection -- Push-button switch or hot key
or mouse clicking
Easy to install--No software required
Hot Pluggable

Specifications

Function
PC Connectors
Port Selection
On Line
LEDs
Selected
Connector Console Port
-Keyboard,
CPU Port
Mouse
Console Port 1x HD-15 Female (Std. VGA/SVGA)
Connector
-Monitor
CPU Port
Connector Console Port
-Audio,Mic.
CPU Port
(Jack)
VGA Resolution
Power Adapter
Scan Interval
Housing
Weight
Dimensions (LxWxH)
V1.0

Hardware Requirements

One highest resolution VGA, SVGA or Multisync monitor
One USB mouse
Console One USB keyboard
One pair of speakers.
One microphone.
One VGA, SVGA or Multisync card
One USB port
PC
One audio jack port.
One microphone port.
Cable Smart View custom cables or equivalent
IC-712-IAUR IC-714-IAUR
2 4
Push-button Switch / Hot Key
/ Mouse Clicking
2 4
2 4
2x USB A-Type
2x USB B-Type 4x USB B-Type
2x HD-15 Male 4x HD-15 Male
(Std. VGA/SVGA) (Std. VGA/SVGA)
1 x Audio, Microphone
2 x Audio, Mic. 4 x Audio, Mic.
1920x1440 (Max.), DDC, DDC2,
DDC2B, DDC2AB, 200MHz
DC 9V 300mA (Min.) spare
5 sec ~ 30 sec
Metal
469 g 660 g
130x76x42 mm 200x76X42 mm
Required specifications
-1-

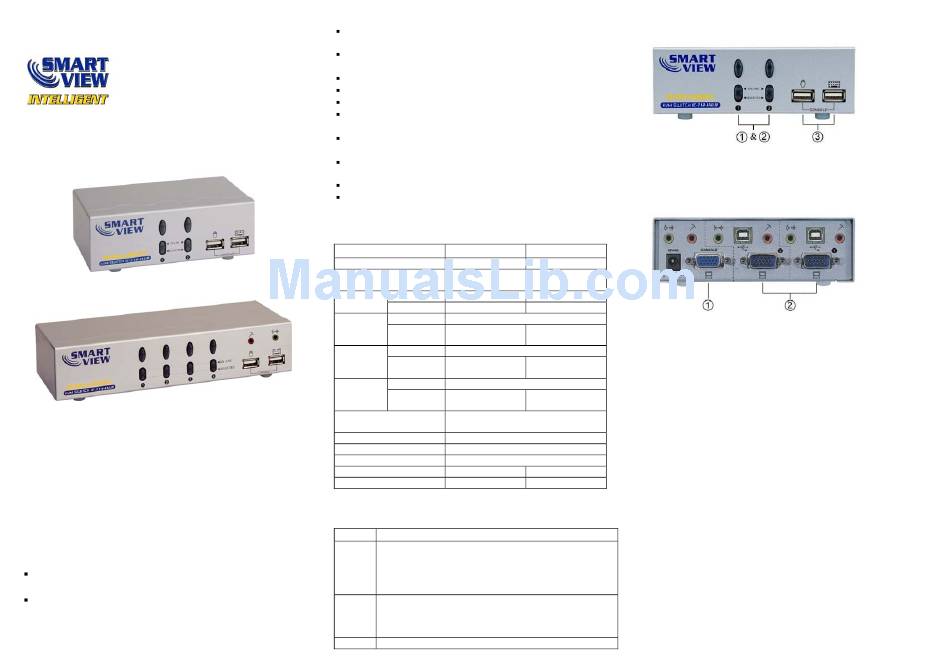

Appearance

Front View

1. Push-button Switches (Manual type)
2. Port LEDs
3. Console Keyboard and Mouse Connectors

Rear View

1. Console Monitor, Speaker and Microphone
Connectors
2. CPU Port Connectors
Installation
Before the installation, make sure the peripherals of all
PCs are grounded properly and turned off.
1. Connect the monitor, keyboard and mouse with the
Console Port Connectors.
2. Use the recommended extension cables to connect
the PCs with the CPU Ports of KVM Switch.
3. Turn on the PCs.
-2-
