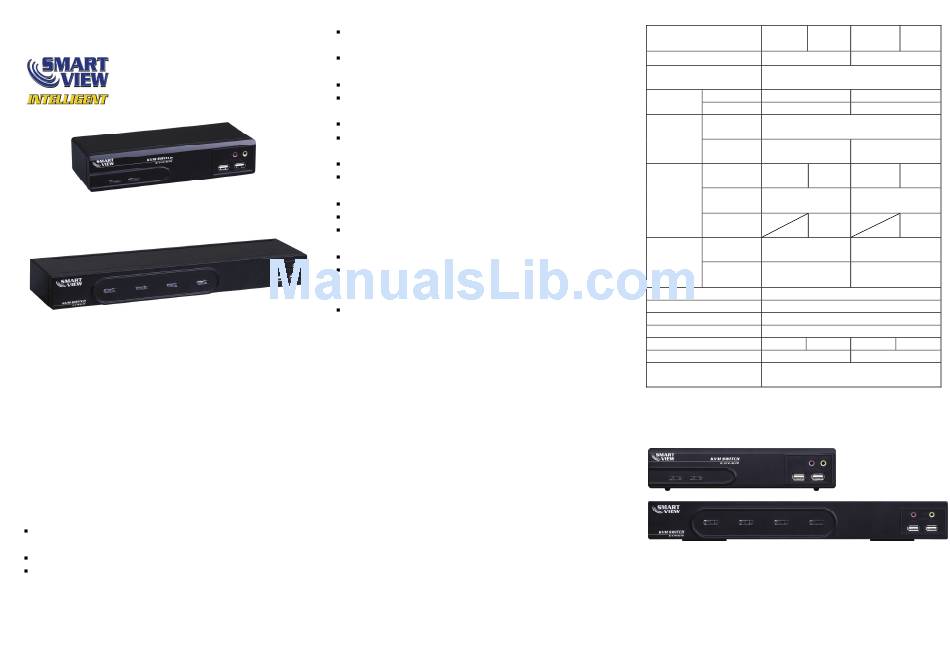

Smart view IC-312-AUTD User Manual

KVM
SWITCH
(IC-312-AUTD / IC-312-AUD)
(IC-314-AUTD / IC-314-AUD)
USER MANUAL
IC-312-AUTD/IC-312-AUD
IC-314-AUTD/IC-314-AUD
Package Contents –
1 Smart View IC-312-AUTD or IC-312-AUD or
IC-314-AUTD or IC-314-AUD KVM Switch
1 User Manual
1 power adapter DC 9V
Please contact your vendor if anything is missed.
-1-
Features
Controls PCs with one USB keyboard, USB mouse
and monitor respectively.
Supports USB 1.0, 1.1, 2.0 Specification compliant
and supports UHCI, OHCI & EHCI host controller.
Supports USB Boot protocol & Wakeup Device.
Supports the windows, Linux, Macintosh with USB
connection.
Supports speaker & microphone.
Supports DUAL-VIEW Display(only IC-312-AUTD,
IC-314-AUTD).
Use Panel Link digital technology.
Supports high-resolution display up to UXGA
(25-165MHz).
Compliant with the specification of DVI 1.0.
Support DVI-D Single Link.
3 ways for PC selection -- Push-button switch, hot
key or mouse clicking.
Easy to install--No software required.
Hot Pluggable.
Auto scan function to monitor PCs.
Auto skips over the power-off PC.
Beep sound and multi selection ways on/off option
for port selection.
V1.2

Specifications

PC Connectors
Port Selection
LEDs
Connector-
keyboard
Mouse
Connector
Monitor
Audio,Mic.
(Jack)
Power Adapter
Scan Interval
Dimensions (LxWxH)
Cable Distance
(Device to Monitor)
Appearance

Front View

1. Push-button Switches (Manual type)
2. Port LEDs
3. Console Keyboard and Mouse Ports
4. Console Audio and Mic. Ports
-2-
IC-312- IC-312- IC-314-
Function
AUD AUTD
2
Push-button Switch / Hot Key
/ Mouse Clicking
On Line 2
Selected 2
Console
2x USB A-Type
Port
CPU
2 x USB B-Type
Port
Console
1 2
DVI Port
CPU
2
Port A
CPU
2
Port B
Console
1x Audio, Mic.
Port
CPU
2x Audio, Mic.
Port
Resolution 1600x1200 60Hz
DC 9V
5 sec ~ 30 sec
Housing Metal
Weight 515g 545g
200x80x42 mm 340x114x44 mm
10 M
-3-
IC-314-
AUD AUTD
4
4
4
4 x USB B-Type
1 2
4
4
1x Audio, Mic.
4x Audio, Mic.
1135g 1185g
