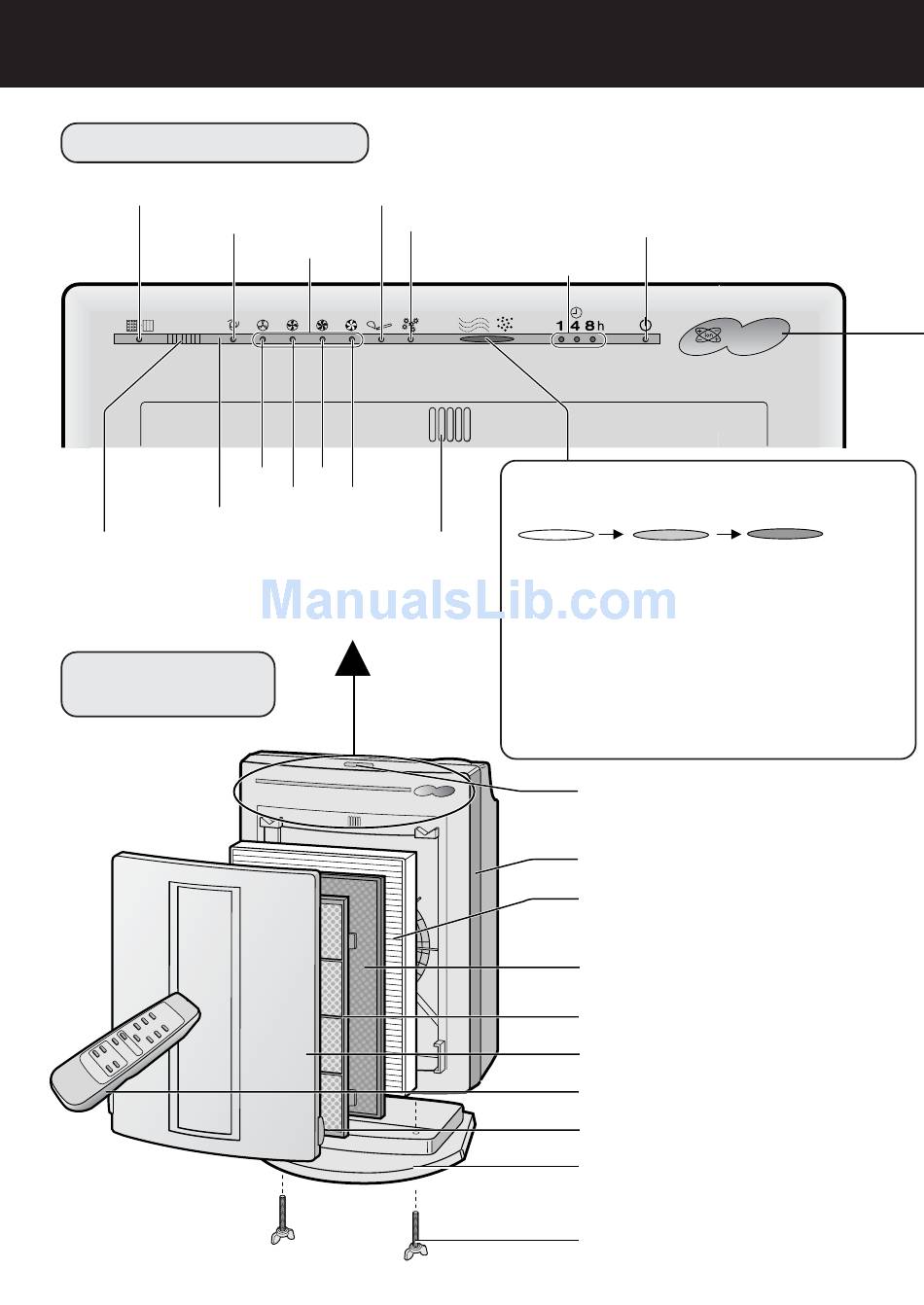

NAMES OF PARTS

MAIN UNIT DISPLAY

Filter timer lamp
AUTO operation lamp
Remote control receiver
Odor sensor
(Detects odors such as tobacco
smoke, incense, pets, cosmetics,
etc.)
EXPLODED
DIAGRAM
Tobacco smoke mode operation lamp
*
Pollen mode operation lamp
Fan level lamps
Silent High
Median Max
Dust sensor
(Detects dust, smoke,
pollen, house dust, etc.)
It can't remove the noxious substances
*
(carbon monoxide etc.) of cigarette.
OFF timer display lamps
(set using remote control)
Clean-sign lamp
The color changes when the air is dirty
Clean (green) Little dirty (orange) Very dirty (red)
ABOUT THE CLEAN-SIGN LAMP
• The dust sensor displays a clean sign depending on
the relative change of the environment at the time the
power plug is inserted in the wall outlet and after.
• When the air is extremely dirty at the time the power
plug is inserted, the clean sign lamp may light green
since the polluted state is the environment which the
sensor bases the pollution rate on.
• In this case, switch manually to desirable operation as
effective operation can't be done in auto operation.
• To reset the base pollution rate of the clean-sign lamp
remove and insert the power plug again the room air
becomes clean.
MODE-ON/OFF button
(Used to select operations or turn the
unit off)
Main unit
HEPA filter (white)
(Dust collection filter)
(W/ apatite antibacterial filter)
Stamina-power carbon (black)
(Deodorization filter)
Pre-filter
Front panel
Remote control
Hook
Stand
(Be sure to mount for tabletop instal-
lation)
Thumbscrew
E-4
Power lamp
(Lights when the power plug is
inserted into the wall outlet)
Plasmacluster
