intensity MDV-D36DL/VN1-C Service Manual

12,300 btus/hr, 15,400 btus/hr, 19,100 btus/hr, 24,200 btus/hr, 27,300 btus/hr, 30,700 btus/hr, 34,100 btus/hr, 38,200 btus/hr, 42,650 btus/hr, 47,800 btus/hr, 54,600 btus/hr
Hide thumbs
Table of Contents

Advertisement

Quick Links

MDV-D36DL/VN1-C, MDV-D45DL/VN1-C, MDV-D56DL/VN1-C
MDV-D71DL/VN1-C, MDV-D80DL/VN1-C, MDV-D90DL/VN1-C
MDV-D112DL/VN1-C, MDV-D140DL/VN1-C, MDV-D160DL/VN1-C
Ceiling & Floor
12,300 Btus/hr, 15,400 Btus/hr, 19,100 Btus/hr,
24,200 Btus/hr, 27,300 Btus/hr, 30,700 Btus/hr,
34,100 Btus/hr, 38,200 Btus/hr, 42,650 Btus/hr,
47,800 Btus/hr, 54,600 Btus/hr.

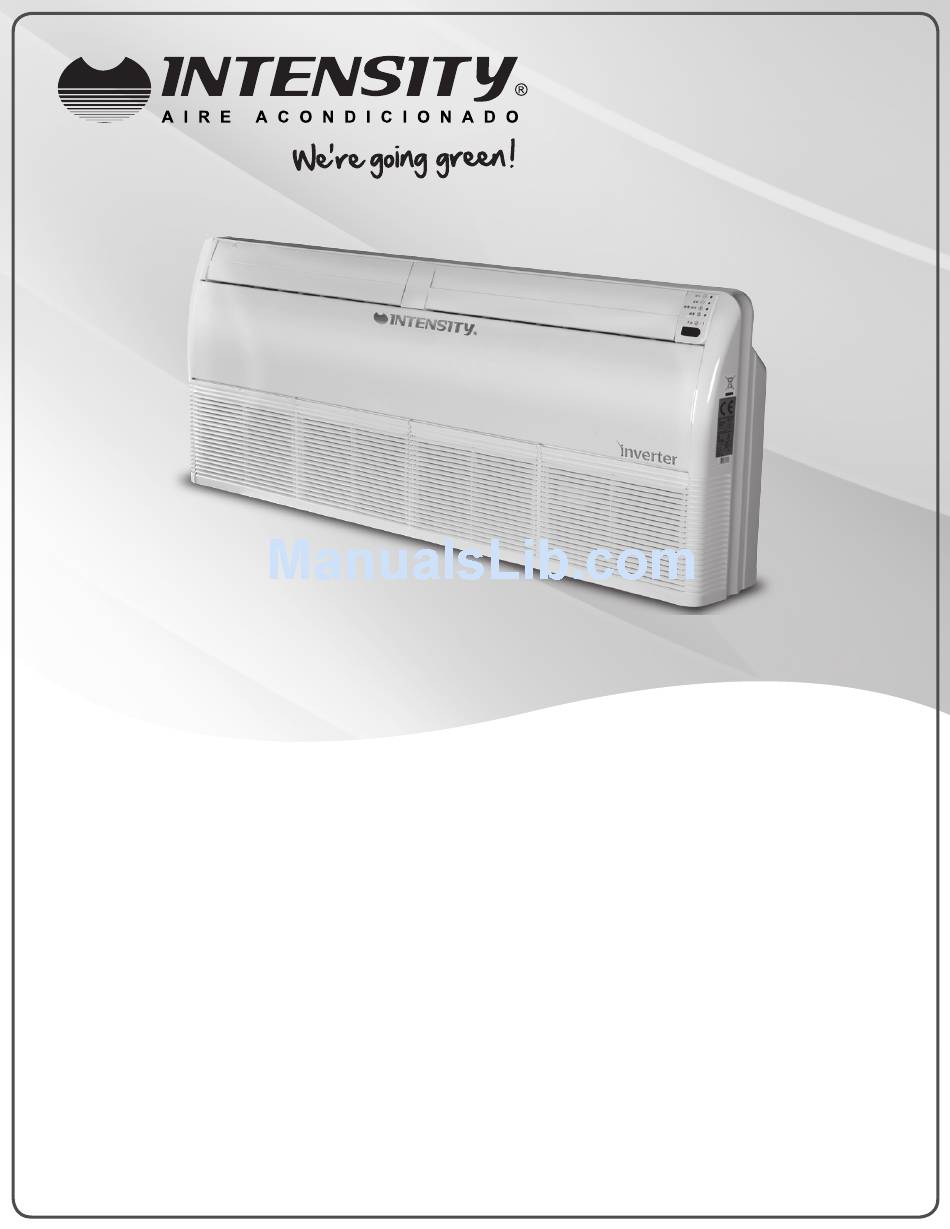

SERVICE MANUAL

www.intensity.com.mx
MAN-S-CF-1112

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MDV-D36DL/VN1-C and is the answer not in the manual?

Questions and answers

Related Manuals for intensity MDV-D36DL/VN1-C

Summary of Contents for intensity MDV-D36DL/VN1-C

  • Page 1: Service Manual

    MDV-D36DL/VN1-C, MDV-D45DL/VN1-C, MDV-D56DL/VN1-C MDV-D71DL/VN1-C, MDV-D80DL/VN1-C, MDV-D90DL/VN1-C MDV-D112DL/VN1-C, MDV-D140DL/VN1-C, MDV-D160DL/VN1-C Ceiling & Floor 12,300 Btus/hr, 15,400 Btus/hr, 19,100 Btus/hr, 24,200 Btus/hr, 27,300 Btus/hr, 30,700 Btus/hr, 34,100 Btus/hr, 38,200 Btus/hr, 42,650 Btus/hr, 47,800 Btus/hr, 54,600 Btus/hr. SERVICE MANUAL www.intensity.com.mx MAN-S-CF-1112...

  • Page 2: Table Of Contents

    MAN-S-CF-1112 Ceiling & Floor Type Ceiling & Floor Type 1. Feature ................3 2. Specifications .............. 4 3. Dimension ..............7 4. Service Space .............. 11 5. Piping Diagrams ............12 6. Wiring Diagram ............13 7. Capacity Tables ............15 8.

  • Page 3: Feature

    MAN-S-CF-1112 Ceiling & Floor Type 1. Feature Panel with LED display. The front panel and display panel have different colors for choose: white and brown for big panel, blue and brown for small panel, and the other colors can be customized according to the customers’ demands. Convenient for installation The ceiling type can be easily installed into a corner of the ceiling even if the ceiling is very narrow 1.2.1...

  • Page 4: Specifications

    MAN-S-CF-1112 Ceiling & Floor Type 2. Specifications Model MDV-D36DL/VN1-C MDV-D45DL/VN1-C MDV-D56DL/VN1-C MDV-D71DL/VN1-C Power supply V- Ph-Hz 220-240V~, 1Ph, 60Hz Capacity Btu/h 12300 15400 24200 19100 Cooling Input Rated current 0.55 0.55 0.55 0.57 Capacity Btu/h 13600 17100 21500 27300 Heating...
  • Page 5 MAN-S-CF-1112 Ceiling & Floor Type Model MDV-D80DL/VN1-C MDV-D90DL/VN1-C MDV-D112DL/VN1-C MDV-D140DL/VN1-C Power supply V- Ph-Hz 220-240V~, 1Ph, 60Hz 11.2 Capacity Btu/h 27300 30700 38200 47800 Cooling Input Rated current 0.83 0.83 12.5 15.5 Capacity Btu/h 30700 34100 42650 52900 Heating Input Rated current 0.83 0.83...
  • Page 6 MAN-S-CF-1112 Ceiling & Floor Type MDV-D160DL/VN1-C Model Power supply V- Ph-Hz 220-240V~, 1Ph, 60Hz Capacity Btu/h 54600 Cooling Input Rated current 1.75 Capacity Btu/h 61400 Heating Input Rated current 1.75 Model YSK90-4D x2 Type AC Motor Brand Indoor fan Welling motor Input 163/201...

  • Page 7: Dimension

    35-11/16(906.5) 1-3/8(35) 7-13/16(198.2) 1-9/16(39.5) 15-25/32(401) 14-19/32(371) Unit: in(mm) 3.2 Main dimension: MDV-D36DL/VN1-C MDV-D45DL/VN1-C Outer Length: 39-3/16in.(995mm), Height: 26-3/16in(665mm), Depth: 7-7/8in(200mm) Gas tube:Ф1/2” (Ф12.7mm),Liquid tube: Ф1/4” (Ф6.35mm) MDV-D56DL/VN1-C MDV-D71DL/VN1-C Outer Length: 39-3/16in.(995mm), Height: 26-3/16in(665mm), Depth: 7-7/8in(200mm) Gas tube: 5/8” ( 15.9mm)Liquid tube: 3/8”...
  • Page 8 MAN-S-CF-1112 Ceiling & Floor Type 3.3 Outline dimension of MDV-D80DL/VN1-C MDV-D90DL/VN1-C 50-9 /16( 1284.5) 47-1/32(1194.5) 21-17/32(547) 20-9/32(515) 7-13/16(198.2) 1-9/16(39.5) 1-15/32(37) Φ9.53mm Φ15.9mm Unit: in(mm) 3.4 Main dimension: MDV-D80DL/VN1-C MDV-D90DL/VN1-C Outer Length: 50-19/32in(1285mm), Height: 26-3/16in(665mm), Depth: 7-7/8in(200mm) Gas tube: 5/8” ( 15.9mm) Liquid tube: 3/8”...
  • Page 9 MAN-S-CF-1112 Ceiling & Floor Type 3.5 Outline dimension of MDV-D112DL/VN1-C MDV-D140DL/VN1-C 65-3/4(1670) 60-23/32(1542.3) 28-17/32(724.5) 24-13/16(630.5) 9-1/4(235) 4-7/16(112.5) 2-3/4(69.5) Φ9.53mm Φ15.9mm 3.6 Main dimension: MDV-D112DL/VN1-C MDV-D140DL/VN1-C Outer Length: 65-3/4in(1670mm), Height: 26-9/16in(675mm), Depth: 9-1/4in(235mm) Gas tube: 5/8” ( 15.9mm) Liquid tube: 3/8” ( 9.53) Ф...
  • Page 10 MAN-S-CF-1112 Ceiling & Floor Type 3.7 Outline dimension of MDV-D160DL/VN1-C 3.8 Main dimension: MDV-D160DL/VN1-C Outer Length: 65-3/4in(1670mm), Height: 26-49/64in(680mm), Depth: 11-7/32in(285mm) Gas tube: 5/8” ( 15.9mm) Liquid tube: 3/8” ( 9.53) Ф Ф Ф Ф...

  • Page 11: Service Space

    MAN-S-CF-1112 Ceiling & Floor Type 4. Service Space MDV-D36DL/VN1-C MDV-D45DL/VN1-C MDV-D56DL/VN1-C MDV-D71DL/VN1-C MDV-D80DL/VN1-C MDV-D90DL/VN1-C MDV-D112DL/VN1-C MDV-D140DL/VN1-C MDV-D160DL/VN1-C ＞23-5/8in (600mm) >600mm Obstacle Piping connection Keep more than 600mm clearance between the unit and left/right side wall. Air Outlet Obstacle ＞23-5/8in (600mm) 600mm As well 600mm and up between the front panel and wall.

  • Page 12: Piping Diagrams

    MAN-S-CF-1112 Ceiling & Floor Type 5. Piping Diagrams MDV-D36DL/VN1-C MDV-D45DL/VN1-C MDV-D56DL/VN1-C MDV-D71DL/VN1-C MDV-D80DL/VN1-C MDV-D90DL/VN1-C MDV-D112DL/VN1-C MDV-D140DL/VN1-C MDV-D160DL/VN1-C motor flare nut gas side heat exchanger flare nut liquid side...

  • Page 13: Wiring Diagram

    MAN-S-CF-1112 Ceiling & Floor Type 6. Wiring Diagram MDV-D36DL/VN1-C MDV-D45DL/VN1-C MDV-D56DL/VN1-C MDV-D71DL/VN1-C MDV-D80DL/VN1-C MDV-D90DL/VN1-C MDV-D112DL/VN1-C MDV-D140DL/VN1-C...
  • Page 14 MAN-S-CF-1112 Ceiling & Floor Type MDV-D160DL/VN1-C...

  • Page 15: Capacity Tables

    MAN-S-CF-1112 Ceiling & Floor Type 7. Capacity Tables 7.1 Cooling TC: total capacity SC: sensible capacity WB: wet-bulb temperature DB:dry-bulb temperature Indoor temperature (℉WB/DB) Outdoor Indoor 57.2/68 60.8/73.4 64.4/78.8 75.2/80.6 68/82.4 71.6/86 75.2/89.6 temperature Unit size (kW) (℉DB) 53.6 57.2 60.8 64.4 69.8...
  • Page 16 MAN-S-CF-1112 Ceiling & Floor Type 57.2 60.8 64.4 69.8 73.4 80.6 84.2 87.8 91.4 98.6 102.2 107.6 111.2 114.8 10.4 53.6 10.2 57.2 10.2 60.8 10.0 64.4 69.8 73.4 80.6 84.2 87.8 91.4 98.6 102.2 107.6 111.2 114.8 10.6 11.7 53.6 10.6 11.5...
  • Page 17 MAN-S-CF-1112 Ceiling & Floor Type 84.2 10.0 10.6 11.4 11.4 87.8 10.0 10.6 11.3 11.0 91.4 10.0 10.6 11.2 11.0 10.0 10.5 10.8 10.8 98.6 10.0 10.4 10.8 10.7 102.2 10.0 10.2 10.4 10.7 107.6 10.0 10.2 10.4 10.7 111.2 10.0 10.2 10.4...
  • Page 18 MAN-S-CF-1112 Ceiling & Floor Type 114.8 10.1 10.3 10.3 10.7 20.8 10.7 7.2 Heating TC: total capacity WB: wet-bulb temperature DB: dry-bulb temperature Indoor temperature (℉ DB) Outdoor temperature 60.8 64.4 69.8 71.6 75.2 Indoor Unit size (℉) (kW) -3.64 2.24 2.24 2.24...
  • Page 19 MAN-S-CF-1112 Ceiling & Floor Type 51.8 49.64 6.68 6.68 6.30 6.11 5.80 5.29 55.4 53.24 6.93 6.80 6.30 6.11 5.80 5.29 56.66 7.12 6.80 6.30 6.11 5.80 5.29 -3.64 4.48 4.48 4.48 4.48 4.48 4.48 -1.84 -2.2 4.80 4.80 4.80 4.80 4.80 4.80...
  • Page 20 MAN-S-CF-1112 Ceiling & Floor Type 14.36 12.2 7.70 7.70 7.70 7.70 7.70 7.70 14.9 8.03 8.03 8.03 8.03 8.03 8.03 16.7 15.62 8.25 8.25 8.25 8.25 8.25 8.25 19.4 18.32 8.36 8.36 8.36 8.36 8.36 8.36 21.92 8.69 8.69 8.69 8.69 8.69 8.69...
  • Page 21 MAN-S-CF-1112 Ceiling & Floor Type 39.38 17.46 17.46 17.46 17.46 16.56 15.12 44.6 42.8 18.0 18.0 18.0 17.46 16.56 15.12 48.2 46.22 18.54 18.54 18.0 17.46 16.56 15.12 51.8 49.64 19.08 19.08 18.0 17.46 16.56 15.12 55.4 53.24 19.80 19.44 18.0 17.46 16.56...

  • Page 22: Electric Characteristics

    MAN-S-CF-1112 Ceiling & Floor Type 8. Electric Characteristics Indoor Unit Power Supply Model Voltage Min. Max. MDV-D36DL/VN1-B 220-240V 0.21 0.025 0.15 MDV-D45DL/VN1-B 220-240V 0.64 0.055 0.57 MDV-D56DL/VN1-B 220-240V 0.64 0.055 0.57 MDV-D71DL/VN1-B 220-240V 0.64 0.055 0.57 MDV-D80DL/VN1-B 220-240V 0.08 0.63 MDV-D90DL/VN1-B 220-240V 0.08...

  • Page 23: Noise Levels

    2, Anechoic chamber conversion value, measured at a point 3.28ft(1m) in front of the unit at a height of 4.92ft(1.5m) 9.2 Test data (Sound Pressure Levels) Noise level under three speeds of fan (dB(A)) Model MDV-D36DL/VN1-C MDV-D45DL/VN1-C MDV-D56DL/VN1-C MDV-D71DL/VN1-C MDV-D80DL/VN1-C...
  • Page 24 MAN-S-CF-1112 Ceiling & Floor Type MDV-D80(90)DL/VN1-C MDV-D112(140)DL/VN1-C Audibility limits of Audibility limits of continuous white continuous white sound sound Octave band center frequency （ Hz ） Octave band center frequency （ Hz ） MDV-D160DL/VN1-C NC-60 NC-50 NC-40 NC-30 NC-20 Audibility limits of continuous white sound 1000 2000 4000 8000 Octave band center frequency （...

  • Page 25: Accessories

    MAN-S-CF-1112 Ceiling & Floor Type 10. Accessories 10.1 Standard accessories Name Quantity Shape Usage Installation manual Hook Hanging arm Pipe insulation material Heat insulation Remote controller RM05 7# alkaline battery Holder for remote controller Hold the remote controller Remoter controller manual —...
