• Precautions in handling the liquid crystal panel
1. Handle the liquid crystal panel in a clean room (Humidity: 50% or more).
2. Be sure to wear an earth wristband.
3. Be careful not to drop and shock the liquid crystal panel.
4. Use an ionizer (within 30 cm).

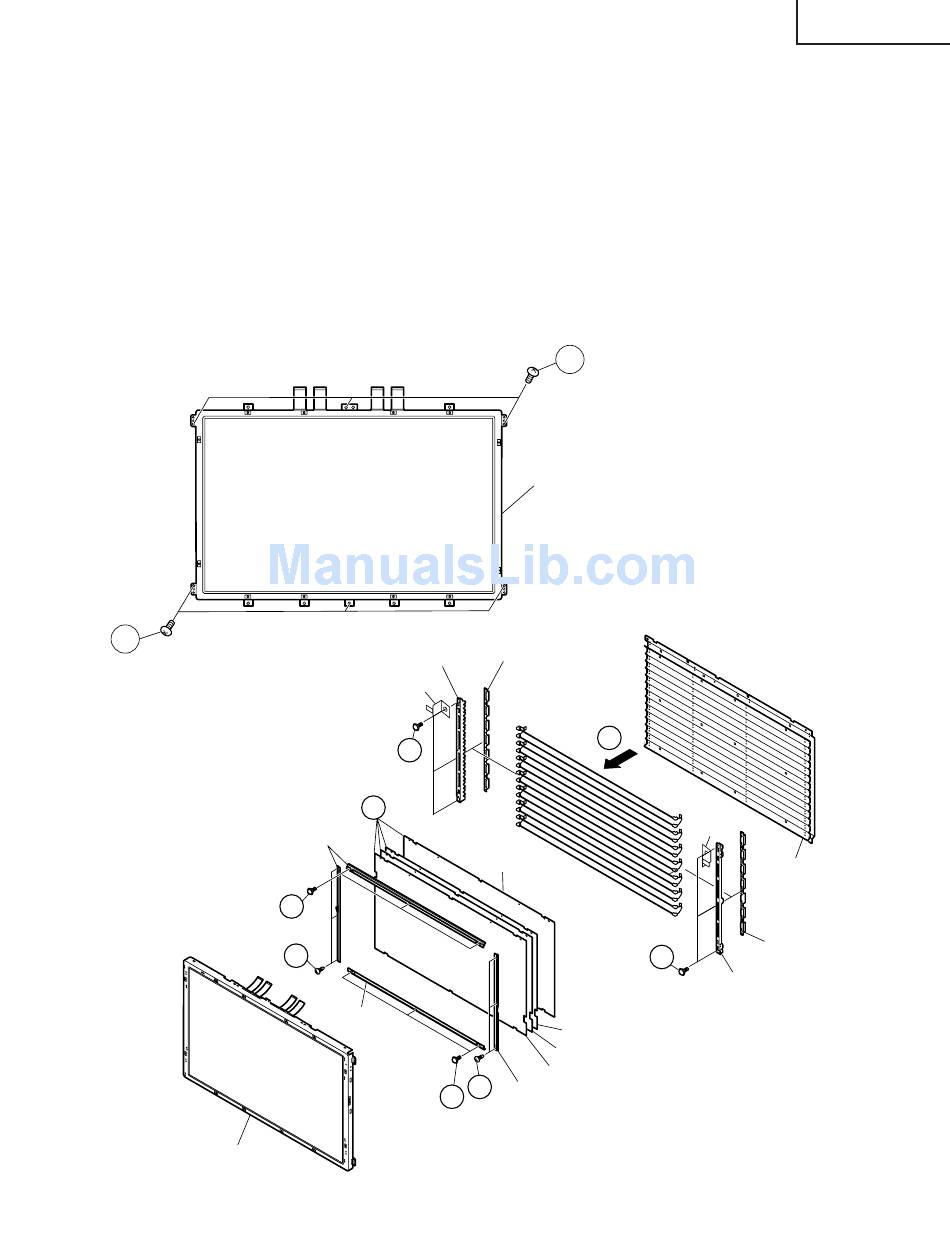

24.Remove the six lock screws from the LCD panel, and detach the LCD panel unit.
25.Remove the three lock screws from each of the sheet fixtures, and detach the sheet fixtures.
26.Detach the reflection/deflection sheet, prism sheet, diffusion sheet and diffusion panel.
27.Remove the three lock screws from each of the top and bottom lamp holders, and detach the top and bottom lamp
holders.
28.Detach the lamp assembly from the lamp clip.
23
Sheet fixture
LCD Panel Unit
Lamp Holder (Top) Lamp Holder (Bottom)
Panel bracket
Diffusion Panel
Sheet fixture
23
LCD Panel Unit (Front)
Lamp Unit
Diffusion Sheet
Prism Sheet
Reflection/Deflection Sheet
Sheet fixture
21
LC-37HV6U
Panel
bracket
Reflection Panel
Lamp Holder (Bottom)
Lamp Holder (Top)
