7. Remove the system/control terminal retaining:
7-1. Remove the four hex head screws securing the terminals of the system and control cables (white).
7-2. Remove the four screws securing the terminal of the system cable (gray).
7-3. Remove the four rear chassis retaining screws.
8. Remove the PC I/F and Audio I/F units:
8-1. Remove the five PC I/F top shield retaining screws and remove the shield.
8-2. Remove the six PC I/F unit retaining screws and remove the unit.
8-3. Remove the two PC I/F bottom angle retaining screws and remove the angle.
8-4. Remove the two Audio I/F unit retaining screws and remove the Audio I/F unit.
9. Remove the rear chassis.
9-1. Remove the three tuner nuts.
9-2. Remove the 13 rear cabinet retaining screws and remove the rear cabinet.
10. Remove the three power unit retaining screws and remove the power unit.

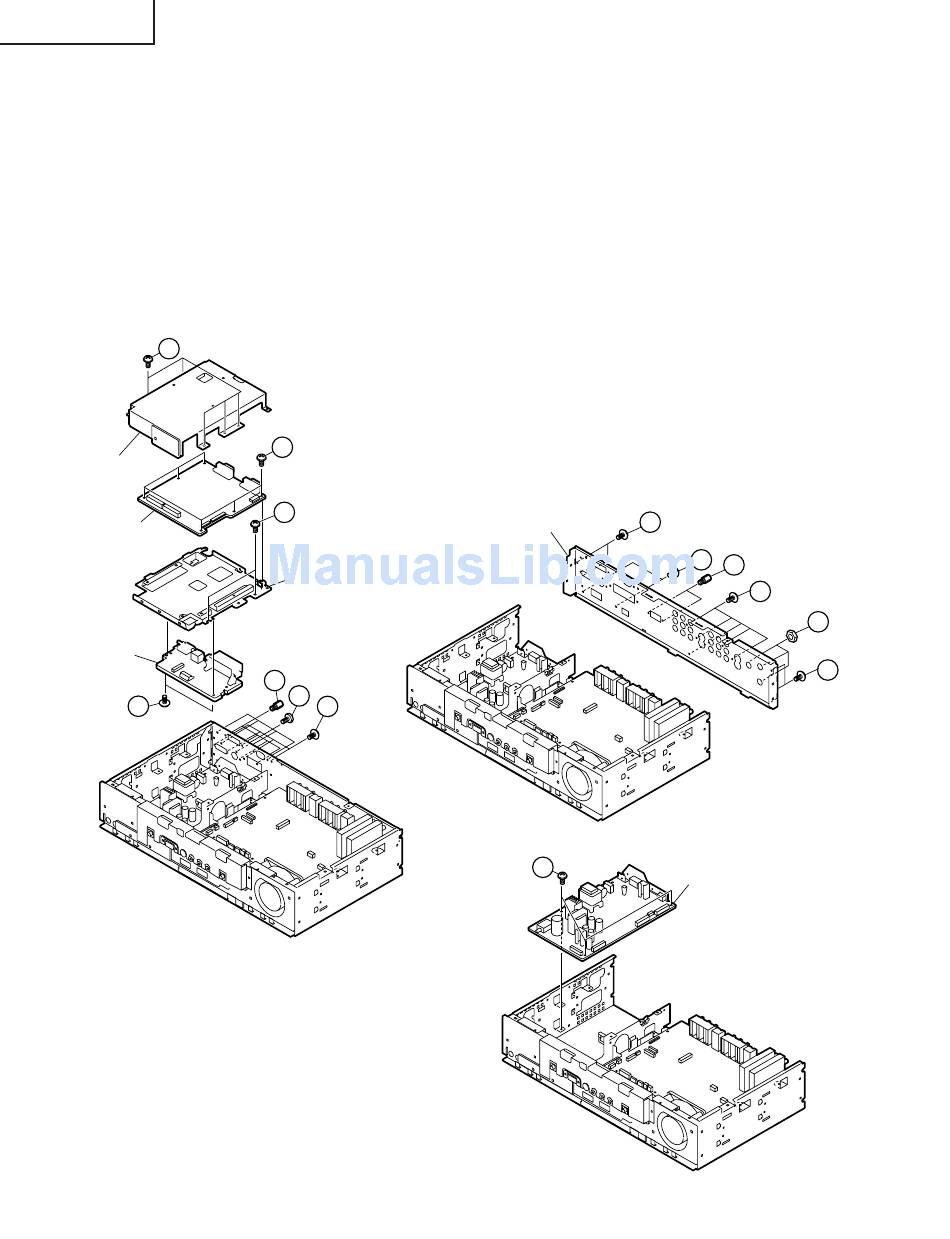

8-1
PC I/F Top Shield
PC I/F unit
Audio I/F unit
8-4
8-2
8-3
PC I/F Bottom Angle
7-1
7-3
7-2
16
9-2
Rear Cabinet
10
Power Unit
9-2
9-2
9-2
9-1
9-2
