In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its orig-
inal condition and only parts identical to those specified should be used.
For this model, the LCD panel module and digital tuner unit have been changed.
Since the LCD panel module has been changed, the design, main unit and digital unit have also been changed.
When servicing the product, use this manual with the service manual LC-37XD1E (S06X6LC37XD1E) already issued.
The previous LCD panel models and the new model can be identified with the following markings.
• The
character is added at the end of the model name on the model label.
B
• The
character is also added at the end of the model name on the number label (barcode label) of the
B
packing case.
• The serial product numbers (in the 5th thru 9th digits) are 51112 and on.
Items described in this manual
Adjustment items, Troubleshooting, Major IC informations, Block diagram, Printed Wiring Board, Schematic Diagram.
MODIFIED PARTS
MODIFIED PARTS ................................. . ............i
[1]
ADJUSTMENT PROCEDURE ............... . ....... 1-1
[1]
TROBLESHOOTING TABLE ................. . ....... 2-1
[1]
MAJOR IC INFORMATIONS.................. . ....... 3-1
[1]
BLOCK DIAGRAM ................................. . ....... 4-1
Parts marked with "
" are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the
safety and performance of the set.

SERVICE MANUAL

SUPPLEMENT

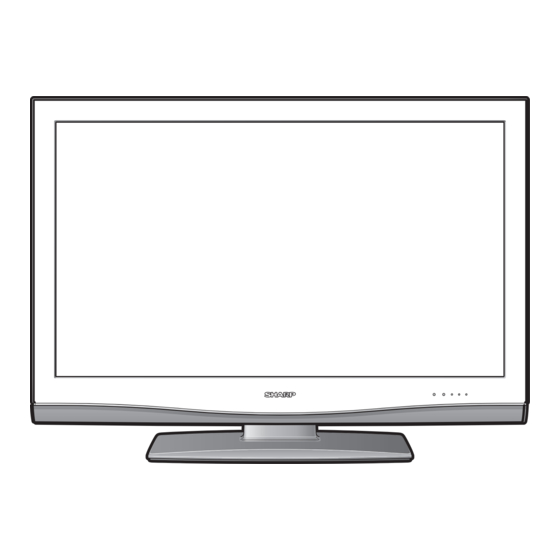

LCD COLOUR TELEVISION
LC-37XD1E/RU
MODELS
OUTLINE
CONTENTS
[2]
POWER BLOCK DIAGRAM ..........................4-3
[3]
WIRING DIAGRAM .......................................4-5
[1]
BOARD..........................................................5-1
CHAPTER 6. SCHEMATIC DIAGRAM
[1]
GRAM............................................................6-1
[2]
SCHEMATIC DIAGRAM ................................6-2
LC-37XD1E/RU SUPPLEMENT
No. S47E1LC37XD1E
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.

Advertisement

Table of Contents
loading

Summary of Contents for Sharp LC-37XD1RU

  • Page 1: Table Of Contents

    LC-37XD1E/RU SUPPLEMENT SERVICE MANUAL No. S47E1LC37XD1E SUPPLEMENT LCD COLOUR TELEVISION LC-37XD1E/RU MODELS In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its orig- inal condition and only parts identical to those specified should be used. OUTLINE For this model, the LCD panel module and digital tuner unit have been changed.
  • Page 2: Modified Parts

    LC-37XD1E/RU SUPPLEMENT LC-37XD1E MODIFIED PARTS Service Manual MODIFIED PARTS Ref No. Parts Name/Description After changing the Digi- Before changing the Digital Remark tal Tuner unit Tuner unit PRINTED WIRING BOARD ASSEMBLIES (NOT REPLACEMENT ITEM) AV Unit DUNTKD604FM21 DUNTKD604FM21 No Change Digital Unit DUNTKD628FM19 DUNTKD628FM12...
  • Page 3 LC-37XD1E/RU SUPPLEMENT Ref No. Parts Name/Description After changing the Digi- Before changing the Digital Remark tal Tuner unit Tuner unit R2734 VRS-CY1JF000JY Delete R2735 VRS-CY1JF000JY Delete R2755 VRS-CY1JF000JY Delete R2756 VRS-CY1JF000JY Delete R3013 VRS-CY1JF000JY Delete R3014 VRS-CY1JF000JY Delete R3015 VRS-CY1JF000JY Delete R3016 VRS-CY1JF000JY...
  • Page 4: Chapter 1. Adjustment Procedure Adjustment Procedure

    LC-37XD1E/RU SUPPLEMENT CHAPTER 1. LC-37XD1E ADJUSTMENT PROCEDURE Service Manual [1] ADJUSTMENT PROCEDURE The adjustment values are set to their optimum at the factory before shipping. If by any chance a value should become improper or a readjustment is required due to part replacement, make an adjustment according to the follow- ing procedure.
  • Page 5: Adjustment Process Mode Menu

    LC-37XD1E/RU SUPPLEMENT 4. Adjustment process mode menu The character string in brackets [ ] will appear as a page title in the adjustment process menu header. Remarks (adjustment detail,etc.) Item Description Page Line 1/13 [INFO] Main Version Main microprocessor version 37XD1B ver 2.31 2007.03.15 Dev Version ver 1.151...
  • Page 6 LC-37XD1E/RU SUPPLEMENT 4. Tuner adjustment Adjustment point Adjustment conditions Adjustment procedure 1 Setting [Signal] Feed the PAL Split Colour Bar (E-12ch) to TUNER. Make sure the PAL colour bar pattern (E-12) has the sync level of PAL split colour bar 7:3 with the picture level.
  • Page 7: Chapter 2. Troubleshooting Table

    LC-37XD1E/RU SUPPLEMENT CHAPTER 2. LC-37XD1E TROUBLESHOOTING TABLE Service Manual [1] TROBLESHOOTING TABLE No sound (1) (during the reception of TV broadcasting) No audio output during UHF/VHF reception Checklist: 1) Is the volume set to MIN or MUTE on the remote control ? ... Set the desired volume. 2) Are headphones connected to HEADPHONE (J1301 ) ? ...
  • Page 8 LC-37XD1E/RU SUPPLEMENT No sound except from speakers (3) -1 No audio output from the No audio output from headphones. EXT1 (SCART) terminal. Is there audio output on pins Checklist: (2) and (3) of the headphone 1) Is the MUTE button on the remote control set to ON? ... Set to OFF. terminal (J1301)? 2) Check the connection to external devices..Is there any improper connection? 3) ls S-MUTE-LINE [IC1710 (pin 92)] at H?..It is defective.
  • Page 9 LC-37XD1E/RU SUPPLEMENT No sound except from speakers (3) -2 No audio output from No audio output from EXT2 (SCART) termi- AUDIO OUTPUT termi- nal. nal. Checklist: 1) Is the MUTE button on the remote control set to ON? ... Set to OFF. 2) Check the connection to external devices..Is there any improper connection? 3) ls S-MUTE-LINE [IC1710 (pin 92)] at H?..It is defective.
  • Page 10 LC-37XD1E/RU SUPPLEMENT <0n input of the tuner (U/V)> No picture on the display (1) No picture appears on LCD during the tuner (U/V) reception. Checklist: 1) Is "INPUT SOURCE" button on the remote control set up correctly? ... See the operation manual and set "INPUT SOURCE" to "TV". 2) Is MENU-Picture-Contrast/Brightness set to "MIN"...
  • Page 11 LC-37XD1E/RU SUPPLEMENT <During external connection> No picture on the monitor (2) -1 SCART1: SCART2: No picture appears on EXT1 -connected monitor during the tuner (U/V) No picture from EXT1 appears on EXT2-connected montor. reception. Note: Normally, if the screen during display is sent to EXT2, no pic- ture is sent to EXT2.
  • Page 12 LC-37XD1E/RU SUPPLEMENT Backlight failure to light up Do all the fluorescent tubes light up? Check the individual fluorescent Replace any defective fluorescent tubes for light-up failure. tube (s) with new one (s). Is the power supplied to CN7501 on Check the connection between power the inverter unit? unit and inverter unit.
  • Page 13: Chapter 3. Major Ic Informations

    LC-37XD1E/RU SUPPLEMENT CHAPTER 3. LC-37XD1E MAJOR IC INFORMATIONS Service Manual [1] MAJOR IC INFORMATIONS 1. DESCRIPTION OF MAJOR ICs Dwg. REF NO Name Part Code Description Code IC1905 HDMI- VHISII9025+-1Q The SiI9025 is a second generation panel Link Cinema receiver that is compatible with Receiver the HDMI 1.2 (High Definition Multimedia interface) specification.
  • Page 14 LC-37XD1E/RU SUPPLEMENT 2. IC1905: VHISii9025+-1Q HDMI RECIEVER Pin No. Pin Name Pin Function 24-bit Output Pixel Data Bus. HDMI-B[0] 24-bit Output Pixel Data Bus. HDMI-B[1] 24-bit Output Pixel Data Bus. HDMI-B[2] 24-bit Output Pixel Data Bus. HDMI-B[3] 24-bit Output Pixel Data Bus. HDMI-B[4] 24-bit Output Pixel Data Bus.
  • Page 15 LC-37XD1E/RU SUPPLEMENT 24-bit Output Pixel Data Bus. HDMI-G[5] 24-bit Output Pixel Data Bus. HDMI-G[6] 24-bit Output Pixel Data Bus. HDMI-G[7] 24-bit Output Pixel Data Bus. HDMI-R[0] 24-bit Output Pixel Data Bus. HDMI-R[1] 24-bit Output Pixel Data Bus. HDMI-R[2] 24-bit Output Pixel Data Bus. HDMI-R[3] 24-bit Output Pixel Data Bus.
  • Page 16 LC-37XD1E/RU SUPPLEMENT 4,15,25,75,90,108, IOGND Input/Output Pin GND. 120,135 38,42,46,50,57,61, AVCC TMDS Analog VCC. (3.3V) 65,69 41,45,49,53,60,64, AGND TMDS Analog GND. 68,72 PVCC0 TMDS Port 0 PLL VCC. (3.3V) PVCC1 TMDS Port 1 PLL VCC. (3.3V) TMDSPGND TMDS PLL GND. AUDPVCC18 ACR PLL VCC.
  • Page 17 LC-37XD1E/RU SUPPLEMENT Supply Voltage. 27, 46 Ground. 10, 13, 14 N.C. Not Connected Internally. 4. IC201: VHITDA9886+-1 IF-PLL DEMODULATORS DEMODULATOR Pin No. Pin Name Pin Function VIF1 VIF differential input 1 VIF2 VIF differential input 2 Output port 1;open-collector. FMPLL FM-PLL for loop filter.
  • Page 18 LC-37XD1E/RU SUPPLEMENT 5. IC202: RH-IXB964WJZZ DVB-T RECEIVER Pin No Pin Name Description NOT_RESET Hardware reset, active Low. XTAL_I Crystal oscillator input/external clock(2.5V) XTAL_O Crystal oscillator output. RF_LEVEL ADC 8 input for RF level monitoring. Positive Q analog input for beaseband configuration, Nagative Q analog input for baseband configuration.
  • Page 19 LC-37XD1E/RU SUPPLEMENT AGC_RF RF AGC control (5V tolerant) AGC_IF IF AGC control (5V tolerant) TEST Reserved test mode, must be grounded. GPIO0 General-purpose input/output port 0. Reserved test mode, must be ground. GPIO1 General-purpose input/output port 1. GPIO2 General-purpose input/output port 2 or lock indicator. GPIO3 General-purpose input/output port 3 or lock indicator.
  • Page 20: Chapter 4. Block Diagram/Wiring Diagram Block Diagram

    LC-37XD1E/RU SUPPLEMENT CHAPTER 4. LC-37XD1E BLOCK DIAGRAM/WIRING DIAGRAM Service Manual [1] BLOCK DIAGRAM BLOCK DIAGRAM 4 – 1...
  • Page 21 LC-37XD1E/RU SUPPLEMENT 4 – 2...
  • Page 22: Power Block Diagram

    LC-37XD1E/RU SUPPLEMENT [2] POWER BLOCK DIAGRAM POWER BLOCK DIAGRAM 4 – 3...
  • Page 23 LC-37XD1E/RU SUPPLEMENT 4 – 4...
  • Page 24: Wiring Diagram

    LC-37XD1E/RU SUPPLEMENT [3] WIRING DIAGRAM WIRING DIAGRAM 4 – 5...
  • Page 25 LC-37XD1E/RU SUPPLEMENT 4 – 6...
  • Page 26: Chapter 5. Printed Wiring Board

    LC-37XD1E/RU SUPPLEMENT CHAPTER 5. LC-37XD1E PRINTED WIRING BOARD Service Manual [1] DIGITAL TUNER UNIT PRINTED WIRING BOARD D-TUNER Unit D-TUNER Unit (Component Side-A) (Chip Parts Side-A) 5 – 1...
  • Page 27 LC-37XD1E/RU SUPPLEMENT R209 C208 R203 C255 R201 R292 R291 C275 R214 R206 C279 IC209 R294 C234 R241 L203 R286 C227 C223 R230 C222 D206 C228 R287 D205 C220 C219 R228 R229 C232 L204 R240 R244 R234 C240 R210 R212 C213 C253 C212 R218...
  • Page 28 LC-37XD1E/RU SUPPLEMENT — MEMO — 5 – 3...
  • Page 29: Description Of Schematic Dia

    LC-37XD1E/RU SUPPLEMENT CHAPTER 6. LC-37XD1E SCHEMATIC DIAGRAM Service Manual [1] DESCRIPTION OF SCHEMATIC DIA- GRAM VOLTAGE MEASUREMENT CONDITION: 1. The voltages at test points are measured on exclusive AC adaptor and the stable supply voltage of AC 230V. Signals are fed by a colour bar signal generator for servicing pur- pose and the above voltages are measured with a 20k ohm/V tester.
  • Page 30 LC-37XD1E/RU SUPPLEMENT [2] SCHEMATIC DIAGRAM MAIN Unit-1 6 – 2...
  • Page 31 LC-37XD1E/RU SUPPLEMENT 6 – 3...
  • Page 32 LC-37XD1E/RU SUPPLEMENT MAIN Unit-2 6 – 4...
  • Page 33 LC-37XD1E/RU SUPPLEMENT 6 – 5...
  • Page 34 LC-37XD1E/RU SUPPLEMENT MAIN Unit-3 6 – 6...
  • Page 35 LC-37XD1E/RU SUPPLEMENT 6 – 7...
  • Page 36 LC-37XD1E/RU SUPPLEMENT MAIN Unit-4 6 – 8...
  • Page 37 LC-37XD1E/RU SUPPLEMENT 6 – 9...
  • Page 38 LC-37XD1E/RU SUPPLEMENT MAIN Unit-5 6 – 10...
  • Page 39 LC-37XD1E/RU SUPPLEMENT 6 – 11...
  • Page 40 LC-37XD1E/RU SUPPLEMENT MAIN Unit-6 6 – 12...
  • Page 41 LC-37XD1E/RU SUPPLEMENT 6 – 13...
  • Page 42 LC-37XD1E/RU SUPPLEMENT MAIN Unit-7 6 – 14...
  • Page 43 LC-37XD1E/RU SUPPLEMENT 6 – 15...
  • Page 44 LC-37XD1E/RU SUPPLEMENT MAIN Unit-8 6 – 16...
  • Page 45 LC-37XD1E/RU SUPPLEMENT 6 – 17...
  • Page 46 LC-37XD1E/RU SUPPLEMENT DIGITAL Unit-1 6 – 18...
  • Page 47 LC-37XD1E/RU SUPPLEMENT 6 – 19...
  • Page 48 LC-37XD1E/RU SUPPLEMENT DIGITAL Unit-2 6 – 20...
  • Page 49 LC-37XD1E/RU SUPPLEMENT 6 – 21...
  • Page 50 LC-37XD1E/RU SUPPLEMENT DIGITAL Unit-3 6 – 22...
  • Page 51 LC-37XD1E/RU SUPPLEMENT 6 – 23...
  • Page 52 LC-37XD1E/RU SUPPLEMENT DIGITAL Unit-4 6 – 24...
  • Page 53 LC-37XD1E/RU SUPPLEMENT 6 – 25...
  • Page 54 LC-37XD1E/RU SUPPLEMENT DIGITAL TUNER Unit 6 – 26...
  • Page 55 LC-37XD1E/RU SUPPLEMENT AND SHADED COMPONENTS=SAFETY RELATED PARTS 6 – 27...
  • Page 56 LC-37XD1E/RU SUPPLEMENT — MEMO — 6 – 28...
  • Page 57: Parts Guide

    LC-37XD1E/RU SUPPLEMENT PartsGuide PARTS GUIDE LCD COLOUR TELEVISION LC-37XD1E/RU MODELS CONTENTS PRINTED WIRING BOARD DUNTKD984FM02 ASSEMBLIES (DIGITAL TUNER Unit) (NOT REPLACEMENT ITEM) DUNTKD915FM09 (MAIN Unit) LCD PANEL AND TUNER (Only changed parts have been (NOTE: THE PARTS HERE described.) SHOWN ARE SUPPLIED AS AN ASSEMBLY BUT NOT CABINET PARTS INDEPENDENTLY.)
  • Page 58 LC-37XD1E/RU SUPPLEMENT PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [1] PRINTED WIRING BOARD ASSEMBLIES (NOT REPLACEMENT ITEM) DIGITALl Unit DUNTKD628FM19 DIGITAL TUNER Unit DUNTKD984FM02 MAIN Unit DUNTKD915FM09 [2] LCD PANEL AND TUNER (NOTE: THE PARTS HERE SHOWN ARE SUPPLIED AS AN ASSEMBLY BUT NOT INDEPENDENTLY.) 37"...
  • Page 59 LC-37XD1E/RU SUPPLEMENT PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [4] DUNTKD984FM02 (DIGITAL TUNER Unit) C274 Capacitor 0.01 50V Ceramic VCKYCY1HF103ZY C275 Capacitor 0.01 50V Ceramic VCKYCY1HF103ZY C276 Capacitor 0.01 50V Ceramic VCKYCY1HB103KY C277 Capacitor 0.01 50V Ceramic VCKYCY1HF103ZY C278 Capacitor 0.01 50V Ceramic VCKYCY1HF103ZY C279...
  • Page 60 LC-37XD1E/RU SUPPLEMENT PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [4] DUNTKD984FM02 (DIGITAL TUNER Unit) R243 Resistor 100 1/16W Metal Oxide VRS-CY1JF101JY R244 Resistor 220 1/16W Metal Oxide VRS-CY1JF221JY R245 Resistor 0 1/16W Metal Oxide VRS-CY1JF000JY R246 Resistor 0 1/16W Metal Oxide VRS-CY1JF000JY R247 Resistor 0 1/16W Metal Oxide...
  • Page 61 LC-37XD1E/RU SUPPLEMENT [6] CABINET PARTS 1-12 1-11 1-12 1-10...
  • Page 62 PARTS CODE DESCRIPTION RANK MARK DELIVERY [6] CABINET PARTS Top Cabinet Ass'y CCABAB582WJ01 Top Cabinet Front Cover GCOVAB883WJKA SHARP Badge HBDGBA060WJSA LED Cover HDECQA667WJSA Shine Trim HDECSA004WJKA Speaker Sheet HPNLSA097WJSA Mask Spacer (T-B), x2 PSPAHA933WJZZ Mask Spacer (Side), x2 PSPAHA934WJZZ...
  • Page 63 LC-37XD1E/RU SUPPLEMENT PRICE PART PARTS CODE DESCRIPTION RANK MARK DELIVERY [6] CABINET PARTS Screw, x2 (HDMI) XBPS830P06000 Screw, x3 (SKIRT-RCA FIX) XEBS930P08000 Screw, x13 (Cabinet) XEBS940P16000 Screw, x3 (TRAYI/PLATE-FIX) XJPS730P04WS0 Screw, x24 (PWB) XJPS730P08WS0 XBBS930P04000 Screw (Tuner)
  • Page 64 LC-37XD1E/RU SUPPLEMENT 2007 COPYRIGHT © 2005 BY SHARP CORPORATION ALL RIGHTS RESERVED. No Part of this publication may be reproduced, stored in a retrieval system, or transmitted in any from or by any means, electronic, mechanical, photocopying , recording, or otherwise, without prior written permission of the publisher.
