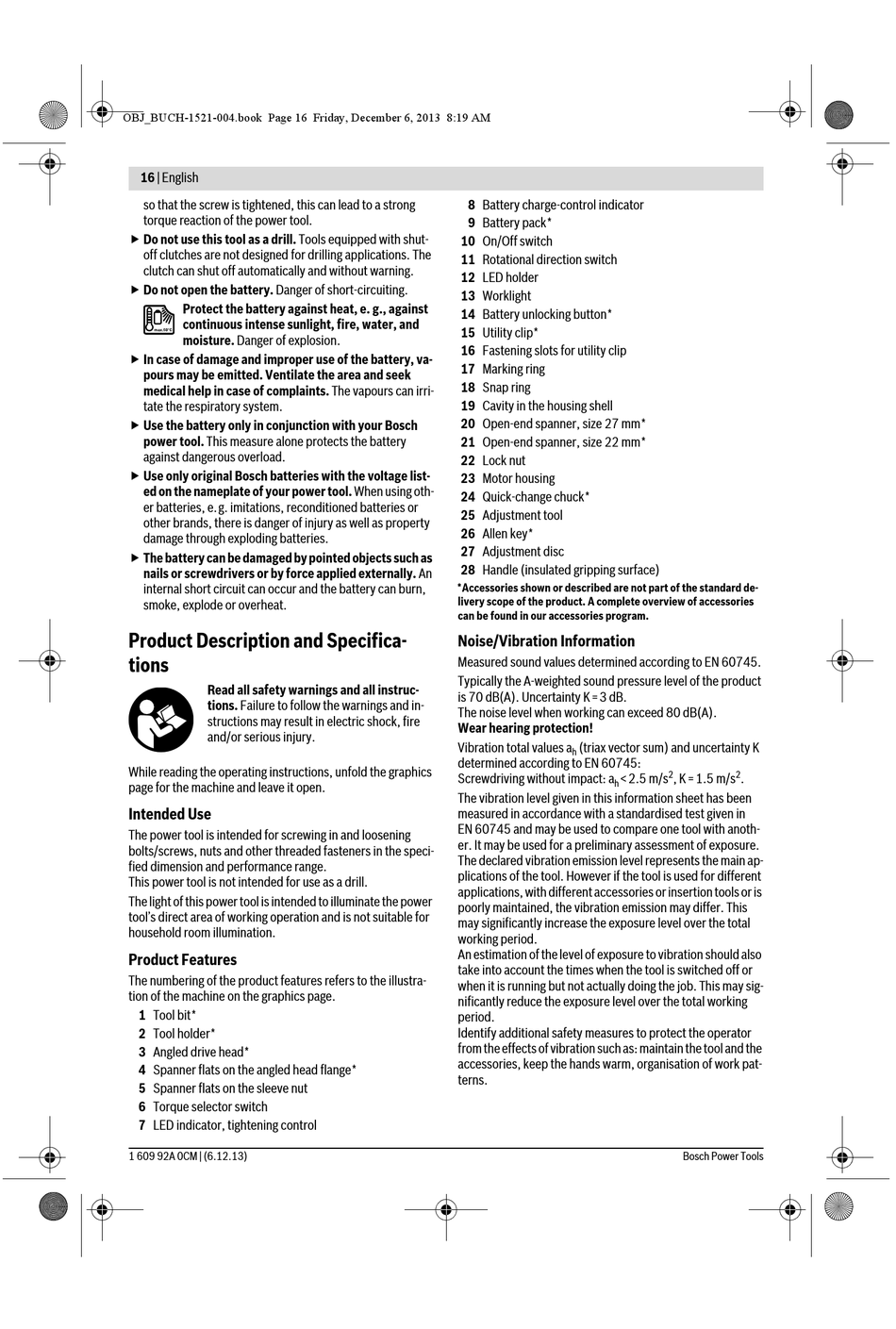

16 | English
so that the screw is tightened, this can lead to a strong
torque reaction of the power tool.
 Do not use this tool as a drill. Tools equipped with shut-
off clutches are not designed for drilling applications. The
clutch can shut off automatically and without warning.
 Do not open the battery. Danger of short-circuiting.
Protect the battery against heat, e. g., against
continuous intense sunlight, fire, water, and
moisture. Danger of explosion.
 In case of damage and improper use of the battery, va-
pours may be emitted. Ventilate the area and seek
medical help in case of complaints. The vapours can irri-
tate the respiratory system.
 Use the battery only in conjunction with your Bosch
power tool. This measure alone protects the battery
against dangerous overload.
 Use only original Bosch batteries with the voltage list-
ed on the nameplate of your power tool. When using oth-
er batteries, e.g. imitations, reconditioned batteries or
other brands, there is danger of injury as well as property
damage through exploding batteries.
 The battery can be damaged by pointed objects such as
nails or screwdrivers or by force applied externally. An
internal short circuit can occur and the battery can burn,
smoke, explode or overheat.
Product Description and Specifica-
tions
Read all safety warnings and all instruc-
tions. Failure to follow the warnings and in-
structions may result in electric shock, fire
and/or serious injury.
While reading the operating instructions, unfold the graphics
page for the machine and leave it open.

Intended Use

The power tool is intended for screwing in and loosening
bolts/screws, nuts and other threaded fasteners in the speci-
fied dimension and performance range.
This power tool is not intended for use as a drill.
The light of this power tool is intended to illuminate the power
tool's direct area of working operation and is not suitable for
household room illumination.

Product Features

The numbering of the product features refers to the illustra-
tion of the machine on the graphics page.
1 Tool bit*
2 Tool holder*
3 Angled drive head*
4 Spanner flats on the angled head flange*
5 Spanner flats on the sleeve nut
6 Torque selector switch
7 LED indicator, tightening control
1 609 92A 0CM | (6.12.13)
8 Battery charge-control indicator
9 Battery pack*
10 On/Off switch
11 Rotational direction switch
12 LED holder
13 Worklight
14 Battery unlocking button*
15 Utility clip*
16 Fastening slots for utility clip
17 Marking ring
18 Snap ring
19 Cavity in the housing shell
20 Open-end spanner, size 27 mm*
21 Open-end spanner, size 22 mm*
22 Lock nut
23 Motor housing
24 Quick-change chuck*
25 Adjustment tool
26 Allen key*
27 Adjustment disc
28 Handle (insulated gripping surface)
*Accessories shown or described are not part of the standard de-
livery scope of the product. A complete overview of accessories
can be found in our accessories program.

Noise/Vibration Information

Measured sound values determined according to EN 60745.
Typically the A-weighted sound pressure level of the product
is 70 dB(A). Uncertainty K=3 dB.
The noise level when working can exceed 80 dB(A).
Wear hearing protection!
Vibration total values a (triax vector sum) and uncertainty K
h
determined according to EN 60745:
Screwdriving without impact: a <2.5 m/s
h
The vibration level given in this information sheet has been
measured in accordance with a standardised test given in
EN 60745 and may be used to compare one tool with anoth-
er. It may be used for a preliminary assessment of exposure.
The declared vibration emission level represents the main ap-
plications of the tool. However if the tool is used for different
applications, with different accessories or insertion tools or is
poorly maintained, the vibration emission may differ. This
may significantly increase the exposure level over the total
working period.
An estimation of the level of exposure to vibration should also
take into account the times when the tool is switched off or
when it is running but not actually doing the job. This may sig-
nificantly reduce the exposure level over the total working
period.
Identify additional safety measures to protect the operator
from the effects of vibration such as: maintain the tool and the
accessories, keep the hands warm, organisation of work pat-
terns.
2 2
, K=1.5 m/s .
