General Power Tool Safety Warnings
Read all safety warnings, instructions, illustrations and specifications provided with this power tool.
Failure to follow all instructions listed below may result in electric shock, fire and/ or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mainsoperated (corded) power tool or battery-operated (cordless) power tool.
Work area safety
Electrical safety
Personal safety
Power tool use and care
Service
Safety Warnings for Drills
Safety instructions for all operations
Safety instructions when using long drill bits
Additional safety warnings
Products sold in GB only:
Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug.
The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.
Read all the safety and general instructions.
Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury. Please observe the illustrations at the beginning of this operating manual.
Intended Use

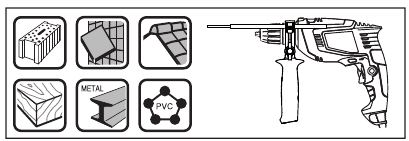

The power tool is intended for impact drilling in brick, concrete and stone, as well as for drilling in wood, metal, ceramic and plastic. Tools with electronic control and clockwise/anticlockwise rotation are also suitable for screwdriving.
Product Features
The numbering of the product features refers to the diagram of the power tool on the graphics page.
Technical Data
Impact Drill | UniversalImpact 800 | 8000 | |
Article number | 3 603 A31 1.. | |
Rated power input | W | 800 |
Max. power output | W | 560 |
No-load speed | min -1 | 50–3100 |
Rated speed | min -1 | 50–3100 |
Impact rate | min -1 | 46,500 |
Rated torque | Nm | 1.45 |
Stall torque in accordance with EN 62841 | Nm | 19 |
Speed preselection | ● | |
Constant electronic control | ● | |
Clockwise/anticlockwise rotation | ● | |
Rapid Shut-Off (KickBack Control) | ● | |
Fully automatic spindle lock (Auto-Lock) | ● | |
Spindle collar diameter | mm | 43 |
Max. drilling diameter | ||
| mm | 14 |
| mm | 14 |
| mm | 12 |
| mm | 30 |
Chuck capacity | mm | 2–13 |
Weight A | kg | 1.7 |
Protection class | ![]() |
The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country-specific models.
Noise/vibration information
Noise emission values determined according to EN 62841-2-1. Typically, the A-weighted noise level of the power tool is: Sound pressure level 103 dB(A); sound power level 111 dB(A). Uncertainty K = 5 dB.
Wear hearing protection!
Vibration total values a h (triax vector sum) and uncertainty K determined according to EN 62841-2-1:
Drilling into metal: ah = 8 m/s 2 , K = 2 m/s 2,
Impact drilling into concrete: ah = 32 m/s 2 , K = 2.5 m/s 2 ,
Screwdriving: ah < 2.5 m/s 2 , K = 1.5 m/s 2 .
The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to compare power tools. They may also be used for a preliminary estimation of vibration and noise emissions. The stated vibration level and noise emission value represent the main applications of the power tool. However, if the power tool is used for other applications, with different accessories or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period. To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period. Implement additional safety measures to protect the operator from the effects of vibration, such as servicing the power tool and accessories, keeping their hands warm, and organising workflows correctly.

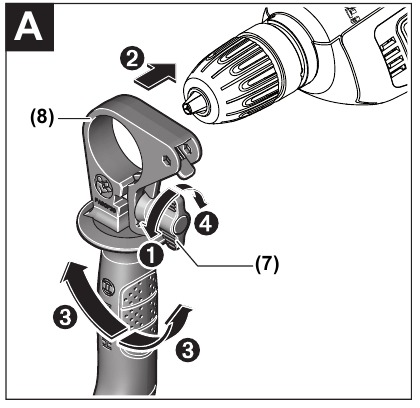

Auxiliary Handle (see figure A)
Turn the wing bolt (7) anti-clockwise and guide the auxiliary handle (8) in the required position over the drill chuck onto the spindle collar of the power tool. You can swivel the auxiliary handle (10) in order to achieve a safe work posture that minimises your fatigue.
Swivel the auxiliary handle (10) to the required position and retighten the wing bolt (7) in clockwise direction.

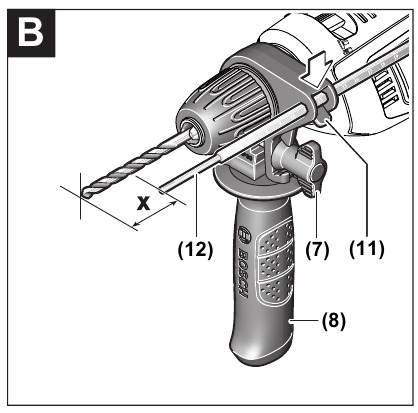

Setting the Drilling Depth (see figure B)
You can use the depth stop to set the required drilling depth X.
Press the button for depth stop adjustment (11) and insert the depth stop into the auxiliary handle (8).
The fluting on the depth stop (12) must face downwards.
Pull the depth stop (12) far enough out that the distance between the drill bit tip and the edge of the depth stop (12) corresponds to the required drilling depth X.
Dust/chip extraction
The dust from materials such as lead paint, some types of wood, minerals and metal can be harmful to human health. Touching or breathing in this dust can trigger allergic reactions and/or cause respiratory illnesses in the user or in people in the near vicinity. Certain dusts, such as oak or beech dust, are classified as carcinogenic, especially in conjunction with wood treatment additives (chromate, wood preservative). Materials containing asbestos may only be machined by specialists.
The regulations on the material being machined that apply in the country of use must be observed.
Changing the Tool

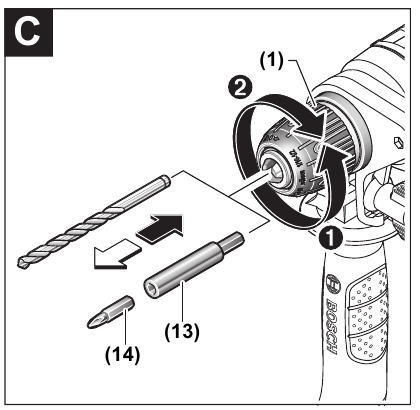

Keyless Chuck (see figure C)
The drill spindle is locked when the on/off switch (5) is not pressed. This makes it possible to change the application tool in the drill chuck quickly, conveniently and easily.
Open the keyless chuck (1) by turning it in the direction of rotation until the tool can be inserted. Insert the tool.
Firmly tighten the sleeve of the keyless chuck (1) by turning it by hand in the rotational direction until it stops clicking. This will automatically lock the drill chuck.
The lock will disengage again if you turn the sleeve in the opposite direction to remove the tool.
Screwdriving tools
You should always use a universal bit holder (13) when using screwdriver bits (14). Only use screwdriver bits that fit the screw head.
For screwdriving, make sure the "drilling/impact drilling" selector switch (2) is always set to the "drilling" symbol.
Changing the drill chuck

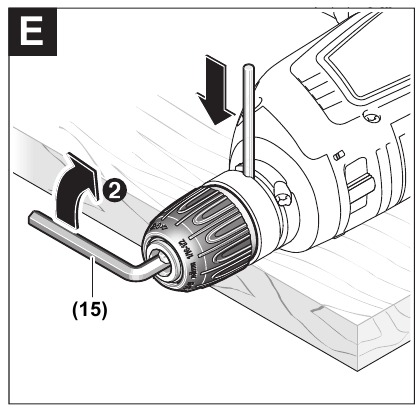

Removing the Drill Chuck (see figure E)
Remove the auxiliary handle (8).
Insert a steel pin with a diameter of 4 mm and a length of approx. 50 mm into the hole on the spindle collar to lock the drill spindle in place. Clamp a hex key (15) in the keyless chuck (1), leading with the short shaft.
Place the power tool on a firm surface, e.g. a work bench. Hold the power tool in place and loosen the keyless chuck (1) by turning the hex key (15) in the rotational direction . A tightly seated keyless chuck is loosened with a light blow on the long shaft of the hex key (15). Remove the hex key from the keyless chuck and completely unscrew the keyless chuck from the power tool.

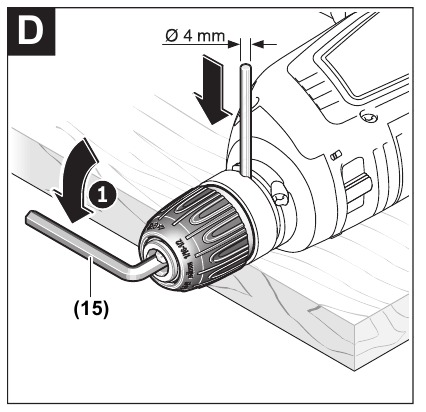

Fitting the Drill Chuck (see figure D)
To fit the keyless chuck (1), perform the same steps in reverse order.
The drill chuck must be tightened using a tightening torque of approx. 30–35 Nm.
Starting Operation

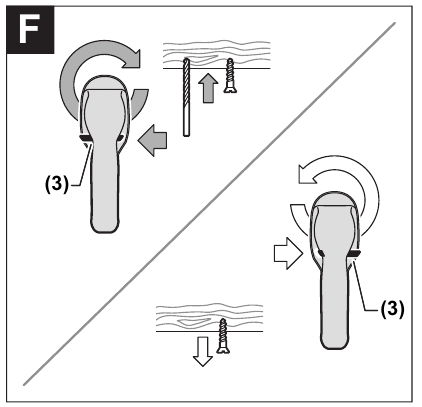

Set the rotational direction (see figure F)
The rotational direction switch (3) is used to change the rotational direction of the power tool. However, this is not possible while the on/off switch (5) is being pressed.
Right rotation: To drive in screws and tighten nuts, press the rotational direction switch (3) through to the left stop.
Left Rotation: To loosen and unscrew screws and nuts, press the rotational direction switch (3) through to the right stop.
Setting the Operating Mode
![]() | Drilling and screwdriving Set the selector switch (2) to the "drilling" symbol. |
![]() | Impact drilling Set the selector switch (2) to the "impact drilling" symbol. |
The selector switch (2) clicks into place and can also be actuated when the motor is running.
Switching on/off
To start the power tool, press and hold the on/off switch (5). Press the lock-on button (4) to lock the on/off switch (5) in this position.
To switch off the power tool, release the on/off switch (5); or, if the switch is locked with the lock-on button (4), briefly press the on/off switch (5) and then release it.
Rapid Shut-Off (KickBack Control)
The rapid shut-off function (Kick- Back Control) gives the user greater control over the power tool and offers them better protection than power tools that do not have Kick- Back Control. The power tool will switch off if it suddenly and unforeseeably rotates around the drilling axis.
To switch the tool back on, release the on/off switch and then press it again.
Adjusting the Speed/Impact Rate
You can adjust the speed/impact rate of the power tool when it is on by pressing in the on/off switch (5) to varying extents. Applying light pressure to the on/off switch (5) results in a low rotational speed/impact rate. Applying increasing pressure to the switch increases the speed/impact rate.
Preselecting the speed/impact rate
You can preselect the required speed/impact rate using the speed preselection thumbwheel (6), even during operation.
The required speed/impact rate is dependent on the material and the work conditions and can be determined by practical trials.
Working Advice
After working at a low speed for an extended period, you should operate the power tool at the maximum speed for approximately three minutes without load to cool it down.
Maintenance and Cleaning
In order to avoid safety hazards, if the power supply cord needs to be replaced, this must be done by Bosch or by an after-sales service centre that is authorised to repair Bosch power tools.
After-Sales Service and Application Service
Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com
The Bosch product use advice team will be happy to help you with any questions about our products and their accessories. In all correspondence and spare parts orders, please always include the 10‑digit article number given on the nameplate of the product.
Great Britain
Robert Bosch Ltd. (B.S.C.) P.O. Box 98
Broadwater Park North Orbital Road Denham Uxbridge UB 9 5HJ
At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.
Tel. Service: (0344) 7360109 E-Mail: boschservicecentre@bosch.com
You can find further service addresses at:
www.bosch-pt.com/serviceaddresses
