KEY FEATURES
• High-Output Coaxial Stage Monitor
• Very compact size
• Low-profi le design
INTRODUCTION

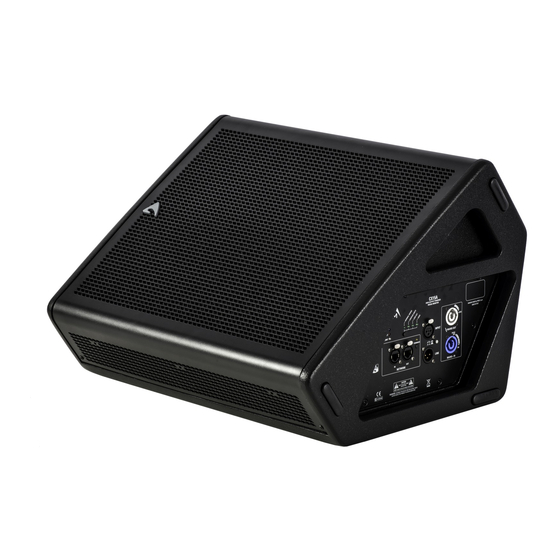

The CX15A is a coaxial stage monitor designed specifi cally for live sound, even if the low-
profi le enclosure is suitable also for theater and television applica ons. The high-performance
coaxial transducer employed provides good sound balance and great intelligibility even at
very high power.
The high frequency range is reproduced by a low-distor on compression driver, equipped with
pure Titanium diaphragm. An edgewound aluminum ribbon voice coil and a copper sleeve
reduce distor on and increase the unit's output. The special shape of the cone allows a precise
and controlled conical dispersion of 80°.
The 15" woofer employed in the reproduc on of the low frequency range is equipped with a
special interleaved sandwich 3" voice coil and an aluminum demodula on ring for minimum
distortion. A single powerful neodymium magnet guarantees high performance with a
consistent weight reduc on.
TECHNICAL SPECIFICATION
Acous cal
System type
Low frequency transducer
High frequency transducer
Frequency response (±3 dB)
Horizontal Coverage Angle
Ver cal Coverage Angle
Maximum Peak SPL @ 1m
Electrical
Input Impedance
Input Sensi vity
Signal Processing
Direct access Controls
* Nominal consump on is measured with pink noise with a crest factor of 12
dB, this can be considered a standard music program.
revision 2014-11-10

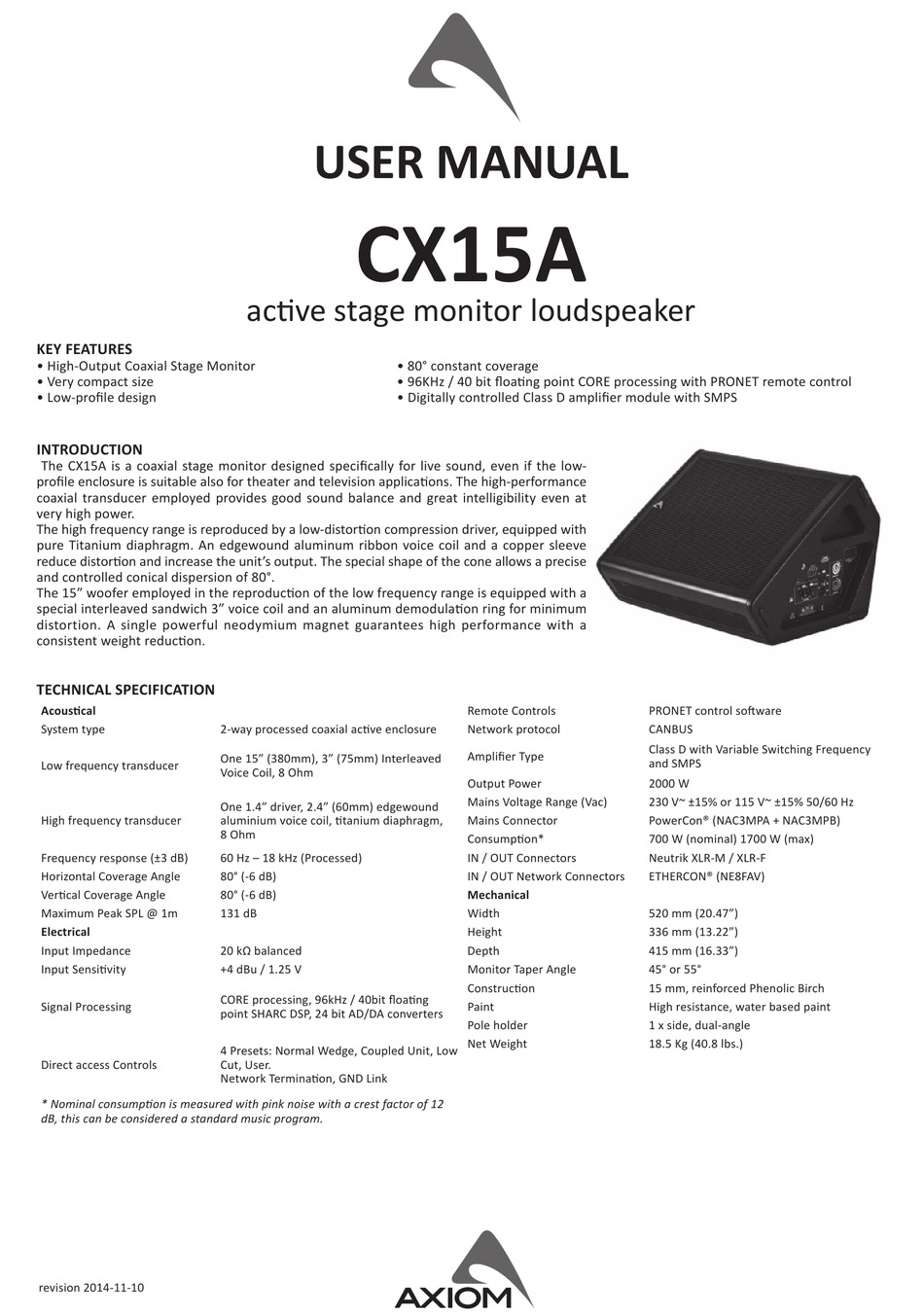

USER MANUAL
CX15A
ac ve stage monitor loudspeaker
2-way processed coaxial ac ve enclosure
One 15" (380mm), 3" (75mm) Interleaved
Voice Coil, 8 Ohm
One 1.4" driver, 2.4" (60mm) edgewound
aluminium voice coil, tanium diaphragm,
8 Ohm
60 Hz – 18 kHz (Processed)
80° (-6 dB)
80° (-6 dB)
131 dB
20 kΩ balanced
+4 dBu / 1.25 V
CORE processing, 96kHz / 40bit fl oa ng
point SHARC DSP, 24 bit AD/DA converters
4 Presets: Normal Wedge, Coupled Unit, Low
Cut, User.
Network Termina on, GND Link
• 80° constant coverage
• 96KHz / 40 bit fl oa ng point CORE processing with PRONET remote control
• Digitally controlled Class D amplifi er module with SMPS
Remote Controls
Network protocol
Amplifi er Type
Output Power
Mains Voltage Range (Vac)
Mains Connector
Consump on*
IN / OUT Connectors
IN / OUT Network Connectors
Mechanical
Width
Height
Depth
Monitor Taper Angle
Construc on
Paint
Pole holder
Net Weight
PRONET control so ware
CANBUS
Class D with Variable Switching Frequency
and SMPS
2000 W
230 V~ ±15% or 115 V~ ±15% 50/60 Hz
PowerCon® (NAC3MPA + NAC3MPB)
700 W (nominal) 1700 W (max)
Neutrik XLR-M / XLR-F
ETHERCON® (NE8FAV)
520 mm (20.47")
336 mm (13.22")
415 mm (16.33")
45° or 55°
15 mm, reinforced Phenolic Birch
High resistance, water based paint
1 x side, dual-angle
18.5 Kg (40.8 lbs.)
Advertisement
Table of Contents
Related Manuals for Axiom CX15A
Summary of Contents for Axiom CX15A
-
Page 1: User Manual
• Digitally controlled Class D amplifi er module with SMPS INTRODUCTION The CX15A is a coaxial stage monitor designed specifi cally for live sound, even if the low- profi le enclosure is suitable also for theater and television applica ons. The high-performance coaxial transducer employed provides good sound balance and great intelligibility even at very high power. -
Page 2: Mechanical Drawing
MECHANICAL DRAWING 42.1 cm 16.6" 45° 55° 37.6 cm 41.5 cm 52.0 cm 14.8" 16.3" 20.5" OPTIONAL ACCESSORIES CXCASE02 Carrying Case for 2 box unit NAC3FCA Neutrik Powercon® BLUE PLUG USB2CAN PRONET network converter NAC3FCB Neutrik Powercon® WHITE PLUG NE8MCB Neutrik Ethercon PLUG NC3MXXBAG Neutrik XLR-M... -
Page 3: Mains Out
LOW CUT This PRESET is the same as NORMAL WEDGE but with a low cut at 110 Hz 48 dB/oct. To be selected when a CX15A is used in combina on with a subwoofer to form a DRUM FILL or a SIDE FILL system. It can be used also in case you need to cut dras cally the monitor LF response. -
Page 4: Power Amplifiers
The superior sound quality can be compared with top-of-the-range AB-class analog systems, while the DA modules feature a higher dynamics, very compact size and light weight and effi ciency above 90%. The DA module employed for powering the CX15A deliver in an ultra-compact package a maximum power of 2000W. - Page 5 EXAMPLE OF PRONET NETWORK WITH CX15A WEDGE MONITOR PC NOTEBOOK USB2CAN USB 2.0 port network do not pressed LAST DEVICE pressed FIRST DEVICE AND FOLLOWING network Assign the ID number To work properly in a PRONET network each connected device must have a unique iden fi er number, called ID. By default the USB2CAN PC controller has ID=0 and there can be only one PC controller.
- Page 6 EDITING USER PRESETS If you connect the CX15A to a PC, using PRONET Control So ware you can edit the user presets. In par cular, the user preset no. 4-U can be loaded also from the unit’s control panel without the need to connect again the loudspeaker to PRONET.
-
Page 8: Limited Warranty
LIMITED WARRANTY Proel warrants all materials, workmanship and proper opera on of this product for a period of two years from the original date of purchase. If any defects are found in the materials or workmanship or if the product fails to func on properly during the applicable warranty period, the owner should inform about these defects the dealer or the distributor, providing receipt or invoice of date of purchase and defect detailed descrip on.
