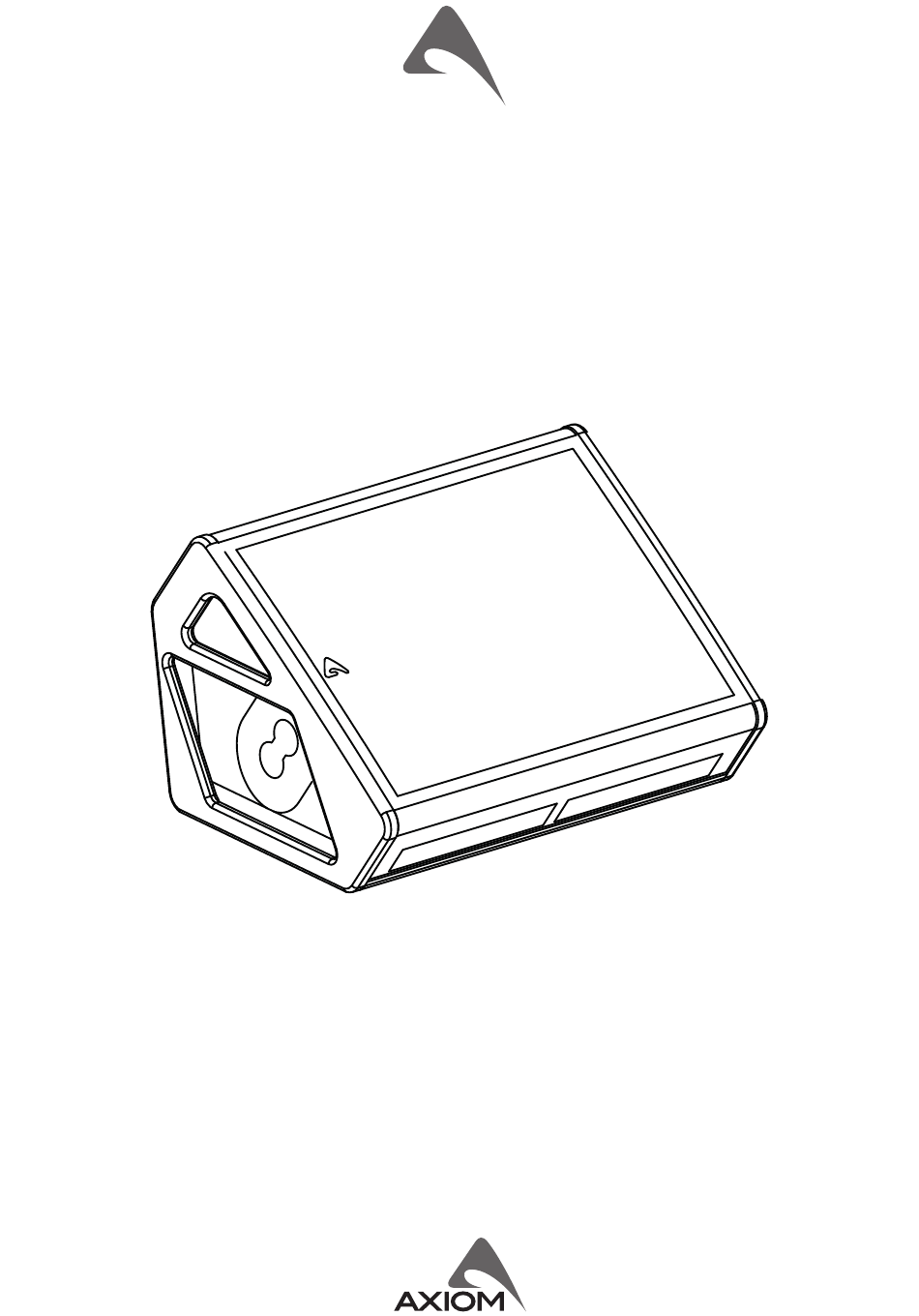

- Page 1 CX15AV2 Powered Processed Stage Monitor USER MANUAL revision 2023-09-05...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Watch for these symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
-
Page 4: Table Of Contents
The CX15AV2 is processed by 40 bit floating point CORE2 DSP and powered by a high efficiency CLASS D amplifier module with a newly designed power supply equipped with PFC, which reduces the power consumption while enhancing reliability and consistency in all operating conditions. -
Page 5: Mechanical Drawing
MECHANICAL DRAWING 42.1 cm 16.6" Dual angle pole holder (0°/7.5°) 45° 55° 37.6 cm 41.5 cm 52.0 cm 16.3" 14.8" 20.5" OPTIONAL ACCESSORIES CXCASE02 CAT5SLU01/05/10 Carrying Case for 2 box unit 1x Cat5e with NEUTRIK connectors, 1/5/10 m length NAC3FXXA-W-L Neutrik Powercon® BLUE PLUG NAC3FXXB-W-L Neutrik Powercon®... -
Page 6: I/O And Control Operations
Powercon® NAC3FCB power output connector (grey). This is connected in parallel with the MAINS ~ / IN. The maximum load MANUFACTURED by PROEL S.p.A. WARNING: applicable depends on the mains voltage. With 230V~ we suggest to link a maximum of 4 CX15AV2 loudspeakers, with 120V~ we TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK MADE IN ITALY DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE suggest to link a maximum of 2 CX15AV2 loudspeaker. -
Page 7: Sign/Limit
This PRESET is the same as NORMAL WEDGE but with a low cut at 110 Hz 48 dB/oct. To be selected when a CX15AV2 is used in combination with a subwoofer to form a DRUM FILL or a SIDE FILL system. It can be used also in case you need to cut drastically the monitor LF response. -
Page 8: Pronet Ax Network
Download the PRONET AX app registering on MY AXIOM at the website at https://www.axiomproaudio.com/. The AXIOM active loudspeaker devices can be connected in a network and controlled by the PRONET AX software. For the network connection the PROEL USB2CAND (with 2-port) converter optional accessory is needed. - Page 9 Assign the ID number To work properly in a PRONET AX network each connected device must have a unique identifier number, called ID. By default the USB2CAND PC controller has ID=0 and there can be only one PC controller. Every other device connected must have its own unique ID equal or greater than 1: in the network cannot exist two devices with the same ID.
-
Page 10: Editing User Presets
EDITING USER PRESETS If you connect the CX15AV2 stage monitor to a PC, using PRONET AX Control Software you can edit the user presets. Here below a typical stage setup of a band using 8 CX15AV2 wedges from a monitor engineer point of view: Setup - Device Name: here you can assign a unique name at the unit (twelve characters are available). - Page 11 Note: a delay higher than 10 mS (3 m) is easily audible and it can be annoying to singers and musicians. PEQ - EQ1-5: 5-band full parametric EQ. Note: CX15AV2 is already optimized for the best performance for wedge monitoring, so we suggest to make only small adjustments to adjust the response for particular enviroments or instrument mic’ing.
- Page 12 PROEL S.p.A. (World Headquarters) - Via alla Ruenia 37/43 - 64027 Sant’Omero (Te) - ITALY Tel: +39 0861 81241 Fax: +39 0861 887862 www.axiomproaudio.com...
