VXC/VEX Cards User's Manual
VXC-112(A)U/112iAU, VXC-142(A)U/142i(A)U,
VXC-182i(A)U, VXC-114U/114iAU, VXC-144U/144iU
VEX-114/114i, VEX-144/144i, VEX-112/112i, VEX-142/142i
Warranty
All products manufactured by ICP DAS are warranted against
defective materials for a period of one year from the date of delivery to
the original purchaser.
Warning
ICP DAS assumes no liability for damages consequent to the use of
this product. ICP DAS reserves the right to change this manual at any
time without notice. The information furnished by ICP DAS is believed to
be accurate and reliable. However, ICP DAS assumes no responsibility
for its use, or for any infringements of patents or other rights of third
parties resulting from its use.
Copyright
Copyright 2007 by ICP DAS. All rights are reserved.
Trademark
The names used for identification only may be registered
trademarks of their respective companies.
VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User's Manual (Ver. 1.5
Aug.10 2012) -----1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEX-114 and is the answer not in the manual?

Questions and answers

Summary of Contents for ICP DAS USA VEX-114

  • Page 1 Copyright Copyright 2007 by ICP DAS. All rights are reserved. Trademark The names used for identification only may be registered trademarks of their respective companies. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----1...
  • Page 2: Table Of Contents

    ..............................47 INUX PROGRAMMING REFERENCE ........................... 50 PCI H .......................... 50 ARDWARE I/O A ........................51 DDRESS APPING UART R ..........................53 EGISTER ......................54 ROGRAMMABLE 4.5........................56 USTOMIZED VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----2...
  • Page 3: Introduction

    Easy replacement of an existing card by setting the dip-switch to be the same COM port number. • Great for mass system installation, since setting the dip-switch to be the same COM port number is very easy. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----3...
  • Page 4 Up To 128 KB COM Port Buffer: The VXC/VEX card driver for Windows features a 128 KB maximum software FIFO for each port (default is 4 KB). It’s practical for large file transmission. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----4...
  • Page 5 The Universal PCI card works with both new 3.3 V PCI bus that has been widely-used in servers, and traditional 5 V PCI bus. The universal PCI interface will be the standard for every card from ICP DAS in the near future. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----5...
  • Page 6: Features

    1, 1.5, 2 FIFO size 128 Bytes Operating 0 ~ 50 Temperature Storage -20 ~ 70 Temperature Humidity 0 ~ 90 % non-condensing Dimensions (mm) X105 X105 X105 X105 X105 VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----6...
  • Page 7 FIFO size 128 Bytes Operating 0 ~ 50 Temperature Storage -20 ~ 70 Temperature Humidity 0 ~ 90 % non-condensing Dimensions 110X94 110X94 110X94 110X94 (mm) X101 X101 X110 X110 VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----7...
  • Page 8: Product Check List

    Universal PCI, 2-port Isolated RS-422/485 communication board VXC-144U Universal PCI, 4-port RS-422/485 communication board VXC-144iU Universal PCI, 4-port Isolated RS-422/485 communication board VXC-182i(A)U Universal PCI, 1-port Isolated RS-422/485 and 1-port RS-232 communication board VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----8...
  • Page 9: Options

      Cable, 1 M CA-0903 9-pin Female D-sub   & 5-wire RS-232 cable, 30 cm CA-0910 9-pin Female D-sub   & 3-wire RS-232 cable, 1 M VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----9...
  • Page 10 2 M Cable(45 º) CA-3720D 37-Pin Male-Male D-sub cable 2 M (180º)   CA-9-3715D DB-37 Male(D-sub) to 4-   Port DB-9 Male(D-sub) cable 1.5 M (180 º) VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----10...
  • Page 11: Hardware Configuration

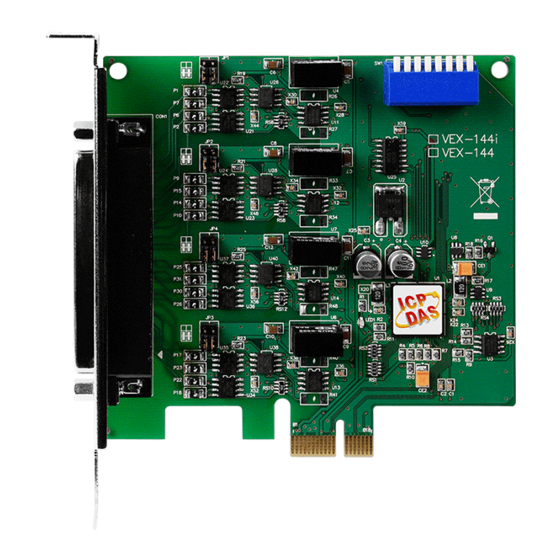

    2.Hardware configuration 2.1 Board Layout Board layout of the VXC-114U/114iAU/144U/144iU  CON1 VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----11...
  • Page 12  Board layout of the VXC-112(A)U/112iAU/142(A)U/142i(A)U/182i(A)U CON2 CON1 Board layout of the VEX-114/114i/144/144i  CON1 VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----12...
  • Page 13 Board layout of the VEX-112/112i/142/142i  CON2 CON1 VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----13...
  • Page 14: Com Port Mapping And Board Id

    For Linux users, it’s the same as Windows users but for TTY device number selector. The configuration examples are as follows. 8 7 6 5 4 3 2 1 VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----14...
  • Page 15 Board ID=0xC8 COM = 200/201/202/203 . . . Board ID=0xFF COM = 255/256/x/x Note: If multi-port serial board is 2-port VXC card the COM number is the first two numbers. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----15...
  • Page 16: Pin Assignment

    The RS-485 bus is a differential (balanced) signal, thus you cannot wire the Data+ with Data- directly for a single port loop-back test. It will not work at all! VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----16...
  • Page 17 2.3.3. VXC-114(iA)U/VEX-114(i) Pin Assignment DB-37 to 4-port DB-9 (CA-9-3715D) RS-232 Cable Wiring (Null Modem) VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----17...
  • Page 18 The RS-485 bus is a differential (balanced) signal, thus you cannot wire the Data+ with Data- directly for a single port loop-back test. It will not work at all! VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----18...
  • Page 19 Data+ with Data- directly for a single port loop-back test. It will not work at all! CN2: RS-232 port RS-232 Cable Wiring (Null Modem) VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----19...
  • Page 20: Hardware Installation

    It’s recommended to install driver first, since some OS (operating system such as Windows 2000) may ask you to restart the computer again after driver installation. This reduces the times to restart the computer. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----20...
  • Page 21: Software Installation

    This chapter shows you the detail steps to install these drivers. Note: For more information about COM port number selection, please refer to Section 2.2 “COM Port Mapping & Board ID”. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----21...
  • Page 22: Windows Nt 4.0

    Refer to “Quick Start” for getting the location of setup program on CD. 1. Launch the “VxCard_W7_v2.08.00.exe” setup program. 2. Click the “Next >” button to start installation. 3. Select a folder where setup will install files, and click “Next>” button. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----22...
  • Page 23 4. Select “No, I will restart the computer later” and click “Finish” button. 5. Turn off the computer and install the VXC/VEX card into the PC. 6. Power on the computer. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----23...
  • Page 24 “SW FIFO” scroll-bar on the VxCard Utility. To change the COM port mappings (see Section 2.2 COM Port Mappings and Board ID), users should restart the driver by rebooting the computer. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----24...
  • Page 25: Windows 2000

    1. Launch the VxCard_W7_v2.08.00.exe to install the driver and register the related information onto the system. 2. Click “Next>” button to start installation. 3. Select a folder where setup will install files, and click “Next>” button. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----25...
  • Page 26 6. Power on the computer, Windows 2000 should find the new card and load the driver automatically. (Sometimes Win2K pops up few confirm dialog box, just click “next” or “OK” to finish it.) VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----26...
  • Page 27 Click the ”Hardware” tab and then click the ”Device Manager” button. The VXC/VEX Card is listed under the ”VXC Multi-port serial Card” class, and each Communications Port is listed under the ”Ports (VxCard – RS-232/422/485)” class. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----27...
  • Page 28 3.2.4 Uninstallation Before removing the card from your computer, it’s recommended to uninstall the device from the ”Device Manager”. This removes unused hardware information from the database (registry) of Windows. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----28...
  • Page 29: Windows Xp/2003

    3.3.1 Disable Driver Signing 1. Select ”Start / Settings / Control Panel” and then ”System”. 2. Select the “Hardware” page on “System Properties” window and click the “Driver Signing” button. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----29...
  • Page 30 4. Click the “Windows Update” button on “System Properties” window. Note: The “Windows Update” setting supports Windows XP SP2 only. If the system is not Windows XP SP2, please skip step 4 to 6. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----30...
  • Page 31: Driver Installation

    Refer to “Quick Start” for getting the location of setup program on CD. 1. Launch the VxCard_W7_v2.08.00.exe to install the driver and register the related information onto the system. 2. Click “Next>” button to start installation. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----31...
  • Page 32 3. Select a folder where setup will install files, and click “Next>” button. 4. Select “No, I will restart the computer later” and click “Finish” button. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----32...
  • Page 33 8. Click “Finish” button. 9. Windows pops up “Found New Hardware Wizard” dialog box again. Please repeat the step 8 to 9 to finish the installation for all COM ports. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----33...
  • Page 34 4. Click the “Windows Update” button on “System Properties” window. Note: The “Windows Update” setting supports Windows XP SP2 only. If the system is not Windows XP SP2, please skip step 4 to 6. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----34...
  • Page 35 2. Click the ”Hardware” tab and then click the ”Device Manager” button. The VXC/VEX Card is listed under the ”VXC Multi-port serial Card” class, and each Communications Port is listed under the ”Ports (VxCard – RS-232/422/485)” class. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----35...
  • Page 36 3.3.6 Uninstallation Before removing the card from your computer, it’s recommended to uninstall the device from the ”Device Manager”. This removes unused hardware information from the database (registry) of Windows. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----36...
  • Page 37: Windows Vista

    2. Click “Allow, I trust this program. I know where it’s from or I’ve used it before” on the “User Account Control” window. 3. Click “Next>” button to start installation. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----37...
  • Page 38 4. Select folder where setup will install files, and click “Next>” button. 5. Click “Install this driver software anyway”. Note: The prompt will repeat for several times. Please click “(Install this driver software anyway)” for all these prompts. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----38...
  • Page 39 7. Turn off the computer and install the VXC/VEX card into the PC. 8. Power on the computer and system will find the new card and make it work automatically. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----39...
  • Page 40 If needed, users can change the input buffer size (default is 4 KB for each port, up to 128 KB) by setting the “SW FIFO” scroll-bar on the VxCard Utility. The utility’s short cut is placed on the desktop after driver installed. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----40...
  • Page 41 3.4.4 Uninstallation Before removing the card from your computer, it’s recommended to uninstall the device from the ”Device Manager”. This removes unused hardware information from the database (registry) of Windows. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----41...
  • Page 42: Windows 7

    Refer to “Quick Start Guide” for getting the location of setup program on CD. 1. Launch the VxCard_W7_v2.08.00.exe to install the driver and register the related information onto the system. 2. Click “Yes” button. 3. Click “Next>” button to start installation. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----42...
  • Page 43 4. Select folder where setup will install files, and click “Next>” button. 5. Click “Install this driver software anyway”. Note: The prompt will repeat for several times. Please click “(Install this driver software anyway)” for all these prompts. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----43...
  • Page 44 7. Turn off the computer and install the VXC/VEX card into the PC. Power on the computer and system will find the new card and make it work automatically. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----44...
  • Page 45 If needed, users can change the input buffer size (default is 4 KB for each port, up to 128 KB) by setting the “SW FIFO” scroll-bar on the VxCard Utility. The utility’s short cut is placed on the desktop or start menu after driver installed. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----45...
  • Page 46 3.5.4 Uninstallation Before removing the card from your computer, it’s recommended to uninstall the device from the ”Device Manager”. This removes unused hardware information from the database (registry) of Windows. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----46...
  • Page 47: Linux

    3. For convenient access, it is a good idea to put a symbol-link on it. #ln -s ixcom-0.8.1 ixcom 4. Change to the ixcom working directory you just made, type #./configure to create proper Makefiles. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----47...
  • Page 48 (irq = 11) is a 16C950/954 ttySV2 at port d400 (irq = 11) is a 16C950/954 ttySV3 at port d800 (irq = 11) is a 16C950/954 VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----48...
  • Page 49 1 root root 254, 72 Jul 14 10:13 /dev/ttySV8 crw-rw-rw- 1 root root 254, 73 Jul 14 10:13 /dev/ttySV9 To remove VXC/VEX driver from system use script “./ixcom.remove” to removes the loaded modules. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----49...
  • Page 50: Programming Reference

    VXC-142i(A)U 0x1415 0x9505 0x1440 0x0080 Rev4.0 0x1415 0x9501 0x1442 0x0080 Rev1.1 VXC-182i(A)U 0x1415 0x9505 0x1442 0x0080 Rev4.0 VEX-114(i) 0x1415 0xC20D 0x1441 0x0091 Rev1.0 VEX-144(i) 0x1415 0xC20D 0x1440 0x0091 Rev1.0 VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----50...
  • Page 51: I/O Address Mapping

    Reserved BAR3 Reserved Reserved BAR4 Local Configuration Registers Reserved (I/O Mapped) BAR5 Local Configuration Registers Reserved (Memory Mapped) Note: Please contact us for more information about I/O Address Mapping. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----51...
  • Page 52 All visible Modules and MSI-X Reserved (Used for EEPROM) BAR3 Reserved Reserved BAR4 Reserved Reserved BAR5 Reserved Reserved Note: Please contact us for more information about I/O Address Mapping. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----52...
  • Page 53: Uart Register

    4.3 UART Register VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----53...
  • Page 54: Programmable Baud Rate

    2400 4800 9600 14400 19200 23040 28800 38400 56000 2.86 57600 115200 184320 230400 307200 460800 Warning: The baud rates higher than 115,200 bps are not guaranteed to work. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----54...
  • Page 55 460800 0100 00001 -0.270 921600 0100 00001 -0.270 1843200 0100 00100 -0.270 3686400 0100 00100 -0.270 Warning: The baud rates higher than 115,200 bps are not guaranteed to work. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----55...
  • Page 56: Customized Baud Rate

    Note: The multi-port serial cards can have a special baud rate in OEM version. Please contact us for more information regarding the OEM products. Warning: The baud rates higher than 115,200 bps are not guaranteed to work. VXC-112(i)(A)U/142(i)AU/182i(A)U/114(iA)U/144(i)U, VEX-114(i)/144(i) , VEX-112(i)/142(i) User’s Manual (Ver. 1.5 Aug.10 2012) -----56...
