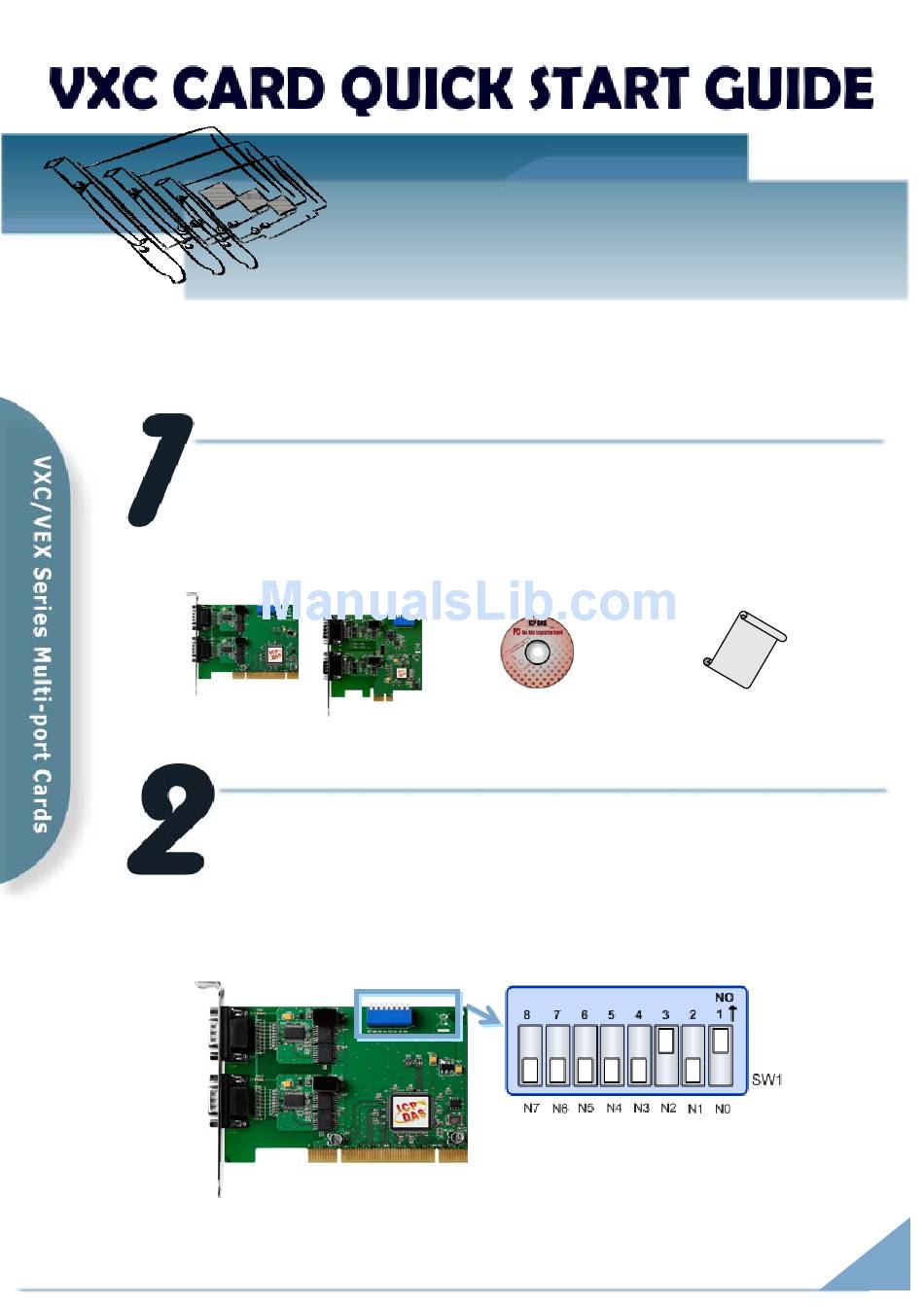

for VXC-112(i)AU/142(i)AU/182iAU
VEX-112(i)/142(i)
English/ Mar 2011/ Version 1.2
What's in the shipping package?
The package includes the following items:
Software CD
Quick Start Guide
(V4.8 or later)
(This Document)
VXC/VEX Series
Card
COM Port Mapping
Setting SW1 dip-switch (COM Selector) to 0x05 (1 and 3 "NO",
others "OFF"). The setting forces the VXC/VEX card to use COM5
and COM6.
VXC-112(i)AU/142(i)AU/182iAU, VEX-112(i)/142(i) Quick Start Guide
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ICP DAS USA VXC-112AU
Summary of Contents for ICP DAS USA VXC-112AU
- Page 1 for VXC-112(i)AU/142(i)AU/182iAU VEX-112(i)/142(i) English/ Mar 2011/ Version 1.2 What’s in the shipping package? The package includes the following items: Software CD Quick Start Guide (V4.8 or later) (This Document) VXC/VEX Series Card COM Port Mapping Setting SW1 dip-switch (COM Selector) to 0x05 (1 and 3 “NO”, others “OFF”).
- Page 2 SW1 Setting Table: SW1 DIP Switch Board ID=0x00 (Default) COM = Auto-defined Board ID=0x03 COM = 3/4 Board ID=0x05 COM = 5/6 Board ID=0x07 COM = 7/8 Board ID=0x09 COM = 9/10 Board ID=0x14 COM = 20/21 Board ID=0x1E COM = 30/31 Board ID=0x28 COM = 40/41 Board ID=0x32...
-
Page 3: Installing The Hardware
Installing Windows Driver 1. Launch the Windows 2000/XP/2003/2008/Vista/7 (32/64 bit) driver setup program. It is located at : CD: \Napdos\multiport\windows\VxCard_W7_Vx.xx.xx.exe http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/multiport/windows/ “Next>” 2. Click the button to start the installation. “Next>” 3. Click the button to install the driver into the default folder. “Create a desktop icon”... - Page 4 Pin Assignments and Cable Wiring RS-422 Cable Wiring (VXC-142(i)AU, VXC-182iAU and VEX-142(i) CN1) VXC Card Device Signal Signal TxD- RXD- TxD+ RxD+ RxD+ TxD+ RxD- TxD- RTS- CTS- RTS+ CTS+ CTS+ RTS+ CTS- RTS- RS-485 Cable Wiring (VXC-142(i)AU, VXC-182iAU and VEX-142(i) CN1) VXC Card Device Signal...
- Page 5 RS-232 Cable Wiring (VXC-112(i)AU, VXC-182iAU and VEX-112(i) CN2) System System Self Test 1. Use the DN-09-2(optional) to connect the VXC-112(i)AU/142(i)AU/182iAU or VEX-112(i)/142(i). VXC-112(i)AU/142(i)AU/182iAU, VEX-112(i)/142(i) Quick Start Guide...
- Page 6 2. Wire Port-1 and Port-2 : VXC-112(i)AU/VEX-112(i) (RS-232) Assignment Assignment CN2 TxD CN1 RxD CN2 RxD CN1 TxD VXC-142(i)AU/VEX-142(i) (RS-422/485) Assignment Assignment CN2 DATA- CN1 DATA- CN2 DATA+ CN1 DATA+ VXC-112(i)AU/142(i)AU/182iAU, VEX-112(i)/142(i) Quick Start Guide...
- Page 7 VXC-182iAU(RS-232 and RS-422/485) 3. Execute the Test2COM.exe program. Get the file from: CD:\Napdos\multiport\utility http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/multiport/utility/ VXC-112(i)AU/142(i)AU/182iAU, VEX-112(i)/142(i) Quick Start Guide...
- Page 8 4. Test Success. Related Information VXC Card Product page: http://www.icpdas.com/products/Industrial/multi_serial/multi_introductions.htm DN-09-2,CA-0915 and CA-0910-F product page (optional): http://www.icpdas.com/products/DAQ/screw_terminal/dn_09_2.htm http://www.icpdas.com/products/Accessories/cable/cable_selection.htm i-7520 product page (optional): http://www.icpdas.com/products/Remote_IO/i-7000/i-7520.htm Documentation: CD: \Napdos\multiport\manual\ http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/multiport/manual/ Software CD: \Napdos\multiport\ http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/multiport/ ICP DAS Web Site: http://www.icpdas.com Contact Us (E-Mail): Service@icpdas.com Copyright @ 2011 by ICP DAS Co., Ltd.
