What's in the shipping package?
The package includes the following items:
Installing Windows Driver
Step 1: Setup the Windows driver. The driver is located at:

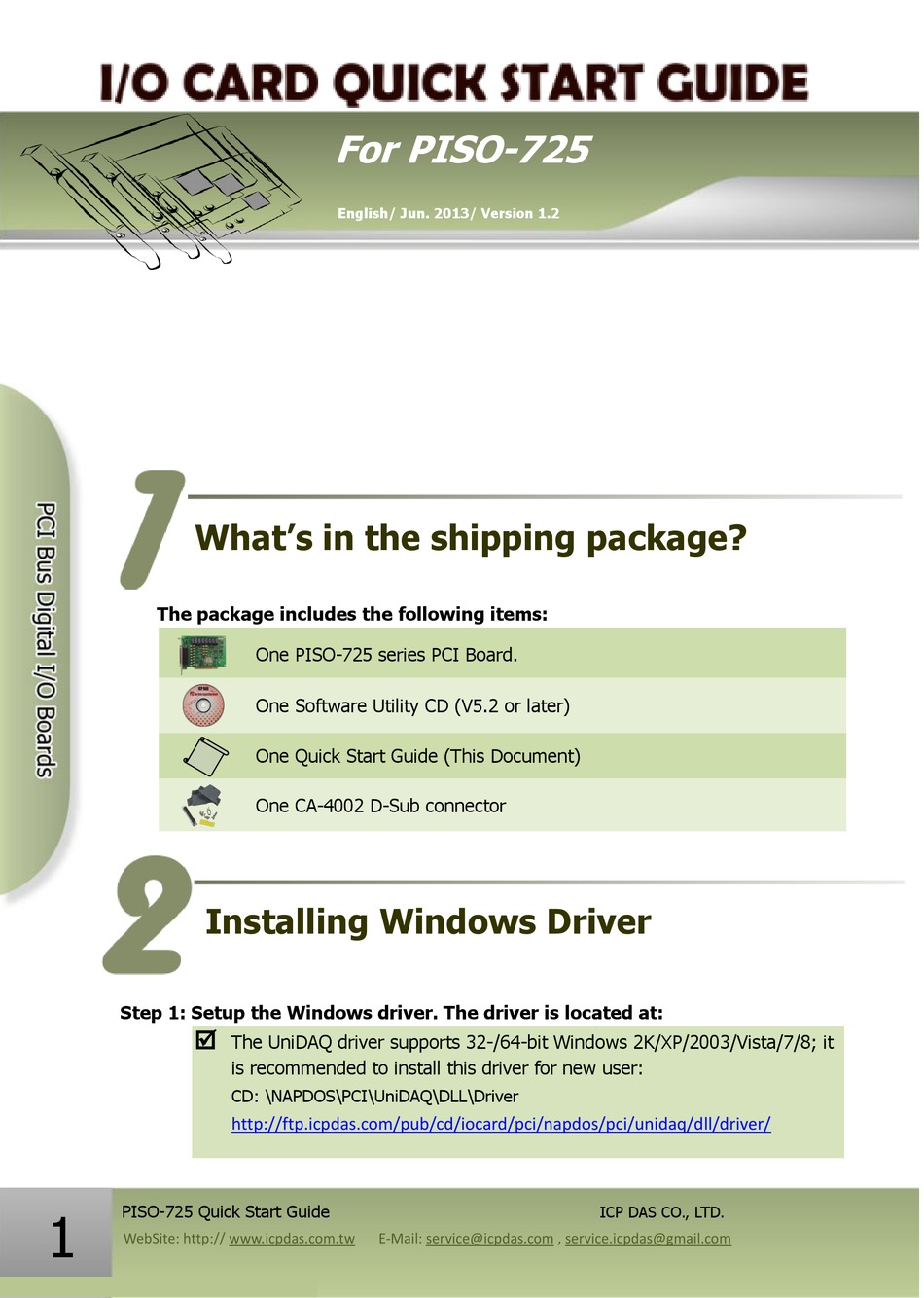

PISO-725 Quick Start Guide
1
WebSite: http:// www.icpdas.com.tw
For PISO-725
English/ Jun. 2013/ Version 1.2

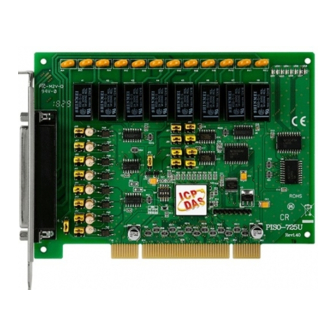

One PISO-725 series PCI Board.
One Software Utility CD (V5.2 or later)
One Quick Start Guide (This Document)
One CA-4002 D-Sub connector
The UniDAQ driver supports 32-/64-bit Windows 2K/XP/2003/Vista/7/8; it
is recommended to install this driver for new user:
CD: \NAPDOS\PCI\UniDAQ\DLL\Driver
http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/unidaq/dll/driver/
E-Mail: service@icpdas.com , service.icpdas@gmail.com
ICP DAS CO., LTD.
Advertisement
Related Manuals for ICP DAS USA PISO-725 Series
Summary of Contents for ICP DAS USA PISO-725 Series
- Page 1 For PISO-725 English/ Jun. 2013/ Version 1.2 What’s in the shipping package? The package includes the following items: One PISO-725 series PCI Board. One Software Utility CD (V5.2 or later) One Quick Start Guide (This Document) One CA-4002 D-Sub connector Installing Windows Driver Step 1: Setup the Windows driver.
-
Page 2: Jumper Setting
The PISO-725 series classic driver supports Windows 98/NT/2K and 32-bit XP/ 2003/ Vista/7/8. Recommended to install this driver for have been used PISO-725 series boards of regular user, please refer to : http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/piso-725/manual/quickstar t/classic/ Step 2: Click the “Next>”... - Page 3 Please make sure jumper is kept in default setting before self-test. Channel Signal Name Pin Assignment Jumper (0+, 0-) (DIA0,DIB0) (12,30) JA1 & JB1 (1+, 1-) (DIA1,DIB1) (13,31) JA2 & JB2 (2+, 2-) (DIA2,DIB2) (14,32) JA3 & JB3 (3+, 3-) (DIA3,DIB3) (15,33) JA4 &...
-
Page 4: Pin Assignments
Pin Assignments CON1: 37 pin of D-type female connector. PISO-725 Quick Start Guide ICP DAS CO., LTD. WebSite: http:// www.icpdas.com.tw E-Mail: service@icpdas.com , service.icpdas@gmail.com... - Page 5 Self-Test Prepare for device: DN-37 (optional) wiring terminal board. Exterior power supply device. For example: DP-665 (optional) Self-test wiring as follows: 1. Use the DN-37 to connect the CON1 on board. 2. Connect the DIB(0-7) with NO(0-7). (Pin30/31/32/33/34/35/36/37 connect to Pin01/04/07/20/23/25/27/10) 3.
- Page 6 Double click the “UniDAQUtility.exe” 6. Execute the UniDAQ Utility Program. Click this button to start test. Confirm the PISO-725 series card had successfully installed to PC. It starts from 0. PISO-725 Quick Start Guide ICP DAS CO., LTD. WebSite: http:// www.icpdas.com.tw...
- Page 7 7. Get DIO function test result. Click “Digital Output” item. Check channel 0, 2, 4, 6 Select the “Port 0”. Click “Digital Input” item. The corresponding D/I becomes black for channel 0, 2, 4, 6 of D/O is ON. PASS Select the “Port 0”...
-
Page 8: Related Information
Related Information PISO-725 Series Card Product Page: http://www.icpdas.com/root/product/solutions/pc_based_io_board/pci/piso-725.html DN-37, CA-3710 and DP-665 page (optional): http://www.icpdas.com/products/DAQ/screw_terminal/dn_37.htm http://www.icpdas.com/products/Accessories/power_supply/dp-665.htm http://www.icpdas.com/products/Accessories/cable/cable_selection.htm Documentation and Software: CD:\NAPDOS\PCI\UniDAQ\ http://ftp.icpdas.com/pub/cd/iocard/pci/napdos/pci/unidaq/ PISO-725 Quick Start Guide ICP DAS CO., LTD. WebSite: http:// www.icpdas.com.tw E-Mail: service@icpdas.com , service.icpdas@gmail.com...
