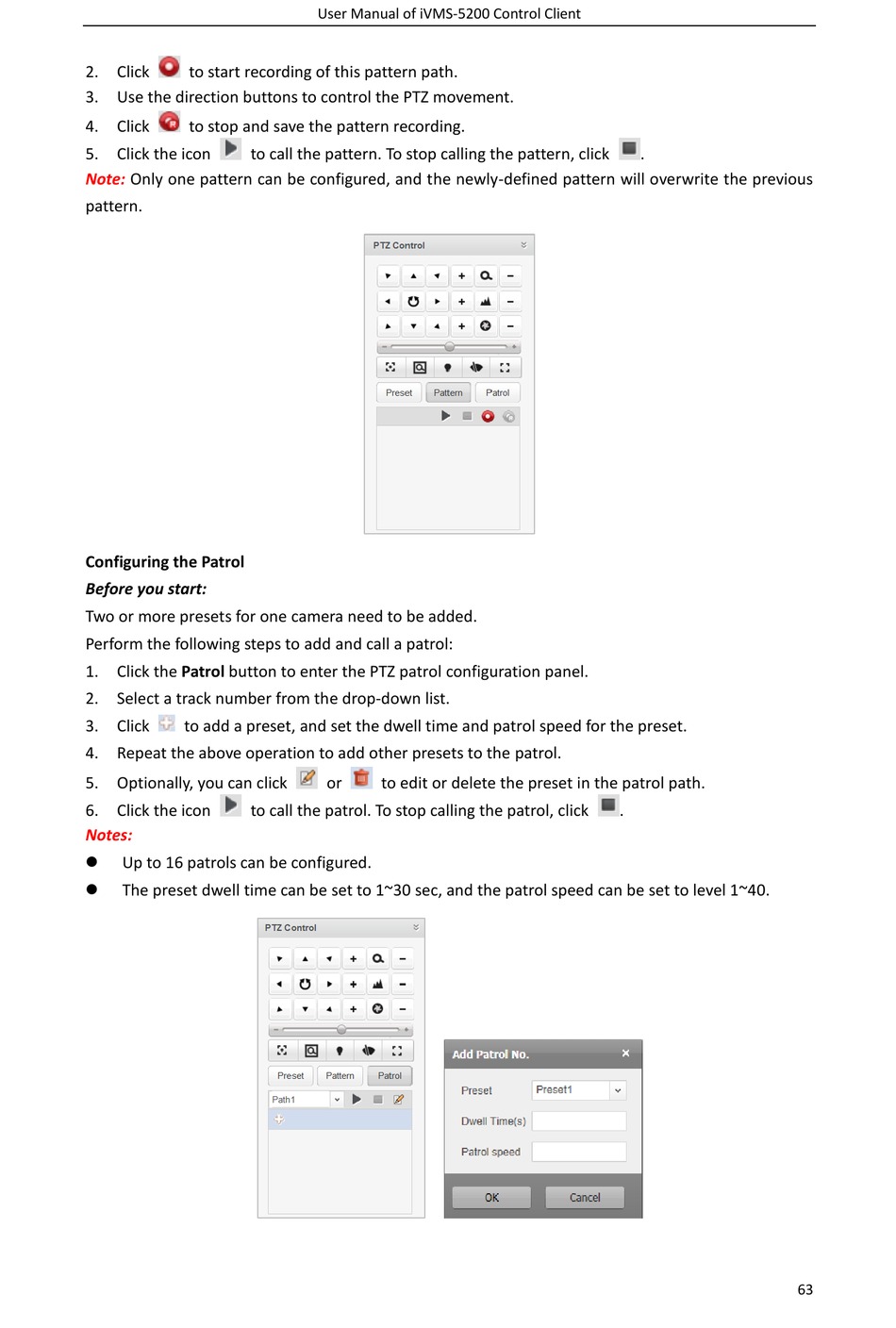

HIKVISION iVMS-5200 User Manual page 64

2. Click to start recording of this pattern path.
3. Use the direction buttons to control the PTZ movement.
4. Click to stop and save the pattern recording.
5. Click the icon to call the pattern. To stop calling the pattern, click
Note: Only one pattern can be configured, and the newly-defined pattern will overwrite the previous
pattern.
Configuring the Patrol
Before you start:
Two or more presets for one camera need to be added.
Perform the following steps to add and call a patrol:
1. Click the Patrol button to enter the PTZ patrol configuration panel.
2. Select a track number from the drop-down list.
3. Click to add a preset, and set the dwell time and patrol speed for the preset.
4. Repeat the above operation to add other presets to the patrol.
5. Optionally, you can click
6. Click the icon to call the patrol. To stop calling the patrol, click
Notes:

Up to 16 patrols can be configured.

The preset dwell time can be set to 1~30 sec, and the patrol speed can be set to level 1~40.
User Manual of iVMS-5200 Control Client
or to edit or delete the preset in the patrol path.
.
.
63
