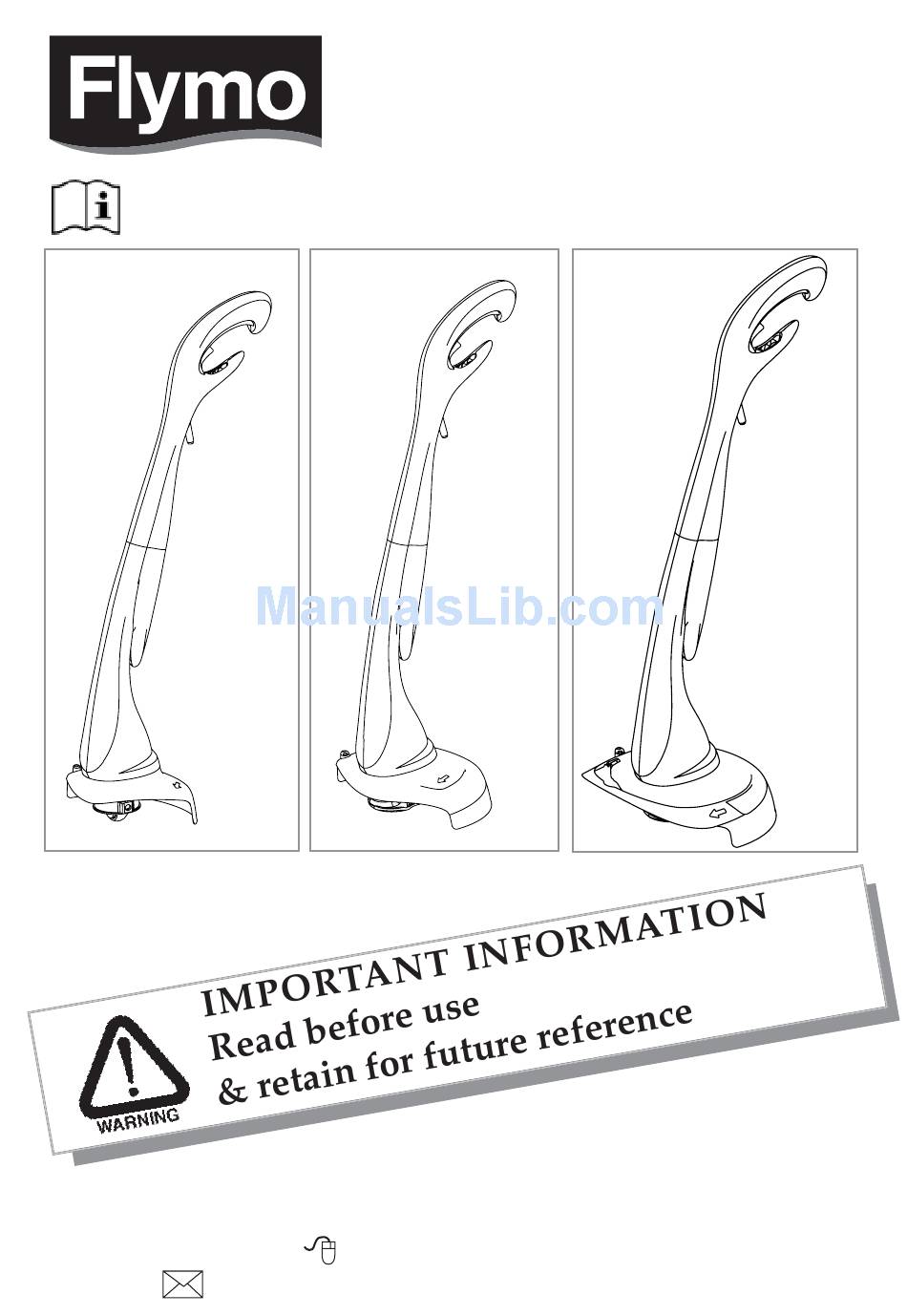

- Page 1 Minitrim ST Minitrim Auto ST Minitrim Auto XT Original Instructions For all customer enquiries or for replacement parts, contact:- ¤ 01325 300303 www.flymo.com customer.services@husqvarna.co.uk...
-
Page 2: Carton Contents
Carton Contents Mini Trim ST Mini Trim Auto XT Mini Trim Auto ST Switch Lever Switch Lever Safety Lock-off Lever Safety Lock-off Lever Upper Shaft Upper Shaft Electric Cable with Electric Cable with moulded on plug moulded on plug Lower Instruction Lower Shaft... - Page 3 4. Immediately disconnect from the mains electricity trip. Walk never run. supply if the cable is cut, or the insulation is dam- 6. Keep cutting head below waist level. aged. Do not touch the electric cable until the elec- 7. Switch off before pushing the trimmer over surfaces trical supply has been disconnected.
-
Page 4: Starting And Stopping
Assembly Instructions Shaft Assembly (A) 1. Locate the lower shaft (A1) into the upper shaft (A2). 2. Grasp firmly and hold steady the lower shaft. Locate the upper shaft and snap together firmly. • The unit is correctly assembled when the gap be- tween the upper and lower shaft has been closed. - Page 5 How to Trim • WARNING • The use of eye protection is recommended. Do not lean over the trimmer whilst trimming or edging, objects may be thrown by the cutting line. Do not allow cutting head to rest on the ground. Do not overload your trimmer.
-
Page 6: To Remove Spool
Manual Line Feed System To feed the nylon line 1. Press and hold the two latches (J). 2. Gently pull the line until it reaches the line cutter. 3. Release the two latches. Check that the spool is locked in position. 4. -
Page 7: Automatic Line Feed System
Automatic Line Feed System How the automatic line feed works (N) 1. When initially switching on the trimmer, a small length of line is fed out. 2. A ʻclatteringʼ noise will be heard when the nylon line hits the line cutter. DO NOT BE ALARMED this is quite normal. -
Page 8: Maintenance
Fault Finding Chart (Automatic Line Feed only) WARNING Disconnect from the mains electricity supply before attempting any maintenance or adjustment. FAULT CHECK ACTION Is the automatic line feed working? Manually feed out line. LINE NOT FEEDING Is the line fed out and visible? Has Remove cap and spool, free line line been removed from cleat? and re-fit spool and cap. -
Page 9: Service Recommendations
Service Recommendations • Your product is uniquely identified by a silver and black product rating label. • We strongly recommend that your product is serviced at least every twelve months, more often in a professional application. Guarantee & Guarantee Policy If any part is found to be defective due to faulty manufacture Failures not covered by guarantee within the guarantee period, Husqvarna UK Ltd., through its Au-...
