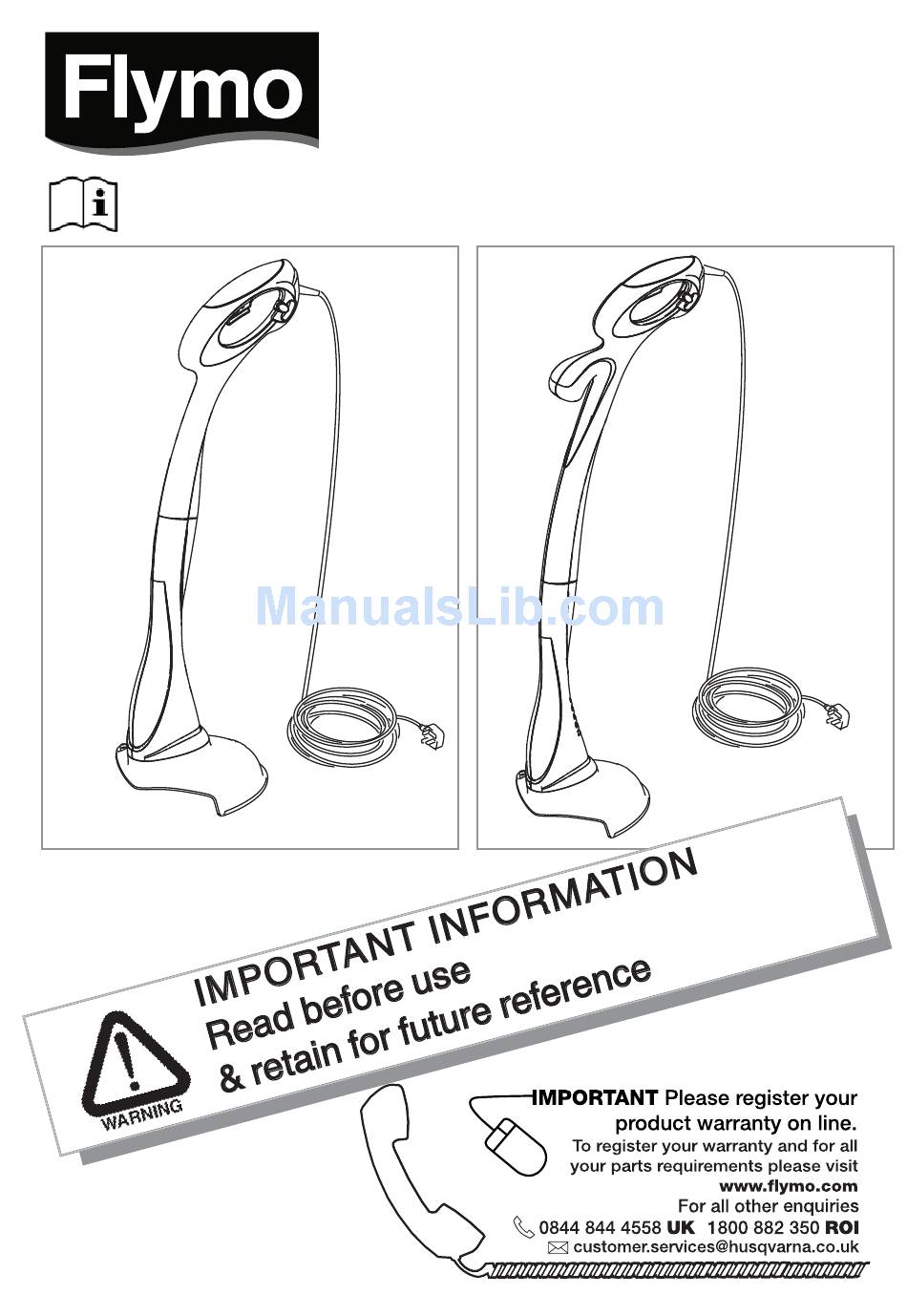

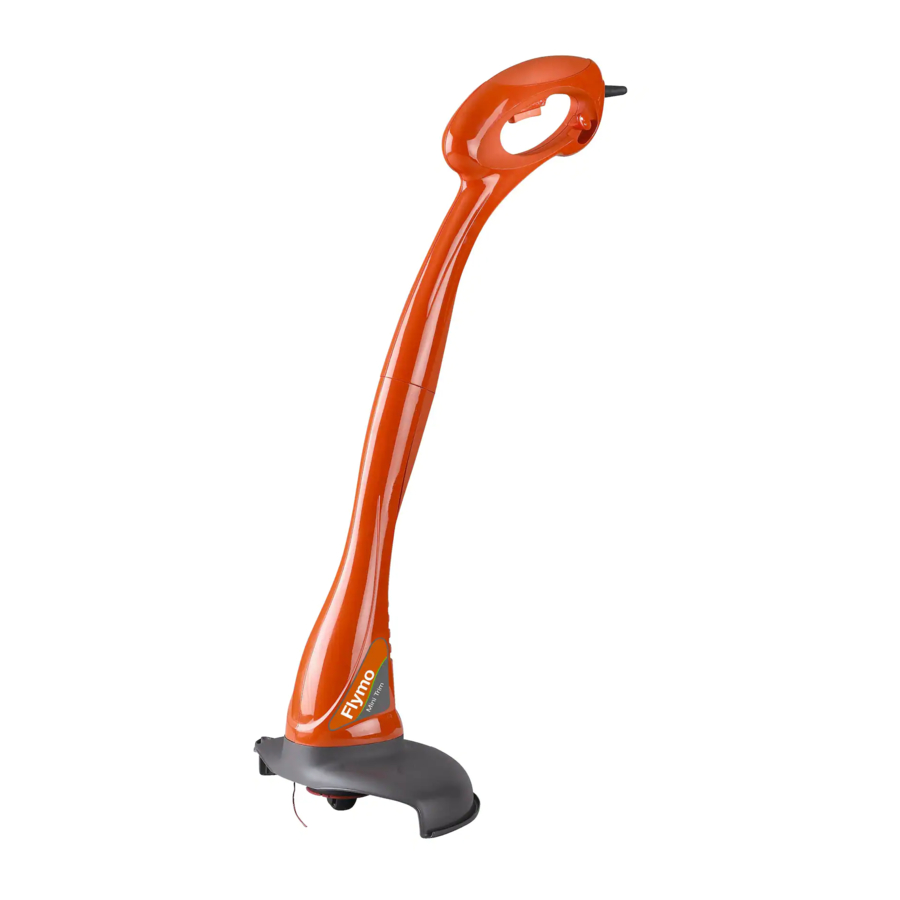

- Page 1 ® Mini Trim Original Instructions...
-
Page 2: Carton Contents
Carton Contents Mini Trim/MT21/ Mini Trim Auto +/ Switch Lever Switch Lever Mini Trim Auto MT25 Steady Upper Shaft Handle Upper Shaft Electric Cable with moulded on plug Electric Cable with moulded on plug Lower Lower Shaft Shaft Guard Guard... - Page 3 BROWN LIVE 2.Flymo Extension Cables are available from your The wire which is coloured BLUE must be connected to local Husqvarna UK Ltd. Approved Service Centre. the Terminal which is marked with the letter ‘N’ or 3.Do not wire an extension cable directly to your product...
-
Page 4: Starting And Stopping
The unit is correctly assembled when the gap be- tween the upper and lower shaft has been closed. Mini Trim/MT21 Mini Trim Auto/ Auto +/MT25 Safety Guard Assembly (B) & (C) 1. Locate the safety guard (B1) over the cutting head (B2). -
Page 5: Manual Line Feed System
Manual Line Feed System To feed the nylon line 1. Press and hold the two latches (H). 2. Gently pull the line until it reaches the line cutter. 3. Release the two latches. Check that the spool is locked in position. 4. -
Page 6: Automatic Line Feed System
Automatic Line Feed System How the automatic line feed works (M) 1. When initially switching on the trimmer, a small length of line is fed out. 2. A ‘clattering’ noise will be heard when the nylon line hits the line cutter. DO NOT BE ALARMED this is quite nor- mal. -
Page 7: Replacement Parts
Fault Finding Chart (Automatic Line Feed only) WARNING Disconnect from the mains electricity supply before attempting any maintenance or adjustment. FAULT CHECK ACTION Is the automatic line feed work- Manually feed out line. ing? LINE NOT FEEDING Is the line fed out and visible? Remove cap and spool, free line LINE TOO SHORT Has line been removed from... -
Page 8: Service Recommendations
Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice. Copyright © 2013 Flymo S.A. All rights reserved. Flymo® and other product and feature names are registered or unregistered trademarks of Flymo S.A.
