User Manual for your

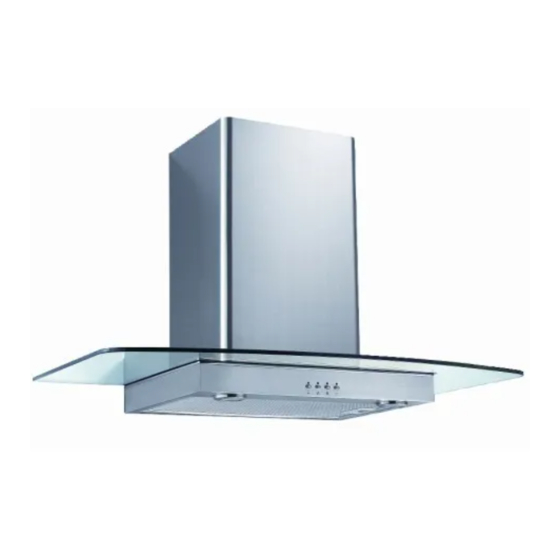

BWTC6510GL Cooker Hood
60 cm Glass cooker hood in stainless steel
BWTC9510GL Cooker Hood
90 cm Glass cooker hood in stainless steel
NOTE
: This User Instruction Manual contains important
information, including safety & installation points, which will
enable you to get the most out of your appliance. Please keep it
in a safe place so that it is easily available for future reference; for
you or any person not familiar with the operation of the appliance.
DD 08/07/09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BWTC6510GL and is the answer not in the manual?

Questions and answers

Related Manuals for Baumatic BWTC6510GL

Summary of Contents for Baumatic BWTC6510GL

  • Page 1 User Manual for your BWTC6510GL Cooker Hood 60 cm Glass cooker hood in stainless steel BWTC9510GL Cooker Hood 90 cm Glass cooker hood in stainless steel NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance.

  • Page 2: Table Of Contents

    Contents Page Environmental note IMPORTANT SAFETY INFORMATION 5 – 7 Specifications of your BWTC6510GL cooker hood Specifications of your BWTC9510GL cooker hood Using your cooker hood 10 - 11 Before first use To use your cooker hood 10 - 11...

  • Page 3: Environmental Note

    ENVIRONMENTAL NOTE Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person.

  • Page 4: Important Safety Information

    IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance to us. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information containe d in this booklet, please contact the Advice L ine.
  • Page 5 o The edges of the cooker hood are sharp – be mindful of this as you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTER! o If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.
  • Page 6 o Remember that when in extraction mode, your cooker hood is removing air from your room. Ensure that proper ventilation measures are being observed. o Note that the cooker hood removes odours from your kitchen, not steam. o Warning - Always ensure that the cooker hood has been disconnected from the power supply before carrying out any work on the hood, including cleaning and...

  • Page 7: Specifications Of Your Bwtc6510Gl Cooker Hood

    Specifications of your BWTC6510GL cooker hood Congratulations on purchasing a cooker hood! PRODUCT DIMENSIONS: Height: 550 mm – 1030 mm Width: 600 mm Depth: 500 mm DIMENSIONS OF CHIMNEY SECTION: 276 mm x 303 mm Your stainless steel cooker hood is fitted with:...

  • Page 8: Specifications Of Your Bwtc9510Gl Cooker Hood

    Specifications of your BWTC9510GL cooker hood Congratulations on purchasing a cooker hood! PRODUCT DIMENSIONS: Height: 550 mm – 1030 mm Width: 900 mm Depth: 500 mm DIMENSIONS OF CHIMNEY SECTION: 276 mm x 303 mm Your stainless steel cooker hood is fitted with: o High extraction tangential motor o Push button control operation o 3 Speeds...

  • Page 9: Using Your Cooker Hood

    Using your cooker hood Before first use IMPORTANT: THIS PROCESS MUST BE FOLLOWED BEFORE THE COOKER HOOD IS USED FOR THE FIRST TIME. o You should use a good quality stainless steel cleaner on ALL of the stainless steel areas of your cooker hood, before it is used for the first time.
  • Page 10 = Indicator neons = Speed selection buttons = Low speed = Medium speed = High speed = Light on/off button o Press one of the speed selection buttons to switch the hood on. It will run at the speed that you have selected (i.e. low, medium or high speed).

  • Page 11: Cleaning Your Cooker Hood

    Cleaning your cooker hood IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT YOU HAVE SWITCHED YOUR COOKER HOOD OFF AT THE OMNI-POLAR SWITCH, SET AT THE WALL FROM THE CABLE. Cleaning o Clean the external parts of your cooker hood with mild liquid detergent and a new damp cloth.

  • Page 12: Maintenance

    Maintenance Removing and cleaning the grease filter o First remove the grease filter by pulling down on the handle, and then pull it upwards away from the main body of the cooker hood. o Soak the grease filter in hot water and washing up liquid for about an hour.

  • Page 13: Changing A Light Bulb

    Changing a light bulb IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY. o Remove the grease filter (as described on page 13). o Prior to touching the light bulbs ensure that they have cooled down.

  • Page 14: Fitting The Carbon Filters

    Fitting the carbon filters If the appliance is being used to be used in recirculation mode then it is necessary to fit carbon filters. They will help to absorb unpleasant odours caused by cooking. IMPORTANT: BEFORE ATTEMPTING TO FIT OR REMOVE THE CARBON FILTERS, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY.

  • Page 15: Installation

    Installation IMPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found behind the grease filters.

  • Page 16: Before Beginning Installation

    o As the colours of the wires in the appliance’s mains lead may not correspond with the coloured markings identifying the terminals in your spur box, please proceed as follows: o The blue wire must be connected to the terminal marked “N” (neutral), or coloured black.

  • Page 17: Installing Your Cooker Hood

    o Rawl plugs are provided to secure the hood to most types of walls and ceilings. However a qualified technician must verify the suitability of the materials, in accordance with the type of wall and ceiling. The wall and ceiling must be strong enough to take the weight of the hood.
  • Page 18 2a) The support screw holes are indicated by figure A in this drawing and the anchoring screw holes are indicated by figure B. 3) Using a drill bit with a 6 mm diameter, make holes in the wall on the positions that you have marked in step 4) Insert rawl plugs into all of the holes that you have drilled.
  • Page 19 5) Fasten the support screws halfway in, leaving them 10 mm out of the wall. 6) Hang the hood onto the support screws. 7) Fully tighten the support screws (A) and then screw the anch oring screws (B) through the relevant holes in the cooker hood.

  • Page 20: Connecting To External Ducting

    Connecting to external ducting 8) Connect the coupling to the top of the cooker hood, and then connect a 125 mm ducting hose to the coupling (pleas e note that the ducting hose is not supplied with the appliance). o The other end of the ducting hose should be connected to a discharge outlet that is suitable for cookin g vapours.
  • Page 21 10) Lift chimney section D upwards until it reaches the ceiling. You must ensure that it is perpendicular to the hood. o Mark the side measurements of both sides of chimney section D on the wall with a pencil and then remove chimney section D. 11) Take the flat fixing bracket (E) and place it between the two pencil marks that you made in step 9.
  • Page 22 12) Using a 6 mm drill bit, drill out two holes on the pencil markings that you made in step 11. Insert raw plugs into the holes and then use a screwdriver to secure the fixing bracket to the wall. o Refit chimney section C to the hood.

  • Page 23: Attaching The Glass Canopy (Bwtc9510Gl)

    Attaching the glass canopy (BWTC9510GL only) o The anchoring bolts (F) should be found with the other brackets and screws provided with the cooker hood. If you find them already attached to the cooker hood, then you should unscrew them. o Carefully place the glass section (Q) on the upper surface of the cooker hood and then slide it back towards the wall.

  • Page 24: Completing The Installation

    Completing the installation If you are setting the appliance to recirculation mode, then you should now fit the two carbon filters. See the “Fitting the carbon filters” section on page 13. The electrical connection must correspond to the electrical requirement noted on the rating plate, which is placed inside the cooker hood.

  • Page 25: Troubleshooting

    Troubleshooting IMPORTANT: If your cooker hood appears not to be operating properly, before contacting the Customer Care Department, please refer to the checklist below. My cooker hood will not start. o Check that the hood is connected to the electricity supply o Check that the fan speed control is set correctly.
  • Page 26 IMPORTANT: If your appliance appears not to be operating correctly, then you should disconnect it from your mains supply and then contact the Customer Care Department on telephone number (0118) 933 6911. DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. Please note that if an engineer is asked to attend whilst the product is under guarantee and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out...

  • Page 28: Contact Details

    United Kingdom 6 Bennet Road, Reading, Berkshire RG2 0QX United Kingdom Sales Telephone (0118) 933 6900 Sales Fax (0118) 931 0035 Service Telephone (0118) 933 6911 Service Fax (0118) 986 9124 Spares Telephone (01235) 437244 Advice Line Telephone (0118) 933 6933...
