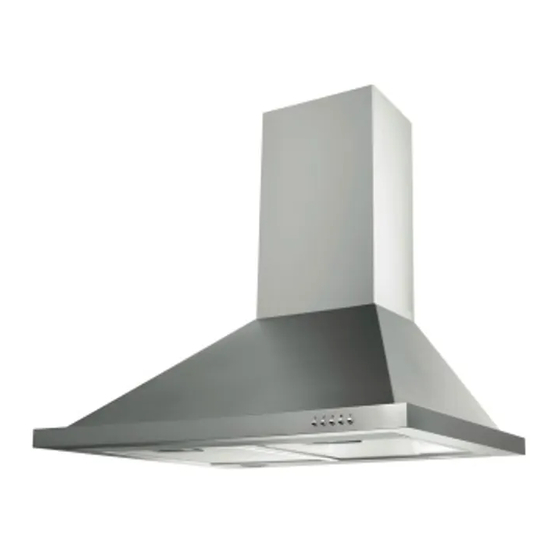

Baumatic BFR6 Instruction Manual

Rangehood
Hide thumbs
Table of Contents

Advertisement

Quick Links

BFR6 / BFR9
Rangehood

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BFR6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baumatic BFR6

Summary of Contents for Baumatic BFR6

  • Page 1 BFR6 / BFR9 Rangehood...
  • Page 2 User Manual for your Baumatic BFR6, 60 cm Rangehood BFR9, 90 cm Rangehood NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...

  • Page 3: Table Of Contents

    Environmental note IMPORTANT SAFETY INFORMATION 5 – 7 Specifications of your rangehood 8 – 9 BFR6 BFR9 Using your Baumatic rangehood 10 - 11 Before first use To use your rangehood 10 - 11 Cleaning your Baumatic rangehood The grease filters...

  • Page 4: Environmental Note

    ENVIRONMENTAL NOTE Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person.
  • Page 5 Your safety is of the utmost importance to us. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Retailer where you purchased your unit from.
  • Page 6 o If other types of flue or appliances are fitted, ensure that there is an adequate supply of air in the room. o When the hood is being used in its extractor function, ensure that the ducting is fire retardant and that there are no bends sharper than 90 degrees as this will reduce the efficiency of the hood.
  • Page 7 o Warning - Always ensure that the rangehood been disconnected from power supply before carrying out any work on the hood, including replacing light bulbs. o Do not connect the ducting system of this appliance to any existing ventilation system which is being used for any other purpose.

  • Page 8: Specifications Of Your Rangehood

    Specifications of your rangehood BFR6 PRODUCT DIMENSIONS Height: 638* mm – 1000 Width: 600 mm Depth: 500 mm DIMENSIONS OF CHIMNEY SECTION: 172 mm x 222 mm Your stainless steel rangehood is fitted with: o Integrated tangential motor o Push button control operation...

  • Page 9: Bfr9

    BFR9 PRODUCT DIMENSIONS Height: 638* mm – 1000 Width: 900 mm Depth: 500 mm DIMENSIONS OF CHIMNEY SECTION: 170 mm x 221 mm Your stainless steel rangehood is fitted with: o Integrated tangential motor o Push button control operation o 3 Speeds o 3 Washable aluminium grease filters (do not wash in a dishwasher) o 2 lights Non-return airflow flap...

  • Page 10: Using Your Baumatic Rangehood

    Using your Baumatic rangehood Before first use IMPORTANT: THIS PROCESS MUST BE FOLLOWED BEFORE THE RANGEHOOD IS USED FOR THE FIRST TIME. o You should use a good quality stainless steel cleaner and polish on ALL of the stainless steel areas of your rangehood, before it is used for the first time.

  • Page 11: Cleaning Your Baumatic Rangehood

    COOK, OR AT THE VERY LEAST WHEN YOU BEGIN COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR TEN MINUTES AFTER YOU HAVE FINISHED COOKING. Cleaning your Baumatic rangehood IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT YOU HAVE SWITCHED YOUR RANGEHOOD OFF AT THE OMNI-POLAR SWITCH, SET AT THE WALL FROM THE CABLE.

  • Page 12: Maintenance

    Maintenance Removing and cleaning the grease filters o First remove the grease filters by pulling down on the handle and pulling them away from rangehood. o Soak the grease filters in hot water and washing up liquid for about an hour. o Rinse them off thoroughly with hot water.

  • Page 13: Changing A Light Bulb

    Changing a light bulb IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE RANGEHOOD FROM YOUR MAINS SUPPLY. o Remove the grease filter (as described on page 12). o Prior to touching the light bulbs ensure that they have cooled down.

  • Page 14: Fitting The Carbon Filters (St1 Carbon Filters)

    Fitting the carbon filters (ST2 carbon filters) If the appliance is being used to be used in recirculation mode then it is necessary to fit carbon filters. This will help to absorb unpleasant odours caused by cooking. IMPORTANT: BEFORE ATTEMPTING TO FIT OR REMOVE THE CARBON FILTERS, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE RANGEHOOD FROM YOUR MAINS SUPPLY.

  • Page 15: Installation

    Installation IMPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found behind the grease filter.

  • Page 16: Before Beginning Installation

    Before beginning installation o Check that the product purchased is of a suitable size for the chosen installation area. In addition check whether there is an electrical socket available that will be accessible once the hood is mounted. If the product is going to be used in extraction mode, then there should also be space to connect a ducting hose to the outside.

  • Page 17: Installing Your Rangehood

    Installing your rangehood IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR RANGEHOOD WHETHER TO USE EXTRACTION MODE RECIRCULATION MODE. PLEASE TURN PAGE UNDERSTAND THE DIFFERENCES BETWEEN THESE TWO MODES. o We recommend that at least two people install this hood. IMPORTANT: YOUR RANGEHOOD SHOULD BE CONNECTED TO YOUR MAINS SUPPLY AFTER THE REST OF THE INSTALLATION PROCESS HAS BEEN COMPLETED.
  • Page 18 3) Using a drill bit with a 6 mm diameter, make holes in the wall on the positions that you have marked in step 4) Insert rawl plugs into all of the holes that you have drilled. 5) Fasten the support screws halfway in, leaving them 10 mm out of the wall.
  • Page 19 6) Hang the hood onto the support screws. 7) Fully tighten the support screws (A) and then screw the anchoring screws (B) through the relevant holes in the cooker hood. Fully tighten the anchoring screws into the wall.

  • Page 20: Connecting To External Ducting

    Connecting to external ducting Important: To get the optimum performance from your appliance, 150mm ducting should be used. 8) Connect a 150 mm ducting hose to opening motor/hood. (Please note that ducting hose is not supplied with the appliance). o If you choose to use 125mm ducting, then please fit the reducer adaptor (supplied).

  • Page 21: Fitting The Chimney

    Fitting the chimney 9) Take the two chimney sections (C) and (D). o Rest the bottom of chimney section (C) on the top of the hood. o Mark the side measurement of both sides of the chimney section (C) on the wall with a pencil.
  • Page 22 11) Take the lower chimney section wall fixing bracket (E/Plate I) and place it between the two pencil marks that you made in step 9 o Keeping the bracket in contact with the wall, use a pencil to mark on the wall the anchoring holes that are cut out of the bracket.

  • Page 23: Completing The Installation

    o Slide chimney section (D) inside of chimney section (C). Then secure the upper bracket (plate II) to the wall, using the same method as you have just used to secure the lower bracket (plate I).   Screw (4mmx8mm)   Rawl plug Screw (4mmx30mm)

  • Page 24: Extraction Mode Or Recirculation Mode

    Extraction mode or recirculation mode? What is the difference between extraction and recirculation modes? o To get optimum performance from your cooker, the air will be taken out of the room via external ducting. o Unfortunately if you live in a flat or the hood is too far from an outside wall, this may not be possible.

  • Page 25: Troubleshooting

    Troubleshooting IMPORTANT: If your rangehood appears not to be operating properly, before contacting the Customer Care Department, please refer to the checklist below. My rangehood will not start. o Check that the hood is connected to the electricity supply o Check that the fan speed control is set correctly. My rangehood is not working effectively.
  • Page 26 IMPORTANT: If your appliance appears not to be operating correctly, then you should disconnect it from your mains supply and then contact Customer Care DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. Please note that if a service technician is asked to attend whilst the product is under guarantee and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge.
  • Page 27 1800 444 357 Website www.thinkappliances.com (NZ) Applico Ltd. Private Bag 92900 Onehunga, Auckland, New Zealand 1061 Website www.baumatic.co.nz (UK) United Kingdom Baumatic Ltd., Baumatic Buildings, 6 Bennet Road, Reading, Berkshire RG2 0QX United Kingdom Sales Telephone (0118) 933 6900 Website: www.baumatic.co.uk...
