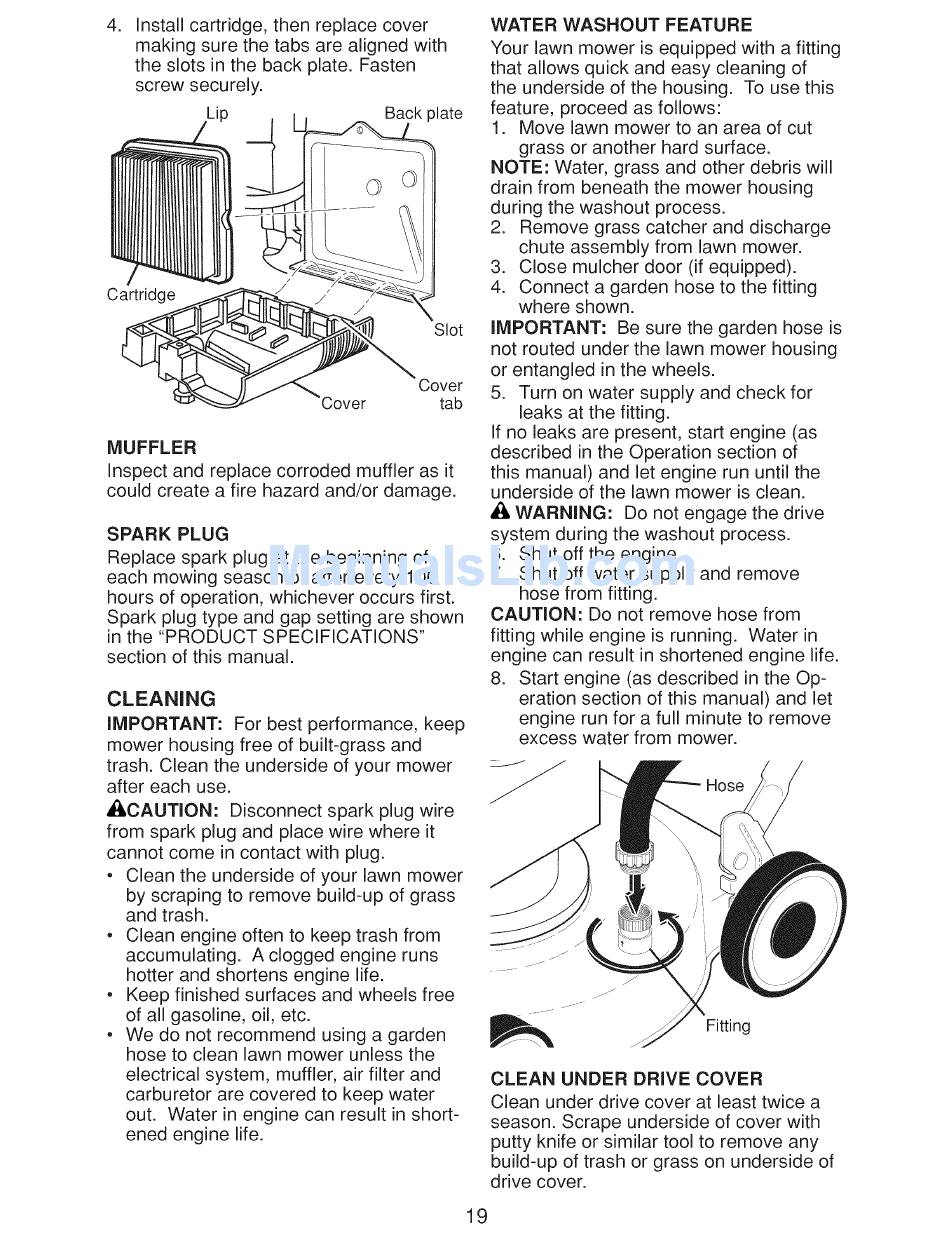

Install cartridge, then replace cover
making sure the tabs are aligned with
the slots in the back plate. Fasten
screw securely.
Lip
Back plate
/
Cartridge
/_'
/_
Slot
Cover
Cover
tab
MUFFLER
Inspect and replace corroded muffler as it
could create a fire hazard and/or damage.
SPARK PLUG
Replace spark plug at the beginning
of
each mowing season or after every 100
hours of operation,
whichever
occurs first.
Spark plug type and gap setting are shown
in the "PRODUCT
SPECIFICATIONS"
section of this manual.
CLEANING
IMPORTANT:
For best performance,
keep
mower housing free of built-grass and
trash. Clean the underside
of your mower
after each use.
&CAUTION:
Disconnect
spark plug wire
from spark plug and place wire where it
cannot come in contact with plug.
* Clean the underside of your lawn mower
by scraping to remove build-up of grass
and trash.
* Clean engine often to keep trash from
accumulating.
A clogged engine runs
hotter and shortens engine life.
* Keep finished surfaces and wheels free
of all gasoline, oil, etc.
* We do not recommend
using a garden
hose to clean lawn mower unless the
electrical
system, muffler, air filter and
carburetor
are covered to keep water
out. Water in engine can result in short-
ened engine life.
WATER WASHOUT
FEATURE
Your lawn mower is equipped with a fitting
that allows quick and easy cleaning of
the underside of the housing.
To use this
feature, proceed as follows:
1. Move lawn mower to an area of cut
grass or another hard surface.
NOTE: Water, grass and other debris will
drain from beneath the mower housing
during the washout
process.
2. Remove grass catcher and discharge
chute assembly from lawn mower.
3. Close mulcher door (if equipped).
4. Connect a garden hose to the fitting
where shown.
IMPORTANT:
Be sure the garden hose is
not routed under the lawn mower housing
or entangled
in the wheels.
5. Turn on water supply and check for
leaks at the fitting.
If no leaks are present, start engine (as
described
in the Operation
section of
this manual) and let engine run until the
underside of the lawn mower is dean.
A WARNING:
Do not engage the drive
system during the washout
process.
6. Shut off the engine.
7. Shut off water supply and remove
hose from fitting.
CAUTION:
Do not remove hose from
fitting while engine is running.
Water in
engine can result in shortened
engine life.
8. Start engine (as described
in the Op-
eration section of this manual) and let
engine run for a full minute to remove
excess water from mower.
Hose
Fitting
CLEAN
UNDER DRIVE COVER
Clean under drive cover at least twice a
season. Scrape underside of cover with
putty knife or similar tool to remove any
build-up of trash or grass on underside of
drive cover.
19
