MagicEVO2-PreEVO2 Anglais

Index

• Safety measures

• Installation

• Using for the first time

• Getting started

• Ironing

• Refilling

• Maintenance

• Hints on usage

• Linen care guide

• Problems and solutions

• Customer service

• Technical features

• International guarantee

• Adresses

Thank you and congratulations

Dear customer

Thank you for showing confidence in our company and congratula-

tions for choosing a LauraStar system.

However, it is important that you read this manual completely before

using your LauraStar

use only. The manual is valid for the following models:

-Magic Evolution (Model 723)

-Magic Evolution II (Model 728)

-Premium Evolution (Model 725)

-Premium Evolution II (Model 729)

This system uses steam and heat, so many parts of the system can

cause burns when in use.

These hot parts will be labeled in this manual with the following

symbol:

28.1.2003

10:16

system. This garment care system is for home

Page 1

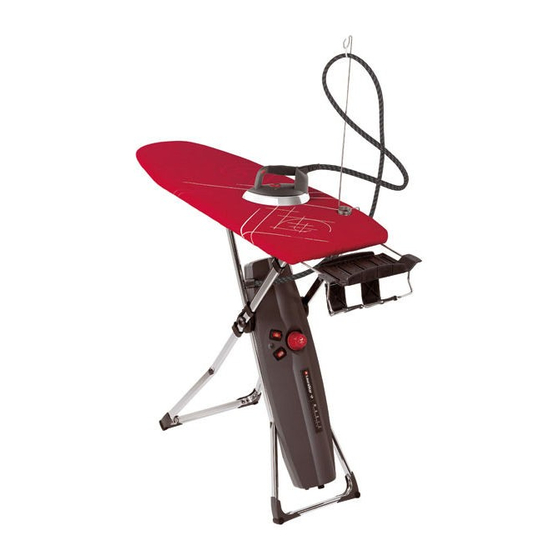

Operating instructions

Operating instructions video

Special LauraStar cover

Softpressing soleplate

Steam control button

Table

(1)

Iron

(2)

(3)

Wheels (optional)

(4)

(5)

(6)

Cord-holder

(7)

Silicone mat

(8)

(9)

Bottle (10)

Drain receptacle (11)

Boiler (12)

Iron switch (13)

Boiler switch (14)

Green pilot lamp (15)

Drain cap (16)

Filling cap (17)

Plug (18)

Cable (19)

Iron basket (20)

Iron rest (21)

Thermostat (22)

right / left-handed (23)

Monotube (24)

Motor (25)

Motor cable (26)

Table of Contents

Need help?

Do you have a question about the Magic Evolution 723 and is the answer not in the manual?

Questions and answers

Summary of Contents for LauraStar Magic Evolution 723

Page 1 Boiler switch (14) Thank you for showing confidence in our company and congratula- Green pilot lamp (15) tions for choosing a LauraStar system. However, it is important that you read this manual completely before Drain cap (16) using your LauraStar system.
Page 2 MagicEVO2-PreEVO2 Anglais 28.1.2003 10:16 Page 2 VORSICHT! Verbrühungsgefahr! Lassen Sie das Bügelsystem mindestens 2 Stunden lang abkühlen, bevor Sie den Entleerungsverschluss lösen! ATTENTION! Danger de brûlures! Après avoir débranché l'appareil, laissez-le refroidir pendant 2 heures au minimum avant de dévisser le bouchon de vidange! WARNING! Risk of burns! After unplugging the appliance, allow it to cool for at least 2 hours before unscrewing the drain cap.
Page 3: Safety Measures
MagicEVO2-PreEVO2 Anglais 28.1.2003 10:16 Page 3 Safety measures Please read the following safety measures carefully and keep them along with the operating instructions of your other appliances. Please repeat the safety measures to all new users of your appliance. 1. Use your appliance only for ironing. 2.
Page 4: Installation
MagicEVO2-PreEVO2 Anglais 28.1.2003 10:16 Page 4 Installation The table 1. Place the board vertically on the ground. 2. Lift the table top and hold it in one hand. 3. With the other hand slide the adjustment device (under the board) up to whichever of the three stop bars corresponds to your height.
Page 5: Getting Started
MagicEVO2-PreEVO2 Anglais 28.1.2003 10:16 Page 5 Première utilisation Using for the first time System disconnected Rinsing the boiler Always unplug the mains before Fix the board in the highest position. Put the rinsing recep- filling the boiler. tacle beneath the boiler. Unscrew the drain cap (16).
Page 6: Ironing
MagicEVO2-PreEVO2 Anglais 28.1.2003 10:16 Page 6 Switches 2. Turn on both switches and 1. Insert the plug. wait until the green light comes on (approx. 7 to 8 minutes). 7-8 min 8 min Setting of the iron temperature Check that the indicator light of the iron is also on before ironing. ATTENTION: After a change of setting it takes about 2 mins for the new temperature to stabilize! Position "A": Position "B":...
Page 7 MagicEVO2-PreEVO2 Anglais 28.1.2003 10:16 Page 7 Blowing A very short press (less than half a second) on the steam control button starts the “blowing” mode. When blowing mode is chosen each press of the steam control button to give steam restarts the cycle (lasts 4 seconds).
Page 8: Refilling
MagicEVO2-PreEVO2 Anglais 28.1.2003 10:16 Page 8 Refilling Low water indicator A buzzer goes off when the water in the boiler drops to the minimum level. Please refer to the chapter below for refilling while ironing. Refilling while ironing WARNING • The Iron Uses PRESSURIZED STEAM. DO NOT OPEN the Filling Cap Except as Instructed below.
Page 9: Maintenance
WARNING: Risk of splashes Calcium content Number of hours use between 2 rinses Weak, zero or with the LauraStar Aqua water-filter pot 20 Average High Storage of the board 1. Turn the iron and boiler switches to the off position.
Page 10: Hints On Usage
Perfect ironing requires steam to be injected into the fabric. This is a requirement for the complete removal of creases. Do not continually inject steam into fabric: press the steam control button intermit- tently. For this the LauraStar™ Magic Evolution / II system uses the same methods as professional dry cleaning: vacuum and blowing.
Page 11: Linen Care Guide
MagicEVO2-PreEVO2 Anglais 28.1.2003 10:16 Page 11 Linen care guide Wash Machine wash. The number indicates the maximum allowed water temperature in C°. Machine wash. The line placed under the symbol indicates reduced spin. Hand wash. Maximum temperature: 40° C. Do not wash. Dryclean Any solvent allowed.
Page 12: Problems And Solutions
MagicEVO2-PreEVO2 Anglais 28.1.2003 10:16 Page 12 Problems and solutions Before calling customer service check the following points. Problem Probable cause What to do • Emits a humming sound when • The boiler is vibrating. • This noise is normal for a new steam is ejected from the iron.
Page 13: Customer Service
Do not forget to enclose a copy of the purchase agree- ment, the guarantee card or the cash receipt. Send the defective system to customer services in your country. Available accessories Can be purchased from your normal supplier or approved LauraStar agency: INCLUDED OPTIONAL Silicone mat 508.7801.703...
Page 14: International Guarantee
4. The damaged machine has to be maintenance which form an integral (EU = 24 months). The guarantee is sent to the LauraStar customer ser- part of the instructions for use, as valid as from the date on the invoice vice center.
