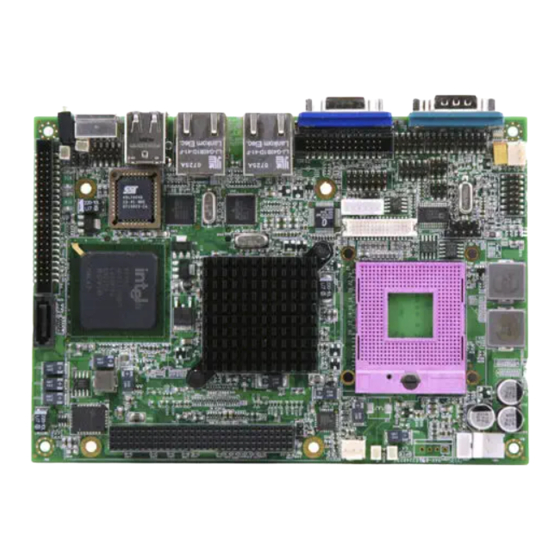

- Page 1 Revision: 2.01 AR-B5630 Board Socket P Intel® Core™2 Duo EPIC SBC with Intel® GME965 Express Chipset , DVI/LCD, Dual LAN and PCI-104 Eexpansion User Manual Manual Rev.: 2.01 Book Number: AR-B5630-2010.06.30...
- Page 2 Revision: 2.01 Revision Version Date Author Description 2.01 2010/06/30 Roger Nan Initial release...
- Page 3 Trademarks AR-B5630 is a registered trademarks of Acrosser; IBM PC is a registered trademark of the International Business Machines Corporation; Pentium is a registered trademark of Intel Technologies Inc; Award is a registered trademark of Award Software International Inc; other product names mentioned herein are used for identification purposes only and may be trademarks and/or registered trademarks of their respective companies.
-
Page 4: Table Of Contents
Revision: 2.01 Table of Contents 1 Introduction ..................5 1.1 Features ......................5 1.2 Package Contents ..................7 1.3 Block Diagram ....................8 2 H/W Information..................9 2.1 Locations......................9 2.2 Connector and Jumper Setting Table ............12 3 BIOS Setting ..................19 3.1 Main Setup .................... -
Page 5: Introduction
Revision: 2.01 INTRODUCTION Welcome to the AR-B5630 ECIP AT/ATX Single Board Computer. The AR-B5630 is EPIC board with Socket P Intel Core™2 Duo or Core Duo or Core Solo and Celeron M processor and Intel GM965 + ICH8M Chipset. The memory contents one DDR2 SO-DIMM socket which supports up to 2GB of memory. - Page 6 Revision: 2.01 2 LEDs for Power and HDD Power LED (Green), HDD (Orange) refer to AR-B1831 Button Reset button (use pin header) PinHeader(2.0mm) Fan connector 1. CPU fan 2. System with temperature controller (connector color different from connector) Win XP/XP Embedded, WinCE, Linux, Vista Video Graphic Controller Intel GM965 integrated GMA X3100 graphic controller VGA Memory: Intel DVMT 4.0 supports Max 224 MB...
-
Page 7: Package Contents
Revision: 2.01 1.2 Package Contents In addition to this User's Manual, the AR-B5630 package includes the following items: AR-B5630 AT/ATX Single Board Quick User Guide Utility CD(Include driver and Manual) Accessory set ACC-5630 series for purchase separately ATX POWER cable (PWR2/ CON2) x 1... -
Page 8: Block Diagram
Revision: 2.01 1.3 Block Diagram... -
Page 9: W Information
Revision: 2.01 H/W INFORMATION This chapter describes the installation of AR-B5630. At first, it shows the Function diagram and the layout of AR-B5630. It then describes the unpacking information which you should read carefully, as well as the jumper/switch settings for the AR-B5630 configuration. -
Page 10: Bottom Side
Revision: 2.01 2.1.2 Bottom Side... - Page 11 Revision: 2.01 2.1.3 List of Connector and Jumper Setting PWR2 COM1 External +12V DC power input External RS232 signal connector Keyboard/Mouse Connnector. connector. for port #1. CON2 USB2 ATX function connector. Internal USB2, USB3 connector. Select COM2 RS232/422/485. CON3 COM2 USB1 Extra +12V and +5V DC power RS-232/422/485 signal connector...
-
Page 12: Connector And Jumper Setting Table
Revision: 2.01 2.2 Connector and Jumper Setting Table 1. PWR2: External +12V 2. CON2: ATX function 3. CON3: Extra +12V and +5V DC power input connector. DC power output connector connector. (for SATA device). SETTING SETTING SETTING +12V PS_ON +12V +3.3V +5V_SUS +12V... - Page 13 Revision: 2.01 10. IDE1: PATA connector. 11. J12: Front panel connector. (NOTE 1) SIGNAL SIGNAL RESET STATUS SETTING External buzzer. 1, 2 1: Buzz + DREQ 2: Buzz - IOW# 3, 4 Hardware reset IOR# Power button for ATX mode; 5, 6 jumper shorted for AT mode.
- Page 14 Revision: 2.01 14. USB2: Internal USB2, USB3 connector. 15. USB1: External USB0, USB1 connector. SIGNAL SIGNAL SIGNAL SIGNAL USB_3- USB_2- USB_1- USB_0- USB_3+ USB_2+ USB_1+ USB_0+ 16. LAN2: RJ45 connector for Gigabit 17. LAN1: RJ45 connector for Gigabit Ethernet Ethernet port #2 port #1 RJ45 connector for Gigabit Ethernet RJ45 connector for Gigabit Ethernet port...
- Page 15 Revision: 2.01 18. LCD1: LCD panel (LVDS, 18-bit/36-bit) 19. LCDPW1: LCD panel inverter power connector. connector. SETTING SETTING LCD VDD E CLK- E CLK+ E Data2- E Data2+ E Data1- E Data1+ E Data0+ E Data0- SETTING O CLK+ +12V O CLK- +12V O Data2+...
- Page 16 Revision: 2.01 22. J9: RS422/RS485 signal connector (for 23. COM3 : RS232 signal connector for port COM2). SETTING PIN SETTING PIN SETTING RS485 DATA+ DCD #2 DSR #2 or RS422 TX+ RX #2 RTS #2 RS485 DATA- TX #2 CTS #2 or RS422 TX- DTR #2 RI #2...
- Page 17 Revision: 2.01 28. GPIO1:8-bit TTL-5V GPIO connector. 29. AUDIO1: 5.1 channels Audio signal connector. SETTING SETTING Line-out Right Line-out Left SETTING SETTING AGND AGND GPIO0 [30] Line-in Right Line-in Left GPIO1 [31] GPIO7 [37] GPIO2 [32] GPIO6 [36] MIC-in AGND GPIO3 [33] GPIO5 [35] AGND...
- Page 18 Revision: 2.01 32. J1: LCD panel driving voltage selection. 33. TVCON1: TV-out signal connector. SETTING PIN SETTING STATUS SETTING CVBS/Pb-G +5V for LCD panel. +3.3V for LCD panel. (Default). C/Pr-G 34. SODIMM1: DDR2 SO-DIMM SLOT. 35. CF1: CF CARD SOCKET. :1.
-
Page 19: Bios Setting
Revision: 2.01 BIOS SETTING This chapter describes the BIOS menu displays and explains how to perform common tasks needed to get the system up and running. It also gives detailed explanation of the elements found in each of the BIOS menus. The following topics are covered: Main Setup Advanced Chipset Setup Power Setup... -
Page 20: Main Setup
Revision: 2.01 3.1 Main Setup The <Main Setup> choice allows you to record some basic hardware configuration in your computer system and set the system clock and error handling. If the motherboard is already installed in a working system, you will not need to select this option. You will need to run this Setup option, however, if you change your system hardware configuration, the onboard battery fails, or the configuration stored in the COMS memory was lost or damaged. -
Page 21: Advanced Chipset Setup
Revision: 2.01 3.2 Advanced Chipset Setup This section allows you to configure and improve your system and follows you to set up some system features according to your preference. Option Choice Description This category speeds up Power On Self Test (POST) after you Quick Power On Self Enabled have powered up the computer. -
Page 22: Power Setup
Revision: 2.01 3.3 Power Setup Use this main to specify your setting for power management. Option Choice Description Enabled Enable this function to support ACPI (Advance Configuration ACPI Function Disabled and Power Interface). S1 (POS) This options for this field are S1 (POS) and S3 (STR). By ACPI Suspend Type S3 (STR) default, the field is set to S1 (POS) -
Page 23: Pnp/Pci Setup
Revision: 2.01 3.4 PnP/PCI Setup The option configures the PCI bus system. All PCI bus system on the system use INT#, thus all installed PCI cards must be set to this value. Option Choice Description Normally, you leave this field Disabled. Select Enabled to reset Extended System Configuration Data (ESCD) when you Reset Configuration Enabled... -
Page 24: Peripherals Setup
Revision: 2.01 3.5 Peripherals Setup This option controls the configuration of the board’s chipset. Control keys for this screen are the same as for the previous screen. Option Choice Description Onboard Serial Port 1 Serial Port 1: 3F8 / IRQ11 Onboard Serial Port 2 Serial Port 2: 2F8 / IRQ10 Select an address and the corresponding... -
Page 25: Pc Health Setup
Revision: 2.01 3.6 PC Health Setup This section shows the parameters in determining the PC Health Status. These parameters include temperatures, fan speeds, and voltages. -
Page 26: Boot Setup
Revision: 2.01 3.7 Boot Setup This section is used to exit the BIOS main menu. After making your changes, you can either save them or exit the BIOS menu and without saving the new values. Option Choice Description Hard Disk First / Second / Third CDROM The BIOS attempts to load the operating... -
Page 27: Exit Setup
Revision: 2.01 3.8 Exit Setup This section is used to configure exit mode. Option Choice Description Press “Y” to store the selections made in the menus in CMOS – a special section of Pressing <Enter> on this item memory that stays on after you turn your for confirmation: system off. - Page 28 Revision: 2.01 When a password has been enabled, you will be prompted to enter your password every time you try to enter Setup. This prevents unauthorized persons from changing any part of your system configuration. Type the password, up to eight characters in length, and press <Enter>.
-
Page 29: Bios Update
The chips can be electronically reprogrammed, allowing you to upgrade your BIOS firmware without removing and installing chips. The AR-B5630 provides the FLASH BIOS update function for you to easily to update to a newer BIOS version. Please follow these operating steps to update to new BIOS：... -
Page 30: Watch Dog Timer Reset Sample Code (It8712F-A/Ix-L)
Revision: 2.01 Watch Dog Timer Reset Sample Code (IT8712F-A/IX-L) The WDT (Watch Dog Timer) is used to generate a variety of output signals after a user programmable count. The WDT is suitable for use in the prevention of system lock-up, such as when software becomes trapped in a deadlock. - Page 31 Revision: 2.01 // Set Watchdog outportb(IO_Port_Address,0x07); // Point to Logical Device Number Reg. outportb(IO_Port_Address+1,0x07); // Select logical device 7, (Watchdog Function) outportb(IO_Port_Address,0x23); // Select Watchdog use CLKIN outportb(IO_Port_Address+1,inportb(IO_Port_Address+1)|0x10); outportb(IO_Port_Address,0x72); // Select Watchdog use keyboard reset outportb(IO_Port_Address+1,0x40); outportb(IO_Port_Address,0x72); // Select Watchdog count mode seconds or minutes outportb(IO_Port_Address+1,inportb(IO_Port_Address+1)|0x80);...
-
Page 32: Note 1
Revision: 2.01 NOTE 1: J12: Front panel connector. STATUS SETTING External buzzer. 1, 2 5: Buzz + 6: Buzz - 3, 4 Hardware reset Power button for ATX 5, 6 mode; jumper shorted for AT mode. When using AT mode in the system, the pin9-10 of header J12 must be shorted. If using ATX mode in the system, the pin5-6 of header J12 should connect to a Push-Button-Switch.
