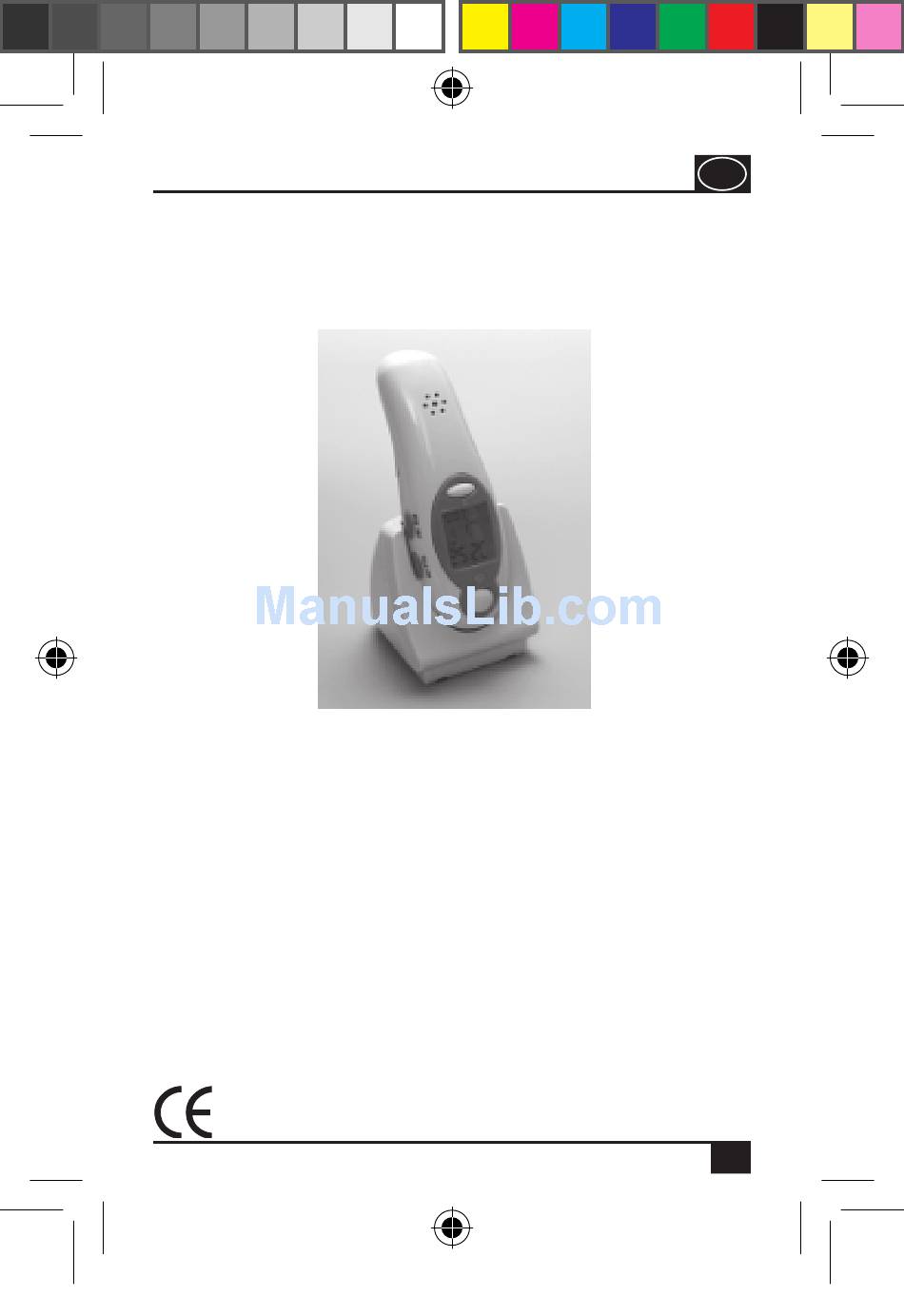

FOREHEAD- AND-EAR THERMOMETER DX 6635
Version 4, March 2009
2634-09DST_M_GB_GebrAnw_Stirn_Ohrthermo_2.indd 1
USER MANUAL
• Precise measurement of body temperature in the ear
and on forehead
• Audio output of readings in German and English
• Integrated light for nighttime usage
• Digital display with blue back lighting
• Additional function: Display shows time and room
temperature (in standby mode)
• Date, month and year display
• Previous body temperature measurements saved
• Practical stand for storage and safekeeping
• Includes 2 x 1.5 V AAA batteries
• With user manual
0123
GB
DX6635
1
27.04.09 09:11
