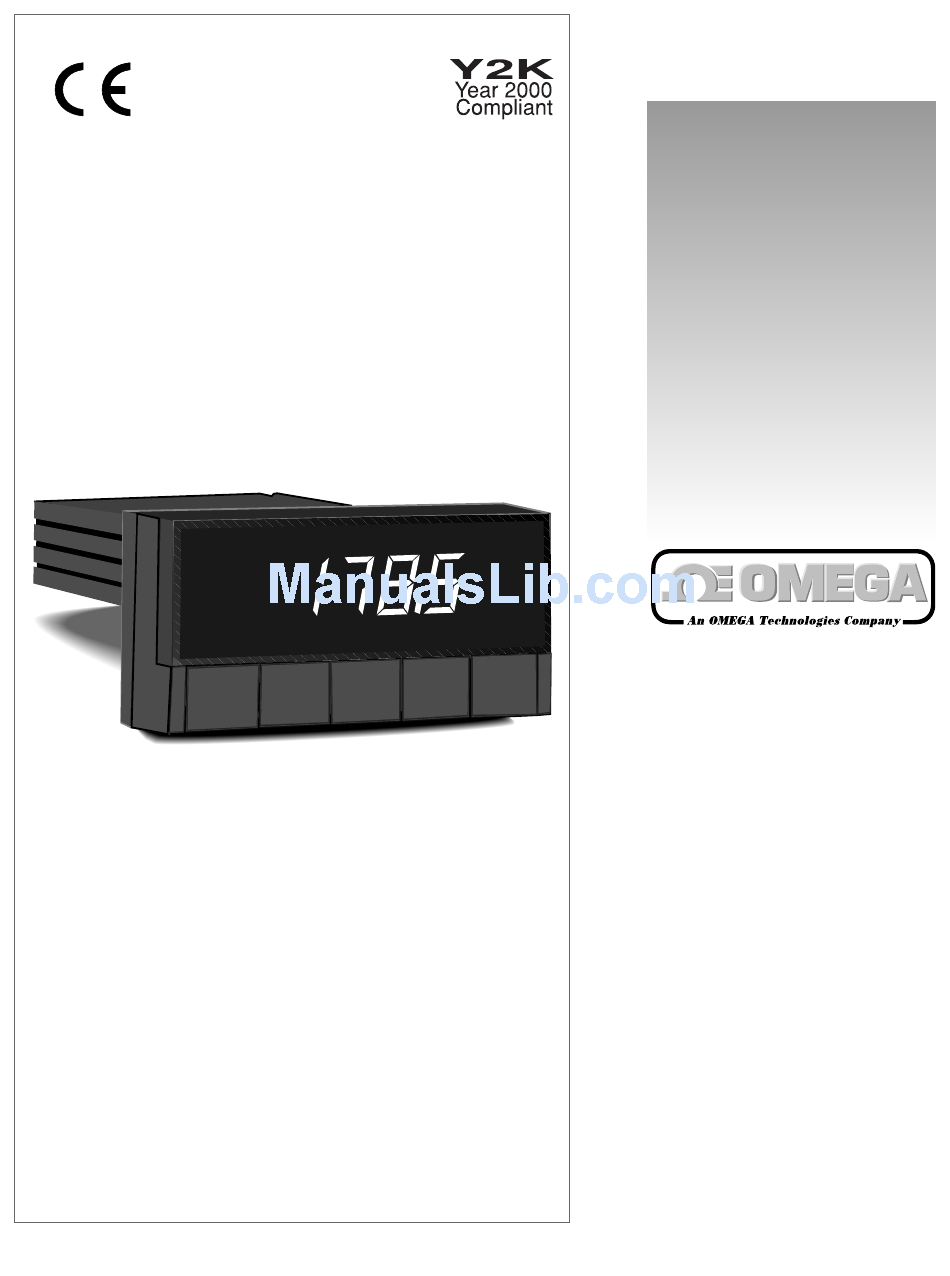

- Page 1 UserÕ s Guide Made in USA ® http://www.omega.com e-mail: info@omega.com DP119-RTD Miniature Panel Thermometer...
- Page 2 OMEGA will add the CE mark to every appropriate device upon certification. The information contained in this document is believed to be correct but OMEGA Engineering, Inc. accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
-
Page 3: Table Of Contents
SECTION Preface ....... .ii Models Available ......iii Section Introduction . -
Page 4: Preface
RTD Panel Thermometer. This meter is an economical Miniature Temperature Panel Thermometer featuring a large display with a linearized analog output that is supplied as a standard feature. Each of the models* can be converted by the user to display in degrees Fahrenheit or Celsius between one degree and a tenth degree resolution. -
Page 5: Models Available
RTD MODELS AVAILABLE The following 3-1/2 digit mini RTD panel meters are available and discussed in this OperatorÕs Manual. MODEL DP119-MF1 DP119-MF2 DP119-MC1 DP119-MC2 The accuracies and ranges are listed in Section 5. Note Power Options Available MODEL DP119-Mxx DP119-Mxx type-230 DP119-Mxx type-9/26 DP119-Mxx type-100 DP119-Mxx type-24... - Page 6 Other Models Available The following 3-1/2 digit mini thermocouple panel thermometers are discussed in a separate manual. MODEL TYPE DP119-JF1 DP119-JF2 DP119-JC1 DP119-JC2 DP119-KF1 DP119-KF2 DP119-KC1 DP119-KC2 DP119-TF1 DP119-TF2 DP119-TC1 DP119-TC2 DP119-EF1 DP119-EF2 DP119-EC1 DP119-EC2 TABLE 1-3 ¡C or ¡F RESOLUTION 1.0¡F 0.1¡F...
- Page 7 NOTES, WARNINGS and CAUTIONS Information that is especially important to note is identified by these labels: NOTE: provides you with information that is important Note to successfully setup and use the Programmable Digital Meter. CAUTION or WARNING: tells you about the risk of electric shock.
-
Page 8: Section 1 Introduction
Verify that you received the following items in the shipping box: QTY DESCRIPTION Panel Thermometer with 3 small connectors plugged into the rear of the meter. OperatorÕs Manual... -
Page 9: Safety Considerations
1.2 SAFETY CONSIDERATIONS This device is marked with the international caution symbol. It is important to read this manual before installing or commissioning this device as it contains important information relating to Safety and EMC (Electromagnetic Compatibility). Unpacking & Inspection Unpack the instrument and inspect for obvious shipping damage. -
Page 10: Section 2 About The Meter
SECTION 2 ABOUT THE METER 2.1 Front of the Meter Figure 2-1 shows the panel thermometer. Features: Display:3 1/2 Digit, 7-Segment Red or Green LED Full-size:14.2 mm (0.56") LED Display Analog Output Standard 1/8 DIN Standard Panel Cutout Removable Screw-Clamp Cable Connector Display Hold Capability Figure 2-1. -
Page 11: Back Of The Meter
2.2 Back of the Meter Figure 2-2 illustrates the rear of the meter. Figure 2-2. Rear View Showing P1, P2, P3 Locations 2.3 Connector Description Connector Description (AC) Earth Ground (AC) Neutral (AC) Line (DC) -DC Return (DC) +DC (DC) No Connection (Not used) Display Hold (Active Low) Analog Return Analog Output... -
Page 12: Section 3 Getting Started
SECTION 3 GETTING STARTED 3.1 Main Board Power Jumpers Caution: The meter has no power-on switch, so it will be in operation as soon you apply power. The meter can be configured to operate on 115VAC or 230VAC by the proper combination of the soldered wire jumpers that are located on the printed circuit board. - Page 13 AC VOLTAGE 115VAC 230VAC Figure 3-1 shows the location of solder jumpers W1 through W3. P2 2 Figure 3-1. Power Jumper Locations Voltage Jumper Pin Settings INSTALL W1, W3 (COMPONENT SIDE) TRANSFORMER REMOVE W1, W3 ZERO SPAN...
-
Page 14: Changing The Meter Parameters
3.2 Changing the Meter Parameters The proper combinations of jumper plugs S1, S2, S3, S4, and S5 inside the meter allow you to change various parameters of the meter. These parameters include resolution, range, units, RTD sensor configuration and sensor break configuration. You can change the parameters by moving the plugs on one or several of the jumper locations. - Page 15 The following tables summarizes what parameters you can change. Option F/C Resolution *-MF1 ¡F *-MF2 ¡F *-MC1 ¡C *-MC2 ¡C * Refer to Table 1-1, for complete models (preface section). TABLE 3-2 2-, 3-, 4-Wire, Upscale, Downscale Configuration Configuration 2- or 4-wire RTD 3-Wire RTD Note 3-Wire input connection is standard.
- Page 16 Figure 3-3 gives an example of how to set S4 and S5 to configure a MF1 meter option. There is a jumper plug across A on S4 and another jumper plug across A on S5. B and C on S5 are not used. JUMPER PLUG JUMPER PLUG COVERING BOTH PINS...
-
Page 17: Installation And Panel Mounting
Section 3.3 Installation and Panel Mounting Figure 3-4 shows the panel cutout dimensions, the dimensions for the panel thickness, and the backplate for mounting the unit in a panel. Connections will be done after mounting the unit. Remove the 2 phillips screws from behind the display (you don't have to go inside the meter) holding the rectangular backplate to the meter. - Page 18 1/8 DIN PANEL CUTOUT METER BEZEL LENS Figure 3-4. Installation Information PANEL THICKNESS 0.25 [6.4] MAX 0.03 [0.8] MIN 0.06 [1.5] 1.772 +0.024/-.000 4PLCS [45.0 +0.61/-0.00] 3.622 +0.032/-.000 [92.00 +0.81/-0.00] PANEL WITH 1/8 DIN CUTOUT SCREWS BACKPLATE...
-
Page 19: Sensor Input Connections
3.4 Sensor Input Connections The RTD sensor (see Figure 3-5), can be wired in three different ways. They are 2-, 3-, and 4-wire configurations. The meter is factory set internally to a 3-wire setup. If you wish to change it, refer to Table 3-2. - Page 20 - Excitation Note Refer to Table 3-1 and Table 3-2 for internal jumper settings. * Wire colors are for OMEGA RTD wiring only. Figure 3-6. 2-Wire RTD Wiring NOT USED Figure 3-7. 3-Wire RTD Wiring Figure 3-8. 4-Wire RTD Wiring...
-
Page 21: Analog Output Connections
3.5 Analog Output Connections The analog output is a linearized millivolt signal that is equivalent to the displayed temperature. It comes as a standard feature with every unit. The resolution of the analog output is no greater than the resolution of the display. Note The analog output is a non-isolated signal. -
Page 22: Display Hold Connections
3.6 Display Hold Connections The ÒDisplay Hold" function can be used to freeze the display. Connect a single pole, single throw (SPST) switch between pins 1 and 2 on the P2 connector. The display will stop updating when this switch is on. When this switch is off, the display will update itself 2.5 times per second. -
Page 23: Main Power Connections
3.7 Main Power Connections Connect the ac main power connections as shown below. WARNING: Do not connect ac power to your meter until you have completed all input and output connections. Failure to do so may result in injury! This device must only be installed electrically by specially trained electrician with corresponding qualifications. - Page 24 DC WIRING The meter can be configured at the factory to operate on a 9Ð26 VDC non-isolated power. The DC voltage option is specified at the time of ordering. See Table 1-3 for model number listing. An AC powered meter cannot be converted to a DC powered meter or vice versa.
-
Page 25: Disassembly/Assembly
3.8 Disassembly/Assembly You must go through the following steps in order to Note remove the printed circuit board from the case if you want to change from 115VAC to 230VAC (or vice versa) or to change from Fahrenheit to Celsius (or vice versa). These changes must be performed by a qualified technician in order to avoid damage to the unit. - Page 26 PULL TAB HERE Figure 3-13. Removing the PC Board from the Case When re-installing the printed circuit board: Hold the case (with the two mounting holes facing upwards and to the right side of the case) in the left hand. Hold the printed circuit board with the components showing (soldered side down) in the right hand.
-
Page 27: Section 4 Operation And Calibration
SECTION 4 OPERATION AND CALIBRATION Important: These changes must be performed by a qualified technician. WARNING: Do not connect ac power to your meter until you have completed all input and output connections. Failure to do so may result in injury! Wire the meter according to the wiring section. -
Page 28: Calibration Procedure
4.2 CALIBRATION PROCEDURE Remove the front lens. Connect power to the meter, observing proper wiring procedures. Connect the precision resistance source to the P3 connector observing proper wiring configuration. For 3Ðwire connections, use pins 1, 2, 3, and 4. Refer to Figures 4-1 through 4-3. - Page 29 + Excitation Signal Hi Signal Lo - Excitation Figure 4-3. 4-Wire Configuration CALIBRATION VALUES WHEN YOU ARE USING MODEL RESISTANCE OPTION READING *-MF1 *-MF2 *-MC1 *-MC2 * Refer to Table 1-1, for complete models (preface section). Figure 4-4. Calibration Potentiometers BLACK BLACK TABLE 4-1...
-
Page 30: Specifications
SECTION 5 SPECIFICATIONS INPUT TYPE: RTD:...100-ohm platinum with alpha of 0.00385 Calibration:...IEC 751 (IPTS-68) Configuration:...2-, 3-, or 4-wire RTD connection Polarity: ...Bipolar Zero: ...Adjustable ±20¡C (±36¡F) Zero Tempco : ...±0/05 degree/degree Sensor-wire Resistance Tempco Effect per Conductor: 2-wire: ...20 mdeg/½/degree, up to 3.8 ½ 3-wire: ...50µdeg/½/degree, up to 100 ½... - Page 31 DISPLAY Type:...7-segment, LED Height: ...0.56" (14.2 mm) Symbols:...-1.8.8.8 Overrange Indication:...Three least-significant digits blank Colors: ...Red - standard DIGITAL INPUTS Hold:...TTL or 5V CMOS compatible ENVIRONMENTAL Operating Temperature: ...0¡ to 60¡C(32¡ to 140¡F) Storage Temperature: ...-40¡ to 85¡C (-40¡ to 185¡F) Relative Humidity: ...95% at 40¡C (non-condensing) MECHANICAL DIMENSIONS Bezel: ...
- Page 32 1.89 [48.0] BEZEL BACKPLATE CASE SIDE VIEW PANEL CUTOUT TOP VIEW PANEL THICKNESS 0.25 [6.4] MAX 0.03 [0.8] MIN 0.06 [1.5] 1.772 +0.024/-.000 4PLCS [45.01 +0.61/-0.00] 3.622 +0.032/-.000 [92.00 +0.81/-0.00] 1/8 DIN Figure 5-1 Dimensions 3.78 [96.0] 3.76 [95.5] 0.76 [19.3] 4.32 [109.7]...
-
Page 33: Section 6 Glossary
SECTION 6 GLOSSARY COMMON MODE REJECTION (CMR) - a measure of the affect of a voltage on the indicated display. It is the ratio of the common mode voltage to the measured voltage due to a common mode voltage. COMMON MODE VOLTAGE (CMV) - the average of the voltage applied to both wires of a two wire or differential input. - Page 34 NOTES...
