CHAPTER 2 | FEATURES AND DESCRIPTION

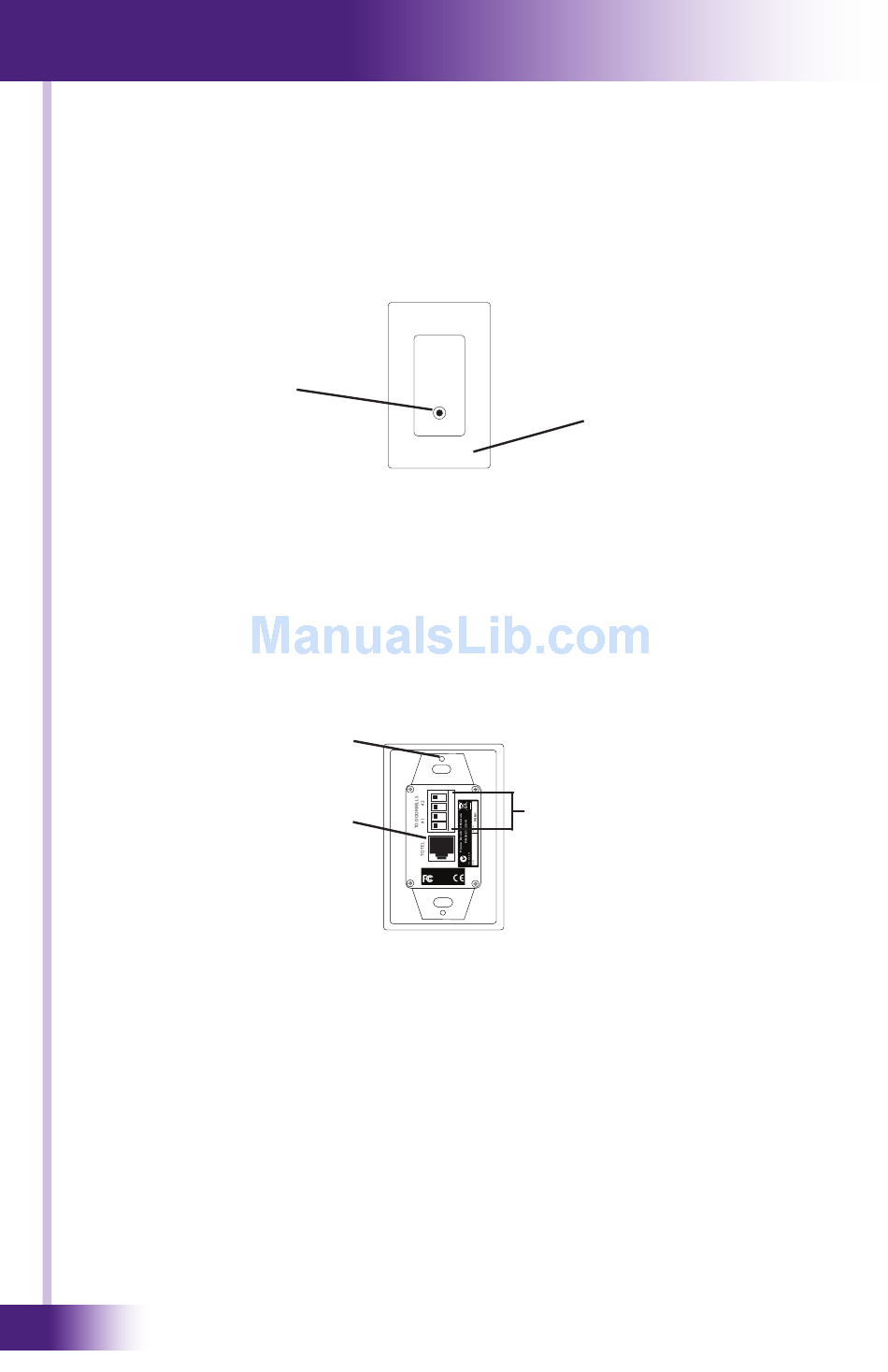

PDM-1 PHONE/DOORBELL MUTE PLATE* - FRONT
The back panel of the AD-4x has a 3.5mm stereo connector input labeled
"Mute". This is designed to be used with the PDM-1 Phone/Doorbell Mute
module. When the PDM-1 is installed, the system will temporarily mute
when the phone or doorbell rings.
1. Phone - Doorbell Output - 3.5mm
This 3.5mm stereo mini jack is for connecting to the "Mute" connection on
the rear panel of the AD-4x. (See the AD-4x rear panel description)
2. Decora faceplate (not included)
®
Compatible with standard single-gang Decora
PDM-1 PHONE-DOORBELL MUTE MODULE - REAR
3. Mounting holes
Use screws to mount the PDM-1 in a standard single-gang electrical box.
4. Doorbell Connectors
The PDM-1 phoenix connector will accept up to two AC or DC voltages from
two different doorbell chimes. This connection is done with two conductor
wire from the terminals on the doorbell chime to the Doorbell 1 or Doorbell
2 inputs on the back of the PDM-1. Polarity is not important for this
connection.
5. Phone System - RJ-11
A single phone line can be brought into the RJ-11 connection on the back
of the PDM-1. The ring voltage from the phone line will trigger the AD-4x
system to mute.
*Note: PDM-1 sold separately.
