It's Under Control
It's Under Control
®
®

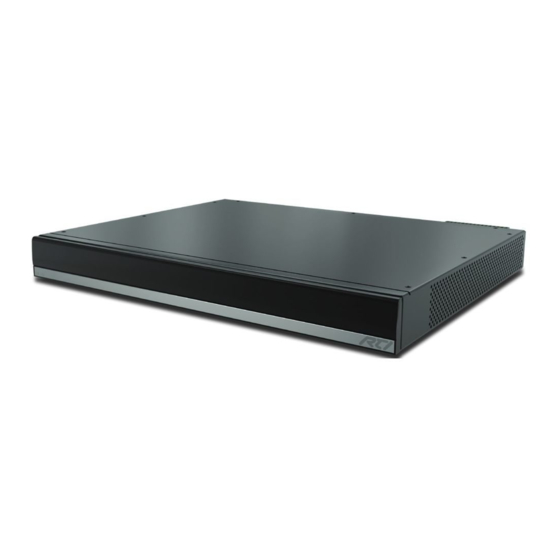

CP-16i
Cool Power
Audio Amplifier
®
70-210209-21 V1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cool Power CP-16i and is the answer not in the manual?

Questions and answers

Summary of Contents for RTI Cool Power CP-16i

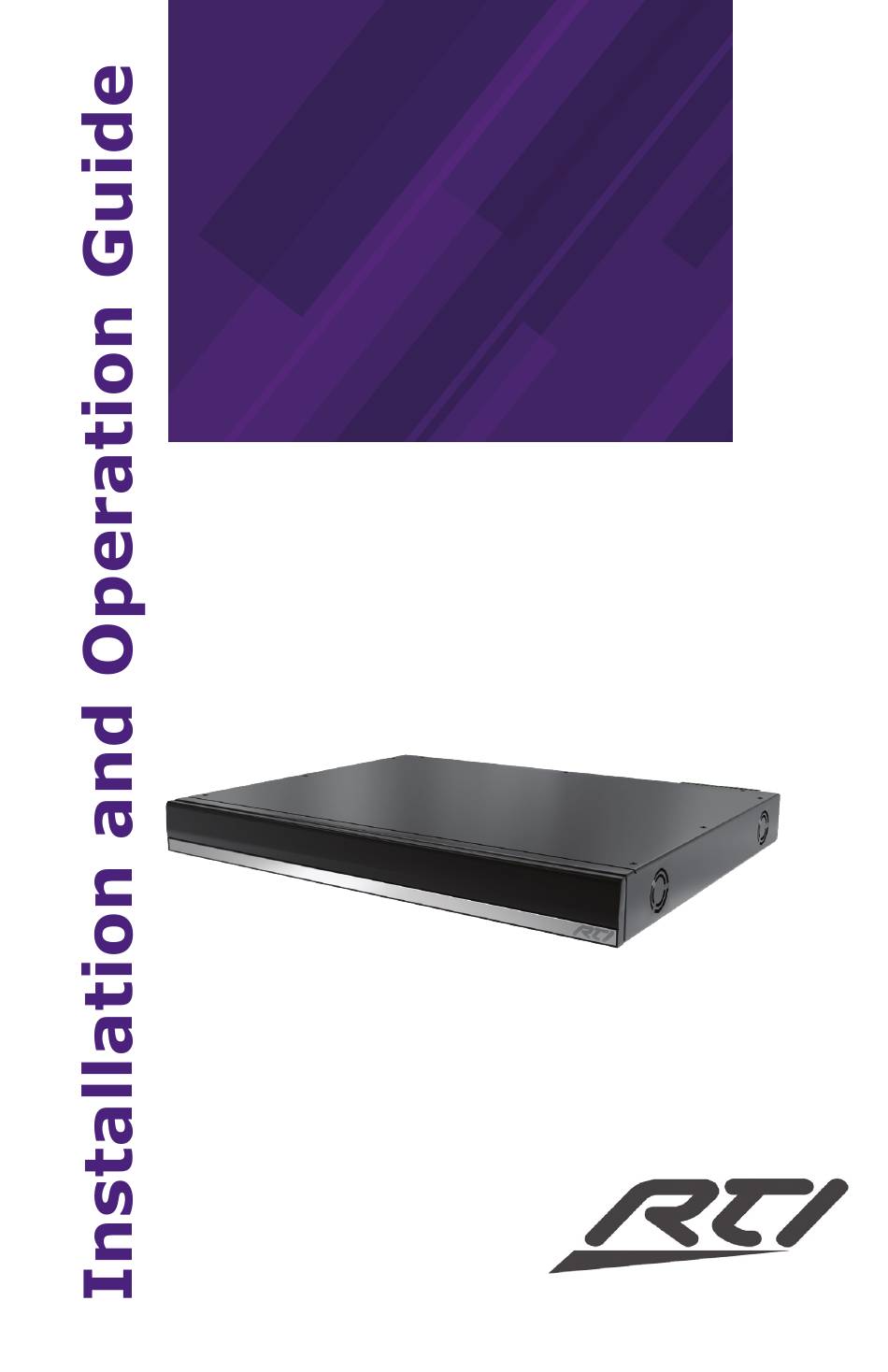

  • Page 1 It’s Under Control It’s Under Control ® ® CP-16i Cool Power Audio Amplifier ® 70-210209-21 V1.0...
  • Page 2 CP-16i Cool Power Audio Amplifier ® Copyright © 2019 Remote Technologies Incorporated All rights reserved.
  • Page 3: Federal Communications Commission Notice

    Ce dispositif ne peut causer des interférences nuisibles. Cet appareil doit accepter toute interférence reçue y compris des interférences qui peuvent provoquer un fonctionnement indésirable DECLARATION OF CONFORMITY (DOC) The Declaration of Conformity for this product can be found on the RTI website at: www.rticorp.com/declaration...
  • Page 4: Safety Suggestions

    CP-16i Cool Power Audio Amplifier ® IMPORTANT SAFETY INSTRUCTIONS Read Instructions. Read all safety and operating instructions before operating the unit. Retain Instructions. Keep the safety and operating instructions for future reference. Heed Warnings. Adhere to all warnings on the unit and in the operating instructions.
  • Page 5 It’s Under Control ® IMPORTANT SAFETY INSTRUCTIONS Servicing. Do not attempt any service beyond that described in the operating instructions. Refer all other service needs to qualified service personnel. Damage Requiring Service. The unit should be serviced by qualified service personnel when: Objects have fallen or liquid has been spilled into the unit.
  • Page 6: Limited Warranty

    CP-16i, Integration Designer, and the RTI logo are registered trademarks of Remote Technologies Incorporated. Other brands and their products are trademarks or registered trademarks of their respective holders.
  • Page 7: Table Of Contents

    It’s Under Control ® TABLE OF CONTENTS Federal Communications Commission Notice ........3 Safety Suggestions ................4 Limited Warranty ................6 Disclaimer ..................6 Table of Contents ................7 Chapter 1 - Welcome ................ 8 - Important Notes ..............8 - Product Contents ..............
  • Page 8: Chapter 1 - Welcome

    Matched with the RTI control ecosystem, you have a complete solution for distributed audio in residential and commercial spaces. Go ahead and put RTI technology to the test - you’ll never miss a beat. IMPORTANT NOTES...
  • Page 9: Product Contents

    After unpacking the CP-16i Audio Amplifier, save all of the packing materials in case you ever have to ship the unit. Thoroughly inspect the CP-16i and packing materials for signs of damage. Report any damage to the carrier immediately. Report any equipment malfunctions to RTI or an authorized RTI distributor.
  • Page 10: Chapter 2 - Features And Description

    CP-16i Cool Power Audio Amplifier ® CHAPTER 2 | FEATURES AND DESCRIPTION FEATURES • Superior Performance – Utilizes proven audio amplification technology to deliver premium sonic performance. • Easy Expansion – 16 channels available for all kinds of zoning configurations in large or far reaching the properties. •...
  • Page 11: Rear Panel

    It’s Under Control ® CHAPTER 2 | FEATURES AND DESCRIPTION • Red indicates an overload event with the Power Supply. The LED will light red if internal temperature sensors on the power supply sense an abnormally high temperature, or if power supply over-current/over-load/ power-limit circuits are triggered.
  • Page 12: Chapter 3 - Installation And Operation

    CP-16i Cool Power Audio Amplifier ® CHAPTER 3 | INSTALLATION AND OPERATION Controlling the CP-16i The CP-16i can be powered on and off externally by using the two signals 12V trigger and 3-5V trigger. A Signal Sense function is also provided which automatically can switch on the CP-16i in the event of an audio signal and switch off the CP-16i to enter standby mode when no audio signal has been present on the signal terminals for approximately 13 minutes.
  • Page 13: Wiring And Connections

    It’s Under Control ® CHAPTER 3 | INSTALLATION AND OPERATION Wiring and Connections IMPORTANT NOTE: The amplifier must be turned off whenever you make changes to the input connections and speaker wire connections. Connecting Audio Source Devices Source Devices connect to the Audio (Signal) Inputs connectors on the rear panel.
  • Page 14 CP-16i Cool Power Audio Amplifier ® CHAPTER 3 | INSTALLATION AND OPERATION Connecting Input Devices in Stereo Mode Stereo input devices use both input channels (left and right) for each Zone. • Odd-numbered channels (with white connectors) should be used to connect to the left output on the source device.
  • Page 15 It’s Under Control ® CHAPTER 3 | INSTALLATION AND OPERATION Connecting Speakers All speaker connections must use Class 2 Wiring. Class 2 Wiring is required due to the fact that power is above 10W per channel under normal operating conditions. Speakers connect to the captive-wire output terminals (CH1-CH16) on the rear panel: Each Zone (1-8) consists of two channels (an L/R pair in Stereo Mode),...
  • Page 16 CP-16i Cool Power Audio Amplifier ® CHAPTER 3 | INSTALLATION AND OPERATION Connecting Speakers in Stereo Mode NOTE: When connecting stereo speakers, verify that the Stereo/Bridge (SE/ BTL) mode switch for the associated Zone is set to “SE”. Stereo speaker pairs use both output channels (left and right) for each Zone. •...
  • Page 17 It’s Under Control ® CHAPTER 3 | INSTALLATION AND OPERATION Connecting Speakers in Bridge Mode NOTE: When connecting a speaker to a “bridged” input, verify that the Stereo/ Bridge (SE/BTL) mode switch for the associated Zone is set to “BTL”. In Bridge Mode, both channels in a Zone are connected to a single speaker, via the positive (“+”) pins for both output channels: NOTE: If incorrect wiring is used there is a risk of electrical shock and a fire...
  • Page 18: I/O Control Input Port

    CP-16i Cool Power Audio Amplifier ® CHAPTER 3 | INSTALLATION AND OPERATION I/O (Control Input) Port The 10-pin captive-wire I/O (Control Input) port is for external control and status indication. 10-pin I/O (Control Input) Port with External Signal Sense switch The following table lists the pinouts for the I/O port...
  • Page 19 It’s Under Control ® CHAPTER 3 | INSTALLATION AND OPERATION The function of each pin on the I/O port is described below. Pin 1 - Signal Sense Pin 1 on the 10-pin I/O port is used for single-ended Signal Sense input (+). This pin detects an input signal from a source device when the source device is active.
  • Page 20 CP-16i Cool Power Audio Amplifier ® CHAPTER 3 | INSTALLATION AND OPERATION Pin 4 - Trigger (Loop Out) The CP-16i also provides a convenient way to daisy-chain a 12V trigger to other devices. Any voltage provided to Pin 3 is looped out to Pin 4 of the 10-pin I/O port: I/O port on first amplifier...
  • Page 21 It’s Under Control ® CHAPTER 3 | INSTALLATION AND OPERATION Pins 7 & 8 - Thermal Overload and OC (Overcurrent) Monitor Indicators The Thermal Overload Indicator (OUT) signal can be used to send a Thermal message from the CP-16i to an external controller if desired. The OC (Overcurrent) Monitor Indicator (OUT) signal can be used to send an OC message from the CP-16i to an external controller if desired.
  • Page 22 CP-16i Cool Power Audio Amplifier ® CHAPTER 3 | INSTALLATION AND OPERATION Pin 10 - Status GND Pin 10 on the 10-pin I/O port provides a ground reference for the Output pins (7-9), and is required for any device that needs to sense the potential. Pin 10 connects to the GND pin of an I/O port on an external controller.
  • Page 23: Powering The Cp-16I

    It’s Under Control ® CHAPTER 3 | INSTALLATION AND OPERATION Applying Power to the CP-16i Amplifier CAUTION: This unit should only have one source of incoming power. Using more than one source of power to the CP-16i can result in damage to the internal components and a possible burn out.
  • Page 24: Chapter 4 - Specifications

    CP-16i Cool Power Audio Amplifier ® CHAPTER 4 | SPECIFICATIONS GENERAL Height 1U, 1.7 inches/44 mm (1 RU) Width 16.7 inches (424mm) - Fits in a standard 19” equipment rack Depth 8.98” (228mm) without connectors and 9.30” (236.3mm) with connectors Weight 10.98 lbs (4.1kg) Warranty...
  • Page 25 It’s Under Control ® CHAPTER 4 | SPECIFICATIONS POWER AC mains power Universal Mains 100-240VAC, 50-60Hz Fuse rating T6.3A_H 250V Power connection IEC 320 C13 power connector with 3-pole detachable power cord Standby power Less than 0.25W consumption Control Audio input sense, 12V trigger and 3-5V trigger THERMAL Environmental 32˚- 113˚F/ 0˚- 45˚C...
  • Page 26: Chapter 5 - Service And Support

    Fax (952) 253-3131 info@rticorp.com Service & Support If you are encountering any problems or have a question about your RTI product, please contact RTI Technical Support for assistance (see the Contacting RTI section of this guide for contact details). RTI provides technical support by telephone or e-mail. For the highest quality service, please have the following information ready: •...
  • Page 27 It’s Under Control ®...
  • Page 28 CP-16i Cool Power Audio Amplifier ® It’s Under Control ® Remote Technologies Incorporated 5775 12th Avenue East, Suite 180 Shakopee, MN 55379 Tel: 952-253-3100 Fax: 952-253-3131 www.rticorp.com © 2019 Remote Technologies Inc. All rights reserved.
