Summary of Contents for RTI CP-1650

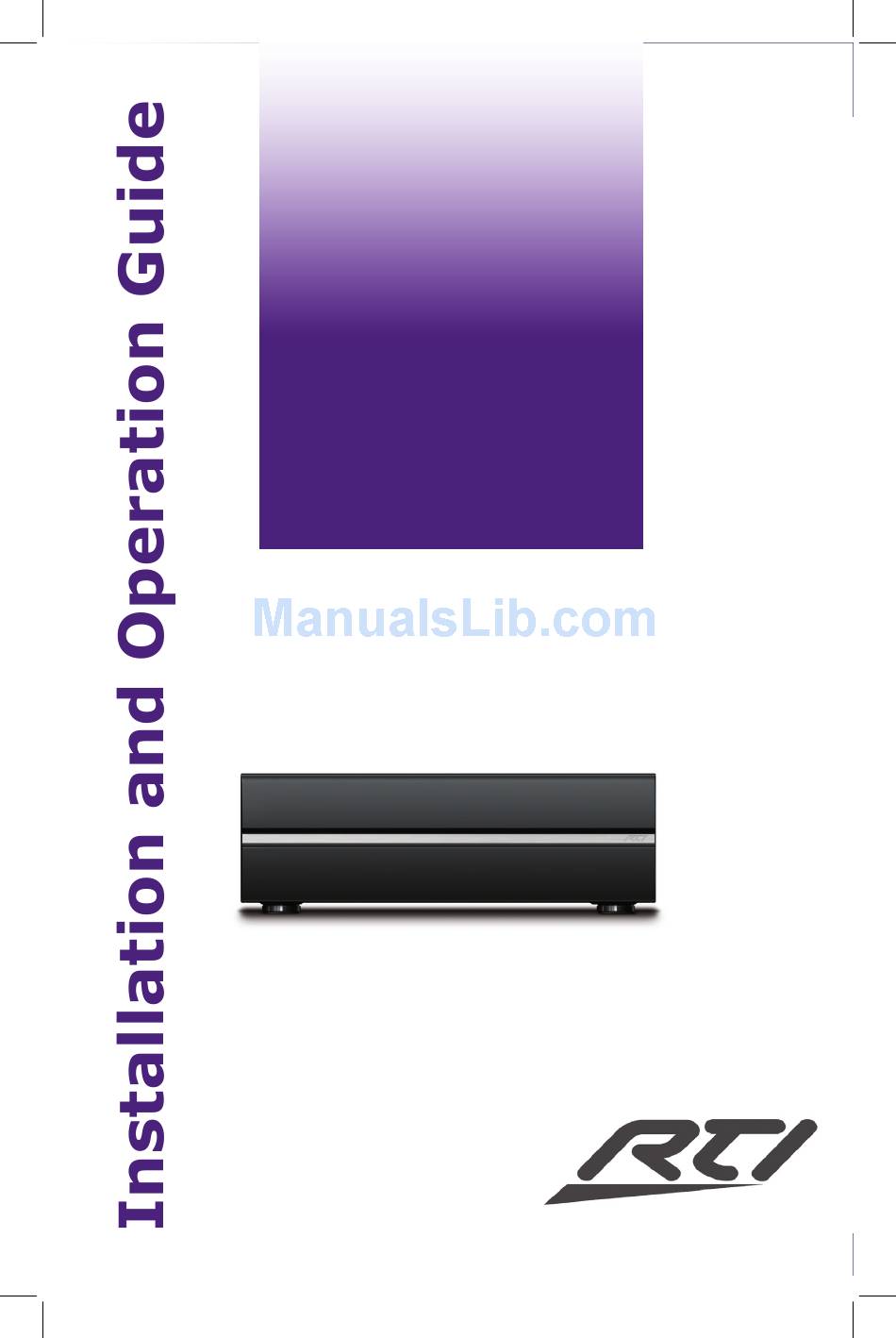

- Page 1 It’s Under Control ® It’s Under Control ® CP-1650 Cool Power Audio Amplifier ® 70-210098-27 V1.0...
- Page 2 CP-1650 Cool Power Audio Amplifier Copyright © 2012 Remote Technologies Incorporated All rights reserved.
-
Page 3: Federal Communications Commission Notice
This device may not cause harmful interference. This device must accept any interference received including interference that may cause undesired operation. N27917 DECLARATION OF CONFORMITY (DOC) The Declaration of Conformity for this product can be found on the RTI website at: www.rticorp.com/declaration... -
Page 4: Safety Suggestions
CP-1650 Cool Power Audio Amplifier SAFETY SUGGESTIONS Read Instructions. Read all safety and operating instructions before operating the unit. Retain Instructions. Keep the safety and operating instructions for future reference. Heed Warnings. Adhere to all warnings on the unit and in the operating instructions. - Page 5 It’s Under Control ® SAFETY SUGGESTIONS Cleaning. Clean only with dry cloth. Servicing. Do not attempt any service beyond that described in the operating instructions. Refer all other service needs to qualified service personnel. Damage Requiring Service. The unit should be serviced by qualified service personnel when: Objects have fallen or liquid has been spilled into the unit.
-
Page 6: Limited Warranty
Audio Amplifier LIMITED WARRANTY RTI warrants its products for a period of one (1) year (90 days only for included battery packs); or for a period of time compliant with local laws when applicable from the date of purchase from RTI or an authorized RTI distributor. -
Page 7: Table Of Contents
- Mounting ............17 - Connecting Audio Sources ........18 - Speaker Wire Termination ........19 - Controlling the CP-1650 ........19 Chapter 4 - Specifications ........... 22 Chapter 5 - Troubleshooting ........24 Chapter 6 - Service and Support ......... 25... - Page 8 CP-1650 Cool Power Audio Amplifier...
-
Page 9: Chapter 1 - Welcome
Avoid installing the CP-1650 in a location where it can come in contact with direct sunlight. Do not let the CP-1650 system or get wet. It should not be handled with wet hands or placed in an area where it could get wet. -
Page 10: Important Notices To Installers
CP-1650 Cool Power Audio Amplifier IMPORTANT NOTICES TO INSTALLERS Speaker connections must be completely separate for each channel and have NO common ground connections through any connected devices that share ground. Some shared ground devices include, but are not limited to, the following:... -
Page 11: Product Contents
Two (2) Rack Mounting Ears with Screws UNPACKING AND INSPECTION After unpacking your new CP-1650 Audio Distribution System, save all of the packing materials in case you ever have to ship the unit. Thoroughly inspect the CP-1650 and packing materials for signs of damage. -
Page 12: Chapter 2 - Features And Description
Cool Power Audio Amplifier CHAPTER 2 | FEATURES AND DESCRIPTION The CP-1650 provides superior quality and reliability as well as these specific features: • Sixteen (16) channels. • Fifty (50) Watts per channel or 100 Watts per channel in Bridge Mode. -
Page 13: Front Panel
3. Power LED A blue LED will be lit up when power is on and will be off when the power is off. 4. Feet Feet may be placed on the bottom of the CP-1650 if the unit is not rack mounted. -
Page 14: Rear Panel
8. Loop Outputs Each output corresponds to an input on the CP-1650 for all 16 channels. The loop outputs can be used to connect up to 2 CP-1650’s together if using a cascaded system. - Page 15 9. RS-232 This port allows the CP-1650 to be connected to other components of the RTI control system. It also allows for the CP-1650 to connect to the Ethernet via either RS-232 to USB or RS-232 to Ethernet adaptor cables. See Chapter 3 Installation & Operation for RS-232 control details.
- Page 16 CP-1650 Cool Power Audio Amplifier...
-
Page 17: Chapter 3 - Installation And Operation
The CP-1650 can be mounted in a component rack using the included rack mounting ears. Align the rack mounting ears with the screw holes located on the sides of the CP-1650 near the front. Fasten the rack ears to the CP-1650 using three screws (supplied). Remove feet before mounting in a rack. -
Page 18: Connecting Audio Sources
CP-1650 is connected to an RTI audio distribution system (the AD-8 audio distribution system is shown here). In this example, CH 1/2 and CH 3/4 on the rear of the CP-1650 have been daisy chained so that their output goes to different speaker pairs with the same audio feed. -
Page 19: Controlling The Cp-1650
CP-1650 in Bridge Mode is connected to an RTI audio distribution system (the AD-8 audio distribution system is shown here). In this example, CH 1/2 and CH 3/4 on the rear of the CP-1650 have been daisy chained so that their output goes to different individual speakers with the same audio feed. -
Page 20: Speaker Wire Termination
RS-232 CONTROL OF CP-1650 A DB-9 jack offers RS-232 control of the CP-1650 from an RTI or third- party home automation control system or a PC running a hyperterminal program. A set of RS-232 codes is available within the RTI Integration Designer programming software or on the RTI website (accessible to RTI dealers only). - Page 21 CP-1650 between “Standby” and “On” modes. When the Trigger Switch is set to “Constant,” press the Power Button to switch the CP-1650 “On” or “Off.” When the CP-1650 is in “Constant” mode, both RS-232 and IR can switch the CP-1650 between “Standby” and “On”...
-
Page 22: Chapter 4 - Specifications
CP-1650 Cool Power Audio Amplifier CHAPTER 4 | SPECIFICATIONS GENERAL Power Supply 115V AC or 230V AC (Switchable) Power Consumption 230W Trigger Output One, 12V DC @ 15mA (Status) Mounting Rack mount or free standing Dimensions 17.00 X 5.75 X 15.00 inches (W x H x D) (431.80 X 146.05 X 381 mm) - Page 23 It’s Under Control ® AUDIO GENERAL Total Harmonic 0.5% Distortion @ 30W/8 ohms & 50W/4 ohms Total Harmonic 0.05% Distortion @ 1W/8 ohms S/N @ Rated Power, 100dB IEC A-wtd, Source input shorted Frequency Response 1.5dB+/-0.5dB 20Hz to 20KHz @ 1W/8 ohms Input Sensitivity For 170mV/900mV...
-
Page 24: Chapter 5 - Troubleshooting
Cool Power Audio Amplifier CHAPTER 5 | TROUBLESHOOTING If you are having problems with your CP-1650 Audio Distribution System, please read the information below before contacting technical support. If you continue to have problems, see Chapter 6 for more information on contacting RTI technical support. -
Page 25: Chapter 6 - Service And Support
Fax (952) 253-3131 info@rticorp.com RTI TECHNICAL SUPPORT At RTI, customer service and satisfaction is an utmost priority. If you are encountering any problems or have a question about your RTI product, please contact RTI Technical Support for assistance. RTI provides technical support by telephone, fax or e-mail. For the highest quality service, please have the following information ready, or provide it in your fax or e-mail. - Page 26 SERVICE AND SUPPORT Shipment of CP-1650 for Service RTI will pay all labor and material expenses for all repairs covered by this product’s warranty. If necessary repairs are not covered by warranty, or if a unit is examined which is not in need of repair, you may be charged for the repairs or examination.
-
Page 27: Index
It’s Under Control ® INDEX Contents ................7 Description ..............12 CP-1650 Front Panel ............13 CP-1650 Rear Panel ............14 Disclaimer ................. 6 Features ................12 Federal Communications Commission Notice ......3 Installation/Operation ............17 Audio Connections Diagram ..........18 Connection Options ............ - Page 28 CP-1650 Cool Power Audio Amplifier It’s Under Control ® Remote Technologies Incorporated 5775 12th Avenue East, Suite 180 Shakopee, MN 55379 Tel: 952-253-3100 Fax: 952-253-3131 www.rticorp.com © 2012 Remote Technologies Inc. All rights reserved. Printed in Taiwan.
