CHAPTER 2 | FEATURES AND DESCRIPTION

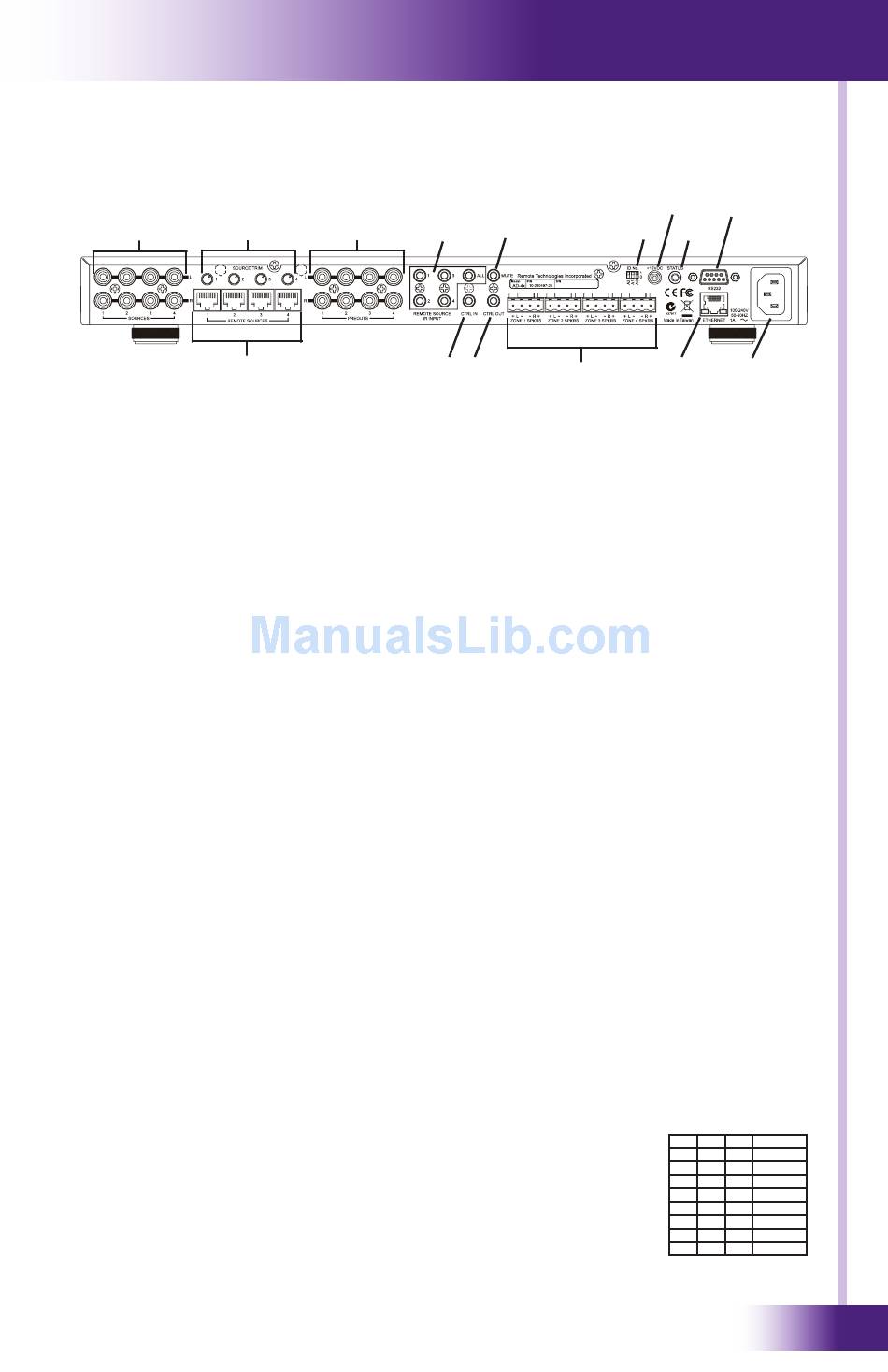

AD-4x REAR PANEL
6
5
7
9. Remote Source IR Control Inputs
These 3.5mm mini-jack inputs are for connecting to an IR output port of
an RTI control system for control of a remote audio source. The IR control
is then delivered over the same Cat-5 cable that runs between the AD-4x
and an RSP-1 RTI Remote Source wall plate (sold separately). There is a
remote source IR control input for each of the four audio sources allowing
for independent IR control of each device. There is also an input labeled "All"
that will allow the delivery of IR to all connected sources at the same time.
10. Mute
This 3.5mm stereo mini-jack is for the connection of an RTI PDM-1 Phone/
Doorbell Mute Module (sold separately). The PDM-1 mutes the AD-4x audio
outputs when a phone/doorbell system sends a voltage to the PDM-1 which
triggers a circuit closure that is sensed by the Mute input.
11. CTRL IN - Infrared Control Input
This 3.5mm mono mini-jack is for infrared control of the AD-4x from
a control system. A discrete set of IR codes is available within the RTI
Integration Designer programming software or on the RTI website (RTI
dealer accessible only).
NOTE: Mini-jack is mono with tip = IR+, ring=Gnd
12. CTRL OUT - IR Pass through
This 3.5mm mono mini-jack allows IR to "pass through" from the CTRL IN
port, for infrared control of additional AD-4x units from a control system.
13. Speaker Outputs
Four sets of removable stereo connectors for speakers in each zone. Either 4
ohm or 8 ohm speakers may be connected to the zone outputs.
NOTE: Connected speakers must have a 4 ohm minimum load or damage to
the unit may occur.
14. ID Number
Installations can have up to 8 AD-4x units installed
providing up to 32 output zones. To allow discrete IR
control each unit is given a unique ID. Discrete IR code
libraries are available for each unique ID. To set the ID
for each AD-4x unit, refer to the ID assignment chart
and adjust as necessary.
8
9
10
11 12
It's Under Control
15 17
14
16
13 18
A2 A1
0 0
0 0
0 1
0 1
1 0
1 0
1 1
1 1
®
19
A0 ID No.
0 1
1 2
0 3
1 4
0 5
1 6
0 7
1 8
