- Page 1 Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2014...
-
Page 2: Table Of Contents
Manual Color Adjustment The Weather System COB™ Foot Switch Controller 5. Appendix A Quick DMX Lesson Troubleshooting Keeping Your Weather System COB™ As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 Weather System COB User Manual Rev. A... -
Page 3: Weather System Cob
Congratulations on purchasing one of the coolest LED lighting systems anywhere! Now that you’re the proud owner of a Weather System COB™ (or hopefully, MORE!), you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
• Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at support@blizzardlighting.com. Page 4 Weather System COB User Manual Rev. -
Page 5: Meet The Weather System Cob
DMX Quick Reference (4/3/2 - Channel Modes) 4-Channel 3-Channel 2-Channel Red (global) Red (global) Built-in Programs Green (global) Green (global) Speed Blue (global) Blue (global) Dimmer Page 5 Weather System COB User Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC... -
Page 6: The Weather System Cob™ Pin-Up Picture

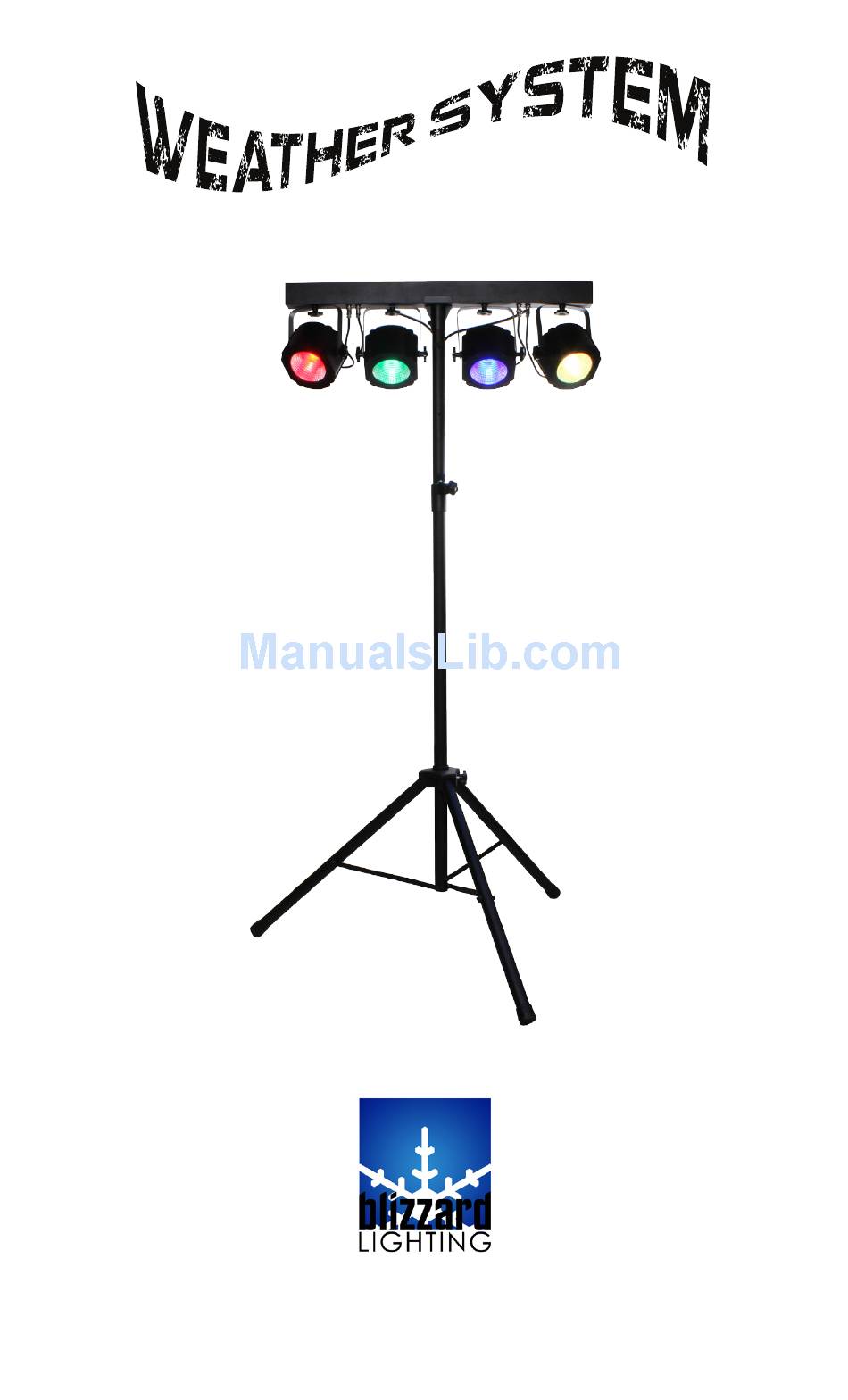

Figure 1: The Weather System COB™ Pin-Up Picture Rugged Black Adjustable Position Aluminum Casings LED Fixtures 4x Tri-Color RGB Adjustable Height 30W COB LEDs Tripod Stand Figure 2: The Rear Connections Fuse Footswitch Input DMX In DMX Out 4-Button AC Power In... -
Page 7: Setup
Maximum capacitance between conductors – 30 pF/ft. Maximum capacitance between conductor & shield – 55 pF/ft. Maximum resistance of 20 ohms / 1000 ft. Nominal impedance 100 – 140 ohms Page 7 Weather System COB User Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC... -
Page 8: Cable Connectors
Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 Weather System COB User Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (Master/Slave Mode)
• Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 Weather System COB User Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
To edit a setting, push the <SETUP> button, then use the <UP> and <DOWN> buttons again to scroll through your options. Page 10 Weather System COB User Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC... -
Page 11: Control Panel Menu Structure
Strobe speed (slow <--> fast) AU7O SP01 - SPFL Auto mode speed (slow <--> fast) FS00 - F599 Auto mode strobe speed (slow <--> fast) Page 11 Weather System COB User Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC... -
Page 12: Dmx Mode
<SETUP> button You can now adjust the strobe speed by selecting the strobe adjustment settings of FS01 - FS99 (slow <--> fast). Page 12 Weather System COB User Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC... -
Page 13: Standalone (Program) Mode
Pedal 3 - Freeze When you step on pedal 3 on the foot controller, it will freeze/suspend the currently running program. Step on pedal 3 again, and the Weather System COB™ will con- tinue running the suspended program. Pedal 4 - Blackout When you step on pedal 4 on the foot controller, it will blackout the currently run- ning program. - Page 14 Green - Fixture 4 (0% <--> 100%) 000 <--> 255 Blue - Fixture 4 (0% <--> 100%) 000 <--> 255 Strobe (slow <--> fast) 000 <--> 255 Dimmer (0% <--> 100%) Page 14 Weather System COB User Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC...
- Page 15 Sound Active Mode (ch. 5 controls mic sensitivity) 000 <--> 255 Program Speed (0% <--> 100%) 000 <--> 255 Strobe (slow <--> fast) 000 <--> 255 Dimmer (0% <--> 100%) Page 15 Weather System COB User Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC...
- Page 16 Program 15 230 <--> 239 Program 16 240 <--> 255 Sound Active Mode (ch. 2 controls mic sensitivity) 000 <--> 255 Program Speed (0% <--> 100%) Page 16 Weather System COB User Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC...
-
Page 17: Appendix
Make sure all connectors are seated properly and securely. Responding / Use Only DMX Cables. Responding Er- Install a Terminator. ratically Check all cables for defects. Reset fixture(s). Page 17 Weather System COB User Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC... -
Page 18: Keeping Your Weather System Cob™ As Good As New
Keeping Your Weather System COB™ As Good As New The fixture you’ve received is a rugged, tough piece of pro lighting equipment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed. -
Page 19: Tech Specs
If God dwells inside us like some people say, I sure hope He likes enchiladas, because that’s what He’s getting. 2-year limited warranty, does not cover malfunction Warranty caused by damage to LED’s. Page 19 Weather System COB User Manual Rev. A Copyright (c) 2014 Blizzard Lighting, LLC... - Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
