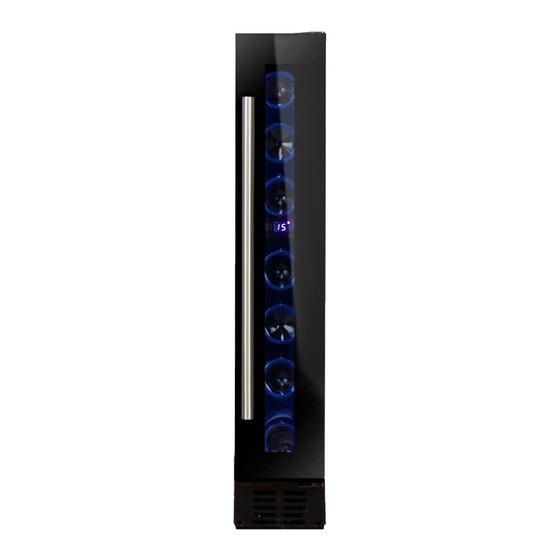

Dunavox DX-7.20BK/DP Instruction Manual
  1. Manuals
  2. Brands
  3. Dunavox Manuals
  4. Wine Cooler
  5. DX-7.20BK/DP
  6. Instruction manual

Dunavox DX-7.20BK/DP Instruction Manual

Hide thumbs Also See for DX-7.20BK/DP:
Table of Contents

Advertisement

Quick Links

WINE CABINET INSTRUCTION MANUAL
Model:
DX-7.20BK/DP
DAU-20.58B
DAB-26.60B.TI
DAB-36.80DSS
DAB-89.215DSS
NEW!
DAB-26.60B.TO PUSH-AND-OPEN DOOR FUNCTION
DOOR OPENING MECHANISM
The push-and-open door function is activated when the unit is powered. To open the door, push the door slightly
inwards on the top center position and release again. The door will be opened approx. 5~7cm by the push rod. Then
the door can be fully open manually.
NOTE:
Do not block the door or hold on it while it is opening. If the door is blocked or held during opening, the door opening
mechanism and the door will be damaged. The loud and repeated cracking noises will be heard.
Do not push the push rod in or hold on to it during closing. If the push rod is blocked during closing, it will no longer
be able to reach its initial position. In the initial position, the push rod is flush with the front of control panel. In order
to set the push rod back in its initial position, disconnect the appliance from the mains, wait for approx. 10 seconds
and plug it back in again. The push rod will return to its initial position.
2017.V.8.
DX-7.20SSK/DP
DAU-20.58SS
DAB-28.65B
DX-57.146DBK
DAU-17.57DB
DX-53.130DBK/DP
DAB-28.65SS
DX-57.146DSK
DAU-17.57DSS
DX-53.130SDSK/DP
DAB-36.80DB
DAB-89.215DB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DX-7.20BK/DP and is the answer not in the manual?

Questions and answers

Related Manuals for Dunavox DX-7.20BK/DP

Summary of Contents for Dunavox DX-7.20BK/DP

  • Page 1 WINE CABINET INSTRUCTION MANUAL 2017.V.8. Model: DX-7.20BK/DP DX-7.20SSK/DP DAU-17.57DB DAU-17.57DSS DAU-20.58B DAU-20.58SS DX-53.130DBK/DP DX-53.130SDSK/DP DAB-26.60B.TI DAB-28.65B DAB-28.65SS DAB-36.80DB DAB-36.80DSS DX-57.146DBK DX-57.146DSK DAB-89.215DB DAB-89.215DSS NEW! DAB-26.60B.TO PUSH-AND-OPEN DOOR FUNCTION DOOR OPENING MECHANISM The push-and-open door function is activated when the unit is powered. To open the door, push the door slightly inwards on the top center position and release again.

  • Page 2: Important Safeguards

    Please read this manual carefully before installing and starting up, and store it in a safe place. If you pass on the product to another person hand over this instruction manual along with it. IMPORTANT SAFEGUARDS from substance, which can cause ignition. Do not operate the appliance in the presence of When using an electrical appliance, basic explosive and/or flammable fumes.
  • Page 3 Service Person to carry out servicing or repairs create a fire hazard or explosion. to this appliance. In Queensland of Australia the authorized person must hold a Gas Work  Do not connect or disconnect the electric plug Authorisation hydrocarbon refrigerants, when your hands are wet.

  • Page 4: Before Using Your Appliance

     Active charcoal air filter (for particular items only).  symbol on the product or its packaging indicates that this product is not to be handled NOTE: Features and specifications are subject to as normal household waste but is to be taken to change without notice.
  • Page 5 ELECTRICAL CONNECTION plug socket. Any questions concerning power and/or earthing should be directed towards a WARNING: Improper use of the grounded plug qualified electrician or an authorized products can result in the risk of electrical shock. If the power service centre. cord is damaged, have it replaced by a qualified electrician or an authorized service center.

  • Page 6: Reversing The Door Hinge

    DESIGN 1 – For built-under models DESIGN 1 – ○ ○ Locate the handle ,1 over the fixing pins ,3 of ○ Remove the ventilation grille and the the door and using the supplied allen key, tighten ○ adjustable ventilation grille by unscrewing ○...
  • Page 7 DESIGN 2 – For fully integrated models the opposite side. At the same time remove the ○ stopper pin ,7 of bottom hinge to the opposite designated position or unscrew and transfer the ○ hinge pin of bottom hinge to the opposite designated position.

  • Page 8: Use And Control - Single Zone

    ○ Unscrew and transfer the middle hinge NOTE:  When you use the appliance for the ○ and the middle fixing plate ,11 to the first time or restart the appliance after opposite position. (Fig. 5) having been shut off for a long time, there could be a few degrees variance Pop out the cover caps on the left side of between the temperature you select...
  • Page 9 Key Lock (Only for models with outside controls) Display After 2 minutes or longer without pressing any key, Display digital temperature service the key lock will be activated automatically. To indicators. remove the lock, press the UP and DOWN keys at is for UPPER temperature zone and is for the same time for at least 5 seconds and the...

  • Page 10: Temperature Display

     the rest key for at least 5 seconds and then release The temperature that you desire to set will all the keys. increase 1ºC or 1ºF if you press the UP mark once, on the contrary the temperature will ºF/ºC Selector decrease 1ºC or 1ºF if you press the DOWN Select the temperature display setting in Fahrenheit...
  • Page 11 TEMPERATURE MEMORY FUNCTION BOTTLE RACKS AND STORAGE In the event of a power interruption (power surge, WARNING: Do not pull out more than one loaded breaker switch, etc.), the unit remembers the shelf at a time as this may cause the unit to tilt previous temperature settings.

  • Page 12: Sabbath Mode

    This will create a continuous climate in the cabinet through the appliance’s coils, which imitates that of a wine cellar. - Humming noise made by the motor compressor. This noise can get louder for brief periods when In the Dynamic Climate mode, the interior fan the motor is switching on.
  • Page 13 REMOVING SHELVES To remove any of the shelves from the rail compartment, move the shelf to the position where the notch of wooden shelf is exactly under the plastic post and then lift it up and pull out. In order to replace the shelf, repeat steps described above in reverse.

  • Page 14: Vacation Time

    VACATION TIME Also protect the outside of the appliance with a blanket or similar item. Short holidays: Leave the unit in operation for holidays of less than three weeks. ENERGY SAVING TIPS Long absences: If the appliance will not be used for Should the unit be left empty for long periods of time, several months, remove all items, turn off the it is suggested that the appliance is unplugged, and...

  • Page 15: Warranty

      The appliance is not properly level. Level the appliance with the Vibrations. adjustable feet. The rattling noise may come from the flow of the refrigerant, which is normal. As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your The appliance appliance.If temperature fluctuations occur, the contraction and expansion of the inner seems to make too...
