La Crosse Technology WS-9117U Instruction Manual

Wireless 433 mhz temperature station
Hide thumbs
Table of Contents

Advertisement

Quick Links

WS-9117U
Wireless 433 MHz
Temperature Station
Instruction Manual
1

Advertisement

Table of Contents
loading

Related Manuals for La Crosse Technology WS-9117U

Summary of Contents for La Crosse Technology WS-9117U

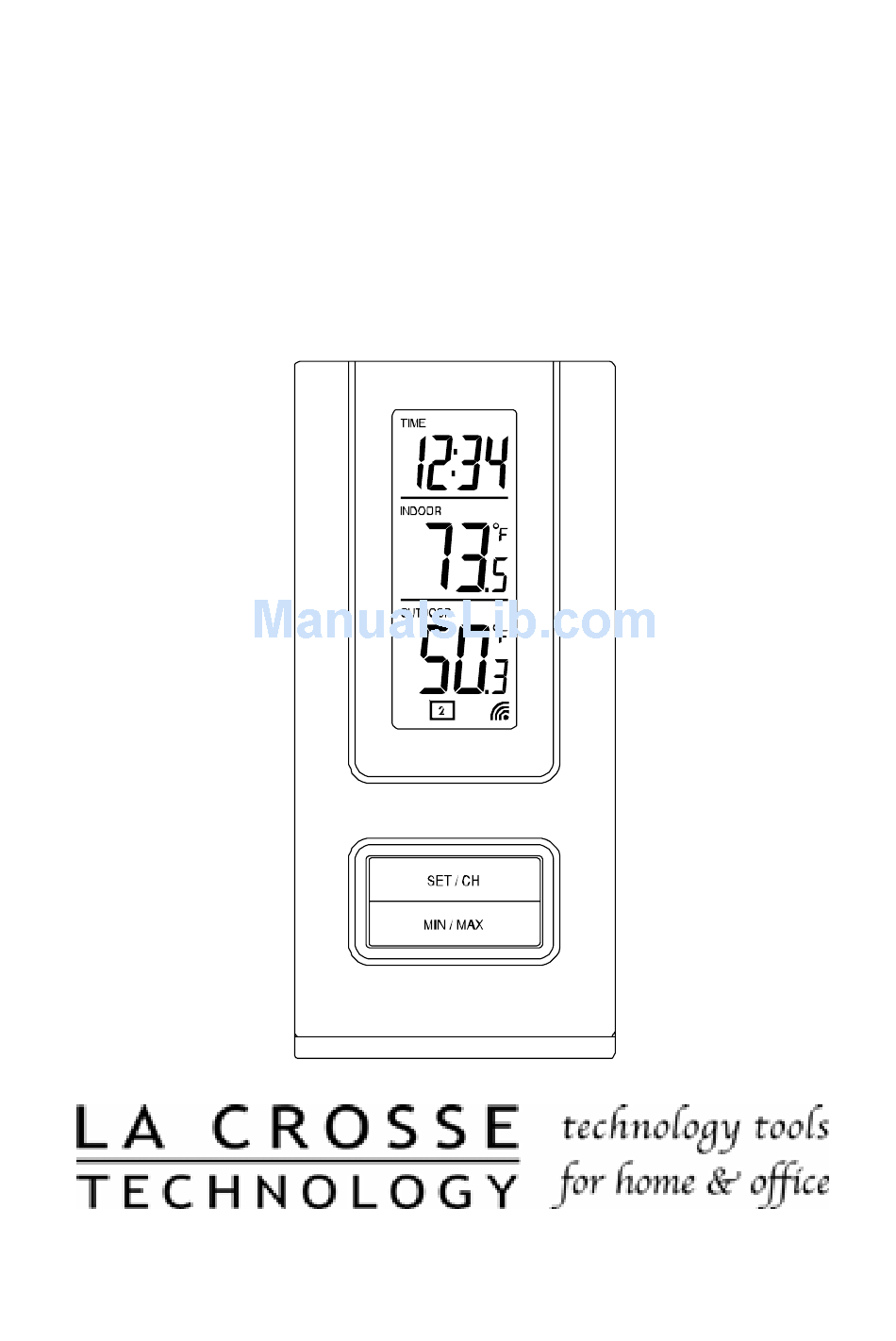

  • Page 1 WS-9117U Wireless 433 MHz Temperature Station Instruction Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Topic Inventory of Contents Quick Setup Detailed Setup Guide Battery Installation Setting the Time Selecting Units of Measurement Features Minimum and Maximum Temperatures Resetting Minimum and Maximum Temperatures Additional remote temperature sensors (optional) Mounting Troubleshooting Maintenance and Care Specifications Warranty Information Page...

  • Page 3: Inventory Of Contents

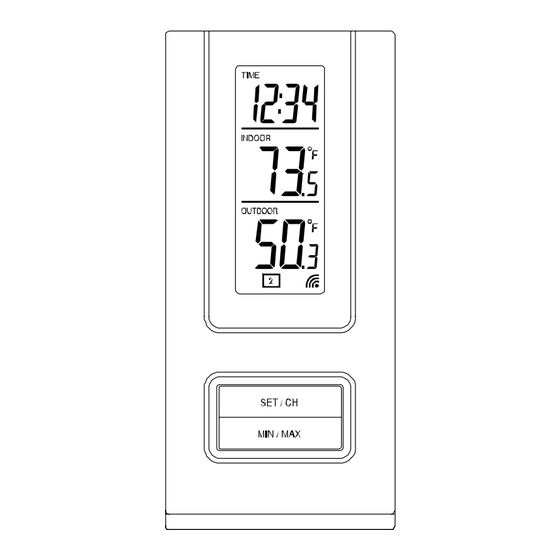

    INVENTORY OF CONTENTS The indoor temperature station (Figure The remote temperature sensor (TX6U) and mounting bracket. (Figure 2) 3 each, 1/2” Philips screws. One strip of double sided adhesive tape. Instruction Manual and Warranty Card. Figure 1 ADDITIONAL EQUIPMENT (not included) 1 Philips screwdriver.

  • Page 4: Quick Setup

    QUICK SETUP Hint: Use good quality Alkaline Batteries and avoid rechargeable batteries. 1. Have the indoor 2. Batteries should be out of 3. Place the batteries into the (All remote temperature sensors must be started before the indoor temperature station) 4.
  • Page 5 In this time the indoor temperature station and remote temperature sensor will start to talk to each other and the display will show both the indoor temperature and an outdoor temperature. If the indoor temperature station does not display both temperatures after the 10 minutes please retry the set up as stated above.
  • Page 6 of resistance. Your distance plus resistance should not exceed 80 ft. in a straight line. NOTE: Fog and mist will not harm your remote temperature sensor but direct rain must be avoided. To complete the set up of your indoor temperature station after the 15 minutes have passed please follow the steps below.
  • Page 7 b. When you have your 2. Degree Fahrenheit will now show. b. When you have your 3. An hour will now be flashing. Note: When in the 12h mode there is “PM” displayed under choice shown on the display press and release the “SET/CH”...
  • Page 8 the word TIME when in the PM hours. During the AM hours this area will be blank. b. When the correct hour is 4. A minute will now be flashing. Press and release the “SET/CH” button once more and you are done. shown, press and release the “SET/CH”...

  • Page 9: Detailed Setup Guide

    DETAILED SETUP GUIDE BATTERY INSTALLATION REMOTE TEMPERATURE SENSOR Remove the mounting bracket. Remove battery cover Observing the correct polarity, install 2 AA batteries—make sure they do not spring free, or start-up problems may occur. Replace cover.
  • Page 10 INDOOR TEMPERATURE STATION Note: After the batteries are installed, DO NOT press any buttons. This may interfere with the signals, causing temperatures to register incorrectly. Remove the battery cover on the backside. Observing the correct polarity, install 2 AAA batteries. Replace battery cover.

  • Page 11: Setting The Time

    The indoor temperature station should now show: “-:- -” in the TIME LCD, and temperatures in the INDOOR and OUTDOOR LCD’s. TIME SETTING THE TIME Press and hold the “SET/CH” button for 5 second, “12h” will appear in the TIME LCD. Press and release the “MIN/MAX”...

  • Page 12: Selecting Units Of

    Press and release the “SET/CH” button to move to the minute setting Press and release the “MIN/MAX” button to set the minutes. Press and release the “SET/CH” button to activate the clock. Note: When in 12h mode, there is only a “PM”...

  • Page 13: Features

    Press and release the “MIN/MAX” button to shift between °F and °C. Press and release the “SET/CH” button twice to activate settings. FEATURES MINIMUM AND MAXIMUM TEMPERATURES Press and release the “MIN/MAX” button, “MIN” appears in the temperature LCD’s and the recorded minimum temperatures are displayed.

  • Page 14: Additional Remote

    C. ADDING ADDITIONAL REMOTE TEMPERATURE SENSORS (OPTIONAL) The WS-9117U is able to receive signals from 3 different remote temperature sensors. Following are some brief instructions for the basic set-up of remote temperature sensor units with the WS-9117U. These extra...
  • Page 15 remote temperature sensor units, and in numeric sequence. Second, install batteries into the indoor temperature station. Transmission problems will arise if this is not done correctly and if the total time for set-up exceeds 6 minutes. It is necessary to remove the batteries from all units currently in operation.
  • Page 16 VIEWING AND OPERATING WITH MULTIPLE REMOTE TEMPERATURE SENSOR UNITS To view the temperature of a different remote temperature sensor unit, press and release the “SET/CH” button. A shift from one “boxed” number to the next should be observed in the OUTDOOR LCD.

  • Page 17: (Optional) Mounting

    MOUNTING Note: To achieve a true temperature reading, avoid mounting in direct sunlight. We recommend that you mount the remote temperature sensor on an outside North- facing wall. The sending range is 80ft; obstacles such as walls, concrete, and large metal objects will reduce the range.
  • Page 18 that is required is to place the indoor temperature station in an appropriate location. To wall mount, remove the table stand. To do this, pull down on the stand from the rear and rotate forward. Fix a screw (not included) into the desired wall, and place the indoor temperature station onto the screw using the hanging hole on the...

  • Page 19: Troubleshooting

    TROUBLESHOOTING NOTE: For problems not solved, please contact La Crosse Technology via e-mail or phone, or visit our website, www.lacrossetechnology.com Problem: The LCD is faint Solution: Replace batteries Problem: No outdoor temperature is displayed. Solution: 1) Remove all batteries, reinsert into remote temperature sensor first, and then into the indoor temperature station.
  • Page 20 Problem: Temperatures do not match if units are placed next to each other. Solution: Each temperature sensor is manufactured to be accurate to within 1 degree plus or minus and under normal conditions; so two temperature sensors could be as much as 2 degrees different. However, the difference can be exaggerated further because the temperature sensors are designed for different working...

  • Page 21: Maintenance And Care

    Do not subject the units to unnecessary heat or cold by placing them in the oven or freezer. • Opening the casings invalidates the warranty. Do not try to repair the unit. Contact La Crosse Technology for repairs. Do not use solvents or...

  • Page 22: Specifications

    SPECIFICATIONS Transmitting Frequency Measuring Temperatures Indoor Temperature Station: Indoor Indoor Temperature Station: Outdoor Temp accuracy Transmitting range Temperature check Indoor Outdoor Batteries—(Alkaline recommended) Remote Temperature Sensor Indoor 433MHz 32°F to 140°F with 0.2°F resolution. (0°C to 69.0°C with 0.1°C resolution) -21.8 °F to 156.2°F with 0.2°F resolution.

  • Page 23: Warranty Information

    Temperature Sensor Battery life WARRANTY INFORMATION La Crosse Technology, Ltd provides a 1-year limited warranty on this product against manufacturing defects in materials and workmanship. This limited warranty begins on the original date of purchase, is valid only on products purchased and used in North America and only to the original purchaser of this product.
  • Page 24 La Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized service center. La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above.
  • Page 25 LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF THIS PRODUCT.
  • Page 26 For warranty work, technical support, or information contact: La Crosse Technology 2809 Losey Blvd. S. La Crosse, WI 54601 Phone: 608.782.1610 Fax: 608.796.1020 e-mail: support@lacrossetechnology.com (warranty work) sales@lacrossetechnology.com...
  • Page 27 Freq. 433.92 MHz La Crosse Technology Made in China WS-9117U FCC ID: OMO-01RX (Receiver), OMO-01TX (sensor) THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1. THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2.
