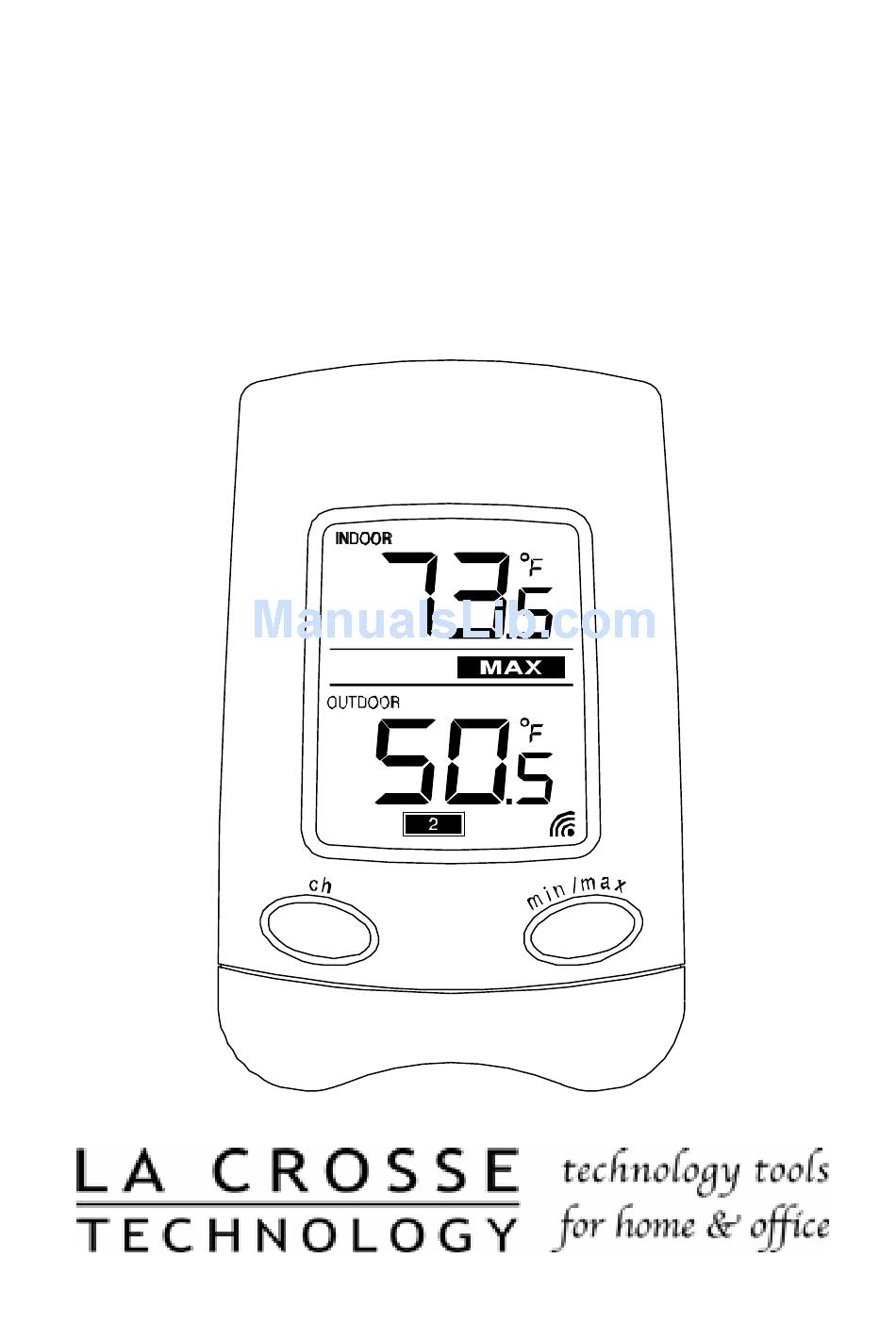

- Page 1 WS-9002U Wireless 433 MHz Temperature Station Instruction Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Topic Page Inventory of Contents Quick Setup Detailed Setup Guide Battery Installation Features Minimum and Maximum Temperatures Resetting Minimum and Maximum Temperatures Additional remote 10-12 temperature sensors (optional) Mounting 12-14 Troubleshooting 14-16 Maintenance and Care Specifications 17-18 Warranty Information 19-23... -
Page 3: Inventory Of Contents

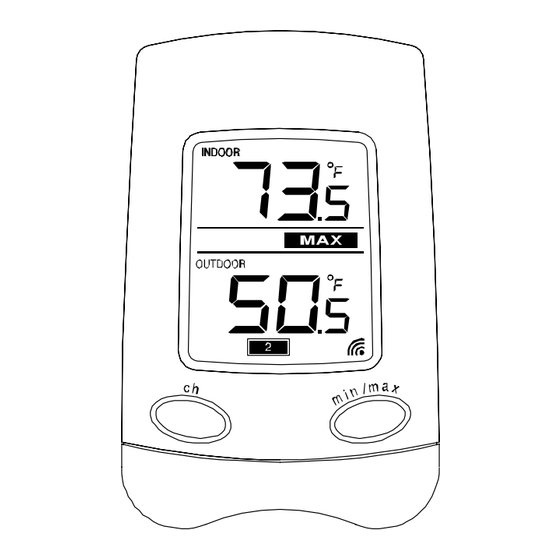

INVENTORY OF CONTENTS The indoor temperature station (Figure The remote temperature sensor (TX6U) and mounting bracket. (Figure 2) 3 each, 1/2” Philips screws. One strip of double sided adhesive tape. Instruction Manual and Warranty Card. Figure 2 Figure 1 ADDITIONAL EQUIPMENT (not included) 1 Philips screwdriver. -
Page 4: Quick Setup
QUICK SETUP Hint: Use good quality Alkaline Batteries and avoid rechargeable batteries. 1. Have the indoor temperature station and remote temperature sensor 3 to 5 feet apart. 2. Batteries should be out of both units for 10 minutes. 3. Place the batteries into the remote temperature sensor first then into the indoor temperature station. - Page 5 In this time the indoor temperature station and remote temperature sensor will start to talk to each other and the display will show both the indoor temperature and an outdoor temperature. If the indoor temperature station does not display both temperatures after the 15 minutes please retry the set up as stated above.
- Page 6 of resistance. Your distance plus resistance should not exceed 80 ft. in a straight line. NOTE: Fog and mist will not harm your remote temperature sensor but direct rain must be avoided.
-
Page 7: Detailed Setup Guide
DETAILED SETUP GUIDE BATTERY INSTALLATION REMOTE TEMPERATURE SENSOR Remove the mounting bracket. Remove battery cover Observing the correct polarity, install 2 AA batteries—make sure they do not spring free, or start-up problems may occur. Replace cover. - Page 8 INDOOR TEMPERATURE STATION Note: After the batteries are installed, DO NOT press any buttons. This may interfere with the signals, causing temperatures to register incorrectly. Remove the battery cover on the backside. Observing the correct polarity, install 2 AAA batteries. Replace battery cover.
-
Page 9: Features Minimum And Maximum
FEATURES MINIMUM AND MAXIMUM TEMPERATURES Press and release the “MIN/MAX” button, “MIN” appears in the temperature LCD’s and the recorded minimum temperatures are displayed. Press and release the “MIN/MAX” button to toggle to the maximum temperatures. RESETTING THE MINIMUM AND MAXIMUM TEMPERATURES To reset both the minimum and maximum temperatures—press and... -
Page 10: Additional Remote
C. ADDING ADDITIONAL REMOTE TEMPERATURE SENSORS (OPTIONAL) The WS-9002U is able to receive signals from 3 different remote temperature sensors. Following are some brief instructions for the basic set-up of remote temperature sensor units with the WS-9002U. These extra sensors can be purchased through the... - Page 11 batteries into the indoor temperature station. Transmission problems will arise if this is not done correctly and if the total time for set-up exceeds 6 minutes. It is necessary to remove the batteries from all units currently in operation. Remove the battery covers to all remote temperature sensor units.
-
Page 12: (Optional) Mounting
from one “boxed” number to the next should be observed in the OUTDOOR LCD. To view the Minimum/Maximum temperature: first select from which remote temperature sensor to read data (indicated by the “boxed” number). Pressing and releasing the “MIN/MAX” button will toggle through the minimum and maximum indoor temperature, and the minimum and maximum outdoor temperature. - Page 13 both units in their desired location before permanently mounting. REMOTE TEMPERATURE SENSOR Remove the mounting bracket from the remote temperature sensor Mount using either screws or adhesive tape. Reattach the remote temperature sensor to the mounting bracket. THE TEMPERATURE STATION The indoor temperature station comes with the table stand already mounted.
-
Page 14: Troubleshooting
Gently pull the indoor temperature station down to lock the screw into place. TROUBLESHOOTING NOTE: For problems not solved, please contact La Crosse Technology via e-mail or phone, or visit our website, www.lacrossetechnology.com Problem: The LCD is faint Solution: Replace batteries Problem: No outdoor temperature is displayed. - Page 15 4) Place remote temperature sensor and indoor temperature station in position so the straight-line signal is not passing through more than two or three walls. Problem: Temperatures do not match if units are placed next to each other. Solution: Each temperature sensor is manufactured to be accurate to within 1 degree plus or minus and under normal conditions;...
-
Page 16: Maintenance And Care
Do not submerge in water. • Do not subject the units to unnecessary heat or cold by placing them in the oven or freezer. • Opening the casings invalidates the warranty. Do not try to repair the unit. Contact La Crosse Technology for repairs. -
Page 17: Specifications
SPECIFICATIONS Transmitting 433MHz Frequency Measuring Temperatures Indoor 32°F to 140°F with Temperature 0.2°F resolution. Station: Indoor -21.8 °F to 157.8°F with Indoor Temperature 0.2°F resolution. Station: Outdoor Transmitting Maximum 80 feet (25m) range open space Temperature Checking Interval Indoor Every 10 seconds Outdoor Every 1 minute Batteries—(Alkaline recommended) - Page 18 Dimensions: (H x W x D) Indoor 3.75 x 2.5 x 1 in Temperature (98 x 63 x 25 mm) Station Remote 5 x 1.5 x 1 in Temperature (128 x 40 x 23 mm) Sensor Battery life Approximately 1 year...
-
Page 19: Warranty Information
WARRANTY INFORMATION La Crosse Technology, Ltd provides a 1-year limited warranty on this product against manufacturing defects in materials and workmanship. This limited warranty begins on the original date of purchase, is valid only on products purchased and used in North America and only to the original purchaser of this product. - Page 20 Crosse Technology, Ltd. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer. La Crosse Technology, Ltd will pay all expenses for labor and materials for all repairs covered by this warranty. If necessary...
- Page 21 (5) damage resulting from the performance of repairs or alterations by someone other than an authorized La Crosse Technology, Ltd authorized service center; (6) units used for other than home use (7) applications and uses that this product was...
- Page 22 For warranty work, technical support, or information contact: La Crosse Technology 2809 Losey Blvd. S. La Crosse, WI 54601 Phone: 608.782.1610 Fax: 608.796.1020 e-mail: support@lacrossetechnology.com (warranty work) sales@lacrossetechnology.com...
- Page 23 Freq. 433.92 MHz La Crosse Technology Made in China WS-9002U FCC ID: OMO-01RX (Receiver), OMO-01TX (sensor) THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1.
