4.3.2. AC Voltage measurement

Maximum input for AC voltage is 750V rms. Do not attempt to take any
voltage measurement exceeding such limit to avoid the risk of electrical
shock and damages to the instrument.
1. Turn the selector on V.
2. Insert the test leads into the jacks, the red plug into
plug into COM jack (Fig. 3).
3. Connect the red and black test leads to the positive and negative poles of the circuit
under test respectively. The voltage value will be displayed with automatic detection of
the range.
4. Press RANGE key to activate the manual mode; the "AUTO" symbol disappears from
display. Press cyclically RANGE to change the position of the decimal point on the
display. To activate the Autorange function keep pressed RANGE for at least 1 second.
5. The message "OL" means that the voltage exceeds the measuring limits. In this case
disconnect the test leads from the circuit under test to avoid damaging the instrument
or endanger your own safety.
6. For minimum and maximum value measurement and HOLD function please refer to
paragraph 4.2.
CAUTION

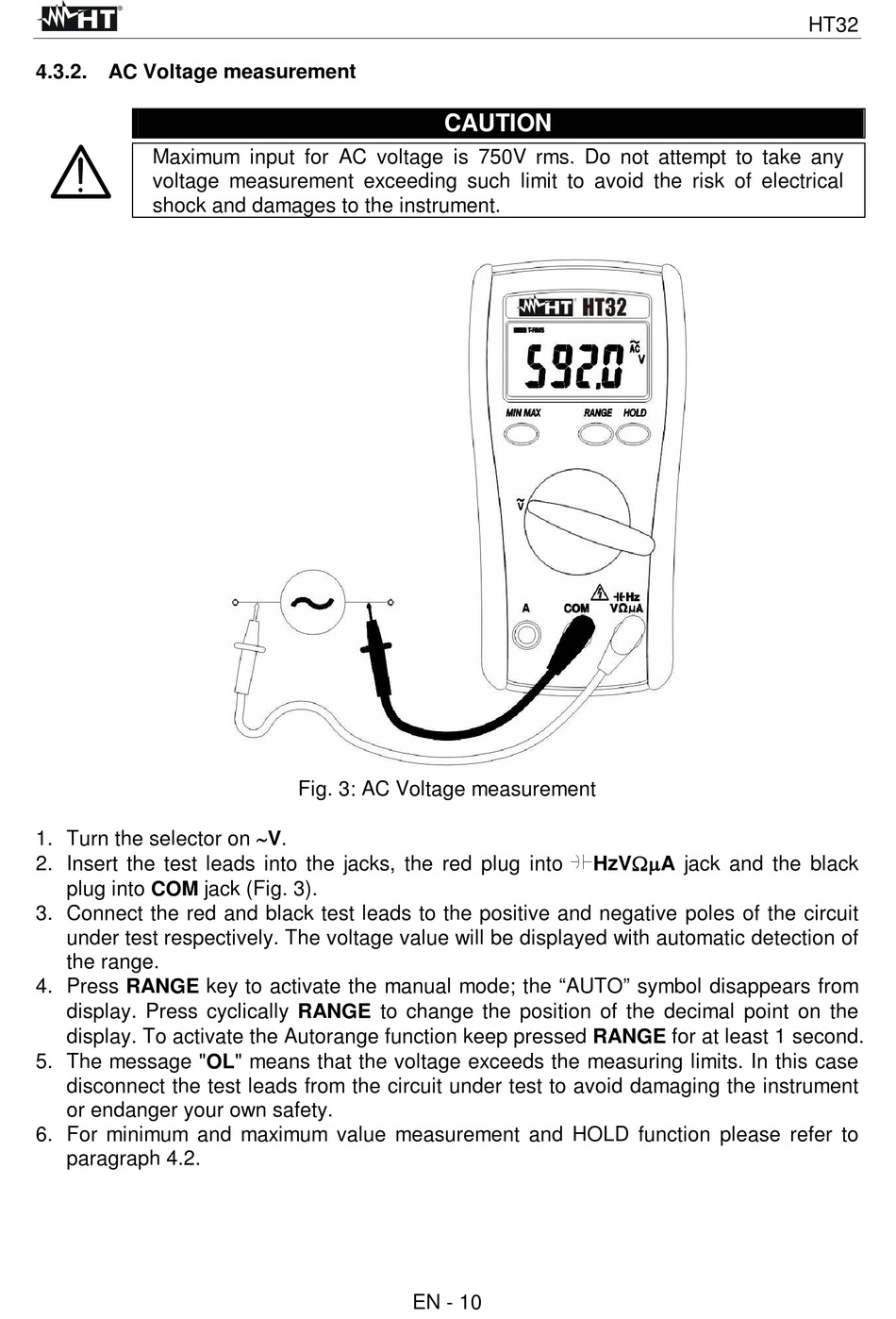

Fig. 3: AC Voltage measurement
EN - 10
