4.3.2. AC Voltage measurement

The maximum input for AC voltage is 600V. Do not attempt to measure
higher voltages to avoid electrical shocks or damages to the instrument.

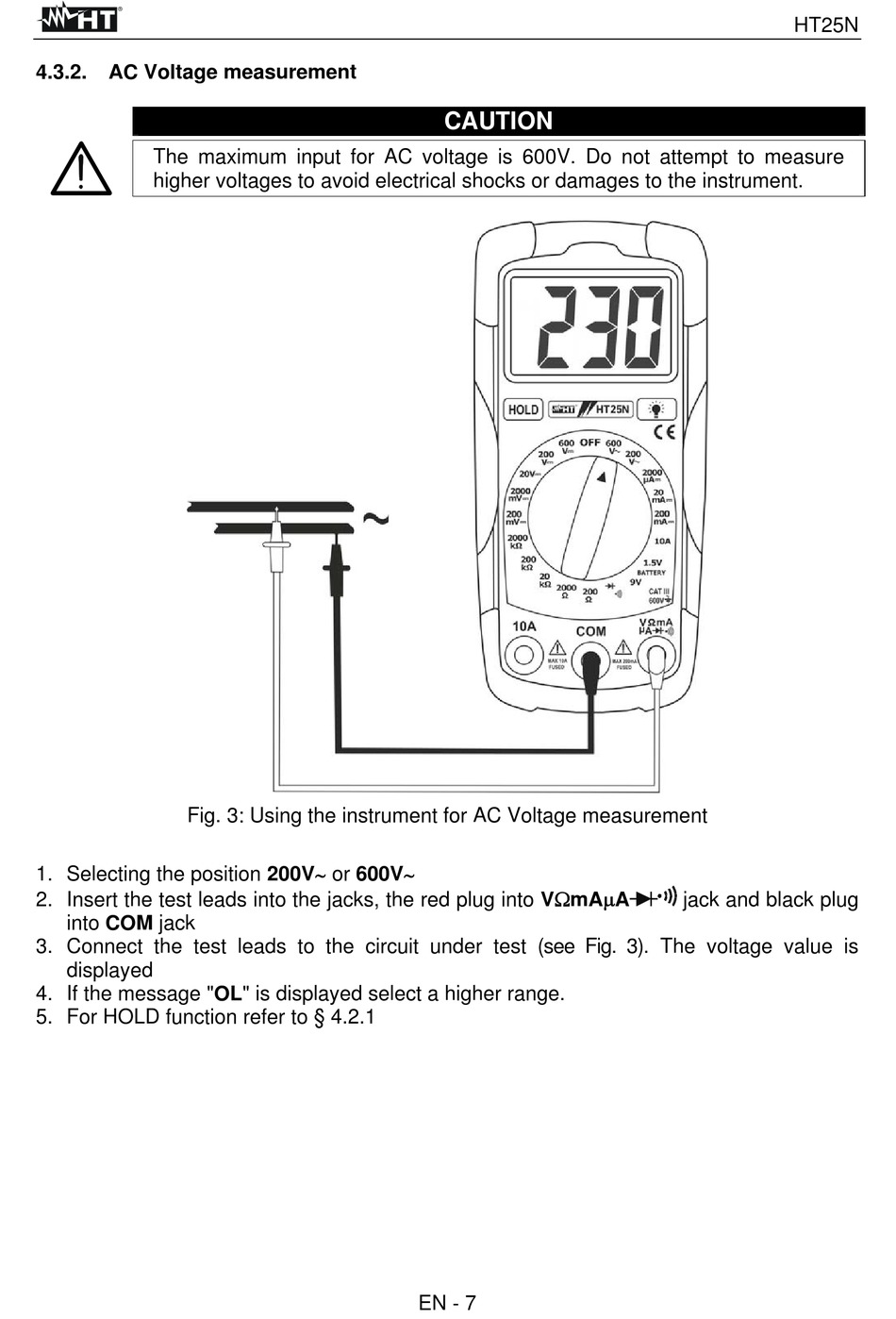

Fig. 3: Using the instrument for AC Voltage measurement
1. Selecting the position 200V or 600V
2. Insert the test leads into the jacks, the red plug into VmAA
into COM jack
3. Connect the test leads to the circuit under test (see Fig. 3). The voltage value is
displayed
4. If the message "OL" is displayed select a higher range.
5. For HOLD function refer to § 4.2.1
CAUTION
EN - 7
HT25N
jack and black plug
