Summary of Contents for Evolution RAGE8

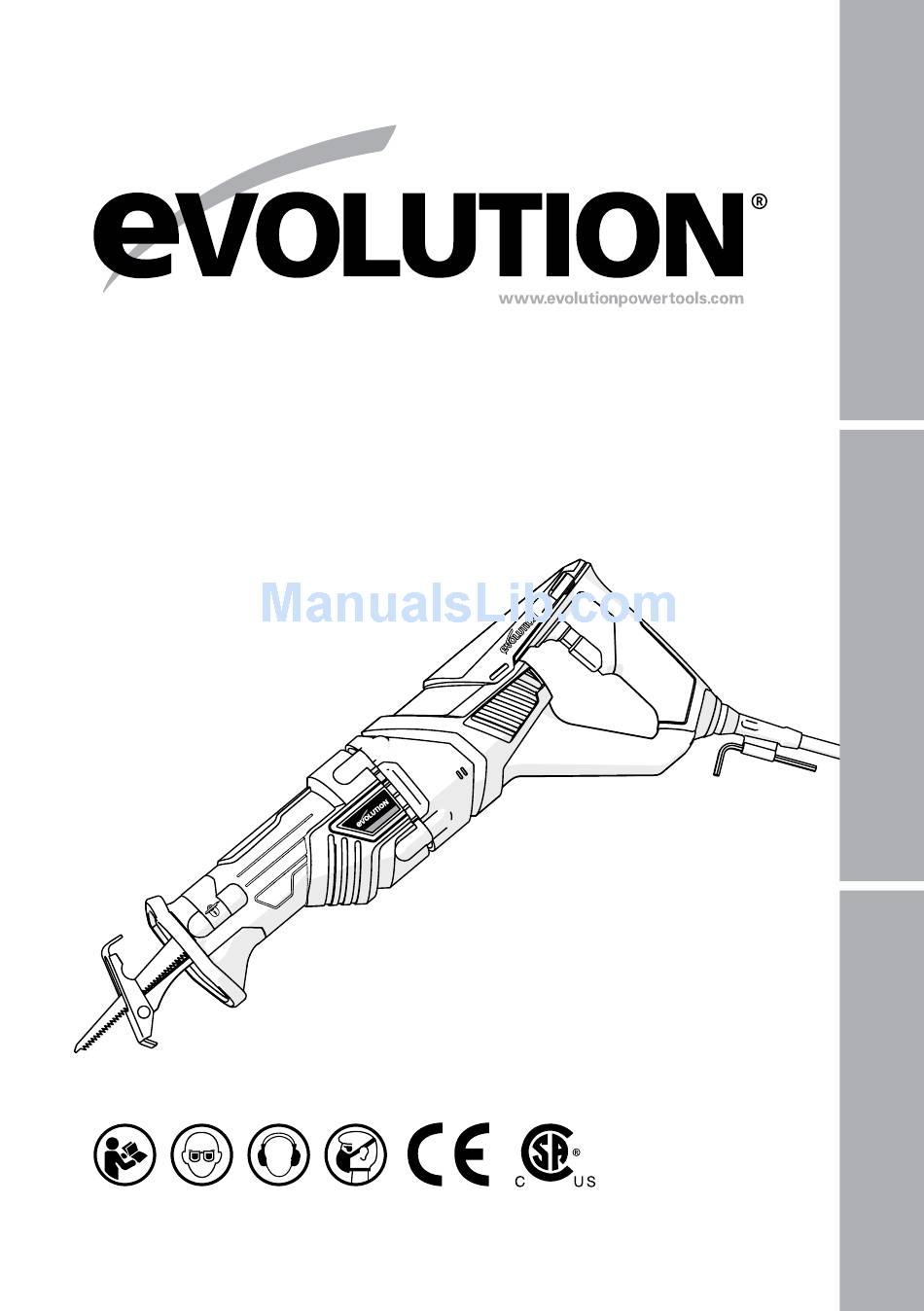

- Page 1 RAGE8 RECIPROCATING SAW Original Instructions Originalbetriebsanleitung Instructions Originales Original written in UK English Date Published: 15/06/15...
- Page 3 ENGLISH Original Instructions...
-
Page 4: Table Of Contents
www.evolutionpowertools.com TABLE OF CONTENTS English Page 2 Deutsch Seite 22 Français Page 42 INTROduCTION Guarantee Page 5 Machine Specification Page 6 Vibration Page 7 Labels and Symbols Page 7 Intended use of this Power Tool Page 8 Prohibited use of this Power Tool Page 8 SAFETY PRECAuTIONS Electrical Safety... -
Page 5: Guarantee
Evolution Power Tools Machine. Please not exhaustive) blades, cutters, drills, chisels or complete your product registration ‘online’ paddles, etc. In no event shall Evolution Power as explained in the A5 online guarantee Tools be liable for loss or damage resulting registration leaflet included with this machine. -
Page 6: Machine Specification
www.evolutionpowertools.com SPECIFICATIONS MACHINE SPECIFICATIONS METRIC IMPERIAL Motor EU (230V ~ 50 Hz) 1050W Motor UK (110V ~ 50 Hz) 1050W Motor USA (120V ~ 60 Hz) 1050W Stroke Length 28mm 1-1/16” Variable Speed (Strokes Per Minute) 800 - 2400spm 800 - 2400spm Weight 3.7kg 8lbs... -
Page 7: Vibration
WARNING: Do not operate this machine • The measurement and assessment of if warning and/or instruction labels are missing or damaged. Contact Evolution human exposure to hand-transmitted vibration in the workplace is given in: Power Tools for replacement labels. -
Page 8: Intended Use Of This Power Tool
WARNING: This product is a hand held reciprocating saw and has been designed Volts to be used with special Evolution blades. Only use accessories designed for use in this machine and/or those recommended Amperes specifically by Evolution Power Tools Ltd. -
Page 9: Electrical Safety
www.evolutionpowertools.com of flammable liquids, gasses or dust. ELECTRICAL SAFETY This machine is fitted with the correct Power tools create sparks which may ignite moulded plug and mains lead for the the dust or fumes. c) Keep children and bystanders designated market. If the mains lead or the plug are damaged in any way, they away while operating power tool. - Page 10 www.evolutionpowertools.com children and do not allow persons unfamiliar equipment such as dust masks, non-skid with the power tool or these instructions safety shoes, hard hat or hearing protection to operate the power tool. Power tools are used for appropriate conditions will reduce personal injuries.
-
Page 11: Additional Safety Instructions
www.evolutionpowertools.com Protective Equipment) for the job at hand. You are advised to consider the risks associated with the materials you are working This could typically include safety glasses or with and to reduce the risk of exposure. eye shields, dust masks, protective clothing As some materials can produce dust that may and safety shoes, ear defenders and safety be hazardous to your health, we recommend... -
Page 12: Getting Started
Also make sure that all the accessories with this machine, the following accessories are complete. If any parts are found to be are also available from the Evolution online missing, the machine and its accessories should shop at www.evolutionpowertools.com be returned together in their original packaging or from your local retailer. -
Page 13: Machine Overview
www.evolutionpowertools.com MACHINE OVERVIEW 1. Blade A. Multipurpose Blade 2. Workpiece Contact Pivot Plate B. General Wood Blade 3. Blade Clamp Operating Lever C. Green Wood Blade 4. Trigger Switch d. Thin Steel Blade 5. Variable Speed Control 6. Insulated Soft Grip Hand Hold Areas... -
Page 14: Operating Instructions
www.evolutionpowertools.com INSTALLING OR REMOVING A BLAdE WARNING: Only attempt these procedures with the machine disconnected from the mains power supply. Note: We recommend that the operator wears protective gloves when handling blades. Care should be exercised as a recently used blade could be hot and/or contaminated with debris. To install a blade: • Ensure that the blade holder is clean and free from debris or Fig. - Page 15 www.evolutionpowertools.com CuTTING REACH & CAPACITY By using different length blades and/or altering the service position of the workpiece contact plate, it is possible to increase or decrease the overall ‘reach’ and cutting capacity of the machine. To adjust the position of the workpiece contact plate: • Loosen the two socket headed screws (Fig.
- Page 16 www.evolutionpowertools.com A practical trial on scrap material may be useful to determine the best stroke rate for any particular material or application. GENERAL CuTTING WARNING: Never start the machine with the blade in contact with the workpiece. • Select a low stroke rate. • Hold the machine with both hands. • Ensure that the workpiece contact plate is firmly in contact with the workpiece but that the blade is not.
- Page 17 www.evolutionpowertools.com Note: Only dedicated plunge cutting blades must be used when attempting a plunge cut. Note: To reduce the risk of blade kickback when plunge cutting. It is recommended to drill a pilot hole and plunge cut into the hole as a starting point, giving you extra control and stability. To plunge cut: • Complete any/all marking out of the cutting lines using a pencil, marker pen, etc, on the workpiece before...
-
Page 18: Maintenance
www.evolutionpowertools.com • Switch on the machine and gradually introduce the blade into the workpiece. • Adjust the stroke rate for optimum perfomance. • Cut through the workpiece slowly allowing the flexible blade to curve as required. (Fig. 8). • Allow the side of the flexible blade to gently glide across the floor, wall, etc. CLEANING WARNING: Any cleaning must only be attempted with the Fig. 8 machine disconnected from the mains power supply. Clean the saw blade holder and remove any dirt and/or debris build up. -
Page 19: Environmental Protection
www.evolutionpowertools.com Excessive sparking may indicate the presence of dirt in the motor or worn out carbon brushes. If this is suspected have the machine serviced and the brushes replaced by a qualified technician. ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. -
Page 20: Declaration Of Conformity
In accordance with EN ISO 17050-1:2004 The manufacturer of the product covered by this declaration is: Evolution, Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR. The manufacturer hereby declares that the machine as detailed in this declaration fulfils all the relevant provisions of the Machinery Directive and other appropriate directives as detailed below. - Page 21 www.evolutionpowertools.com...
- Page 22 Evolution Power Tools Ltd Evolution Power Tools LLC Evolution Power Tools SAS Venture One 8363 Research Drive 61 Avenue Lafontaine Longacre Close Davenport 33560 Holbrook Industrial Estate Iowa Carbon-Blanc Sheffield 52806 Bordeaux S20 3FR +44 (0)114 251 1022 +1 866-EVO-TOOL...
