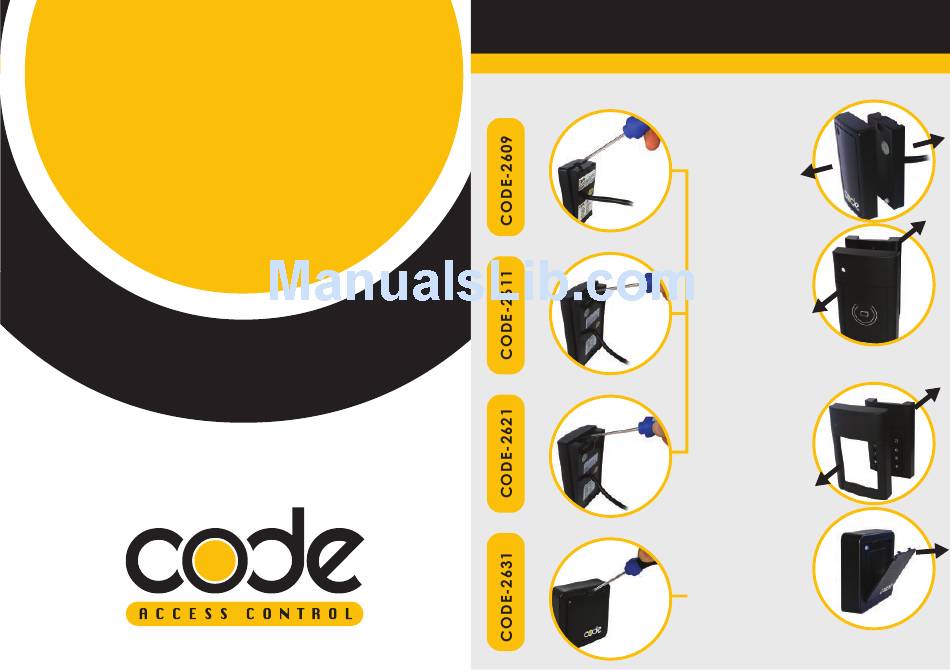

CODE-2600 Series screwdriver upwards until the cover it Gently pull the plastic cover partially away from away from the main body of Readers the reader.
10%-90% Diagram shows CODE-2611 for illustration purposes Fixing to a wall for CODE Readers – 2609, 2611 & 2621. 3. READER PARAMETERS • Drill a small hole in the wall big enough for the reader cable. • Push the reader cable through the wall and join to the cable from the CODE Controller.
Page 3
4. WIRING NOMINATION Reader Wire Colour Controller Connection +12v Ground Black Data 0 Green Data 0 Data 1 White Data 1 Blue Buzzer* Yellow BUZ * *Note To activate the sounder during the operation of the LED changing to Green, connect the Yellow Buzzer wire to “BUZ” on the controller.
5. NOTES FOR INSTALLATION 6. INSTRUCTIONS FOR KEYPAD For the reader cable connection to the CODE Controller, CAT 5 cable or 8 core The CODE Keypad supports 6-digit number password twisted pair cable can be used. The Reader converts the 6-digit Password number to a 26-bit Wiegand output.
Page 5
If the Reader does not operate after a power down. CODE-6800 5 Amp Power supply in Metal Box Enclosure • Please perform a controller download from the CODE Access Software CODE-FC02 Card Distributor When the door can not be opened by reading the card after the power supply recovered.
