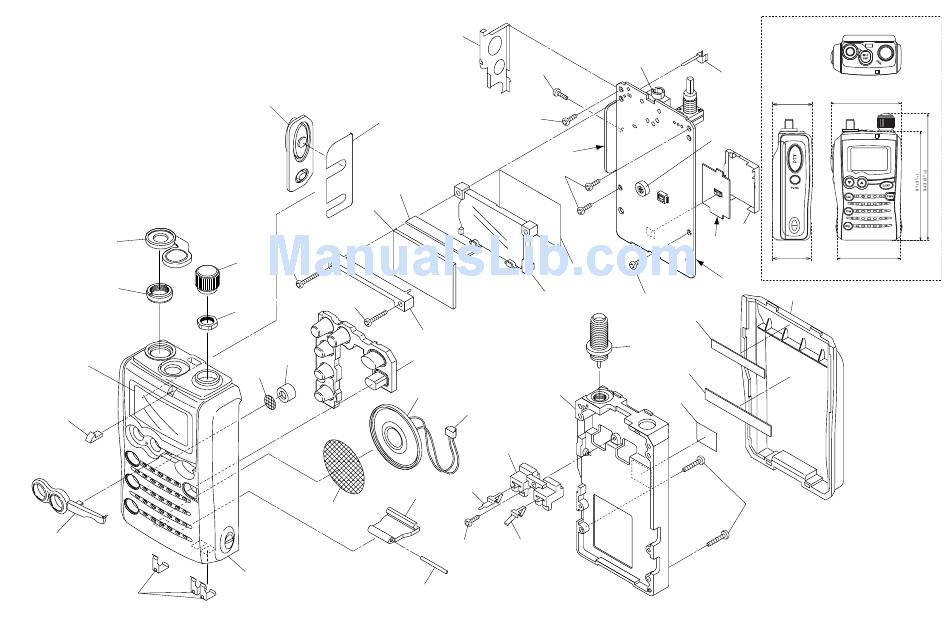

Icom IC-E7 Service Manual page 26

MP33 (C)
MP37 (C)
MP4 (C)
+
MP7 (C)
MP11 (C)
MP34 (C)
MP18 (C)
MP13 (C)
MP14 (C)
EP2 (M)
DS1 (M)
MP5 (C)
MP27 (C)
+
MP35 (C)
MP27 (C)
MP24 (C)
MP6 (C)
MP21 (C)
MP32 (C)
SP1 (C)
MP9 (C)
MP23 (C)
MP2 (C)
MP19 (C)
7 - 2
MP1 (P)
MP28 (C)
MP29 (C)
PA board
MP29 (C)
MP22 (C)
MP12 (C)
MP15 (C)
MP1 (C)
W1 (C)
MP10 (C)
MP17 (C)
MP16 (C)
MP30 (C)
J4 (M)
MP20 (C)
29.9 (1 3 )
/ 16
S8 (M)
MC1 (M)
MP1 (V)
VCO board
28.2 (1 1 )
/
8
MAIN unit
MP3 (C)
MP29 (C)
MP42 (C)
J1 (C)
MP25 (C)
MP36 (C)
MP8 (C)
Unit abbreviations
(C): CHASSIS PARTS
(M): MAIN UNIT
(V): VCO BOARD
(P): PA BOARD
52.44 (2 1 )
/
16
46.83 (1 27 )
/ 32
Unit: mm (inch)
