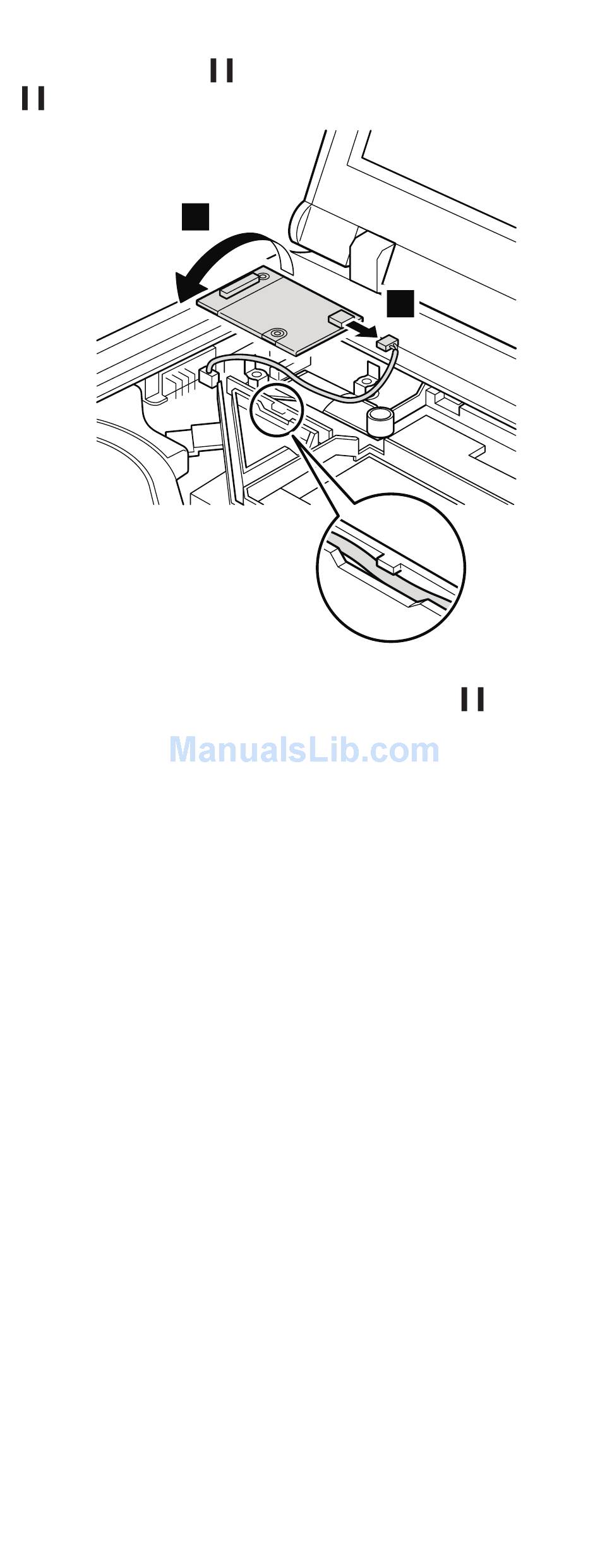

Turn the card over 3 , and detach the modem connector
4 .
When installing: Make sure that connector 4 and the
3
connector on the underside of the card
are firmly attached. Then place the
cable to fit in the cable guide as in the
figure.
ThinkPad R50/R50p and R51 Series
Removing and replacing a FRU
4
79
