Rear View - IBM ThinkPad Dock II Hardware Maintenance Manual

Locations

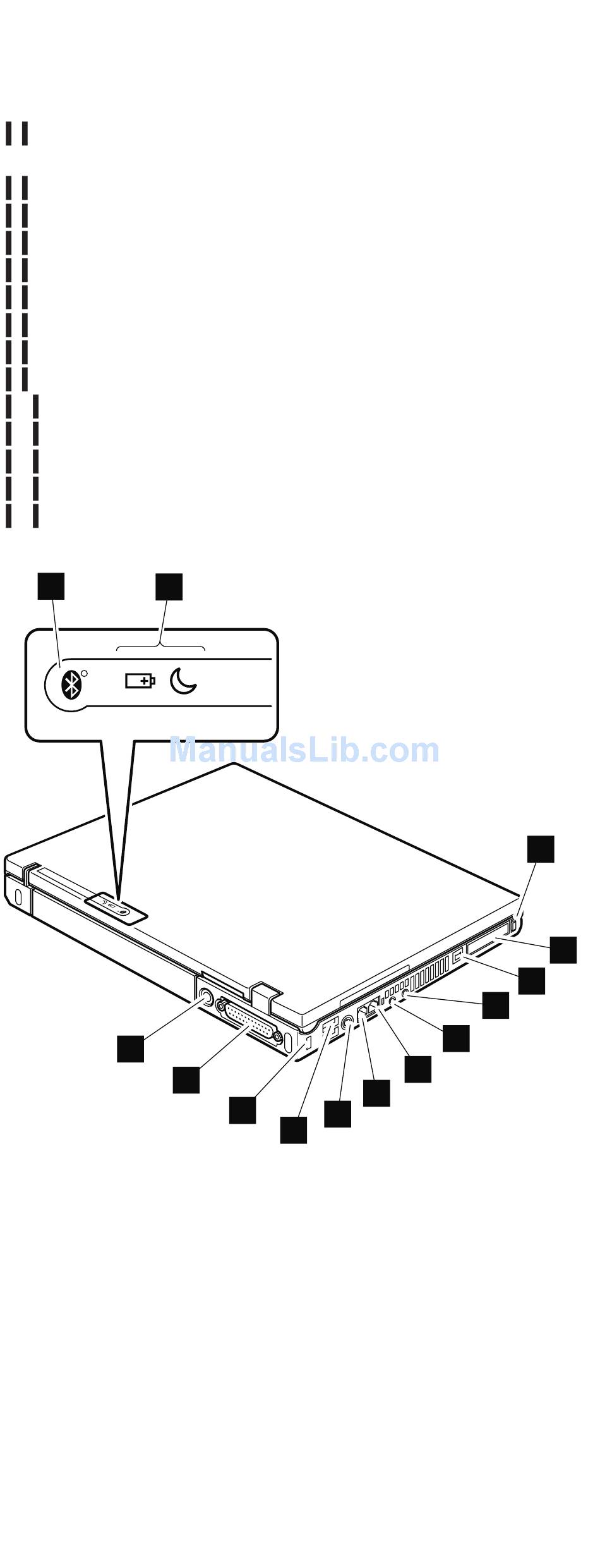

Rear view

1
Bluetooth wireless status indicator (for some
models)
2
Power status indicators
3
PC Card eject button
4
PC Card slot
5
IEEE 1394 connector (for some models)
6
Microphone jack
7
Stereo headphone jack
8
RJ-45 (Ethernet) connector
9
RJ-11 (modem) connector
10
TV-out connector
11
Universal serial bus (USB) connectors
12
Security keyhole
13
Parallel connector
14
AC power connector
1
R
138
R50/R50p, R51 Series
2
14
13
12
9
10
11
6
7
8
3
4
5
