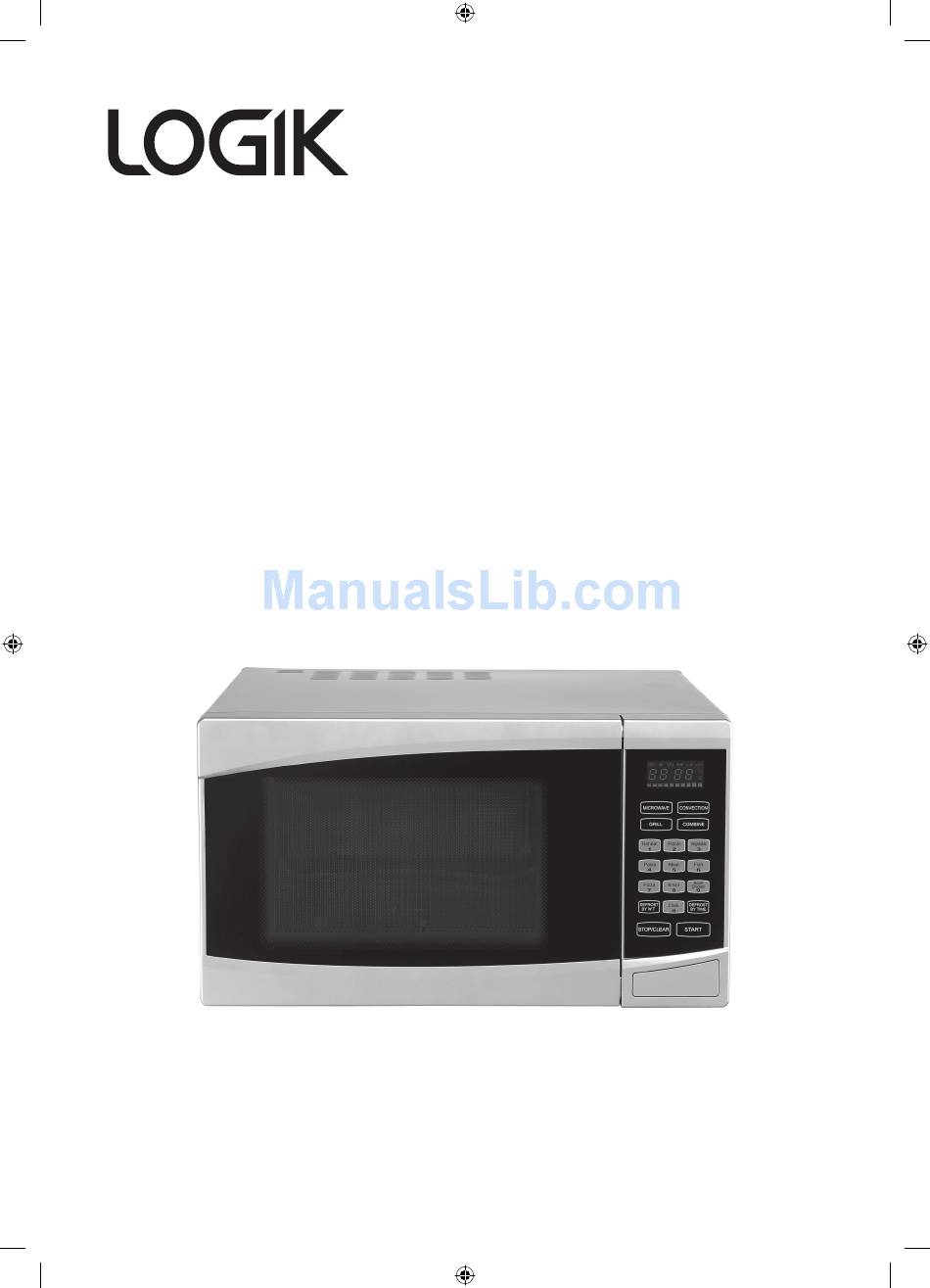

- Page 1 Combination Microwave Instruction Manual L21CS10 L21CS10_IB_GB_100927_Zell.indd 1 27/09/2010 3:49 PM...
-
Page 2: Table Of Contents
Contents Unpacking ............................ 3 Product Overview ........................4 Using Aluminium Foil in Your Microwave .................. 5 Getting Ready ..........................6 Introducing Microwave Cooking ....................7 Cooking with a Microwave..........................7 Checking your cooking utensils ........................8 Microwave Heating Categories ......................... 9 Steam ..................................10 Condensation.................................10 Checking your Microwave ..........................10... -
Page 3: Unpacking
Thank you for buying the new Logik Microwave. These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. -
Page 4: Product Overview

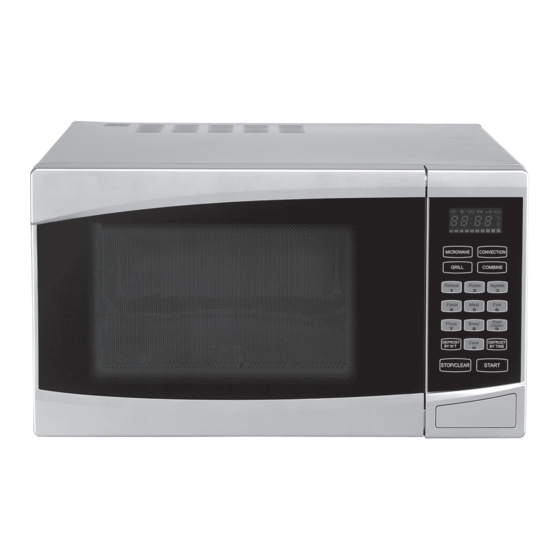

Product Overview The Main Unit Control Panel The Control Panel LED Display Shows the clock or cooking time / setting. MICROWAVE Button CONVECTION Button Use this button to select the Use this button to select microwave function. the function of convection. GRILL Button COMBINE Button Use this button to select the... -
Page 5: Using Aluminium Foil In Your Microwave
Using Aluminium Foil in Your Microwave It is safe to use aluminium foil in your microwave as long as you follow these safety guidelines. As with all metal, microwave energy cannot pass through foil, but provided that you keep the foil away from the side of the microwave it will not cause sparks and there will not be any damage to your microwave. -
Page 6: Getting Ready
Getting Ready This microwave is designed for home use. It should not be used for commercial catering. 1. After unpacking your microwave, check that it has not been damaged whilst in the box. Make sure there are no dents, and the door closes properly. A damaged microwave could allow microwave energy to escape. -
Page 7: Introducing Microwave Cooking
Introducing Microwave Cooking Always remember the basic safeguards you would follow when using any cooking equipment or handling hot food. This page gives some of the basic guidelines for microwave cooking. If you are unfamiliar with using a microwave, there is more information at the back of this instruction booklet. Cooking with a Microwave •... -
Page 8: Checking Your Cooking Utensils
Checking your cooking utensils Most heat-resistant, non-metallic cooking utensils are safe to use in your microwave. If you are not sure you can use a utensil in your microwave, follow this simple test: 1. Put the utensil into the microwave next to a cup of water – use a cup that you know is microwave safe. Close the door. -
Page 9: Microwave Heating Categories
Microwave Heating Categories Your microwave has been tested and labelled to meet the government’s voluntary agreement on the reheating of pre-cooked food. The heating characteristics and output power levels of microwave are usually calculated using a relatively large portion of food (a 1000 gram load, IEC 705) but many packs of pre-cooked food are sold in smaller packs, often about 350 grams. -
Page 10: Steam
Steam When you microwave food, steam is created as water in the food heats up and evaporates. The steam formed during microwave cooking is entirely safe. It has to escape from the microwave to prevent pressure from building up inside the microwave. It does this through the vents on the back of the microwave and from around the door. -
Page 11: Setting The Child Lock
Setting the Child Lock The child lock is a safety feature which when set will lock all of the buttons on your microwave. This prevents your microwave being used accidentally though your microwave door will still open. 1. In waiting state, press and hold the STOP/ CLEAR button, there will be a long “beep”... -
Page 12: Clock Setting
Clock Setting When the microwave oven is electrified,the oven will display “0:00”, buzzer will ring once and enter into the waiting states. 1. When it is in waiting states, press the CLOCK button, and “00:00” flashes. 2. Press the number buttons to input the time. For example: to set the clock 12 : 12. -
Page 13: Microwave Cooking
Microwave Cooking Select different microwave power level and set cooking time as you wish. There are five power levels available for choosing. Keep on pressing “MICROWAVE” to choose the power. Example: If you want to use 80% microwave power to cook for 10 minutes, you can operate the oven as the following steps. -
Page 14: Grill Cooking
Grill Cooking 1. Press the GRILL button repeatedly to choose grill power. “G-1”, “C-1” and “C-2” will be displayed in order. At this moment, either “ “ (for G-1) or “ “ “ “ (for C-1 and C-2) will light. If you press the STOP/CLEAR button now, the unit will turn back to the waiting states. -
Page 15: Combine Function
Combine Function 1. Press the COMBINE button to choose the temperature. “ “ , “ “ and “ �C “ will light. “110”, “120”..” 190” and “200” will be displayed in cycle. It will go back to the waiting states by pressing the STOP/CLEAR button. -
Page 16: Convection Cooking (Without Preheating)
Convection Cooking (without Preheating) 1. Press the CONVECTION button to choose the temperature of convection. 2. “ “ will light. “110”, ”120”..” 190” and “200” will be displayed in cycle. 3. Input the convection time by pressing the 1, 4 number buttons. -
Page 17: Convection Cooking (With Preheating)
Convection Cooking (with Preheating) 1. Press the CONVECTION button to choose the temperature of convection. 2. “ “ will light. “110”, ”120”..” 190” and “200” will be displayed in cycle. 3. Press the START button to start preheating. 1, 6 When the preset temperature is reached, the buzzer will sound twice and the temperature setting will flash. -
Page 18: Auto Menu Cooking
Auto Menu Cooking 1. When the unit is in waiting states, press the number buttons to go into the auto menu directly. Number 1-9 stand for Reheat, Potato, Vegetable,..Roast Chicken respectively. 2. The LED will display the weight. “g” and “Auto” will light. - Page 19 The density and thickness of food can affect its cooking time. Ensure all food is piping hot and cooked thoroughly before serving. It is essential that food is checked during and after the recommended cooking time, even if Auto Menu was used. Auto Menu Table Menu Weight (g)
-
Page 20: Defrost By Time
Defrost By Time 1. Press the DEFROST BY TIME buttons to choose the function of defrost by time. “ “ and “ “ will light to indicate that you should input the time. If the STOP/CLEAR button is pressed now, the unit will go back to the waiting states. -
Page 21: Defrost By Weight
Defrost By Weight 1. Press the DEFROST BY W.T. button to choose the defrosting weight, and both “ “, “ “ and “g” will light. “100”, ”200”, ”300”, ”400”, ”500”, ”600”, ”800”, ”1000”, “1200”, ”1400”, ”1600”, ”1800” and “2000” will be displayed in cycle. If the STOP/ CLEAR button is pressed, it will turn back to the waiting states. -
Page 22: Cleaning Your Microwave
Cleaning Your Microwave Cleaning your microwave each time you use it will help to prevent a build up of stubborn marks that can be difficult to clean. Unplug your microwave from the mains and wait for it to cool down completely before cleaning. On the right hand side wall of the cavity is the wave guide cover, microwaves are passed though this to enable your food to cook. -
Page 23: Frequently Asked Questions
Frequently Asked Questions If a problem does occur, it may often be due to something very minor. The following Q & A may be able to resolve the problem. Questions Answers Why doesn’t the food seem to Check that: cook? • the cooking time has been set • the door is closed • the mains socket is not overloaded causing the fuse to blow. -
Page 24: Specification
Specification Model L21CS10 Input 230 - 240V~ 50Hz Microwave Output 800 - 850 Watts Microwave Frequency 2450MHz Outside Dimensions 485mm x 287mm x 395mm (width x deep x height) Power consumption Microwave 1300 -1400 Watts Grill 1150 -1250 Watts Convection 1150 -1250 Watts Max. -
Page 25: Safety Warnings
Safety Warnings General Safety • Switch off and unplug before fitting or removing tools/attachments, after use and before cleaning. • Keep your fingers away from moving parts and fitted attachments. • Never use a damaged machine. • Never operate the machine when it is empty. •... - Page 26 Cooking Use As the power of different microwave ovens can vary considerably, care must be taken when first using this appliance as it may cook faster than expected. • Do not leave the appliance unattended during use. WARNING : Only allow children to use the oven without supervision when adequate instructions have given so that the child is able to use the oven in a safe way and understands the hazards of improper use;...
- Page 27 Delayed Boiling Liquids heated in a microwave can boil up when removing them from the microwave. Take the following precautions : • Always stir liquids, before and after cooking. • Allow them to stand. • Use containers that are wider at the top than at the bottom. Preparing food for Babies Extra care must be taken when preparing food or drink for babies and small children.
- Page 28 NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Glass Turntable 262100500003 Turntable Ring 252200200008 Grill Rack 256511700941 Defrost Rack 250900200006 DSG Retail Limited is responsible for after sales service. If you have a query about the product please contact our product support line 0844 561 6263 (Currys) and 08700 118 117 (Pixmania).
