Summary of Contents for Logik L20MR12

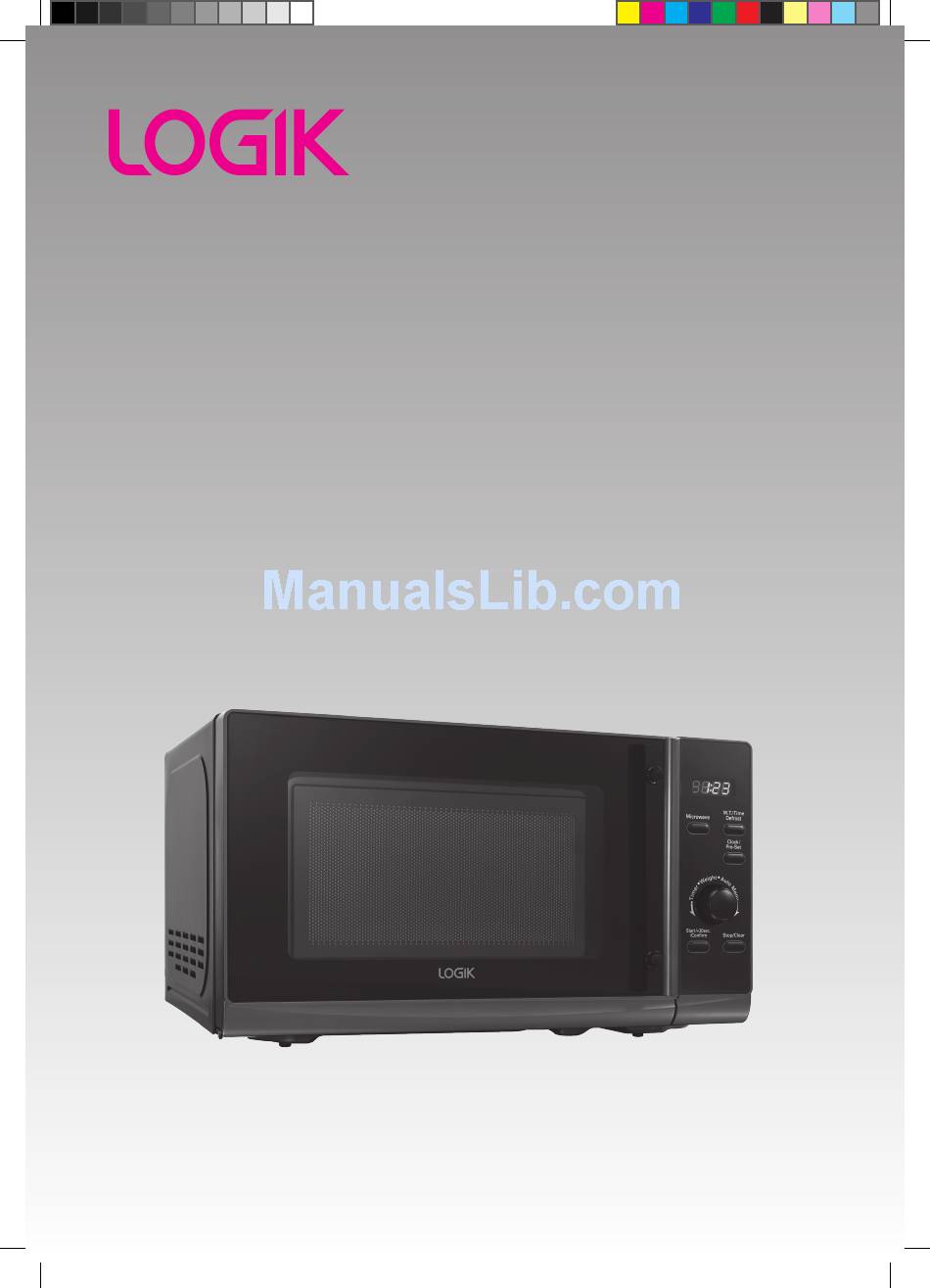

- Page 1 Stainless Steel Microwave Instruction Manual L20MR12 L20MB12 L20MR_B12_IB_120531.indd 1 31/05/2012 4:27 PM...
- Page 2 L20MR_B12_IB_120531.indd 2 31/05/2012 4:27 PM...
-
Page 3: Table Of Contents
Contents Unpacking ............................ 4 Getting Ready ..........................5 Introducing Microwave Cooking ....................6 Cooking with a Microwave..........................6 Checking your cooking utensils ........................7 Using Aluminium Foil in Your Mirowave ......................7 Microwave Heating Categories ......................... 8 Steam ..................................9 Condensation................................ -
Page 4: Unpacking
Thank you for purchasing your new Logik Microwave. These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. -
Page 5: Getting Ready
Getting Ready This microwave is designed for home use. It should not be used for commercial catering. 1. After unpacking your microwave, check that it has not been damaged whilst in the box. Make sure there are no dents, and the door closes properly. A damaged microwave could allow microwave energy to escape. -
Page 6: Introducing Microwave Cooking
Introducing Microwave Cooking Always remember the basic safeguards you would follow when using any cooking equipment or handling hot food. This page gives some of the basic guidelines for microwave cooking. If you are unfamiliar with using a microwave, there is more information at the back of this instruction manual. Cooking with a Microwave Cooking with a microwave is much faster than conventional cooking and, whilst you should make sure that food is fully cooked, you should be careful not to overcook it. -
Page 7: Checking Your Cooking Utensils
Checking Your Cooking Utensils Most heat-resistant, non-metallic cooking utensils are safe to use in your microwave. If made of plastic or glass, utensils will be marked as “microwave safe” or similar. If you are not sure and/or there is no microwave-safe marking on the utensil, do NOT use it in the microwave. -
Page 8: Materials That Can Be Used In The Microwave
Materials That Can Be Used in the Microwave Utensils Remarks Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to Aluminum foil prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. -
Page 9: Microwave Heating Categories
Microwave Heating Categories Your microwave has been tested and labelled to meet the UK government’s voluntary agreement on the reheating of pre-cooked food. The heating characteristics and output power levels of microwaves are usually calculated using a relatively large portion of food (a 1000 gram load, IEC 60705) but many packs of pre-cooked food are sold in smaller packs, often about 350 grams. -
Page 10: Steam
Steam When you microwave food, steam is created as water in the food heats up and evaporates. The steam formed during microwave cooking is entirely safe. It has to escape from the microwave to prevent pressure from building up inside the microwave. It does this through the vents on the back of the microwave and from around the door. -
Page 11: Product Overview

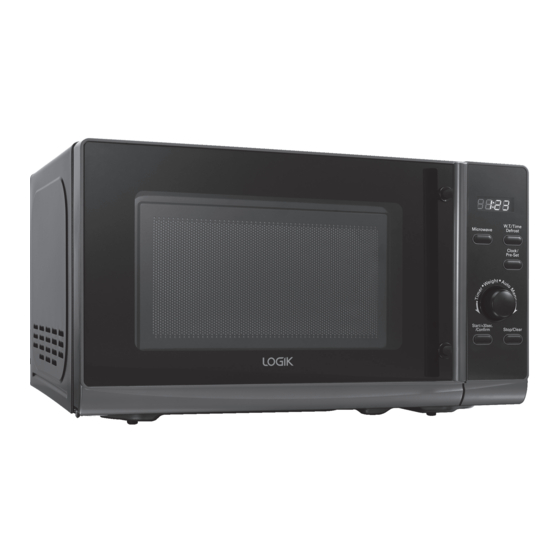

Product Overview The Main Unit Control Panel W.T./Time Defrost Microwave Clock/ Pre-Set Start/+30sec. /Con rm Stop/Clear Door Handle The Control Panel LED Display Shows the clock, cooking time and setting. W.T./Time Microwave Defrost Microwave Button W.T./Time Defrost Button Use this button to select the Use this button to defrost microwave function. -
Page 12: Checking Your Microwave
Checking Your Microwave Check your microwave after unpacking. For your safety, the microwave stops if the door is opened during cooking. Close the door and press the Start/+30sec./ Confirm button to continue the cooking cycle. 1. Pull the handle to open the door. 2. -
Page 13: Clock Setting
Clock Setting When the microwave is connected to the mains power, the LED display will show ”0:00” and the microwave will sound once. Please ensure that you have set the clock prior to use. Please follow the steps below to set the clock. 1. -
Page 14: Setting The Child Lock
Setting the Child Lock This feature prevents the electronic operation of the microwave by locking the operation of the control panel until you have cancelled it. Please follow the steps below to set the child lock. 1. Press the Stop/Clear button for 3 seconds and a long tone will sound. -
Page 15: Microwave Cooking
Microwave Cooking For simple Microwave Cooking, follow the steps below. For instance, if you want to use 80% microwave power to cook for 20 minutes. 1. Press the Microwave button once and the LED display will show “P100”. Press the microwave button repeatedly until the LED display shows “P80”. -
Page 16: Timer
Two-Stage Cooking For Two-Stage cooking, please follow the steps below. For instance: If you want to defrost your food for 5 minutes and then to cook it with 80% microwave power for 7 minutes. You can set a maximum of 2 stages for two-stage cooking. If defrosting is among one of the stages, then it will be set as the first stage. - Page 17 Delay Start Cooking (Programme Set In Advance) For Delay Start Cooking, please follow the steps below. For instance: If the current time is 12 o’clock (noon) and you want to cook it with 80% microwave power for 5 minutes at 1:30 o’clock in the afternoon. You can set a maximum of 2 stages for delay start cooking, defrost cannot be set as one of those stages.
-
Page 18: Auto Cooking
Auto Cooking This feature allows you to cook most of your food based on the food category and the weight. Select the category and choose the weight of your food. For quick reference of the cooking time and the weight, please refer to the auto menu table. -
Page 19: Auto Menu Table
The density and thickness of food can affect its cooking time. Ensure all food is piping hot and cooked thoroughly before serving. It is essential that food is checked during and after the recommended cooking time, even if the Auto Menu was used. Auto Menu Table Cooking Menu... -
Page 20: Defrosting
Defrosting This feature allows you to defrost your frozen foods simply by entering the weight or time. Defrost by Weight 1. Press the button once W.T./Time Defrost and the LED display will show “dEF1”. 2. Turn the dial to Timer/Weight/Auto Menu adjust the weight of your food. -
Page 21: Quick Start Cooking
Quick Start Cooking This feature allows you to quickly cook your food for 30 seconds with 100% microwave power. Please follow the steps below. 1. Press the Start/+30sec./Confirm button to start the quick start cooking. Press the Start/+30sec./Confirm button again to increase by another 30 seconds. -
Page 22: Querying The Cooking Function
Querying the Cooking Function This feature allows you to check and view the current cooking settings. To find out the current cooking setting Press the Microwave button once and the LED display will show the current cooking power while the microwave is in microwave, cooking. -
Page 23: Cleaning Your Microwave
Cleaning Your Microwave Cleaning your microwave each time you use it will help to prevent a build up of stubborn marks that can be difficult to clean. Unplug your microwave from the mains and wait for it to completely cool down before cleaning. On the right hand side wall of the cavity is the wave guide cover. -
Page 24: Frequently Asked Questions
Frequently Asked Questions If a problem does occur, it may often be due to something very minor. The following Q & A may be able to resolve the problem. Questions Answers Why doesn’t the food seem to cook? Check that: •... -
Page 25: Specifications
Specifications Model L20MR12/L20MB12 Input 230-240V~ 50Hz Microwave Output 750-800 Watts Microwave Frequency 2450 MHz Outside Dimensions 443 mm x 360 mm x 258 mm (width x deep x height) Power consumption Microwave Input 1200 - 1270 Watts Complies with EC directives 2004/108/EC and 2006/95/EC. -
Page 26: Safety Warnings
Safety Warnings General Safety • Switch off and unplug before fitting or removing parts/attachments, after use and before cleaning. • Keep your fingers away from moving parts and fitted attachments. • Never use a damaged appliance. • Never operate the appliance when it is empty. •... - Page 27 Cooking Use • As the power of different microwaves can vary considerably, care must be taken when first using this microwave as it may cook faster than expected. • Do not leave the microwave unattended during use. • Take care when cooking food with a high sugar or fat content, such as Christmas pudding or fruitcake. The sugar or fat can overheat and in some cases catch fire.
-
Page 28: Earthing Instructions
Delayed Boiling Liquids heated in a microwave can boil up when removing them from the microwave. Take the following precautions : • Always stir liquids, before and after cooking. • Allow them to stand. • Use containers that are wider at the top than at the bottom. Preparing food for Babies Extra care must be taken when preparing food or drink for babies and small children. - Page 29 NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Glass Turntable Plate 262100500004 Turntable Support 262200200023 DSG Retail Limited is responsible for after sales service. If you have a query about the product please contact our product support line 0844 561 6263 (Currys) and 08700 118 117 (Pixmania).
- Page 30 L20MR_B12_IB_120531.indd 30 31/05/2012 4:27 PM...
- Page 31 L20MR_B12_IB_120531.indd 31 31/05/2012 4:27 PM...
- Page 32 L20MR_B12_IB_120531.indd 32 31/05/2012 4:27 PM...
