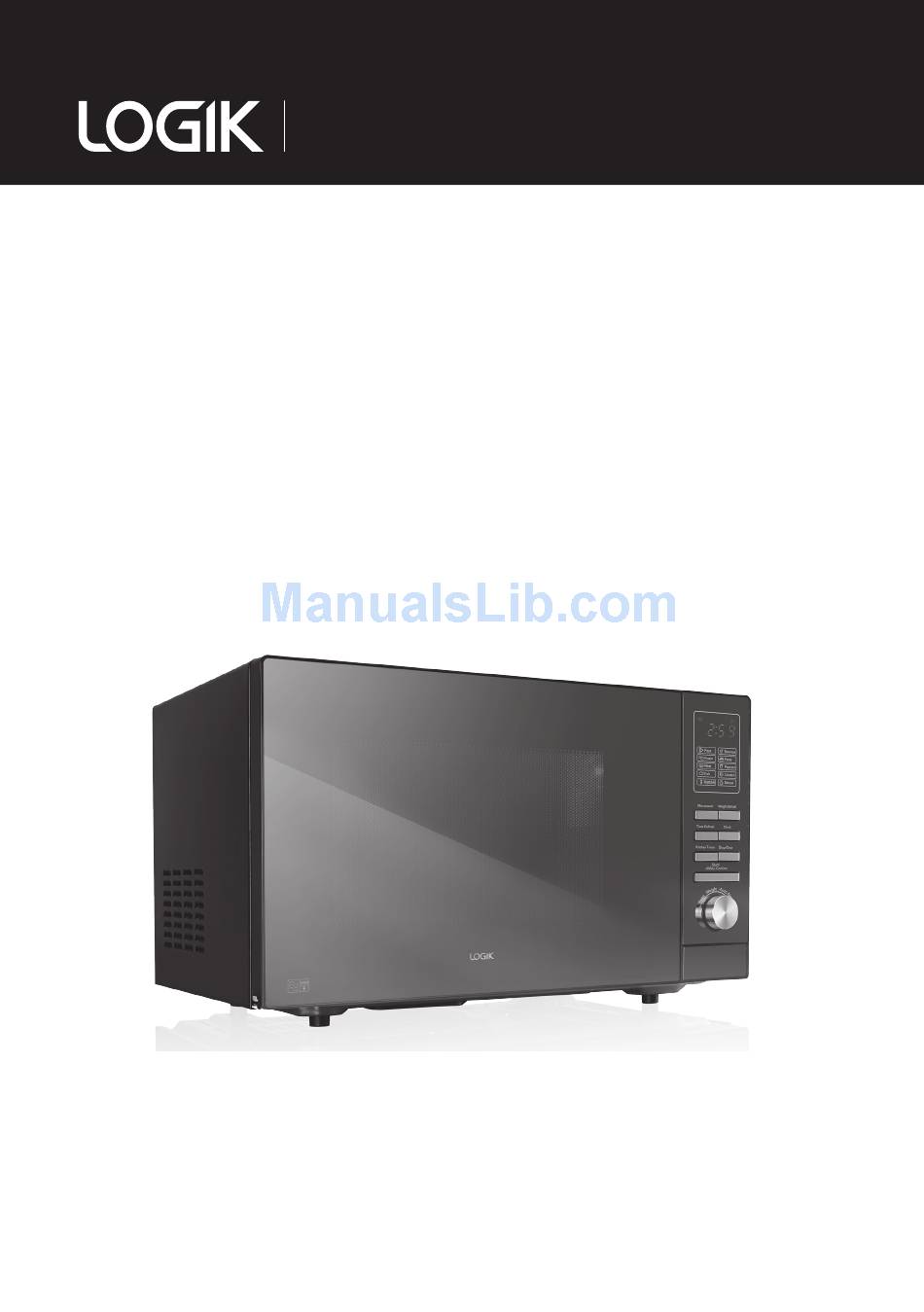

- Page 1 Instruction Manual 25 L Black Glass Conventional Microwave L25MDM14...
-
Page 3: Table Of Contents
Contents Safety Warnings ..........................4 Unpacking ............................. 9 Getting Ready ..........................10 Introducing Microwave Cooking ....................11 Cooking with a Microwave..........................11 Checking Your Cooking Utensils ........................12 Using Aluminium Foil in Your Microwave ..................... 12 Materials that can be Used in the Microwave ..................... 13 Microwave Heating Categories ........................ -
Page 4: Safety Warnings
Safety Warnings IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE General Safety • Switch off and unplug before fitting or removing parts/attachments, after use and before cleaning. • Keep your fingers away from moving parts and fitted attachments. • Never use a damaged appliance. -
Page 5: Microwave Use
• If you have a pacemaker, please contact your doctor before using a microwave. Microwave Use • This microwave is not intended for commercial use. • It should never be used for drying clothes or for other non-food purposes, including any type of storage, which may lead to risk of injury, ignition or fire. -
Page 6: Cleaning Your Microwave
• Do not leave the microwave unattended during use. • Take care when cooking food with a high sugar or fat content, such as Christmas pudding or fruitcake. The sugar or fat can overheat and in some cases catch fire. • Do not overcook food. - Page 7 • Never use equipment made of metal, except aluminium foil in your microwave. The microwave energy cannot pass through metal so it bounces off and sparks against the inside of the microwave. • Stop the microwave straight away if any equipment is causing sparks. • Remember that some crockery has a metal trim around the edge.
-
Page 8: Earthing Instructions
Caution! Hot Surface During cooking, accessible surfaces will become hot. Do not touch these surfaces or the outer casing of the microwave. Care should be taken not to store any items on top of your microwave. Earthing Instructions WARNING: THIS APPLIANCE MUST BE EARTHED. This appliance is equipped with a mains cable having an earthed plug. -
Page 9: Unpacking
Thank you for purchasing your new Logik Microwave. These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. -
Page 10: Getting Ready
Getting Ready This microwave is designed for home use only. It should not be used for commercial catering. 1. After unpacking your microwave, check that it has not been damaged whilst in the box. Make sure there are no dents, and the door closes properly. A damaged microwave could allow microwave energy to escape. -
Page 11: Introducing Microwave Cooking
Introducing Microwave Cooking Always remember the basic safeguards you would follow when using any cooking equipment or handling hot food. This page gives some of the basic guidelines for microwave cooking. If you are unfamiliar with using a microwave, there is more information at the back of this instruction manual. Cooking with a Microwave If you are unsure how long the food should cook, begin cooking at the lowest recommended time, then add more time if necessary. -
Page 12: Checking Your Cooking Utensils
Checking Your Cooking Utensils Most heat-resistant, non-metallic cooking utensils are safe to use in your microwave. If made of plastic or glass, utensils will be marked as “microwave safe” or similar. If you are not sure and/or there is no “microwave safe” marking on the utensil, do NOT use it in the microwave. -
Page 13: Materials That Can Be Used In The Microwave
Materials that can be Used in the Microwave Utensils Remarks Aluminium foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if the foil is too close to oven walls. -
Page 14: Microwave Heating Categories
Microwave Heating Categories Your microwave has been tested and labelled to meet the UK government’s voluntary agreement on the reheating of pre-cooked food. The heating characteristics and output power levels of microwaves are usually calculated using a relatively large portion of food (1000 gram load, IEC 60705) but many packs of pre-cooked food are sold in smaller packs, often about 350 grams. -
Page 15: Steam
Steam When you microwave food, steam is created as water in the food heats up and evaporates. The steam formed during microwave cooking is entirely safe. It has to escape from the microwave to prevent pressure from building up inside the microwave. It does this through the vents on the back of the microwave and from around the door. -
Page 16: Product Overview

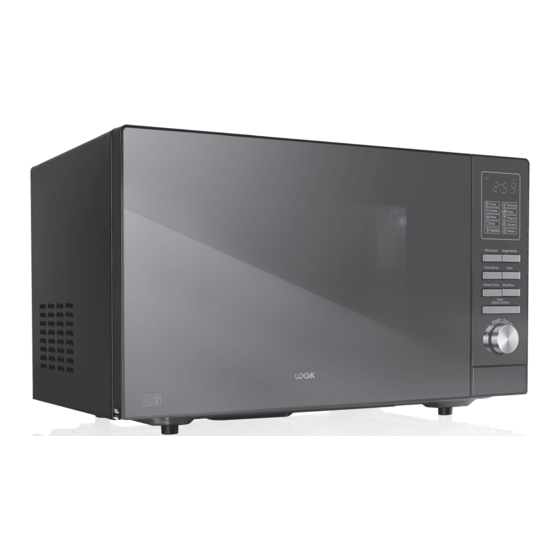

Product Overview The Main Unit Control panel Pizza Pizza Beverage Potato Pasta Meat Popcorn Fish Chicken Vegetable Reheat Microwave Weight Defrost Time Defrost Clock Kitchen Timer Stop / Clear Start / +30 Sec./ Confirm Door open button The Control Panel LED display Shows the clock, cooking time and setting. -
Page 17: Checking Your Microwave
Checking your Microwave Check your microwave after unpacking. For your safety, the microwave stops if the door is opened during cooking. Close the door and press the Start/+30sec./ Confirm. button to continue the cooking cycle. 1. Press the Open Door button to open the door. -
Page 18: Clock Setting
Clock Setting When the microwave is connected to the mains power, the LED display will show “0:00”, and the microwave will sound once. Please ensure that you have set the clock prior to use. Please follow the steps below to set the clock. 1. -
Page 19: Kitchen Timer
Kitchen Timer When the kitchen timer is running, other functions cannot be used. When the microwave is not in use, this feature allows you to use the microwave as a timer. To set the Kitchen Timer, follow the steps below. 1. -
Page 20: Setting The Child Lock
Setting the Child Lock This feature prevents the microwave from operating by locking the control panel until you cancel the lock. Please follow the steps below to set the child lock. 1. Press the Stop/Clear button for 3 seconds and a long tone will sound. The child lock indicator will illuminate on the LED display to indicate that the microwave has set the child lock. -
Page 21: Microwave Cooking
Microwave Cooking For simple microwave cooking, please follow the steps below. For instance: If you want to use 80% microwave power to cook for 20 minutes. 1. Press the Microwave button once. The LED display will show “P100”. 2. Press the Microwave button again to select 80% microwave power (“P80”). -
Page 22: Quick Cooking
Quick Cooking This feature allows you to quickly cook your food at 100% microwave power. Please follow the steps below: 1. Press the Start/+30Sec./Confirm button to start the quick cooking. Press the Start/+30Sec./Confirm button again to add another 30 seconds. 2. -
Page 23: Multi-Stage Cooking
Multi-stage Cooking For multi-stage cooking, please follow the steps below. For instance: If you want to defrost your 200g food and then to cook it with 80% microwave power for 7 minutes. You can set a maximum of 2 stages for multi-stage cooking. If defrosting is among one of the stages, then it will be set as the first stage. -
Page 24: Auto Cooking
Auto Cooking This feature allows you to cook most of your food based on the food category and weight. Select the category and choose the weight of your food. For quick reference of the cooking time and the weight, please refer to the auto-cook menu table on the following page. 1. -
Page 25: Auto-Cook Menu Table
Auto-cook Menu Table cooking menu display weight comments time 200g 1’30” This setting is designed for cooking pizza slices. Additional cooking time Pizza may be required for thicker or frozen pieces of pizza. 400g 2’10” 200g 4’50” For best results, pierce the potato’s skin before cooking. Once the potato 400g 8’00”... -
Page 26: Defrosting
Defrosting This feature allows you to defrost your frozen foods simply by entering the weight or the time. Please follow the steps below. Defrost by Weight 1. Press the Weight Defrost button once and the LED display will show “dEF1”. 2. -
Page 27: Checking The Cooking Function
Checking the Cooking Function This feature allows you to check and view the current cooking settings. To Find Out the Current Cooking Setting 1. Press the Microwave button once and the LED display will show the current cooking power while the microwave is cooking. It will last for 2-3 seconds and then return to Pizza Pizza... -
Page 28: Cleaning Your Microwave
Cleaning your Microwave Cleaning your microwave each time you use it will help to prevent a build up of stubborn marks that can be difficult to clean. Unplug your microwave from the mains and wait for it to completely cool down before cleaning. On the right hand side wall of the cavity is the wave guide cover. -
Page 29: Frequently Asked Questions
Frequently Asked Questions If a problem does occur, it may often be due to something very minor. The following Q & A may be able to resolve the issue. Questions Answers Why doesn’t the food seem to Check that: cook? • the cooking time has been set. -
Page 30: Specifications
Specifications Model L25MDM14 Input 230-240V~ 50Hz Microwave Output 850-900 W Microwave Frequency 2450 MHz Outside Dimensions 306 x 409 x 513 mm (Height x Depth x Width) Power Consumption Microwave Input 1400-1450 W Complies with EC directives 2004/108/EC and 2006/95/EC. - Page 32 For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0844 5611234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.
