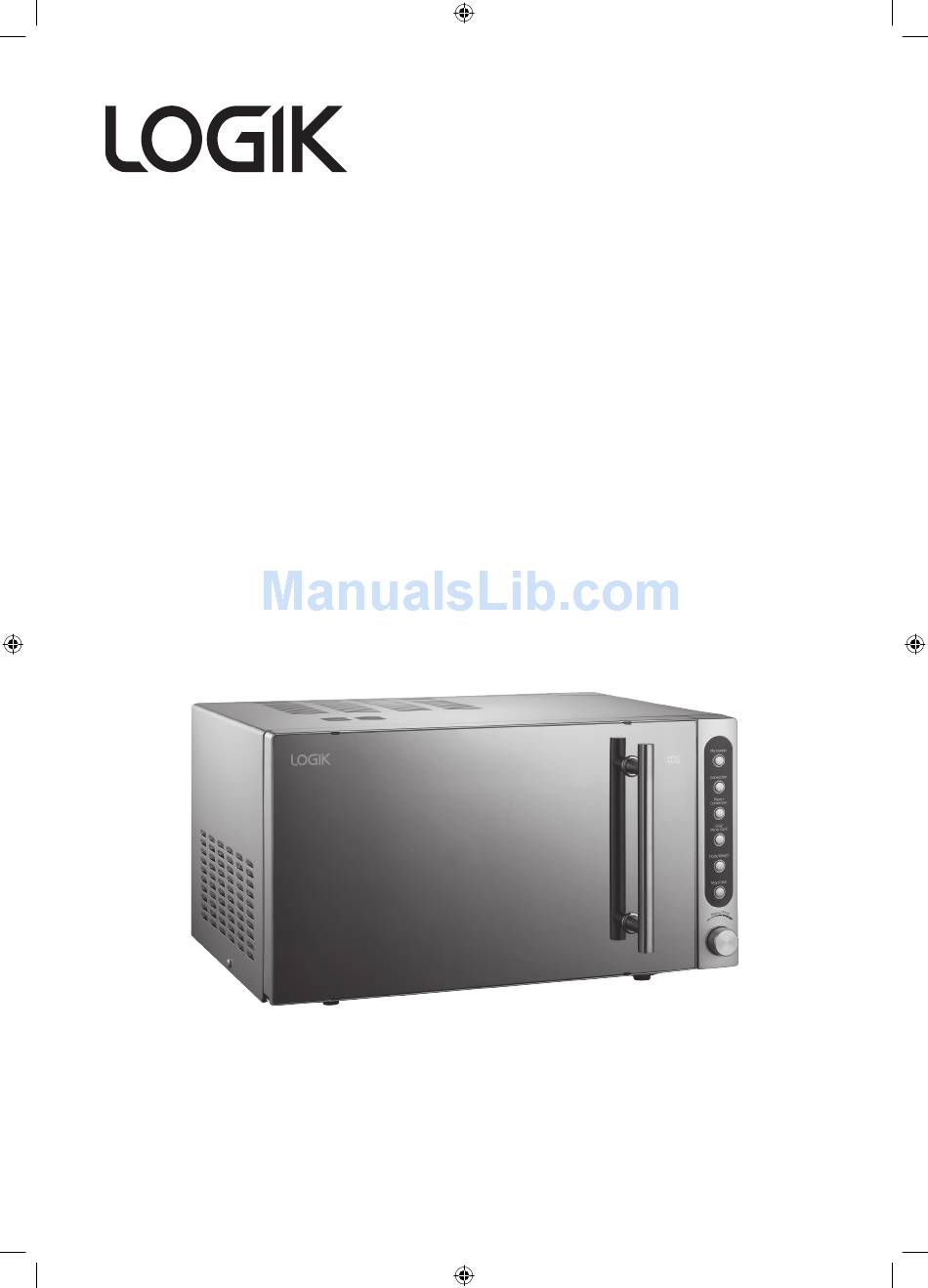

- Page 1 Combination Microwave Instruction Manual L25CS10 L25CS10_IB_GB_110303.indd 1 3/3/11 3:09 PM...
- Page 2 L25CS10_IB_GB_110303.indd 2 3/3/11 3:09 PM...
-
Page 3: Table Of Contents
Contents Unpacking ............................ 4 Getting Ready ..........................5 Introducing Microwave Cooking ....................6 Cooking with a Microwave..........................6 Checking your Cooking Utensils ........................7 Using Aluminium Foil in Your Microwave ...................... 7 Microwave Heating Categories ......................... 8 Steam ..................................9 Condensation................................ -
Page 4: Unpacking
Thank you for purchasing your new Logik Combination Microwave. These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. -
Page 5: Getting Ready
Getting Ready This microwave is designed for home use. It should not be used for commercial catering. 1. After unpacking your microwave, check that it has not been damaged whilst in the box. Make sure there are no dents, and the door closes properly. A damaged microwave could allow microwave energy to escape. -
Page 6: Introducing Microwave Cooking
Introducing Microwave Cooking Always remember the basic safeguards you would follow when using any cooking equipment or handling hot food. This page gives some of the basic guidelines for microwave cooking. If you are unfamiliar with using a microwave, there is more information at the back of this instruction booklet. Cooking with a Microwave •... -
Page 7: Checking Your Cooking Utensils
Checking your Cooking Utensils Most heat-resistant, non-metallic cooking utensils are safe to use in your microwave. If you are not sure you can use a utensil in your microwave, follow this simple test: 1. Put the utensil into the microwave next to a cup of water – use a cup that you know is microwave safe. Close the door. -
Page 8: Microwave Heating Categories
Microwave Heating Categories Your microwave has been tested and labelled to meet the government’s voluntary agreement on the reheating of pre-cooked food. The heating characteristics and output power levels of microwaves are usually calculated using a relatively large portion of food (a 1000 gram load, IEC 705) but many packs of pre-cooked food are sold in smaller packs, often about 350 grams. -
Page 9: Steam
Steam When you microwave food, steam is created as water in the food heats up and evaporates. The steam formed during microwave cooking is entirely safe. It has to escape from the microwave to prevent pressure from building up inside the microwave. It does this through the vents on the back of the microwave and from around the door. -
Page 10: Product Overview
Product Overview The Main Unit Control Panel Convection Convection Convection Convection Convection Convection Convection Clock/Weight Clock/Weight Clock/Weight Clock/Weight Clock/Weight Clock/Weight Clock/Weight Baking Plate Door Handle For use when grilling. The Control Panel Microwave button Use this button to select the microwave function. -
Page 11: Checking Your Microwave
Checking your Microwave Check your microwave after unpacking. For your safety, the microwave stops if the door is opened during cooking. Close the door and press the Menu / Time dial to continue the cooking cycle. Convection 1. Pull the door handle to open the door. Place a cup of water on the glass turntable. -
Page 12: Clock Setting
Clock Setting When the microwave is connected to the mains power, the LED display will show 1:01, and the microwave will sound once. Please ensure you have set the clock prior to use. Please follow the steps below to set the clock. 1. -
Page 13: Setting The Child Lock
Setting the Child Lock This feature prevents the electronic operation of the microwave by locking the operation of the control panel until you have cancelled it. Please follow the steps below to set the child lock. 1. Press the Stop / Clear button for 3 seconds and microwave will sound. -
Page 14: Microwave Cooking
Microwave Cooking For simple Microwave Cooking, follow the steps below. For instance: If you want to use 80% microwave power to cook for 20 minutes. 1. Press the Microwave button once and the LED display will show P100. 2. Press the Microwave button again to change the power level to P-80. -
Page 15: Grill Or Combination Cooking
Grill or Combination Cooking For Grilling, follow the steps below. 1. Press the Grill / Micro + Grill button once and the LED display will show . There is one power level which reaches a temperature of approximately at 160°C. 2. -
Page 16: Convection Combination Cooking
Convection Combination Cooking For Combination Cooking (Microwave and Convection), follow the steps below. 1. Press the Micro + Convection button once and the LED display will flash 200ºC. Keep pressing the Micro + Convection button until the LED display shows your preferred temperature. -
Page 17: Convection Cooking (With Preheating)
Convection Cooking (with preheating) Convection Cooking allows you to cook food like a traditional oven. It is recommended to preheat the oven to the appropriate temperature before placing the food in the oven. Microwave power will not be used. 1. Press the Convection button once and the LED display will display 200ºC. -
Page 18: Convection Cooking (Without Preheating)
Convection Cooking (without preheating) For Convection Cooking without preheating, please follow the steps below. For instance: If you want to cook your food for 20 minutes at 180ºC. 1. Press the Convection button once and the LED display will display 200ºC. 2. -
Page 19: Multi-Stage Cooking
Multi- Stage Cooking For Multi-Stage Cooking, please follow the steps below. For instance: If you want to grill with convection at 200ºC for 10 minutes, then cook it with 80% microwave power for 7 minutes and finally grill it for 8 minutes. Auto Menu Cooking (CODE 1 to CODE 8) cannot be programmed in Multi-Stage Cooking. -
Page 20: Auto Cooking
Auto Cooking This feature allows you to cook most of your food based on the food category and the weight. Select the category and choose the default weight of the food. For quick reference of the cooking time and the default weight, please refer to the Auto Menu table. Auto Menu 1. -
Page 21: Auto Menu Table
The density and thickness of food can affect its cooking time. Ensure all food is piping hot and cooked thoroughly before serving. It is essential that food is checked during and after the recommended cooking time, even if Auto Menu was used. Auto Menu Table Menu Weight... -
Page 22: Quick Start Cooking
Quick Start Cooking This feature allows you to quickly cook your food for 30 seconds with 100% microwave power. Please follow the steps below. 1. Press the Menu / Time dial to start the quick start cooking. Press the button again to add another 30 seconds. -
Page 23: Defrosting
Defrosting You may wish to place the frozen food on a microwave safe plate or dish before placing it on the defrost rack (not supplied in this microwave package). This is to ensure that any liquids released during defrosting will not spill and dirty the interior of the microwave. Defrost by Time 1. -
Page 24: Querying The Cooking Function
Querying the Cooking Function This feature allows you to check and view the current setting of your selected cooking program. To Find Out the Current Cooking Setting 1. Press the Microwave / Convection / Micro + Convection / Grill / Micro + Grill button once and the LED display will show the current cooking setting while the microwave is in either Microwave / Convection / Micro... -
Page 25: Cleaning Your Microwave
Cleaning Your Microwave Cleaning your microwave each time you use it will help to prevent a build up of stubborn marks that can be difficult to clean. Unplug your microwave from the mains and wait for it to cool down completely before cleaning. On the right hand side wall of the cavity is the wave guide cover, microwaves are passed though this to enable your food to cook. -
Page 26: Frequently Asked Questions
Frequently Asked Questions If a problem does occur, it may often be due to something very minor. The following Q & A may be able to resolve the problem. Questions Answers Why doesn’t the food seem to Check that: cook? • the cooking time has been set. -
Page 27: Specification
Specification Model L25CS10 Input 230 - 240V~ 50Hz Microwave Output 850 - 900 Watts Microwave Frequency 2450MHz Outside Dimensions 483mm x 441mm x 281mm (width x deep x height) Power consumption Microwave 1500 - 1600 Watts Grill 900 - 1000 Watts... -
Page 28: Safety Warnings
Safety Warnings General Safety • Switch off and unplug before fitting or removing tools/attachments, after use and before cleaning. • Keep your fingers away from moving parts and fitted attachments. • Never use a damaged appliance. • Never operate the appliance when it is empty. •... - Page 29 Cooking Use • As the power of different microwaves can vary considerably, care must be taken when first using this microwave as it may cook faster than expected. • Do not leave the microwave unattended during use. • Take care when cooking food with a high sugar or fat content, such as Christmas pudding or fruitcake. The sugar or fat can overheat and in some cases catch fire.
-
Page 30: Earthing Instructions
Delayed Boiling Liquids heated in a microwave can boil up when removing them from the microwave. Take the following precautions : • Always stir liquids, before and after cooking. • Allow them to stand. • Use containers that are wider at the top than at the bottom. Preparing Food for Babies Extra care must be taken when preparing food or drink for babies and small children. - Page 31 L25CS10_IB_GB_110303.indd 31 3/3/11 3:09 PM...
- Page 32 There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England (P.N.: L25CS10-001) L25CS10_IB_GB_110303.indd 32 3/3/11 3:09 PM...
