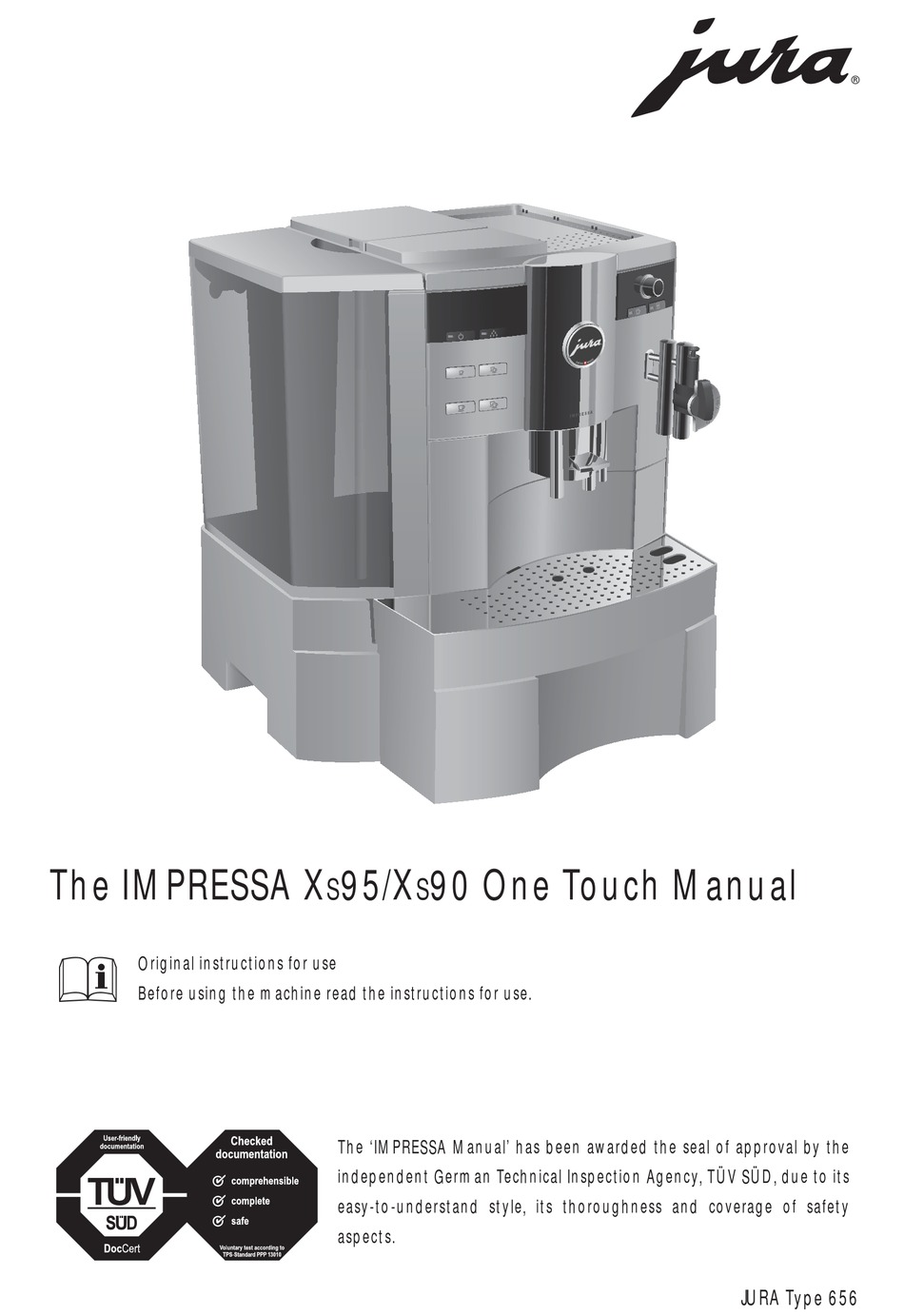

The IMPRESSA X
Original instructions for use
K
E
Before using the machine read the instructions for use.
95/X
90 One Touch Manual
S
S
The 'IMPRESSA Manual' has been awarded the seal of approval by the
independent German Technical Inspection Agency, TÜV SÜD, due to its
easy-to-understand style, its thoroughness and coverage of safety
aspects.
JURA Type 656

Advertisement

Table of Contents
loading

Related Manuals for Jura IMPRESSA XS95

Summary of Contents for Jura IMPRESSA XS95

  • Page 1 Before using the machine read the instructions for use. The ‘IMPRESSA Manual’ has been awarded the seal of approval by the independent German Technical Inspection Agency, TÜV SÜD, due to its easy-to-understand style, its thoroughness and coverage of safety aspects. JURA Type 656...

  • Page 2: Important Safeguards

    Important Safeguards IMPORTANT SAFEGUARDS These safeguards apply for machines with UL safety test (see rating plate and chapter 10, ‘Technical data’). Follow the basic safety When using electrical appliances, basic safety precautions should precautions always be followed, to reduce the risk of fire, electric shock, and/or injury to persons, including the following: Read all instructions.
  • Page 3 Important Safeguards Special cord set instructions a. A short power supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a long cord. Your IMPRESSA has a 3-pin grounded plug. b. Longer extension cords are available and may be used if care is exercised in their use.
  • Page 4 Important Safeguards Keep your hands and the cord away from hot parts of the appliance during operation. Never clean with scouring powders or hard implements. NEVER DO Never fill instant coffee, chocolate mix etc. into the grinder or (or you will void your ground coffee funnel (grinder by-pass).
  • Page 5 Important Safeguards...

  • Page 6: Table Of Contents

    IMPRESSA X 95/X 90 One Touch Connector System ............................14 © JURA on the Internet ............................14 Knowledge Builder ............................14 Preparing and using for the first time Setting up ..............................15 Filling the water tank ...........................15 Bean container filling ...........................15 First-time use ..............................16 Using and activating filter ..........................17...
  • Page 7 Disassembling and rinsing the Easy Cappuccino Frother..............54 Cleaning the bean container ........................55 Descaling the water tank ...........................55 Display messages Troubleshooting Transport and environmentally neutral disposal Transport / Emptying the system ......................60 Disposal .................................60 10 Technical data Index JURA contact details / Legal information...

  • Page 8: Control Elements

    Control elements Control elements Figure: IMPRESSA X 95 One Touch Bean container cover Fineness of grind switch Bean container with aroma preservation Cup tray cover Cover of filler funnel for pre-ground coffee Water tank with handle Filler funnel for pre-ground coffee Power switch and power cable Connector System ©...

  • Page 9: Cover

    Control elements Front left Front right Display ö Selector switch Rotary Switch cover Professional Cappuccino Frother f Rotary switch Easy Cappuccino Frother On/off button Hot water portion symbol Maintenance button Hot water symbol 1 Espresso button Cappuccino button 2 Espressi button Milk portion symbol 1 Coffee button Milk symbol...

  • Page 10: Proper Use

    JURA service centre. If the power cable for this machine is damaged, it must be repaired either directly by JURA or by a JURA approved service centre. Make sure that the IMPRESSA and the power cable are not located close to hot surfaces.
  • Page 11 The rating plate is located on the underside of your IMPRESSA. Further technical data is given in Chapter 10 ‘Technical Data’. Use only original JURA care products. Use of accessories that are not explicitly recommended by JURA could damage the IMPRESSA.

  • Page 12: The Impressa X

    Symbols used Information and tips to make things easier for you as you use your IMPRESSA. References to the online JURA website, where you can find interesting further infor- mation: www.jura.com. Prompt to take action. This symbol means that you are being prompted to perform...

  • Page 13: Impressa X S 95/X S

    One Touch which prepares twelve different products – including the trend beverage latte macchiato – at the touch of a button. The cus- tomary JURA portability is not, however, affected by this versatility, and with its compact design and low weight of 13.8 kg the machine can be placed just where it is needed.

  • Page 14: Connector System

    Cappuccino / latte macchiato JURA on the Internet Visit us on the Internet. @ At www.jura.com you will find interesting and up-to-date information on your IMPRESSA and on every aspect of coffee. Knowledge Builder You can familiarize yourself with your IMPRESSA X...

  • Page 15: Preparing And Using For The First Time

    2 Preparing and using your IMPRESSA for the first time 2 Preparing and using for the first time This chapter provides you with the information you need to use your IMPRESSA without any problems. You will prepare your IMPRESSA step-by-step for your first coffee experience. Setting up Keep the packaging for your IMPRESSA.

  • Page 16: First-Time Use

    2 Preparing and using your IMPRESSA for the first time First-time use If the machine is operated with a defective power cable, there is a danger of electric shock. WARNING Never use a machine which has a defective power cable. Precondition: The water tank and bean container are full.

  • Page 17: Using And Activating Filter

    E If you have not been able to use the machine for the first time correctly and fully, contact customer support in your country (see Chapter ‘JURA contact details / Legal information’). Using and activating Your IMPRESSA no longer has to be descaled if you are using CLARIS filter filter cartridges.
  • Page 18 2 Preparing and using your IMPRESSA for the first time g T Turn the Rotary Switch until is displayed. FILTER NO k T Press the Rotary Switch to enter the programme item. FILTER NO g T Turn the Rotary Switch until is displayed.

  • Page 19: Determining And Adjusting The Degree Of Water Hardness

    2 Preparing and using your IMPRESSA for the first time Determining and The harder the water is, the more frequently the IMPRESSA needs to adjusting the degree of be descaled. It is therefore important to adjust the water hardness. water hardness The water hardness can be adjusted on a continuous scale between 1°...

  • Page 20: Adjusting Grinder

    2 Preparing and using your IMPRESSA for the first time Adjusting grinder You can adjust the grinder continuously to suit the roast of your coffee. CAUTION If you adjust the fineness of grind when the grinder is not operating, the grinding wheel could be damaged. Only adjust the fineness of grind when the grinder is run- ning.

  • Page 21: Switching Off (Standby)

    Precondition: Your IMPRESSA is switched on at the power switch and the on/off button Q is illuminated (standby). Q T Press the on/off button to switch the IMPRESSA on. appears briefly on the display. WELCOME TO JURA HEATING UP , the maintenance button c lights up. PRESS RINSE T Place a receptacle under the coffee spout.

  • Page 22: Familiarising Yourself With The Control Options

    @ If you prefer to familiarise yourself with your IMPRESSA in a fun way on the computer, the interactive Knowledge Builder tutorial programme can be found on the Internet at www.jura.com. Preparation at the Prepare your favourite coffee speciality at the touch of a button.

  • Page 23: One-Off Settings Before And During Preparation

    3 Familiarising yourself with the control options One-off settings before It is possible to make various settings before and during preparation. and during preparation These one-off settings are always follow the same model and are not stored. Changing the coffee The coffee strength of Coffee à...

  • Page 24: Entering A Permanent Setting For The Amount Of Water For A Cup Size

    3 Familiarising yourself with the control options T Open the cover of the Rotary Switch. o T Press the 1 Coffee button. and the pre-set coffee strength is displayed. 1 COFFEE The brewing operation starts and the coffee flows into the cup.

  • Page 25: Permanent Settings In Programming Mode

    3 Familiarising yourself with the control options Permanent settings in You can easily adjust your IMPRESSA to your personal coffee blends programming mode and specialities. You can navigate through the easy-to-understand programme steps and make permanent settings simply by turning and pressing the Rotary Switch.
  • Page 26 3 Familiarising yourself with the control options Programme item Subitem Explanation T Keep track of all prepared coffee and milk INFORMATION specialities and view the maintenance status. T Select the unit of the amount of water and SETTINGS ML/OZ the time format. 24HRS/AM PM T Select the desired language.

  • Page 27: Viewing Information And Maintenance Status

    3 Familiarising yourself with the control options k T Press the Rotary Switch to exit the programme item. PRODUCTS g T Turn the Rotary Switch until is displayed. EXIT k T Press the Rotary Switch to exit programming mode. COFFEE READY Viewing information Under the programme item you can query the...

  • Page 28: Preparation At The Touch Of A Button

    E During preparation, you can change the pre-set amount of water by turning the Rotary Switch. @ You can also try out the preparation of coffee specialities online. Visit the Knowledge Builder at www.jura.com. Espresso The classic coffee drink from Italy. There is a definite crema on the surface of the espresso.

  • Page 29: Coffee À La Carte

    T Take the protective cover off the Professional Cappuccino Frother. T Attach the milk pipe to the frother. T Connect the other end to an original JURA milk container or immerse it directly into the milk. T Place a cup under the frother.
  • Page 30 T Take the protective cover off the Easy Cappuccino Frother. T Attach the milk pipe to the frother. T Connect the other end to an original JURA milk container or immerse it directly into the milk. T Place a cup under the frother.

  • Page 31: Latte Macchiato

    T Take the protective cover off the Professional Cappuccino Frother. T Attach the milk pipe to the frother. T Connect the other end to an original JURA milk container or immerse it directly into the milk. T Place a glass under the frother.

  • Page 32: Pre-Ground Coffee

    T Take the protective cover off the Easy Cappuccino Frother. T Attach the milk pipe to the frother. T Connect the other end to an original JURA milk container or immerse it directly into the milk. T Place a glass under the frother.

  • Page 33: Hot Milk And Milk Foam

    Cappuccino Frother Precondition: is displayed. COFFEE READY T Take the protective cover off the frother. T Attach the milk pipe to the frother. T Connect the other end to an original JURA milk container or immerse it directly into the milk.
  • Page 34 T Take the protective cover off the frother. T Attach the milk pipe to the frother. T Connect the other end to an original JURA milk container or immerse it directly into the milk. T Place a cup under the frother.

  • Page 35: Hot Water

    4 Preparation at the touch of a button Hot water Hot water can be prepared in two ways: Hot water portion a The pre-set amount of water flows into the cup. Hot water m Water flows out of the hot water spout until preparation is interrupted by pressing any button.

  • Page 36: Permanent Settings In Programming Mode

    5 Permanent settings in programming mode 5 Permanent settings in programming mode Products With the programme item you can enter individual PRODUCTS settings for all coffee and milk specialities as well as hot water. The following permanent settings can be made: Product Amount Coffee strength...
  • Page 37 5 Permanent settings in programming mode k T Keep the Rotary Switch pressed until MAINTENANCE appears. g T Turn the Rotary Switch until is displayed. PRODUCTS k T Press the Rotary Switch to enter the programme item. SELECT PRODUCT E Next select the product button for which you would like to make settings.

  • Page 38: Energy-Saving Mode

    5 Permanent settings in programming mode g T Turn the Rotary Switch until is displayed. EXIT k T Press the Rotary Switch to exit programming mode. COFFEE READY Resetting the products to You can reset the values of all products as well as cappuccino and works settings latte macchiato individually to the works setting.

  • Page 39: Time And Weekday

    5 Permanent settings in programming mode g T Turn the Rotary Switch until is dis- ECONOMY MODE - played. k T Press the Rotary Switch to enter the programme item. SAVE NO g T Turn the Rotary Switch until is dis- SAVE LEVEL 1 played.

  • Page 40: Programmable Switch-On And Switch-Off Time

    5 Permanent settings in programming mode Programmable switch- The programmable switch-on and switch-off time can only be set on and switch-off time when the time has been set. The following settings can be made in the menu UNIT ON/OFF item: : Set the required switch-on time.

  • Page 41: Automatic Switch-Off

    5 Permanent settings in programming mode g T Turn the Rotary Switch until is dis- ON/OFF SUN NO played. k T Press the Rotary Switch to confirm the setting. appears briefly on the display. CONFIRMED w ON/OFF SUN NO g T Turn the Rotary Switch until is displayed.

  • Page 42: Rinses

    5 Permanent settings in programming mode Rinses You can set whether the switch-on rinse should be started manually or automatically. You can set whether cappuccino rinsing should be prompted imme- diately or 10 minutes after a milk product has been prepared. Example: Proceed as follows to programme that Cappuccino rinsing should be prompted immediately after a milk product has been prepared.

  • Page 43: Language

    5 Permanent settings in programming mode k T Keep the Rotary Switch pressed until MAINTENANCE appears. g T Turn the Rotary Switch until SETTINGS 24HRS / ML is displayed. k T Press the Rotary Switch to enter the programme item. SETTINGS 24HRS g T Turn the Rotary Switch until is displayed.

  • Page 44: Maintenance

    6 Maintenance 6 Maintenance Your IMPRESSA has the following integrated maintenance pro- grammes: Clean cappuccino frother Rinse machine Rinse cappuccino frother Clean machine Decalcify machine Change filter E Clean or descale the machine or change the filter whenever the appropriate prompt is displayed. Maintenance tips To ensure that you get many years of reliable service out of your IMPRESSA and to guarantee the optimum coffee quality, the...

  • Page 45: Changing The Filter

    E If the CLARIS filter cartridge is not activated, you will not be prompted to change the filter. @ You can also try out ‘Changing the filter’ online. Visit the Knowledge Builder at www.jura.com. Change following a prompt To change the CLARIS filter cartridge when prompted to do so by...
  • Page 46 6 Maintenance c T Press the maintenance button. CHANGE FILTER PRESS RINSE T Remove the water tank and empty it. T Lift the cartridge holder. T Take out the old CLARIS filter cartridge and the extension. T Fit the extension on top of a new filter cartridge. T Insert the filter cartridge into the water tank, exerting slight pressure.

  • Page 47: Cleaning The Machine

    E Do not interrupt the cleaning programme. The quality of cleaning will be impaired if you do so. E JURA cleaning tablets are available from stockists. @ You can also try out the ‘Cleaning the machine’ operation online. Visit the Knowledge Builder at www.jura.com.
  • Page 48 , the maintenance button c lights up. RINSE T Open the cover of the filler funnel for pre-ground coffee. T Insert a JURA cleaning tablet into the filler funnel. T Close the cover of the filler funnel. c T Press the maintenance button.

  • Page 49: Descaling The Machine

    Clean up any splashes immediately. E The descaling programme lasts approx. 45 minutes. E JURA descaling tablets are available from stockists. E If you use a CLARIS filter cartridge and this is activated, you will not be prompted to change the filter.
  • Page 50 SOLVENT IN TANK T Remove the water tank and empty it. T Completely dissolve the contents of one blister (3 JURA des- caling tablets) in a container that holds 600 ml of water. This may take several minutes.

  • Page 51: Rinsing The Cappuccino Frother

    6 Maintenance T Place a receptacle under the coffee and hot water spout and another under the frother. c T Press the maintenance button. , water flows out of the frother and the hot water DECALCS spout. The process is interrupted, HEATING UP , water flows out of the coffee MACHINE RINSING...

  • Page 52: Cleaning The Cappuccino Frother

    To ensure that the respective frother works perfectly, you should clean it daily when you have been preparing milk. If the wrong cleaning agent is used, the machine could be damaged CAUTION and/or traces of detergent could be left behind in the water. Use only original JURA care products.
  • Page 53 6 Maintenance E The JURA Cappuccino Cleaner is available from stockists. @ You can also try out the ‘Cleaning the cappuccino frother’ operation online. Visit the Knowledge Builder at www.jura.com. Cleaning the cappuccino Precondition: is displayed. COFFEE READY frother – manually T Open the cover of the Rotary Switch.

  • Page 54: Disassembling And Rinsing The Professional Cappuccino Frother

    6 Maintenance Cleaning the cappuccino If milk has been prepared, but the cappuccino frother has not been frother after a prompt cleaned, the prompt is displayed when CLEAN CAPPUCCINO the machine is switched off. The maintenance programme can be started by pressing the maintenance button c. Precondition: is displayed and the CLEANER FOR CAPPU.

  • Page 55: Cleaning The Bean Container

    6 Maintenance Cleaning the bean Coffee beans may be covered with a slight oil film which remains on container the walls of the bean container. These residues may negatively affect the coffee results. For this reason clean the bean container from time to time.

  • Page 56: Display Messages

    7 Display messages 7 Display messages Message Cause/Result Action The water tank is empty. You T Fill the water tank FILL WATER TANK cannot prepare any coffee (see Chapter 2, ‘Preparing and products, hot water or milk using for the first time – Filling products.

  • Page 57: Change Filter

    7 Display messages Message Cause/Result Action Message, if in spite of prompt T Clean the machine (see COFFEE READY no cleaning has been carried Chapter 6, ‘Maintenance – CLEAN NOW out yet. Cleaning the machine’). The IMPRESSA is prompting T Descale the machine (see COFFEE READY you to descale it.

  • Page 58: Troubleshooting

    Grinder is making a very There are foreign objects T Contact customer support in your loud noise. in the grinder. country (see Chapter ‘JURA contact details / Legal information’). The frother does not The cappuccino frother T Rinse and clean the cappuccino...
  • Page 59 Contact customer support in your country (see Chapter ‘JURA contact details / Legal information’). E If you have not been able to solve the problem, contact customer support in your country (see Chapter ‘JURA contact details / Legal information’).

  • Page 60: Transport And Environmentally Neutral Disposal

    9 Transport and environmentally neutral disposal 9 Transport and environmentally neutral disposal Transport / Emptying Keep the packaging for your IMPRESSA. It should be used to protect the system the machine during transportation. In order to protect the IMPRESSA from frost during transportation, the system must be emptied.

  • Page 61: Technical Data

    10 Technical data 10 Technical data Voltage 220–240 V AC, 50 Hz 120 V AC, 60 Hz 220–240 V AC, 50 Hz 220 V AC, 50 Hz Power 1450 W F 1250 W S D F G Safety test Airborne noise emitted <...

  • Page 62: Index

    Index Index Easy Cappuccino Frother Disassembling and rinsing 54 Aroma preservation cover 8 Emptying the system 60 Automatic switch-off 41 Energy-saving mode 38 Entering a default setting for the amount of Bean container water for a cup size 24 Aroma preservation cover 8 Errors Cleaning 55 Troubleshooting 58...
  • Page 63 Index Descaling 49 Switch-on and switch-off time 40 Rinsing 44 Time and weekday 39 Setting up 15 Unit amount of water / Time format 42 Switching off (stand-by) 21 Prompt to take action Switching on 20 Symbols used 12 Maintenance 44 Maintenance tips 44 Rinses 42 Milk...

  • Page 64: Jura Contact Details / Legal Information

    Art. 67415/X 95/en/201011 JURA contact details / Legal information Your JURA dealer: JURA Elektroapparate AG Kaffeeweltstrasse 10 CH-4626 Niederbuchsiten Tel. +41 62 38 98 233 www.jura.com Directives The machine complies with the following directives: 2006/42/EC – Machinery Directive 2004/108/EC – Electromagnetic Compatibility Technical changes We reserve the right to make technical changes.
