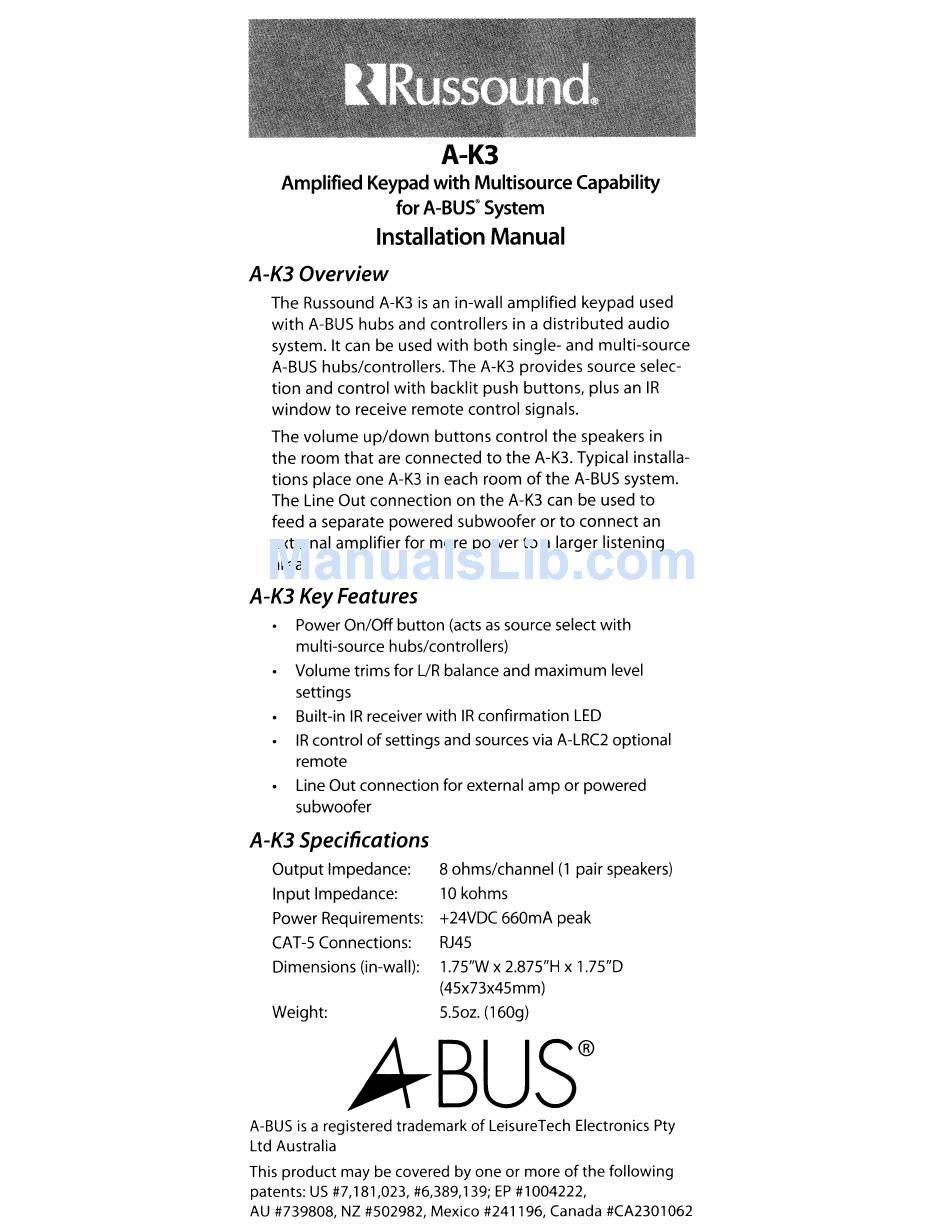

A-K3 Overview

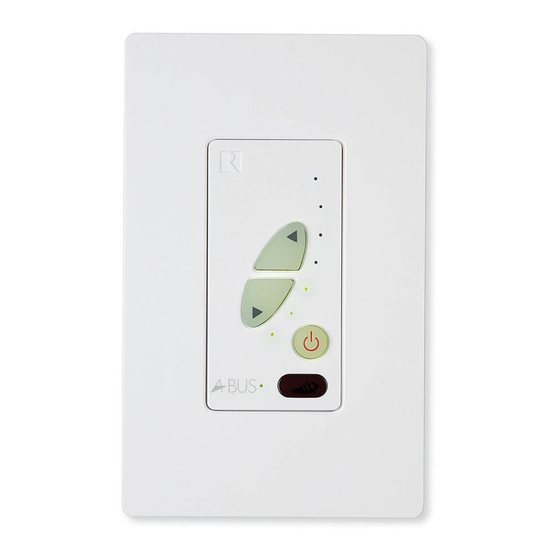

The Russound A-K3 is an in-wall amplified keypad used
with A-BUS hubs and controllers in a distributed audio
system. It can be used with both single- and multi-source
A-BUS hubs/controllers. The A-K3 provides source selec-
tion and control with backlit push buttons, plus an IR
window to receive remote control signals.
The volume up/down buttons control the speakers in
the room that are connected to the A-K3. Typical installa-
tions place one A-K3 in each room of the A-BUS system.
The Line Out connection on the A-K3 can be used to
feed a separate powered subwoofer or to connect an
external amplifier for more power to a larger listening
area.
A-K3 Key Features
Power On/Off button (acts as source select with
multi-source hubslcontrollers)
Volume trims for L/R balance and maximum level
settings
Built-in IR receiver with IR confirmation LED
IR control of settings and sources via A-LRC2 optional
remote
Line Out connection for external amp or powered
subwoofer
A-K3 Specifications
Output Impedance:
Input Impedance:
Power Requirements:
CAT-5 Connections:
Dimensions (in-wall):
Weight:
8 ohmslchannel (1 pair speakers)
10 kohms
+24VDC 660mA peak
RJ45
1.75"W x 2.875"H x 1.75"0
(45x73x45mm)
5.5oz. (160g)
A-BUS is a registered trademark of LeisureTech Electronics Pty
Ltd Australia
This product may be covered by one or more of the following
patents: US #7,181,023, #6,389,139; EP #1004222,
AU #739808, NZ #502982, Mexico #241196, Canada #CA2301 062

Advertisement

loading
Need help?

Need help?

Do you have a question about the A-K3 and is the answer not in the manual?

Questions and answers

Rich Patnode
May 12, 2025

There is no power to the system in in of my units. The others work fine

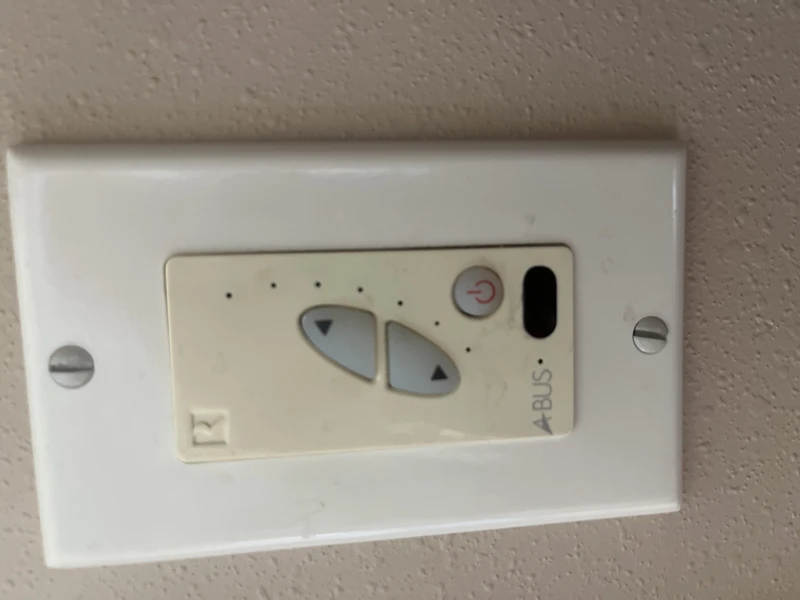

User image 68225f708093d
