Summary of Contents for Russound IPK-1

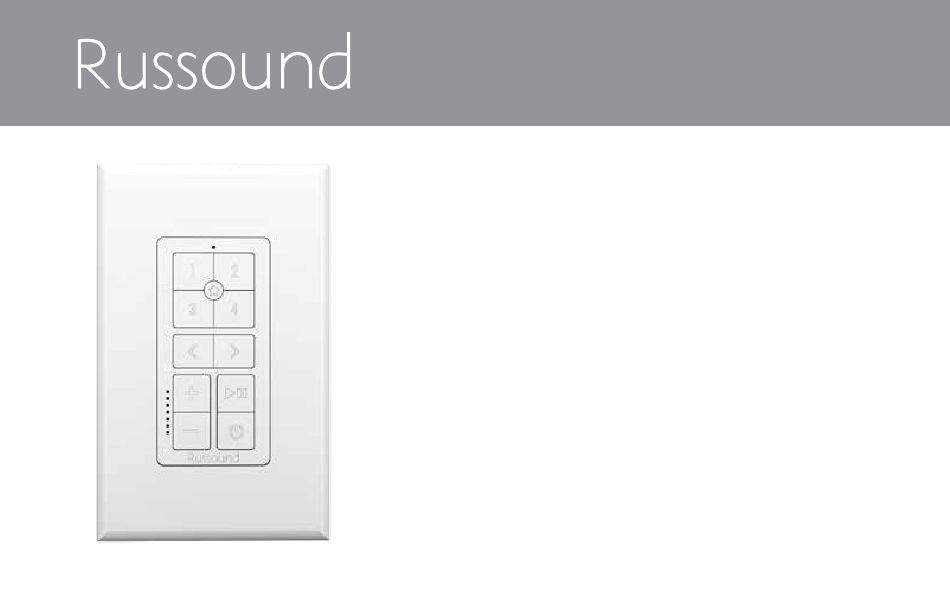

- Page 1 Product Manual IPK-1 Single-Gang IP Keypad...
- Page 2 IPK-1 OVERVIEW IPK-1 OVERVIEW Thank you for your purchase of the IPK-1 keypad The IPK-1 is designed to provide easy access Once paired, the buttons on the IPK-1 will and convenient control to a room or zone using control the most commonly needed audio...
-
Page 3: Installation
2) Using the supplied screws, attach the IPK-1 to the same network as your Russound securely to the wall box or P-ring. Attach system into the rear of the IPK-1. The IPK-1 the appropriate Decora® wall-plate to the will power on and automatically look for front of the IPK-1. - Page 4 IPK-1 INSTALLATION IPK-1 INSTALLATION 3) Pair your IPK-1 with the appropriate IPK-1 is now paired with the Kitchen Zone of Russound audio zone that it will be your Russound system and is ready for use. controlling. Pairing is initiated from the Russound audio product’s Web Config...
- Page 5 The IPK-1 comes with both white and black buttons and decora inserts. To change the color, start with the IPK-1 removed from the wall and using a small, flat screwdriver, gently press any of the four locking tabs inward until the Decora insert cover can be removed.
- Page 6 IPK-1 OPERATION IPK-1 OPERATION Zone Favorite Buttons Press to play a pre-stored Zone Favorite. Press and hold to store the currently playing selection as a Favorite. These Favorites are zone-based. Each audio zone of your system has a separate set...
- Page 7 IPK-1 OPERATION IPK-1 OPERATION Volume Up/Down when the zone is turned on. To start your Press to adjust the volume in small favorite music playing, press a pre-stored increments. Favorite button and it will automatically Press and hold to ramp the volume turn the zone on and select and start the quickly up or down.
-
Page 8: Status Led
MCA-Series Zone tion Error (once per second) When the zone is powered off, the status LED will be OFF IPK-1 is not paired Blinking yellow with a Russound When the zone is powered on, the status LED (twice per second) - Page 9 Favorite. If you have any trouble storing and playing a Favorite, we recommend using the Russound app to try to store the same content as a Favorite. If the item cannot be stored, the app can provide...
- Page 10 IPK-1 removed Relocating an IPK-1 to a different room or zone from the wall. The IPK-1 is simple. Using WebConfig on your Russound must be powered by the...
- Page 11 IPK-1 WARRANTY IPK-1 WARRANTY Visit russound.com for warranty information...
- Page 12 Telephone: 603.659.5170 Email: tech@russound.com www.russound.com ©2021 Russound/FMP, Inc. All rights reserved. Russound and the Russound logo are registered trademarks of Russound/FMP, Inc. All other trademarks are the property of their respective owners. Specifications are subject to change without notice. 7.21.21 Rev. 12...
