Russound KPL Manual

Press Press and
Volume Up hold Source
Source
button to
or Down
buttons to enter or exit
adjust User Options
setting Menu
Press Source
button to
select option
Blue LED will blink to
indicate Loudness is
ready for adjustment
KPL User Options Mode
The User Options Mode allows the user to adjust the
audio properties of a particular zone. The audio fea-
tures that can be adjusted are: Bass, Treble, Balance,
Turn On Volume and Loudness.
To enter the User Options Mode, press and hold the
Source button when the zone is on. Press and hold the
Source button again (or a 9-second timeout) returns to
regular operation.
The first option name (Bass) appears on the display to
indicate it is ready for adjustment. Subsequent presses
of the Source button toggle through Treble, Balance,
Turn On Volume and Loudness.
Once an option is selected, the volume up/down but-
tons are used to adjust settings. The volume indicator
bars indicate the option setting, along with setting num-
bers displayed on the LCD.
Options and Settings
1. Bass: -10 < Bass:Flat > +10
2. Treb (Treble): -10 < Treble:Flat > +10
3. Bal (Balance): Left 10 < Center > Right 10
4. OnVol (Turn on Volume) (default room volume level):
0 to 100 (in steps of 2)
5. Loud (Loudness) (more bass, fuller sound): On or
Off (When Loudness is turned on, the blue LED lights solid)

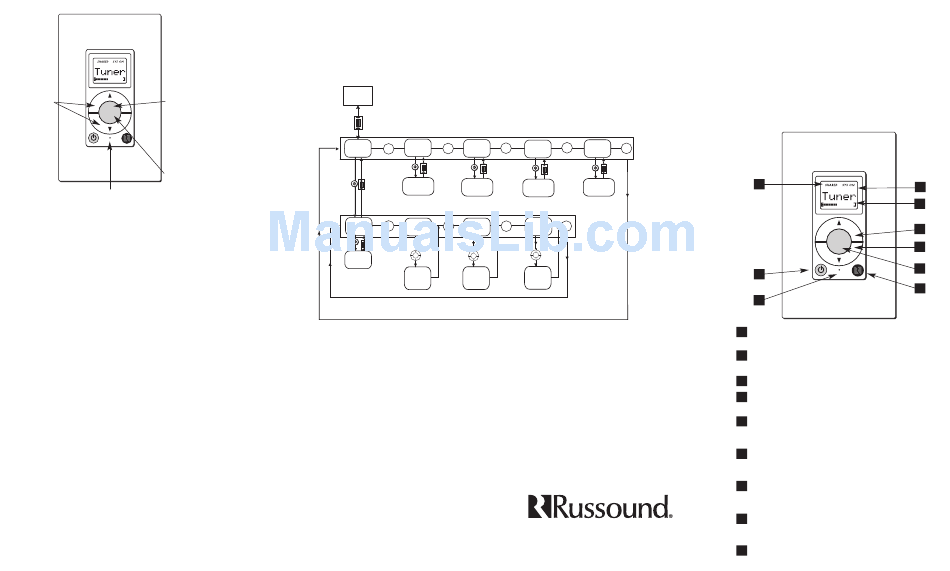

KPL Diagnostics Menu
The Diagnostics Menu allows the installer to run a diagnos-
tic check on the KPL and to verify the firmware version.
To access the Diagnostics Menu, press and hold the Setup
button on the right side of the keypad until "Diags" appears
Press and
Hold
Setup Button
DIAGNOSTICS CONTROLLR
SOURCE ID
Displays
Controller ID
number
BUTTON
DISP
SOURCE
TEST CHAR
Press button
to be tested
Press
Vol Up/Dwn
to scroll
characters
Warranty Repair
The Russound KPL is fully guaranteed against all defects in materials
and workmanship for two (2) years from the date of purchase. During
this period, Russound will replace any defective parts and correct any
defect in workmanship without charge for either parts or labor.
For this warranty to apply, the unit must be installed and used according
to its written instructions. If service is necessary, it must be performed
by Russound. The unit must be returned to Russound at the owner's
expense and with prior written permission. Accidental damage and ship-
ping damage are not considered defects, nor is damage resulting from
abuse or from servicing by an agency or person not specifically author-
ized in writing by Russound.
This Warranty does not cover: Damage caused by abuse, accident, mis-
use, negligence, or improper installation or operation; Power surges
and lightning strikes; Normal wear and maintenance; Products that have
been altered or modified; Any product whose identifying number, decal,
serial number, etc. has been altered, defaced or removed.
Russound sells products only through authorized Dealers and
Distributors to ensure that customers obtain proper support and serv-
ice. Any Russound product purchased from an unauthorized dealer or
other source, including retailers, mail order sellers and online sellers will
not be honored or serviced under existing Russound warranty policy.
Any sale of products by an unauthorized source or other manner not
authorized by Russound shall void the warranty on the applicable
product.
on the display. The menus are outlined in the diagram
below.
When finished, press and release the Setup button again.
KPL Diagnostics Menu
PORT ID
KEYPAD ID VERSION
SOURCE
SOURCE SOURCE
Displays Displays
Displays
Port ID Keypad ID current firmware
number version
number
DISP DISP
SOURCE SOURCE SOURCE
BLOCK ROW
Press Press
Vol Up/Dwn
Vol Up/Dwn
to scroll to scroll
blocks rows
Damage to or destruction of components due to application of exces-
sive power voids the warranty on those parts. In these cases, repairs
will be made on the basis or the retail value of the parts and labor. To
return for repairs, the unit must be shipped to Russound at the owner's
expense, along with a note explaining the nature of service required. Be
sure to pack the unit in a corrugated container with at least three (3)
inches of resilient material to protect the unit from damage in transit.
Before returning a unit for repair, call Russound at (603) 659-5170 for a
Return Authorization number. Write this number on the shipping label
and ship to: Russound, ATTN: Service, 5 Forbes Road, Newmarket, NH
03857
Due to continual efforts to improve product quality as new technology
and techniques become available, Russound/FMP, Inc. reserves the
right to revise system specifications without notice.
All trademarks are property of their respective owners.
5 Forbes Road, Newmarket, NH 03857
tel 603.659.5170 • fax 603.659.5388
www.russound.com

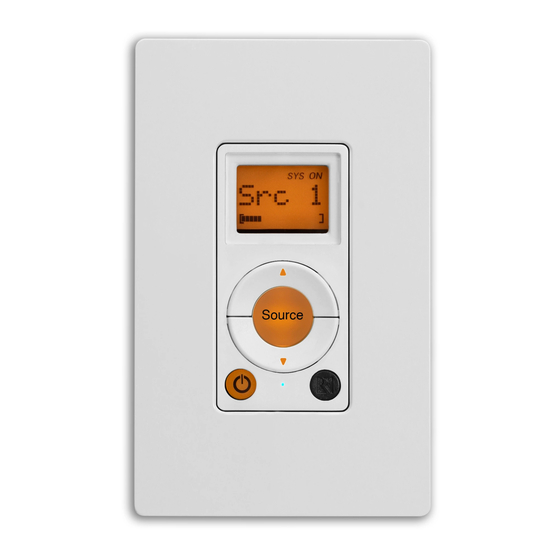

KPL Keypad
The KPL keypad is an in-wall, Decora
pad designed for individual zone control of CAA66/CAS44 dis-
tributed audio systems (wall plate not included). It has amber
backlit, soft-touch volume, power and source select buttons.
The KPL keypad supports the KPSC keypad to add source con-
trol and numeric control capability.
KPL Keypad Front Panel
SOURCE
8
8
7
1
LCD PANEL - 5-character amber backlit display shows source
name, volume and room status.
2
VOLUME LEVEL - 21-segment volume level bars increase from left
to right to indicate volume level.
3 VOLUME UP - Raises the volume for the room/adjusts menu items.
4
VOLUME DOWN - Lowers the volume for the room/adjusts menu
items.
5 SOURCE SELECT - Press and release scrolls through the available
sources. Press and hold brings up the USER MENU for Loudness,
Bass, Treble, etc.
6
IR RECEIVER - Receives IR signals and passes them to the con-
troller and source equipment. Also used when the keypad is oper-
ated using the CA System remote controls.
7 IR CONFIRMATION/LOUDNESS LED - Blue LED blinks to confirm IR
signal reception, and remains lighted when Loudness feature is
enabled.
8 POWER - Turns room ON or OFF when pressed once, when OFF,
press and hold 4 seconds to turn OFF all zones; button remains
lit when OFF if any other zone in the system is ON.
9
SYSTEM INFO - SYS ON indicates other active zones and SHARED
28-1203 07/29/05 indicates the selected source is in use in another zone.
® style single-gang key-
1
2
3
Source
4
5
6
