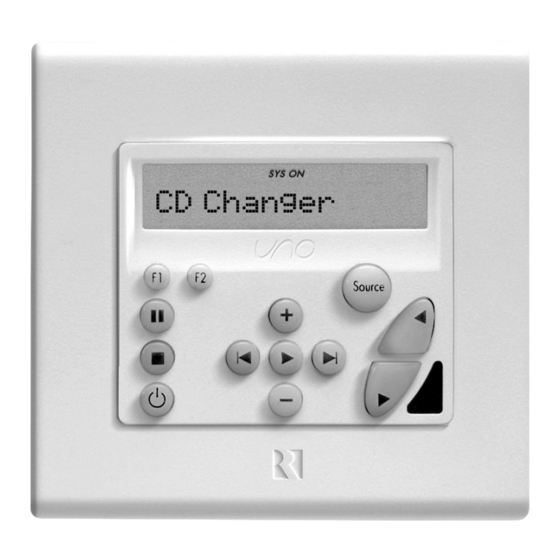

SaphIR
K2 Keypad
™
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SaphIR K2 and is the answer not in the manual?

Questions and answers

Related Manuals for Russound SaphIR K2

Summary of Contents for Russound SaphIR K2

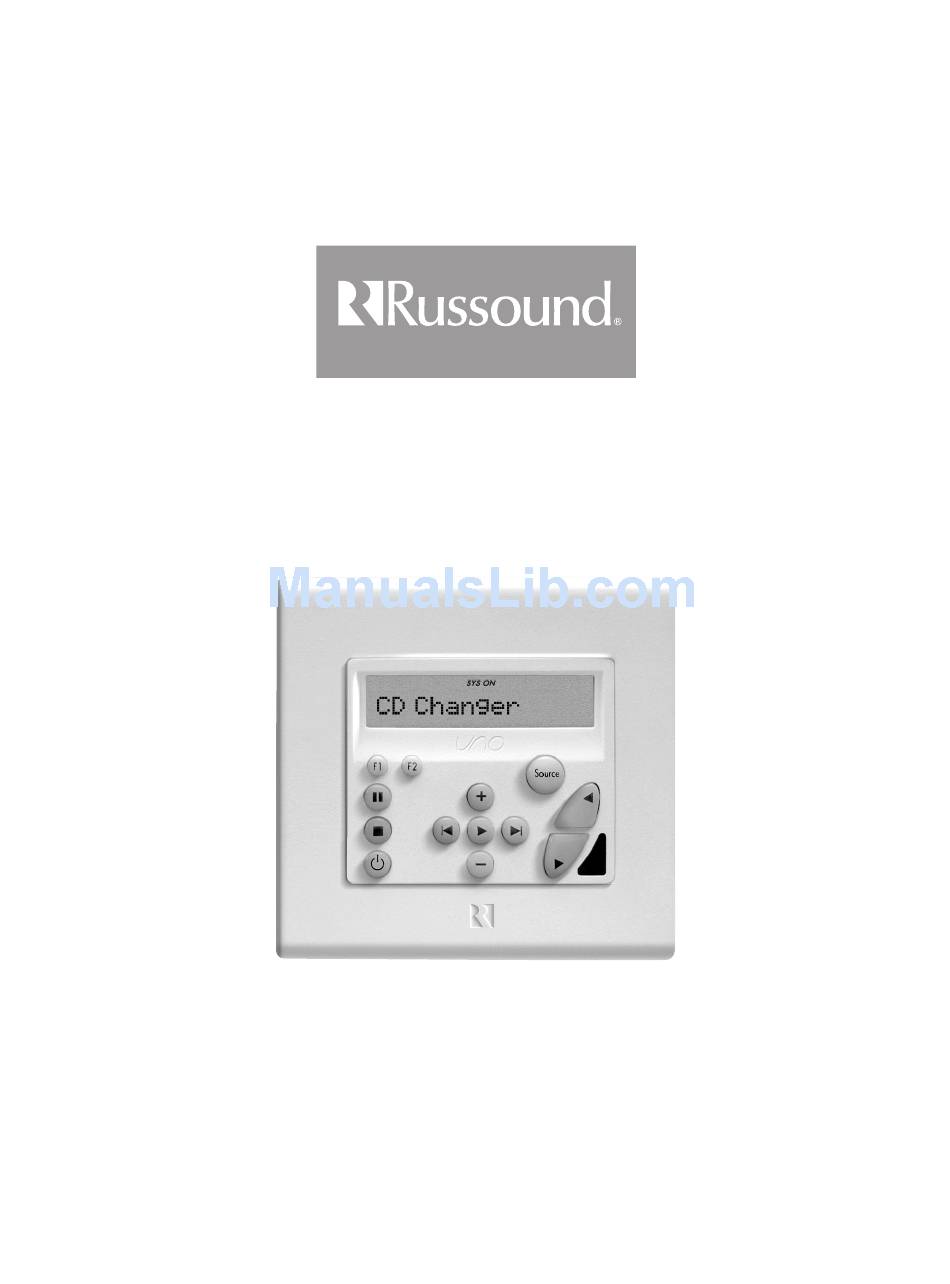

  • Page 1 SaphIR K2 Keypad ™ Instruction Manual...

  • Page 2: Safety Precautions

    • The device is damaged Don’t attempt to service the device yourself. Doing so will void the warranty. Russound will assume no liability for failure to understand instal- lation or operating instructions for this product or for its improp- er installation or use.

  • Page 3: Table Of Contents

    USER SECTION Introduction Features and Key Guide Optional SRC1 Basic Remote Control Optional SRC2 Advanced Learning Remote Control Keypad Operation INSTALLER SECTION Getting Started Installation Overview Terms You Need to Know Typical System Configuration Keypad Installation Keypad Connections EZB-1SC Connection Details Multiple 857 Connections Programming Port Programming Overview...

  • Page 4: User Section

    Product Overview Thank you for choosing the Russound SaphIR K2 is an in-wall programmable IR keypad that works like a uni- versal remote to provide complete control of your audio and video components. It contains an extensive library of IR codes to select discs, tracks, channels, volume, and other settings for most audio and video components.

  • Page 5: Features And Key Guide

    VOLUME UP/DOWN KEYS – Control the volume of the amp/receiver IR SENSOR – Receives IR signals from a remote control for operating the K2 Keypad and the source equipment Features and Key Guide COMMAND KEYS – Control the source equipment POWER KEY –...

  • Page 6: Optional Src1 Basic Remote Control

    INPUT KEY – Scrolls through sources controlled by the keypad. Works the same as the keypad’s Source key. The optional SRC1 Basic System Remote Control will operate the K2 keypad and sources 1–6 through the keypad. The SRC1 has no built-in programming...

  • Page 7: Optional Src2 Advanced Learning Remote Control

    POWER KEY – Turns the keypad on and off while in System mode. Press and hold for All On or All Off function. SYSTEM MODE KEY – Selects System mode to control the SaphIR K2 keypad and connected sources. The remote must be in System mode to work with the SaphIR K2 keypad.

  • Page 8: Keypad Operation

    K2 keypad. This will also activate any speakers wired through the speak- er relay on the back of the K2. If power management is set up on your keypad, turning on the keypad will also turn on your amp/receiver and source components. If you have more than one K2 keypad in your system, this will occur when you turn on the first keypad.
  • Page 9 The keypad will select your favorite program. Command Keys The command keys allow you to control the selected source at the K2 Keypad. The command keys are acti- vated with a press and release, or with a press and hold to access secondary functions.

  • Page 10: Installer Section

    10. Turn on the keypad and program it. 11. Test the operation of the keypad and equipment. There are two ways to program the SaphIR K2 keypad. The easier way is to use Russound’s EZpro programming software, which runs on a Windows-based computer.
  • Page 11 (or first keypad in the system) is turned on, and turned off when the All Off command is issued from a keypad. Status – A feature that allows the SaphIR K2 keypad to indicate the power state of the amp/receiver by using a 12 VDC signal from a trigger output on the amp/receiver or a power supply connected to its switched AC receptacle.

  • Page 12: Typical System Configuration

    The Russound 1201A power sup- ply for the 857 supports a maxi- mum of four K2 keypads. If the installation includes more than one K2 keypad, you can tie them together with a Russound EZB-1SC connecting block. The EZB-1SC is a parallel wiring device for speakers or IR data and power.

  • Page 13: Keypad Installation

    125 feet; 14-gauge cable can be run up to 250 feet. Connect the wires to the AMPLIFIER connector on the K2. 3. Route speaker cables from the room’s speakers to the wall box and connect the wires to the SPEAKER connec- tor on the K2.

  • Page 14: Keypad Connections

    AWCAT5 – 8-conductor, 24 gauge CAT-5 cable Speaker Connections The amplifier and speaker terminals connect to the K2’s internal relay for muting a pair of speakers with the Power key only. There is no speaker volume control in the keypad.

  • Page 15: Ezb-1Sc Connection Details

    Shielded 22/4 Connection to EZB-1SC Snap Connector Side View CAT-5 Connection to EZB-1SC Snap Connector Top View EZB-1SC Shielded 22/4 Cable Wire Color Black Green White Bare Top View EZB-1SC CAT-5 CABLE Wire Color Brown Blue Orange Green Orange/White Drain (Gnd) Green/White Brown/White Blue/White...

  • Page 16: Multiple 857 Connections

    INSTALLER Multiple 857 Connections To EZB-1SC connecting block with up to 4 SaphIR K2 keypads Multiple 857 To SaphIR K2 keypads Connections Multiple groups of up to four K2 keypads can be linked together by using successive Russound 857 IR connecting blocks as shown in the dia- gram to the left.
  • Page 17 Shielded 22/4 Connection to 857 Screw Terminals CAT-5 Connection to 857 Screw Terminals Note: Do not connect the +12VDC wire between the 857 connecting blocks. Each 857 requires its own 1201A power supply. Only GND, SIGNAL and STATUS need to be connected between multiple connecting blocks. Source IR emitters can be connected to any connecting block in this arrangement.

  • Page 18: Programming Port

    Firmware Updates From time to time Russound may issue updated firmware for the SaphIR K2 keypad, which you can load into it from a com- puter. Any firmware update files and associated instructions are available on the Infrared Products page in the Document...

  • Page 19: Programming Overview

    Once the keypad is programmed, you can copy the configuration to other K2 keypads in the system (up to 16) individually or all at once by using the Copy Config procedure.
  • Page 20 INSTALLER Programming Overview Recommended Process It will be much easier to program the SaphIR K2 if you follow the steps in a particular order, especially if you’re programming it manually. Here’s the order we recommend for initial setup: 1. Component Control – First learn how the amp/receiver...
  • Page 21 12. Source Command Key Configuration (page 30) – This procedure allows you to assign additional or alter- nate functions to the seven command keys on the SaphIR K2 keypad for any source. Each command key can be programmed to perform separate “press” and “press and hold” functions.

  • Page 22: Programming Instructions

    In the following pages, procedures are identified as either Required , Conditional , or Optional . You must perform all Required proce- dures to program the basic functions of the SaphIR K2 keypad. You may also need to perform Conditional procedures, depending on the requirements of the installation.

  • Page 23: Programming Menu Top Level

    INSTALLER Programming Menu Instructions The following sections describe the menus, procedures, and features. They are presented in the order we recommend for manually programming the keypad (when not using SaphIR EZpro software). The flow charts on pages 43–53 are shown in the same order. Programming Menu Top Level Press the Setup button to enter the Programming Menu.

  • Page 24: Amp/Receiver Key Configuration Procedure

    Also make sure you can control the amp/receiver with its remote control aimed at the SaphIR K2 keypad in normal operating mode. See Amp/Receiver Basic Setup Procedure flow chart on page 43.

  • Page 25: Learn Ir Procedure

    To begin the Amp/Receiver Key Configuration Procedure, select KEY CONFIG from the Amp/Receiver Setup Menu and press SELECT A KEY – Press COMMAND TYPE – Select and enter the type of command. Choose one of the following options: Select and enter Default to use the same command type previously selected in BASIC SETUP. KEY FUNCTION –...
  • Page 26 INSTALLER Programming Menu Instructions Learn IR Procedure (continued) These locations are called Learned Sources. Learned commands can be assigned in other procedures by selecting Learned IR as a command type and then selecting the corresponding Learned Source label. See Learn IR Procedure flow chart on page 45. To begin the Learn IR Procedure, select LEARN IR from the top level of the Programming Menu and press Play Note: When teaching commands, you must aim the remote at the keypad’s IR learning receiver diode.

  • Page 27: Source Setup Menu

    TEST IR? – Select and enter Yes or No. Entering Yes sends the learned command to the device to test the IR. If the device responds, the IR learning was a success. If the device does not respond, either the keypad did not properly learn the com- mand or the command is inappropriate for the device.

  • Page 28: Source Basic Setup Procedure

    857 connecting block and the source components and turn the sources on. Also make sure you can control the sources with their remote controls aimed at the SaphIR K2 keypad in normal operating mode. See Source Basic Setup flow chart on page 46.
  • Page 29 Select and enter a specific device (e.g., DVD, Video Acc, Tuner/Amp) to use an IR device code from the built-in library. DEVICE CODE – Select and enter the source’s IR device code number from the Reference section of this manual. TEST IR? –...

  • Page 30: Source Command Key Configuration Procedure

    “press” function and a “press-and-hold” function. For example, since there is no Eject key on the keypad, you can assign an eject function to a press-and-hold operation of the Stop key for a CD player. Or you can assign a function for dimming the room lights to a press-and-hold operation of the Play key for a DVD player.

  • Page 31: Source Names Procedure

    Select and enter Macro to configure the key with a macro. (To build macros, see Macro Editor Procedure on page 38.) MACRO ID – Select and enter the macro ID number. Select and enter Unassigned to clear the key configuration. Any custom settings for that key will be erased. SAVE CHANGES? –...

  • Page 32: Numeric Ir Procedure

    USE NUM IR? – Select and enter Yes to program numeric IR for the source. Select and enter No to disable numeric IR for the source and advance to SAVE CHANGES (step 7). HIGHEST NUM – Select and enter the highest possible number for the numeric IR function; for example, a 100-disc CD player would have a highest number of 100.
  • Page 33 KEY FUNCTION – Select and enter the function you want the prefix command to perform (e.g., Disc, Channel, Preset). iii. Select and enter a specific device (e.g., CD, TV) to use an IR device code from the built-in library. DEVICE CODE – Select and enter the IR device code number from the Reference section of this manual. KEY FUNCTION –...

  • Page 34: Source Select Command Procedure

    INSTALLER Programming Menu Instructions Numeric IR Procedure (continued) DEVICE CODE – Select and enter the IR device code number from the Reference section of this manual. KEY FUNCTION – Select and enter the function you want the suffix command to perform (e.g., Enter, Play). Select and enter Macro to configure the suffix command with a macro.

  • Page 35: Power Management Procedure

    Select and enter Default to use the same command type previously selected for the source in BASIC SETUP. Select and enter Learned IR to use a particular learned IR command not included in the default command type. (See Learn IR Procedure on page 25.) LEARNED SRC –...
  • Page 36 INSTALLER Programming Menu Instructions Power Management Procedure (continued) You can also verify the power state of the amp/receiver by obtaining a status voltage from a 12 VDC trigger output on the device or from a 12 VDC power supply plugged into its switched AC receptacle (see system diagram on page 12). This is useful when the amp/receiver doesn’t use discrete On and Off commands but toggles on and off with the same Power command.
  • Page 37 MACRO ID – Select and enter the macro ID number. Select and enter Unassigned to clear the Power On command. POWER OFF CMD – Select and enter Yes to program a Power Off command or macro. Select and enter No to disable the Power Off command or macro and skip to SAVE CHANGES (step 4).

  • Page 38: Macro Editor Procedure

    INSTALLER Programming Menu Instructions Macro Editor Procedure (Optional) This procedure allows you to create a sequence of commands that are launched with one key touch or other event. For example, you can create a macro to lower a motorized screen and set the receiver in surround mode when you press the Play key when a DVD player is selected as the source.
  • Page 39 DEVICE CODE – Select and enter the IR device code number from the Reference section of this manual. KEY FUNCTION – Select and enter the function you want the command to perform (e.g., Play). Procedure returns to COMMAND NUM (step 3). Select and enter Macro if you want this command to run a separate macro.

  • Page 40: System Menu

    INSTALLER Programming Menu Instructions SYSTEM MENU The System Menu contains items that allow you to obtain information about the keypad and perform various utilities. To enter the System Menu, select SYSTEM from the top level of the Programming Menu and press Play following procedures: KEYPAD ID COPY CONFIG...

  • Page 41: System Information Procedure

    LOOKING FOR... – The sending keypad looks for the keypad(s) to copy to. When the sending keypad locates the receiving keypad(s), RDY TO RECEIVE appears on the receiving keypad(s). If a receiving keypad is not located, NOT FOUND appears on the sending keypad. SENDING DATA –...

  • Page 42: Update Firmware Procedure

    Update Firmware Procedure (Optional) This procedure allows you to update the SaphIR K2’s firmware from a computer using a Russound Programming Cable (part number 2500-121036) connected to the programming port on the side of the keypad (see diagram on page 18). Updates and instructions are made available in the Document Center at www.russound.com.

  • Page 43: Programming Flow Charts

    AMP/RCVR Setup - Basic Setup Procedure Press and Release Setup Button For instructions, see page 23 Setup button on right side of keypad under cover plate POWER AMP/RCVR SOURCE SETUP SETUP Procedure Menu Menu BASIC SETUP CONFIG Procedure Procedure Enter menu/Up one level Next item Programming Flow Charts MACRO...

  • Page 44: Amp/Receiver Key Configuration Flow Chart

    INSTALLER Programming Flow Charts Press and Release Setup Button Setup button on right side of keypad under cover plate AMP/RCVR SOURCE SETUP SETUP Menu Menu BASIC SETUP CONFIG Procedure Procedure Enter menu/Up one level AMP/RCVR Setup - Key Configuration Procedure For instructions, see page 24 POWER MACRO...

  • Page 45: Learn Ir Procedure Flow Chart

    Press and Release Setup Button Setup button on right side of keypad under cover plate POWER AMP/RCVR SOURCE SETUP SETUP Procedure Menu Menu Enter menu/Up one level Learn IR Procedure For instructions, see page 25 MACRO LEARN IR SYSTEM EDITOR Procedure Menu Procedure...

  • Page 46: Source Basic Setup Flow Chart

    INSTALLER Programming Flow Charts Press and Release Setup Button Setup button on right side of keypad under cover plate POWER AMP/RCVR SOURCE SETUP SETUP Procedure Menu Menu BASIC SOURCE SETUP NAMES CONFIG Procedure Procedure Procedure Enter menu/Up one level Source Setup - Basic Setup Procedure For instructions, see page 28 MACRO LEARN IR...

  • Page 47: Source Command Key Configuration Flow Chart

    Press and Release Setup Button Setup button on right side of keypad under cover plate POWER AMP/RCVR SOURCE SETUP SETUP Procedure Menu Menu BASIC SOURCE SETUP NAMES CONFIG Procedure Procedure Procedure Enter menu/Up one level Source Setup - Key Configuration Procedure For instructions, see page 30 MACRO Installation...

  • Page 48: Source Names Flow Chart

    INSTALLER Programming Flow Charts Press and Release Setup Button Setup button on right side of keypad under cover plate SOURCE SETUP Menu BASIC SETUP Procedure Enter menu/Up one level Source Setup - Source Names Procedure For instructions, see page 31 POWER AMP/RCVR LEARN IR...

  • Page 49: Numeric Ir Flow Chart

    Press and Source Setup - Numeric IR Procedure Release Setup Button Setup button on right side of keypad under cover plate POWER AMP/RCVR SOURCE SETUP SETUP Procedure Menu Menu BASIC SOURCE SETUP NAMES CONFIG Procedure Procedure Procedure MACRO MACRO ID Enter menu/Up one level Next item For instructions, see page 32...
  • Page 50 INSTALLER Programming Flow Charts Press and Release Setup Button Setup button on right side of keypad under cover plate SOURCE SETUP Menu BASIC SETUP Procedure Enter menu/Up one level Source Setup - Source Select Command and # of Sources Procedures For instructions, see pages 34 and 27 POWER AMP/RCVR...

  • Page 51: Power Management Procedure

    INSTALLER Programming Flow Charts Power Management Procedure Press and Release For instructions, see page 35 Setup Button Setup button on right side of keypad under cover plate Power POWER MACRO AMP/RCVR SOURCE LEARN IR SYSTEM EDITOR SETUP SETUP Procedure Menu Procedure Procedure Menu...

  • Page 52: Macro Editor Procedure

    INSTALLER Programming Flow Charts Macro Editor Procedure Press and Release For instructions, see page 38 Setup Button Setup button on right side of keypad under cover plate Macro POWER MACRO AMP/RCVR SOURCE LEARN IR SYSTEM EDITOR Editor SETUP SETUP Procedure Menu Procedure Procedure...

  • Page 53: Programming Flow Charts

    Procedure Procedure Procedure HOLD ARE YOU BUTTON PLAY SURE? TEST START DISP UPDATE BLOCK Cycle power when COLOR update completes This procedure returns the SaphIR K2 to its factory settings Previous item Select parameter INSTALLER Installation Menu System Menu Enter...

  • Page 54: Reference Section

    The IR Command Type is found on Pages 49-53. This associates the IR Device Code with Tuner/Amp the specific type of source and determines the template type used for source control on the K2. The IR Device Code is selected from the list starting on Page 49. Enter all available codes Learned and circle the code that successfully controlled the source when tested.
  • Page 55 Amp/Rcvr Source Input # Source Name Manufacturer Model # IR Command Type IR Device Code (4-digit or Learned Source #) Numeric IR Y or N Y or N Highest # Auto Play Y or N Y or N Source Information Form Y or N Y or N Y or N...

  • Page 56: Source Names

    CD Changer 1 DVD Changr 3 CD Changer 2 DVD Player CD Changer 3 DVD Player 1 CD Player DVD Player 2 CD Player 1 DVD Player 3 CD Player 2 Front Door CD Player 3 IntrnetRadio Classical Jazz Computer...

  • Page 57: Ir Devices Codes

    Device Codes for TVs: 0030, 0019 Admiral 0093, 0463 Advent 0761 Aiko 0092 Aiwa 0701 Akai 0030 Alaron 0179 America Action 0180 Ampro 0751 Anam 0180 Apex Digital 0748, 0765, 0767 Audiovox 0451, 0180, 0092, 0623 Baysonic 0180 Belcor 0019 Bell &...
  • Page 58 REFERENCE IR Device Codes Sansui 0463 Sanyo 0154 Scimitsu 0019 Scotch 0178 Scott 0236, 0180, 0178, 0179, 0019 Sears 0047, 0747, 0054, 0154, 0156, 0178, 0179, 0056, 0171 Semivox 0180 Semp 0156 Sharp 0093, 0688, 0689 Shogun 0019 Signature 0016 Sony 0000, 1100 Soundesign...
  • Page 59 Device Codes for VCRs: Admiral 0048, 0209 Adventura 0000 Aiko 0278 Aiwa 0037, 0000 Akai 0041 America Action 0278 American High 0035 Asha 0240 Audiovox 0037 Beaumark 0240 Bell & Howell 0104 Broksonic 0184, 0121, 0209, 0002, 0479 0072, 0278 Calix 0037 Canon...
  • Page 60 REFERENCE IR Device Codes Teac 0000, 0041 Technics 0035, 0162 Teknika 0035, 0037, 0000 Thomas 0000 Tivo 0618, 0636 Toshiba 0045, 0043, 0845 Totevision 0037, 0240 Unitech 0240 Vector 0045 Vector Research 0038 Video Concepts 0045 Videomagic 0037 Videosonic 0240 Villain 0000 Wards...

  • Page 61: Ir Devices Codes

    Quasar 0039 1023, 1254, 0531, 1390, 1609 Samsung 1295 Sansui 1089 Sherwood 1653 Sony 1058, 1158, 1258, 0158 Stereophonics 1023 Sunfire 1313 Technics 1308, 1309, 1518, 0039 Thorens 1189 Venturer 1390 Victor 0074 Wards 0014, 0158 Yamaha 0176, 1176 Device Codes for Amp and Misc.

  • Page 62: Key Functions

    REFERENCE Key Functions KEY FUNCTION POWER Power On/Off On, Power On/Off Off, Power On/Off CHANNEL UP Channel Up CHANNEL DOWN Channel Down VOLUME UP Volume Up VOLUME DOWN Volume Down MUTE Mute Digit 1 Digit 2 Digit 3 Digit 4 Digit 5 Digit 6 Digit 7...
  • Page 63 KEY FUNCTION BACK Back MENU UP Menu Up, Adjust Up MENU DOWN Menu Down, Adjust Dn MENU LEFT Menu Left MENU RIGHT Menu Right SELECT Menu Select DISK UP Adjust Up DISK DOWN Adjust Down FAVORITE CHANNEL Favorite DISPLAY Display, OSD, Info DISPLAY FORMAT Format, Wide, 16:9,Aspect SAP, CC...
  • Page 64 REFERENCE Key Functions KEY FUNCTION POWER Power On/Off On, Power On/Off Off, Power On/Off CHANNEL UP Channel Up CHANNEL DOWN Channel Down VOLUME UP Volume Up VOLUME DOWN Volume Down MUTE Mute Digit 1 Digit 2 Digit 3 Digit 4 Digit 5 Digit 6 Digit 7...
  • Page 65 KEY FUNCTION BACK Clear MENU UP Menu Up MENU DOWN Menu Down MENU LEFT Menu Left MENU RIGHT Menu Right SELECT Menu Select DISK UP Thumbs Up DISK DOWN Thumbs Down FAVORITE CHANNEL Replay Zones, Index Mark DISPLAY Display, OSD, Info DISPLAY FORMAT Record Speed SAP, CC...
  • Page 66 REFERENCE Key Functions KEY FUNCTION AMP/MISC. AUDIO POWER Power On/Off On, Power On/Off Off, Power On/Off CHANNEL UP Preset Up CHANNEL DOWN Preset Down VOLUME UP Volume Up VOLUME DOWN Volume Down MUTE Mute Digit 1 Digit 2 Digit 3 Digit 4 Digit 5 Digit 6...

  • Page 67: Key Functions

    KEY FUNCTION AMP/MISC. AUDIO BACK Clear MENU UP Menu Up, Adjust Up MENU DOWN Menu Down, Adjust Down MENU LEFT Menu Left MENU RIGHT Menu Right SELECT Menu Select, Continue DISK UP Adjust Up DISK DOWN Adjust Down FAVORITE CHANNEL Learned Only DISPLAY Display, OSD, Info...

  • Page 68: Technical Specifications And Certifications

    REFERENCE Technical Specifications and Certifications Technical Specifications A-V device control: IR control: Macro capability: Speaker relay capacity: Power requirement: System cabling: Maximum cable run: Wall plate dimensions: In-wall dimensions: Display: 12-character LCD Backlight: Selectable amber or green 8 sources plus receiver or amplifier Preprogrammed library of device codes Built-in IR sensor with pass-through Up to 132 10-step macros...

  • Page 69: Warranty

    Damage to or destruction of components due to application of excessive power voids the warranty on those parts. In these cases, repairs will be made on the basis or the retail value of the parts and labor. To return for repairs, the unit must be shipped to Russound at the owner's expense, along with a note explaining the nature of service required.
  • Page 70 NOTES...
  • Page 71 NOTES...
  • Page 72 SaphIR K2 Keypad ™ Programmable Infrared Control Instruction Manual Russound 5 Forbes Road, Newmarket NH 03857 USA Voice: 603.659.5170 • Fax: 603.659.5388 www.russound.com 28-1151 Revision 2 01/18/06 Technical Support: tech@russound.com Copyright © 2006 Russound...
