Summary of Contents for Russound UNO-S2

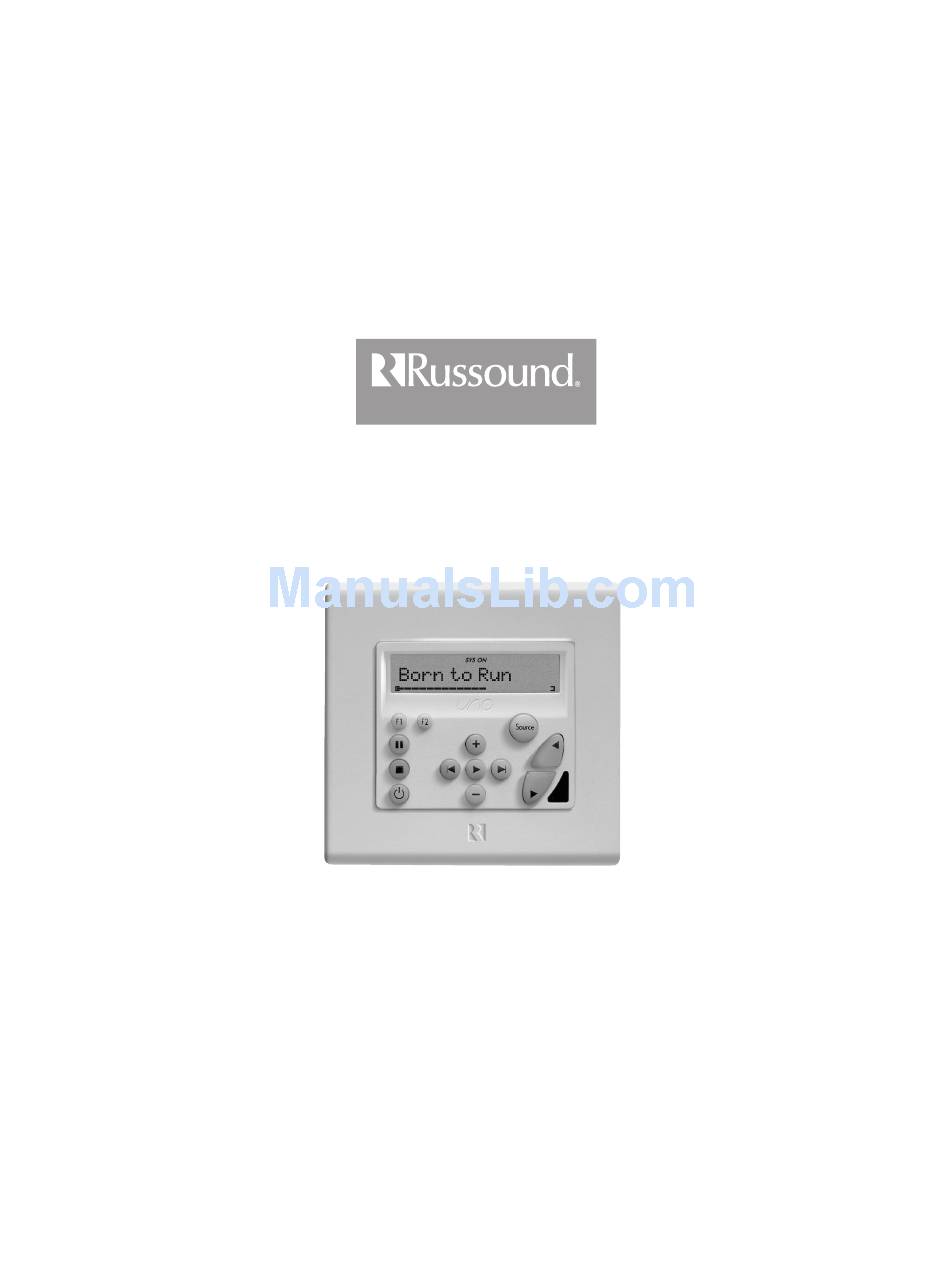

- Page 1 UNO-S2 Keypad Installation Manual...
- Page 2 All models are designed for use with either AC120V, 60Hz or AC240, 50Hz voltages. The unit will autoswitch to either of these voltages. 2. Do Not Touch The UNO-S2 With Wet Hands – Do not handle the unit or power cord when your hands are wet or damp. If tion.
-
Page 3: Table Of Contents
TABLE OF CONTENTS UNO-S2 Keypad Front Panel ....................4-5 Operation ....................6 User Menu ....................7-8 Settings ......................9 Update Port ....................10 Rear Panel ....................11 Keypad Connections................12-13 Keypad Diagnostics Menu ..............14-15 Keypad Firmware Update ..............16-17 Keypad Location ..................18-19 IR Receiver Connection ................20 Technical Specifications................21... -
Page 4: Front Panel
USER GUIDE UNO-S2 Keypad Front Panel... - Page 5 USER GUIDE UNO-S2 Keypad Front Panel LCD PANEL - 12-character backlit display shows status of the room, source, volume, and more SOURCE SELECT BUTTON - Scrolls through the sources directly connected to the CAV6.6/CAM6.6. Press and hold brings up the USER MENU for Loudness, Bass, Treble, etc.
-
Page 6: Operation
USER GUIDE UNO-S2 Keypad Operation MODE: “DND”- Do Not Disturb “SHARED”- Same source selected in multiple rooms “SYS ON”- Indicates system on “PARTY”- Party Mode enabled “MASTER”- Master Keypad in Party Mode 12-character display Volume Indicator Indicates the middle of setting range... -
Page 7: User Menu
USER GUIDE UNO-S2 Keypad User Menu Zone On/Off remains visible. Press and release to turn on the UNO Source Select Button System Keypad. This also turns on the cor- scrolls through the six A/V source responding CAV6.6/CAM6.6’s room, and inputs and the Aux source. To change... -
Page 8: Settings
USER GUIDE UNO-S2 Keypad User Menu UNO-S2 User Menu Next, press and hold the desired button until SAVED is dis- The User Menu allows the user to adjust played on the LCD panel. Now a press and the audio properties and control functions release of the button will recall the favorite of a particular room. - Page 9 USER GUIDE UNO-S2 Keypad Settings Feature and Setting: room. Any keypad in the system can become a Master Keypad (if enabled) but only one 1. BASS -10 < Bass:Flat > +10 Master Keypad may exist at a time in Party 2.
-
Page 10: Update Port
INSTALLER GUIDE UNO-S2 Keypad Update Port DATA RS-232 DATA RS-232 +12VDC SETUP BUTTON - Activates Installer Setup Mode for the UNO-S2 keypad OS UPDATE PORT - Port used for UNO keypad OS software updates... -
Page 11: Rear Panel
EXTERNAL IR RECEIVER IN CONNECTOR - Connection for external IR Receiver OS UPDATE JUMPER - Selects “Run” or “OS Update” mode RESET BUTTON - Reset whenever changing from RUN to OS update 110 PUNCHDOWN CONNECTOR - Termination for CAT-5 connection between the UNO-S2 Keypad and the CAV6.6/CAM6.6 controller... -
Page 12: Keypad Connections
INSTALLER GUIDE UNO-S2 Keypad Connections Punchdown Tool Jumper Setting (back of keypad) Punchdown Tool CAT-5 Connections (back of keypad) OS Update Port (front of keypad) -
Page 13: Keypad Connections
Jumper Setting not operate properly if the terminations The jumper settings on the back of the deviate from the required connection UNO-S2 Keypad can be set for “Run” and order. “OS Update.” The jumper setting must be Caution in the “Run” position before the keypad is... -
Page 14: Keypad Diagnostics Menu
INSTALLER GUIDE UNO-S2 Keypad Diagnostics Menu The Diagnostics Menu allows the the display. The menus are out- installer to run a diagnostic check lined in the diagram on the next on the keypad and to verify the page. firmware version. The Diagnostics... - Page 15 INSTALLER GUIDE UNO-S2 Keypad Diagnostics Menu Press and Hold Setup Button DIAGNOSTICS CONTROLLR PORT ID KEYPAD ID VERSION UPDATE FIRMW Displays Displays Displays Displays Hold Controller ID current firmware Port ID Keypad ID PLAY number number number version After update...
-
Page 16: Keypad Firmware Update
INSTALLER GUIDE UNO-S2 Keypad Firmware Update Note: When a firmware update is released, tem and the PC. Otherwise a ground it is available online at the Document loop may affect proper data transfer. Center on www.russound.com, in Technical Update Procedure: Documents under Multi-zone products. -
Page 17: Keypad Firmware Update
INSTALLER GUIDE UNO-S2 Keypad Firmware Update Then press and hold the “Play” key for on PC approximately 2 seconds until “Start Baud Rate: = 38400 Update” is displayed. Now the keypad Device: = XA-G49 is ready for update. Oscillator Freq. {MHz}: = 12.288... -
Page 18: Keypad Location
INSTALLER GUIDE UNO-S2 Keypad Location Plastic Double-Gang Electrical Box (36 ci) UNO-S2 Back Plate Screw Screw Screwless Cover Plate... -
Page 19: Keypad Location
INSTALLER GUIDE UNO-S2 Keypad Location Installation Location The best infrared remote performance is Route CAT-5 wire to the junction box from achieved with the keypad installed away the CAV6.6/CAM6.6. from any direct sunlight, plasma TV, and Use the supplied 110 punchdown tool low voltage lighting controls. -
Page 20: Ir Receiver Connection
CONNECT SHIELD SaphIR 860 Phantom. Use 2 twisted pair wire with one pair connecting GND (GROUND) and IR (SIGNAL) and the other pair connecting ST (STATUS) and V+ (+12VDC). Connect the shield or drain to ground at the UNO-S2 only. -
Page 21: Technical Specifications
TECHNICAL SPECIFICATIONS UNO-S2 Keypad Specifications Dimensions: 3.65"W x 1.125"D x 4.3"H (9.2 x 10.9 x 2.8 cm) Fits 2-Gang UL/CSA Approved Work Box Weight: 9 oz. (255 g) Power Requirements: 12 VDC 180mA CAT-5 Connection: 110 punchdown All trademarks are the property of their respective owners. -
Page 22: Warranty
The Russound UNO-S2 is fully guaranteed against all defects in materials and workman- ship for two (2) years from the date of purchase. During this period, Russound will replace any defective parts and correct any defect in workmanship without charge for either parts or labor. - Page 23 In these cases, repairs will be made on the basis or the retail value of the parts and labor. To return for repairs, the unit must be shipped to Russound at the owner's expense, along with a note explaining the nature of service required. Be sure to pack the unit in a corrugated container with at least three (3) inches of resilient material to protect the unit from damage in transit.
- Page 24 Russound 5 Forbes Road, Newmarket, NH 03857 tel 603.659.5170 • fax 603.659.5388 e-mail: tech@russound.com www.russound.com 28-1141 Rev. 4 11/30/05...
